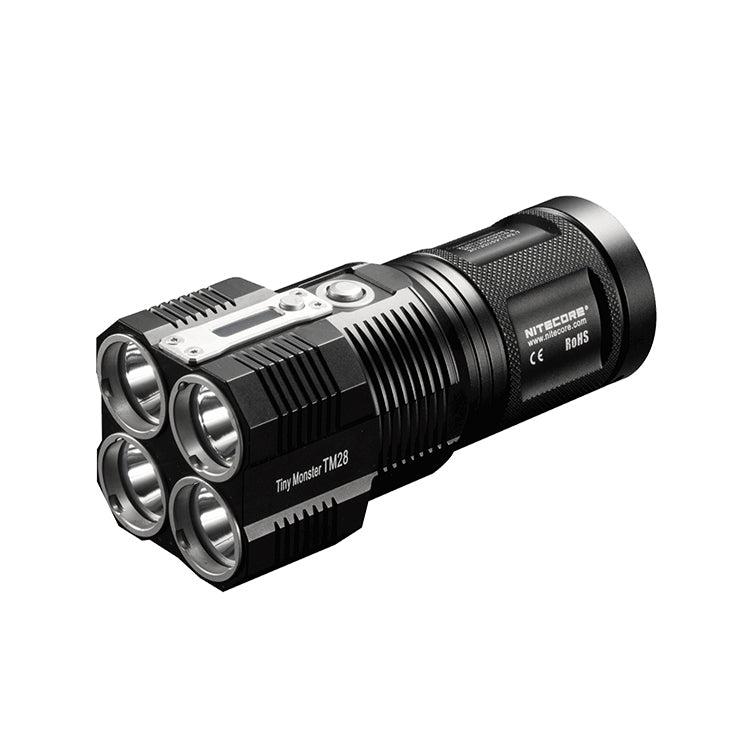

Nitecore TM28 Rechargeable LED Torch

The Nitecore TM28 is a compact rechargeable searchlight with a maximum output of 6000 lumens using four Cree XHP35 HI LEDs, which is absolutely amazing considering its size.

There are various battery options that the TM28 can utilise. The first is high drain 18650 IMR lithium-ion batteries (which are included with the torch) that are necessary for the torch to access it's full output of 6000 lumens. It is also compatible with regular protected 18650 lithium-ion batteries and even comes with an adaptor for use with 'flat top' 18650 batteries, making it compatible with most 18650 battery brands, however it will only produce a maximum output of 4500 lumens with this battery type. The NBP68 battery pack can also be used.

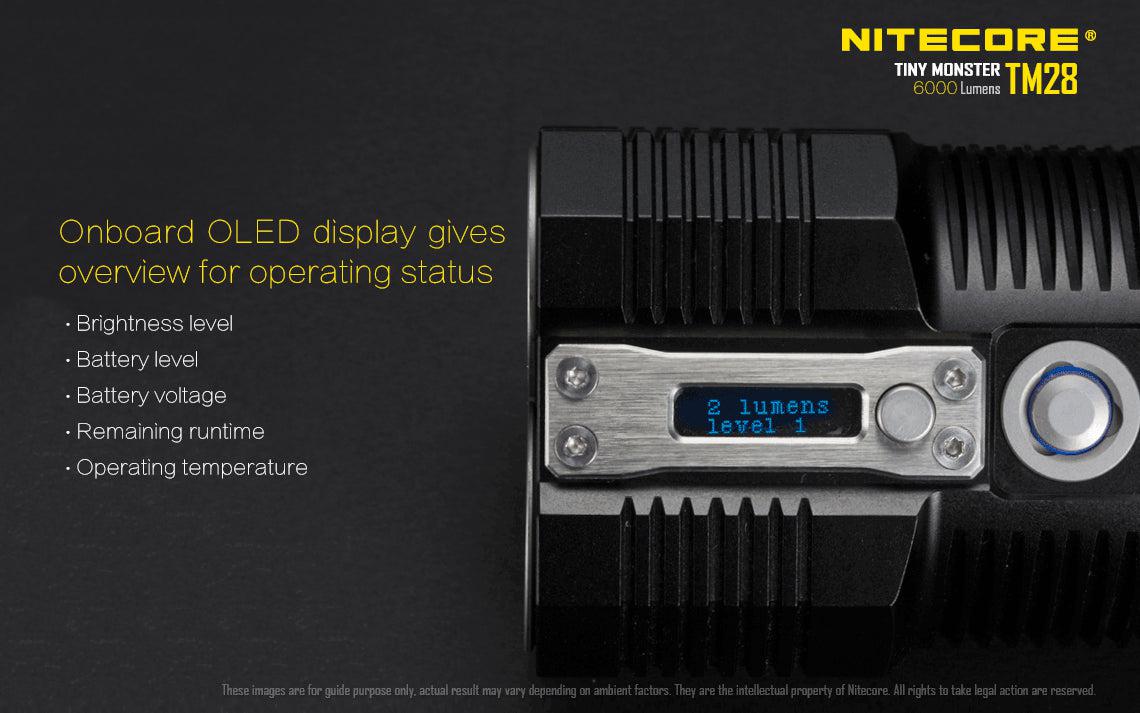

An integrated OLED display automatically activates when the torch is turned on and allows the user to quickly see the lumen output, brightness level, battery status, battery voltage, approximate run-time and even the temperature of the torch. After a few seconds the display will turn off, but it can be reactivated with the OLED display button and cycled through with subsequent presses.

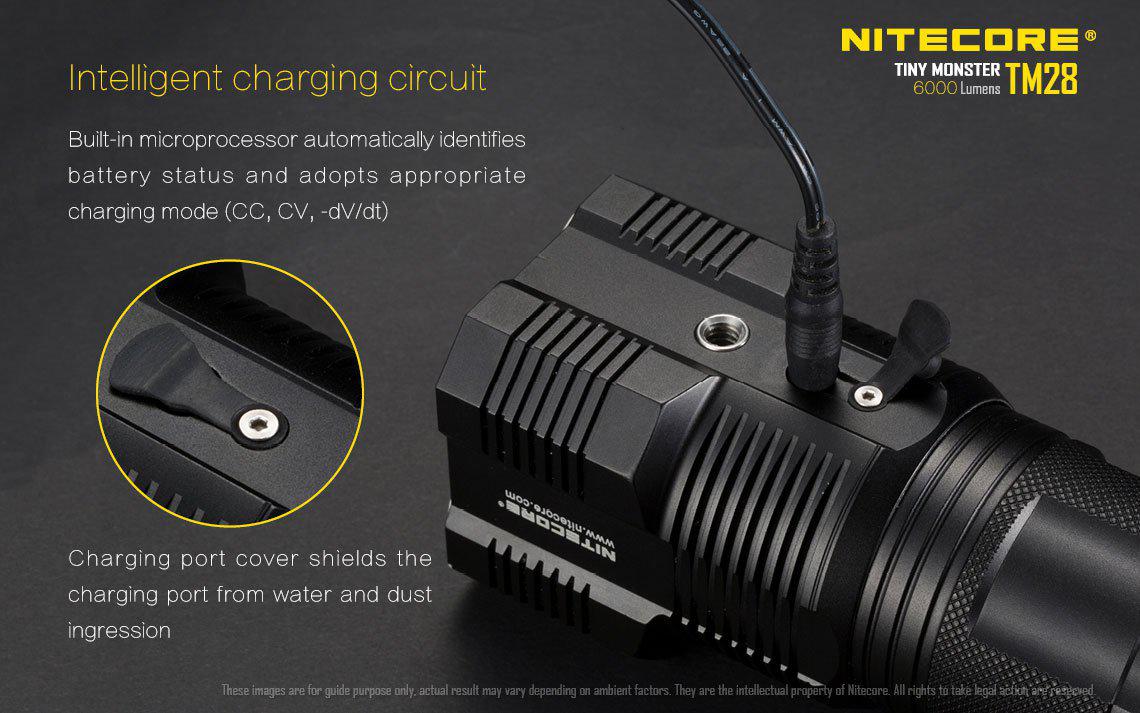

The TM28 features an intelligent charging circuit with status detection, that charges four 18650 IMR / 18650 lithium-ion batteries within the torch using the supplied UK mains adaptor. Simply remove the dust cover and plug the charger directly into the charging port. The OLED display will show the charging status and a 'chg.Finished' message once charging is complete.

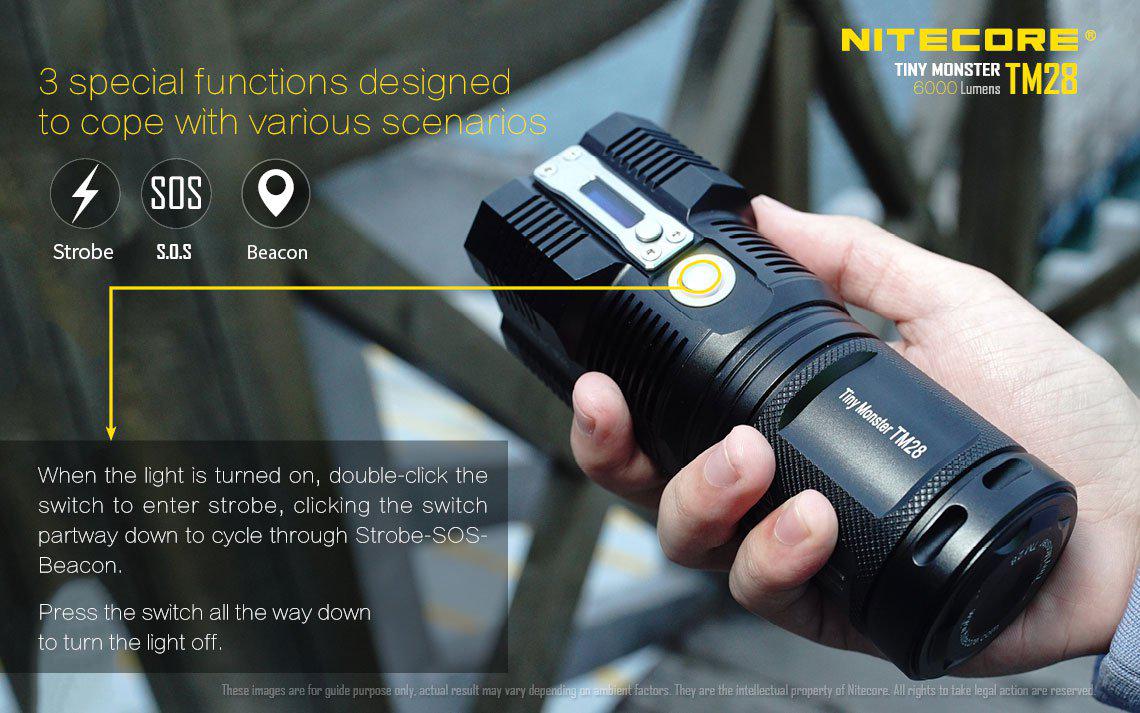

The patented single button two-stage switch design offers easy one handed operation and will access either daily mode or search mode depending on the depth the switch is pressed down. Three special modes are also available by quickly pressing the button twice while the torch is on and then half presses will cycle between strobe, SOS and beacon.

Pressing the switch partway down from off will enter daily mode. In this mode ultra-low, low, mid, high can be cycled through and the last used brightness will be remembered when the torch is turned off.

Search mode is accessed by fully pressing the switch down from off. In this mode only high and turbo are available with a partway press to switch between them and there is no last used memory function. Alternatively turbo can be accessed by pressing the switch fully down and holding, and then once released the light will turn off.

Extra features include a lockout function to prevent accidental activation, an on board tripod socket to securely attach the TM28 to a tripod and a flat tail cap so that the torch can be stood on it's end for use as a candle.

Note: Always read the operating instructions before first use.

Product Features

Lockout mode - press and hold switch for more than 1 second
Intelligent charging circuit with voltage detection charges safely and rapidly
Integrated power indicator light displays remaining battery power (patented)
Stainless steel bezel ring protects the core components from damage
Temperature regulation prevents overheating
Reflectors with PDOT incorporated

Operational Modes

Using 4 x 18650 3400 mAh lithium-ion batteries:
Turbo: 4500 lumens, 1 hour run-time*
High: 2300 lumens, 2 hours, 15 minutes run-time
Mid: 1000 lumens, 5 hours run-time
Low: 320 lumens, 14 hours, 30 minutes run-time
Ultra-low: 2 lumens, 1000 hours run-time

Using 4 x IMR18650 3100 mAh lithium-ion batteries:
Turbo: 6000 lumens, 45 minutes run-time*
High: 2300 lumens, 2 hours run-time
Mid: 1000 lumens, 4 hours, 30 minutes run-time
Low: 320 lumens, 11 hours, 15 minutes run-time
Ultra-low: 2 lumens, 1000 hours run-time

Test to ANSI/NEMA FL1 standards. The data may vary during real world use due to battery type, individual usage habits and environmental factors.

Note: *The TM28 has a thermal protection circuit that will automatically reduce the lumen output if the torch reaches 60°C, therefore this is an accumulated run-time. NEVER attempt to cool the torch by submerging it in water as this could result in irreparable water damage.

Technical Details

Type: Search and rescue LED torch
Operating Modes: Turbo / High / Mid / Low / Ultra-low / Strobe / SOS / Location
Luminous Flux: Up to 6000 lumens

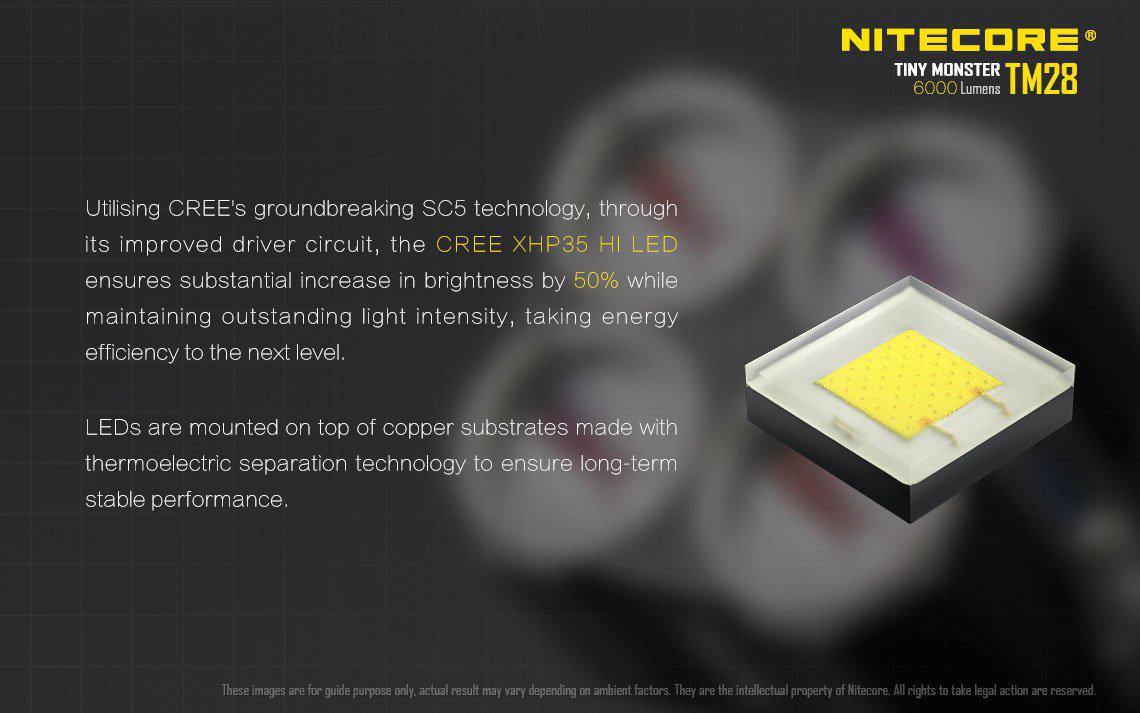

Lamp Type: Cree XHP35 HI LED x 4
Beam Range: 655 m
Batteries Required: 4 x 18650 lithium-ion / 4 x IMR 18650 lithium-ion (included)
Run Time: Up to 1000 hours (Ultra low setting)
Overall Length: 142 mm
Head Diameter: 56.6 mm
Barrel Diameter: 50 mm
Weight: 414 grams
Body Colour:: Black
Body Material: Constructed from aerospace grade aluminium alloy
Body Finish: HA III military grade hard anodised
Lens: Mineral optic lenses with anti-reflective coating
Switch Type: Side mounted push button
In-built Protection: Thermal protection circuit prevents overheating
Impact Resistance: 1 m
Environmental: Waterproof to IPX8 standard (2 m)
Warranty: 5 years

Packaging and Contents

Supplied in a retail box and includes:
Nitecore TM28 LED torch x 1
Spare O-ring x 1
Wrist lanyard x 1
Flat top battery adaptor x 1
Heavy duty belt holster x 1
UK mains charger x 1
Nitecore IMR18650 3100 mAh lithium-ion battery x 4
Manual x 1
