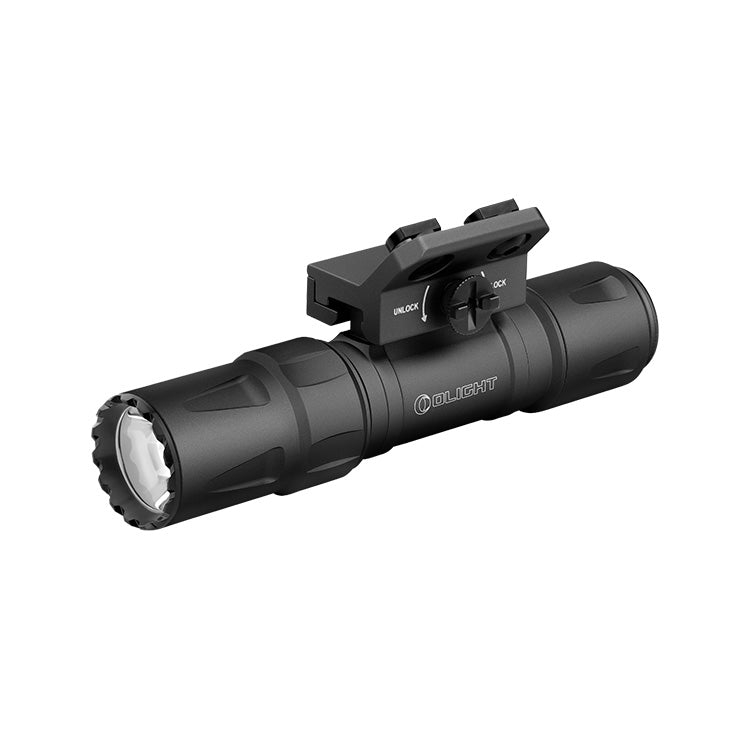

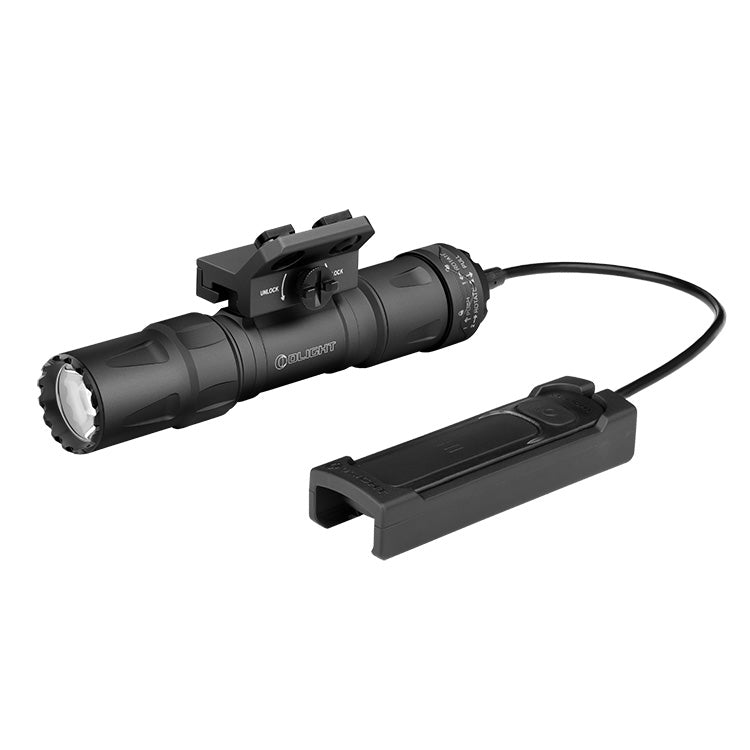

Olight Odin S M-LOK Rechargeable Weapon Mountable LED Torch

The Odin S M-LOK is a compact tactical light, offering Olights exquisite design with a clever mounting system combined with a metal silent switch, large capacity battery and magnetic charging.

Using a high performance cool white LED, the Odin has a maximum output of 1500 lumens on the high output, which after 3.5 minutes steps down to 650 lumens for 110 minutes, before dropping a final time to 300 lumens for 18 minutes.

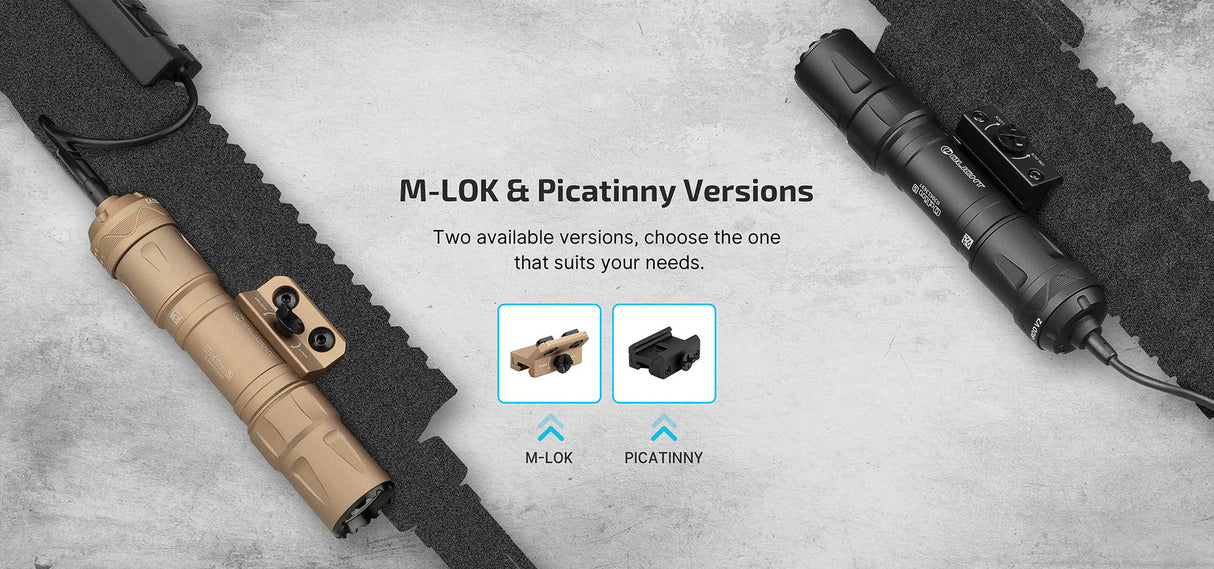

Professionally designed for M-LOK mounts, the Odin features an innovative removable slide rail mount with a mechanical lock for secure operation. To attach the mount, loosen the knob locking lever on the rail mount counter-clockwise until it stops. Adjust the width of the rail mount opening by pushing the knob locking lever. Do not push your fingers against the moveable rail mount on the opposite side of the knob locking lever. Place the T-mount on the product into the T-shape inside the rail mount. The two screws on the rail mount align with the slots on the products T-mount. Lastly lock the knob locking lever on the rail mount to make it ready for use.

To remove, loosen the knob locking lever on the rail mount and push it to adjust the width of the rail mount opening and remove the product.

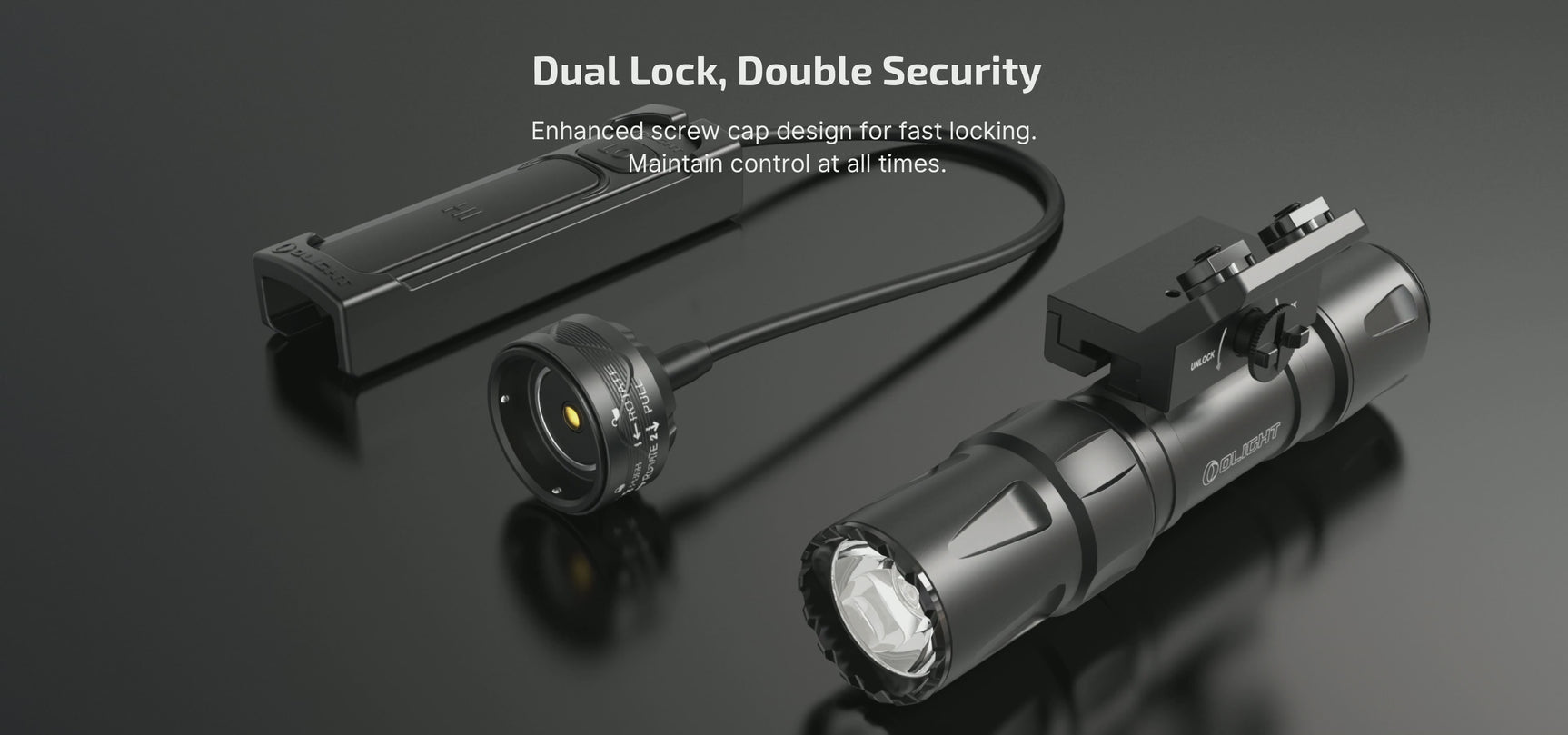

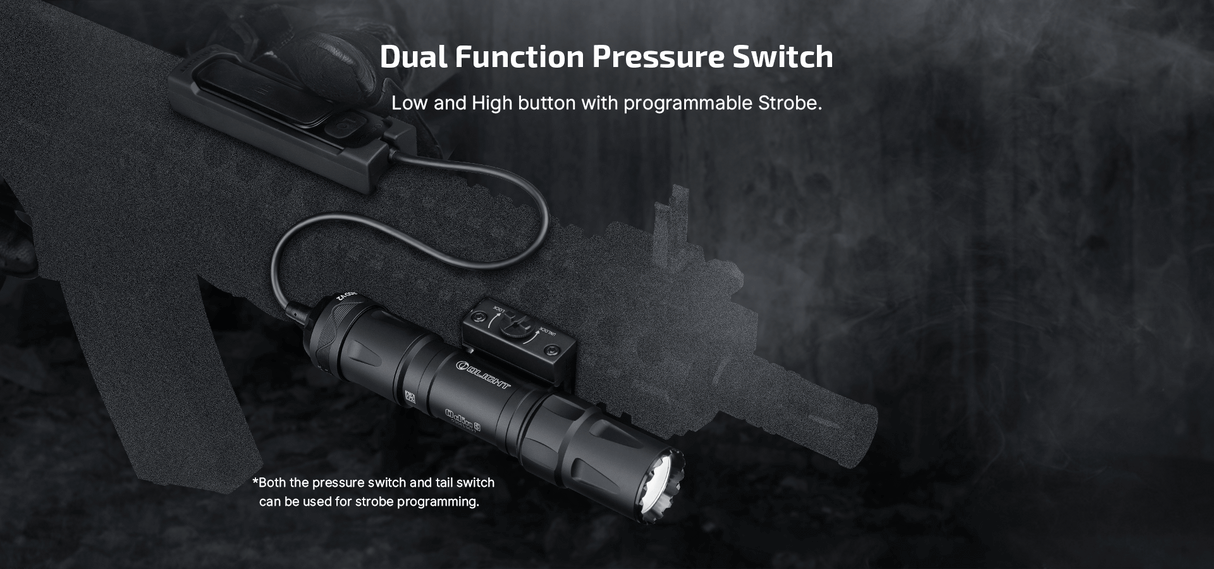

It connects to the included remote pressure switch magnetically, rather than having to unscrew the tail cap and replace it, which makes it much more efficient. Once the pressure switch is magnetically connected, the ring can then be pushed down to lock it to the torch for extra security. The pressure pad can also be mounted on the rail as it is set in it's own rail mountable holder. A quick press of the pressure switch will access constant on/off, while press and hold will access the momentary operation.

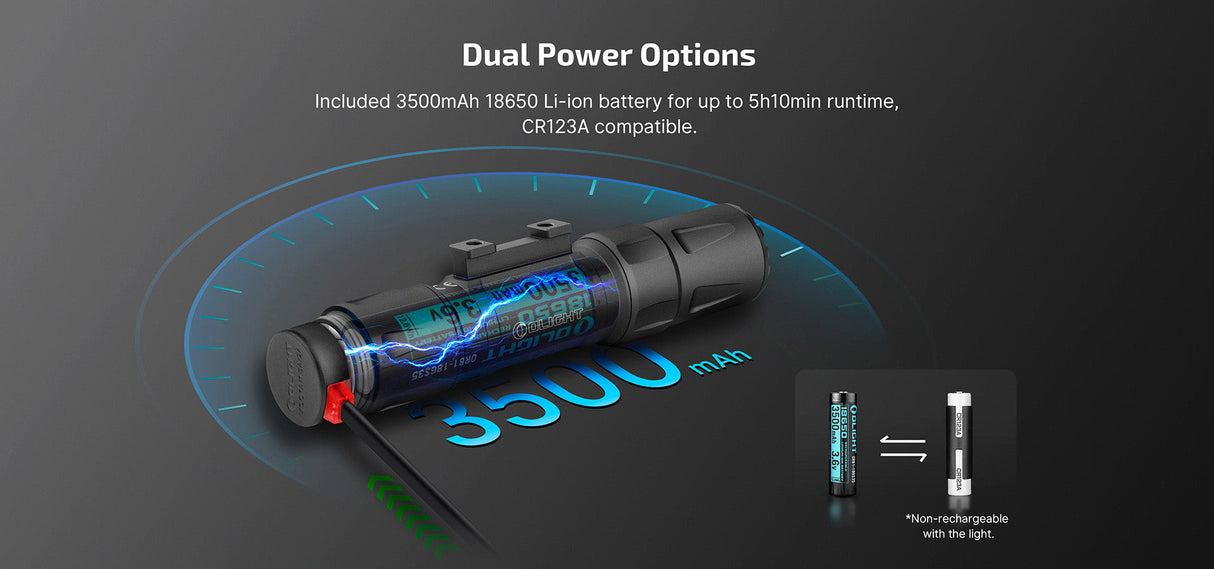

The included 18650 customised lithium-ion battery with a capacity of 3500 mAh is recharged inside the torch using the included MCC3 magnetic charging cable. This new design charging cable charges the battery faster all thanks to the 2 A output capability of the MMC3 cable.

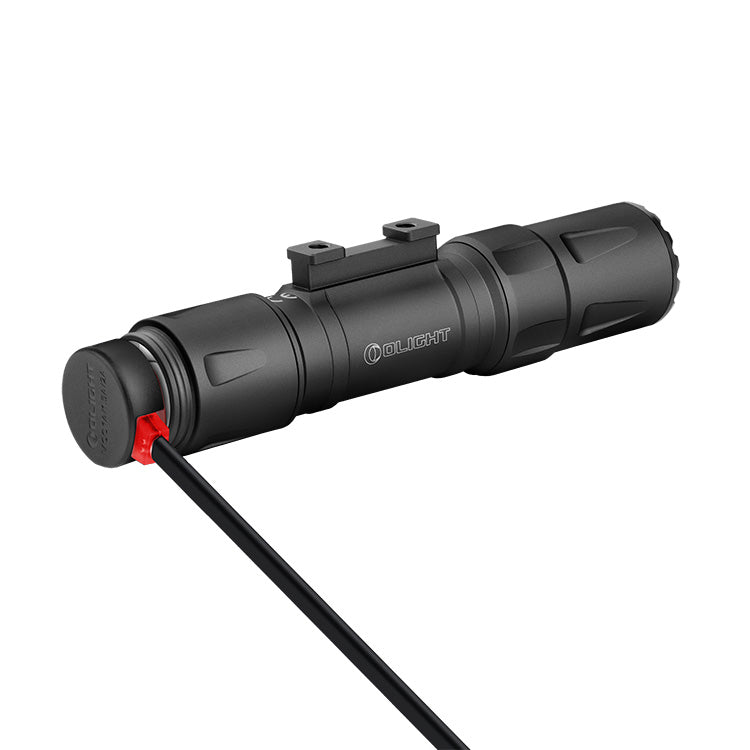

Simply connect the magnet to the base of the Odin and plug the USB end into a a suitable USB power source. The indicator light on the magnet will go red while charging is in progress and turn green once charging is complete after approximately 3 hours, 30 minutes.

The tactical tail switch provides strong magnetism and allows for easy operation while wearing gloves due to the raised button, but without compromising accidental activation thanks to the three raised struts that not only preventing it easily turning on but also allow for tail stand capability. The tail switch will access constant low with a quick half press, or momentary low with a half press and hold. Constant high is accessed with a quick deep press or momentary high is activated with a deep press and hold. Single press the button again to turn the torch off.

Strobe can be activated by double pressing the button. The strobe feature can be disabled by quickly pressing the switch five times, holding on the last press. To enable the strobe function repeat the process.

Small zip ties are included for cable management of the remote switch to ensure that the wire is secure and won't get in your way.

Product Features

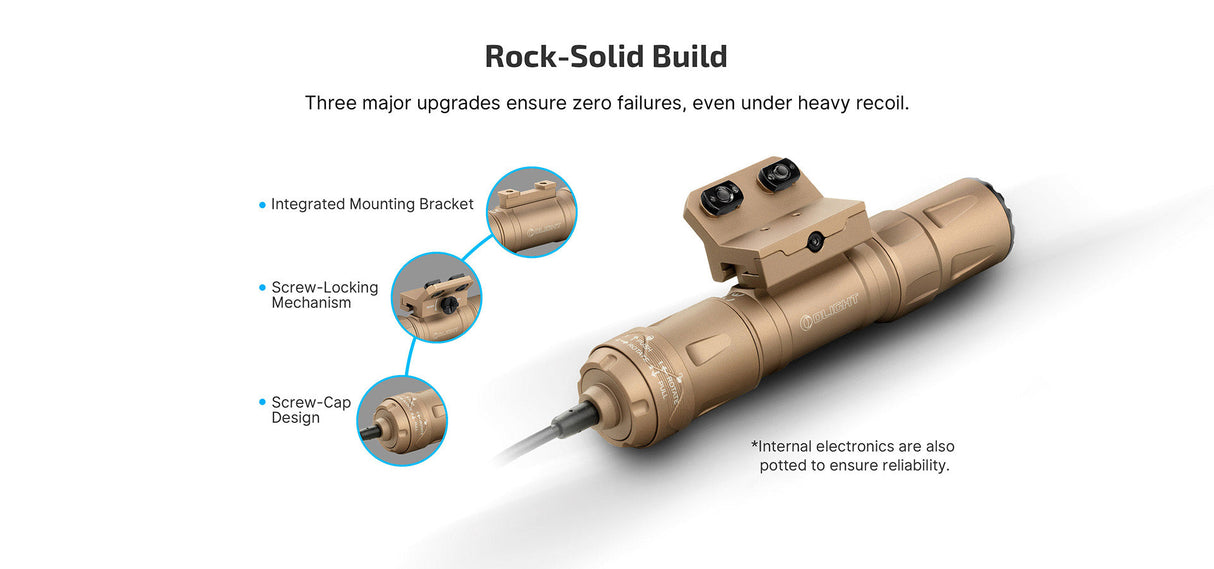

Heavy duty build
Metal tail switch that won't wear down like a rubber switch
Innovative picatinny mounting system
Magnetic remote pressure switch included
Magnetic tail cap charging

Operational Modes

High:
1500 lumens; 3.5 minutes run-time; 250 m beam range:
650 lumens; 110 minutes run-time
300 lumens; 18 minutes run-time

Low: 300 lumens; 5 hours, 10 minutes run-time; 110 m beam range

Tested using the included battery. Results may vary between torch, environment and usage.

Please note: *The high setting will continue to decrease under continuous use to protect the LED from overheating

Technical Details

Type: Tactical Weapon Light
Operating Modes: High / Low / Strobe
Luminous Flux: Up to 1500 lumens

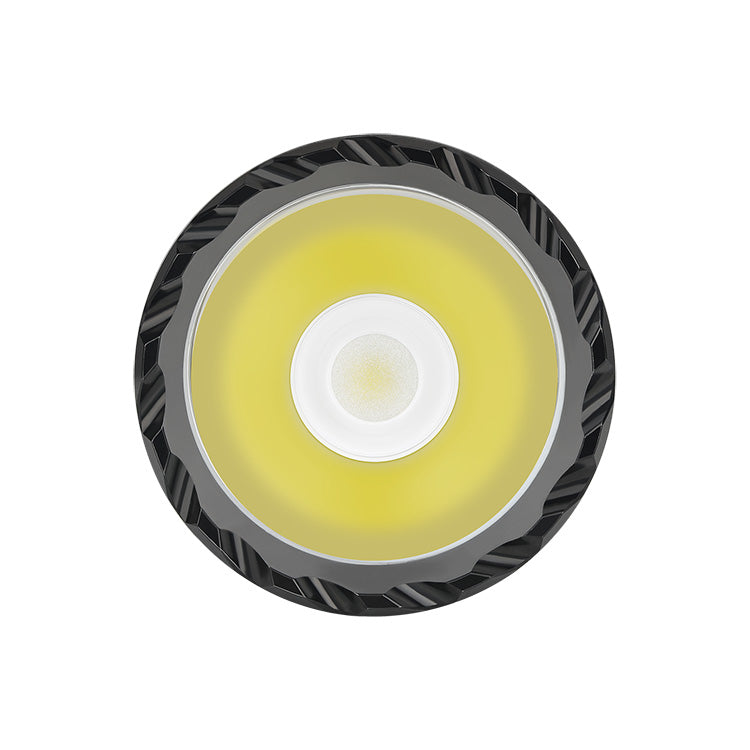

Lamp Type: High Performance Cool White LED
Beam Range: Up to 250 m
Batteries Required: Olight 18650 3500 mAh Li-ion (included)
Overall Length: 127.5 mm
Head Diameter: 29 mm
Weight: 193 grams
Body Colour: Black
Body Material: Aluminium alloy
Switch Type: Tail switch
Impact Resistance: 1.5 m

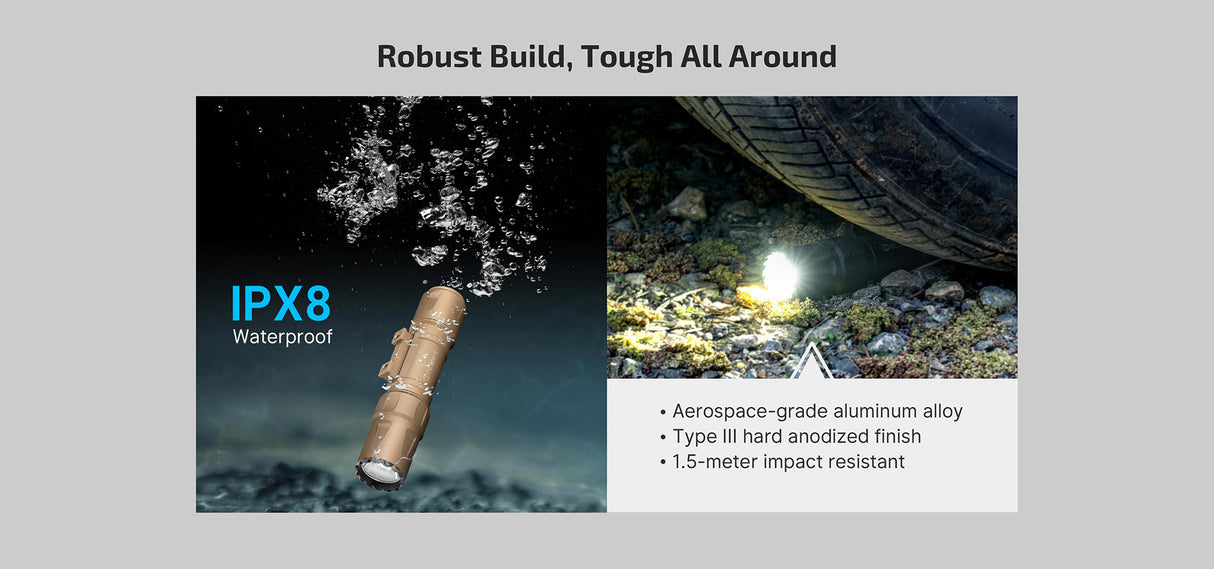

Environmental: IPX8
Warranty: 5 years (torch), 1 year (battery)

Packaging and Contents

Supplied in a retail packaging and includes:
Olight Odin S LED torch x 1
Olight 18650 3500 mAh lithium-ion battery x 1
MCC3 USB magnetic charging cable x 1
CR123A battery holder x 1
Pressure switch x 1
H2.5 wrench x 1
H3.0 wrench x 1
Rail mount x 1
Self-locking band x 1
Screws x 2
Nuts x 2
Manual x 1
