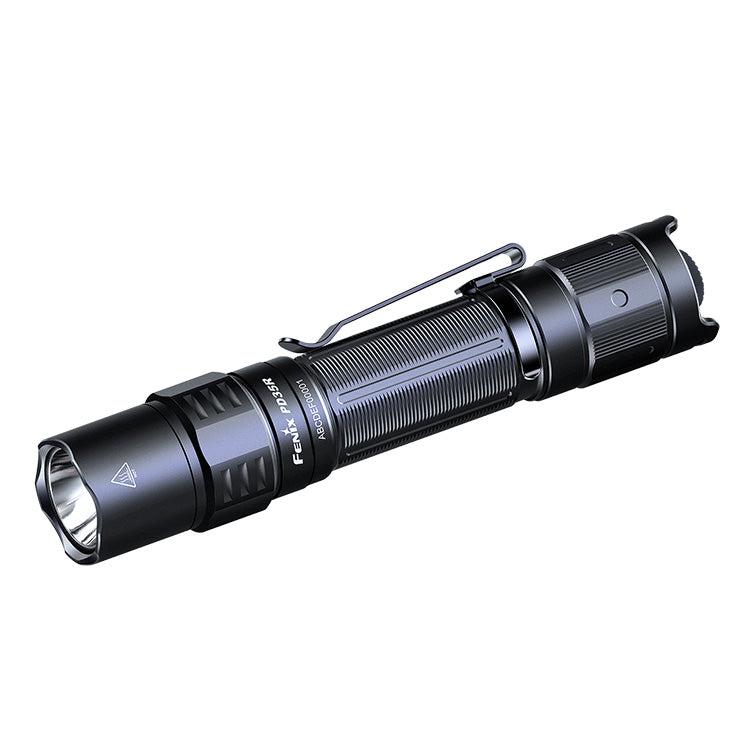

Fenix PD35R Rechargeable LED Torch

The PD35R is the rechargeable version of the super popular PD35, and offers different operation with the dual tail switch design, as well as the ability to charge the battery inside the torch via the USB-C charging cable.

Utilising a Luminus SFT40 LED it offers a maximum output of 1700 lumens on turbo and throws the beam up to 353 metres distance.

Featuring a dual tail switch system, the PD35R can access a choice of five brightness levels, plus strobe mode. The torch is turned on and off with the tactical tail switch (round button) by fully pressing it down, and it also offers a momentary function by half pressing the button (the light will turn off when the button is released). Once the torch is on, the auxiliary switch (oval button) will cycle through turbo, eco, low, mid, high with each press.

Strobe is activated by holding the auxiliary switch for 0.5 seconds when the torch is turned on and a single press will return the torch to the previous brightness setting. Strobe can also be momentarily accessed with the light off by holding down the auxiliary button, and the strobe will go off once the button is released. The last used brightness setting (excluding strobe) will be remembered next time the light is turned on.

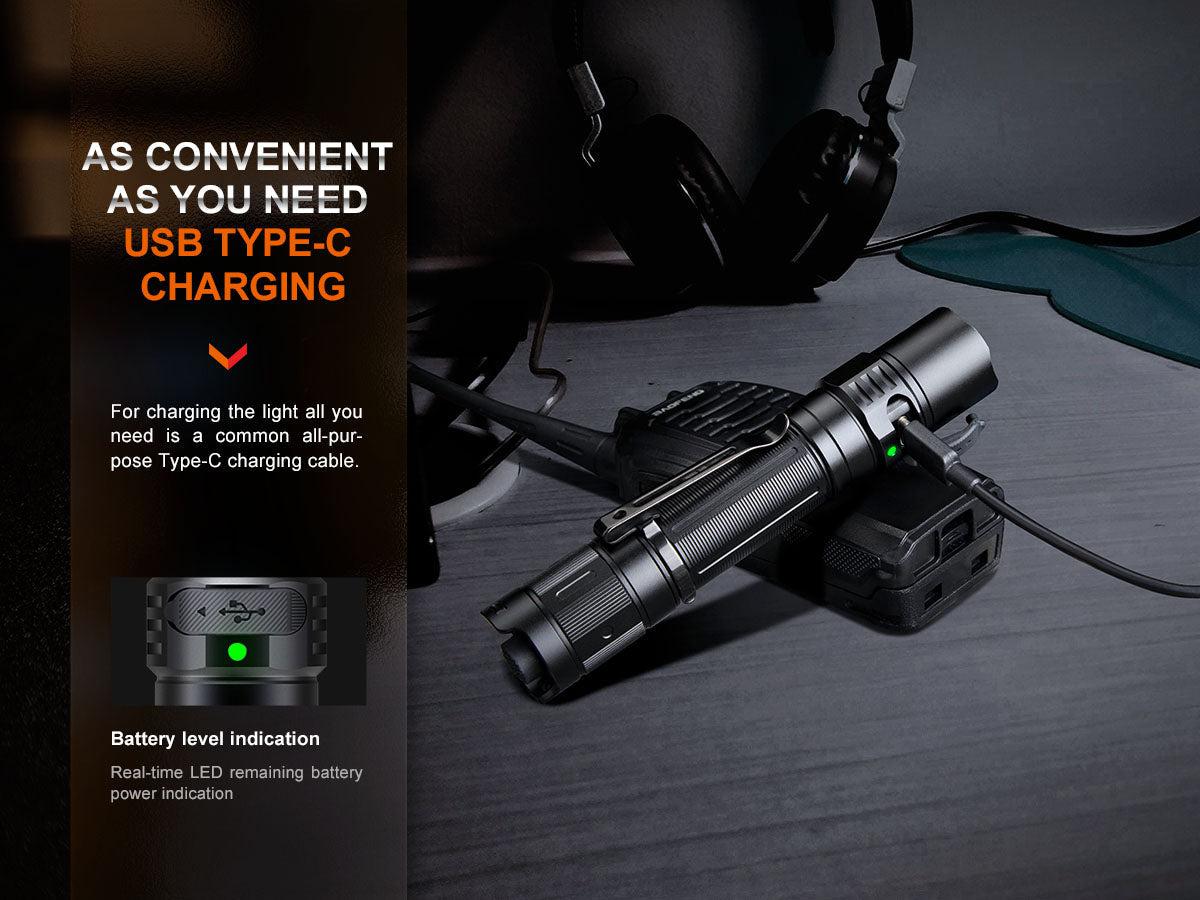

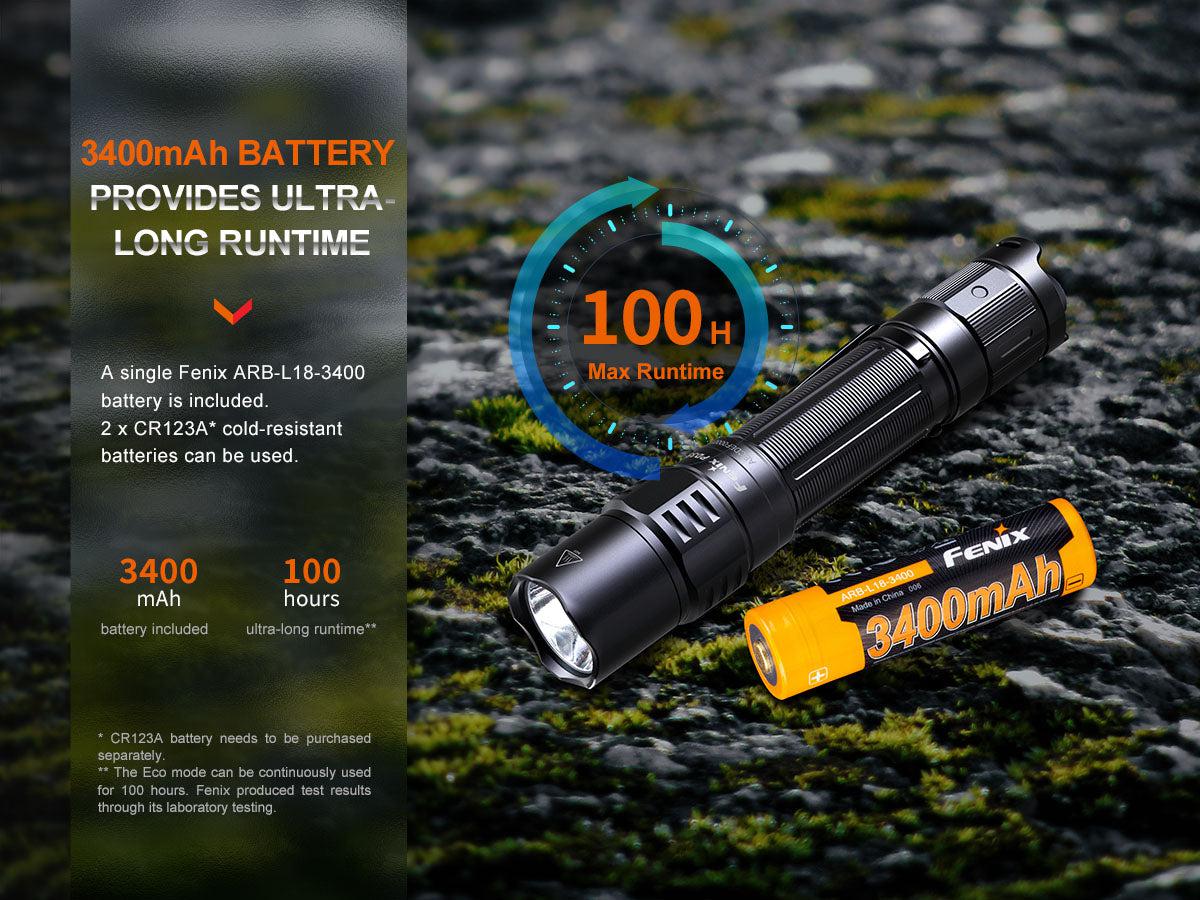

The included Fenix 18650 3400 mAh lithium-ion battery is charged inside the torch with the supplied USB-C cable. Remove the dust cover from the USB port, located on the neck of the torch, and plug the cable into the torch one end and the other end into a suitable USB adaptor. An LED indicator below the port will go red to indicate charging is in progress and will turn green once charging is complete after approximately 3 hours when charging the included battery. Always replace the dust cover after charging to maintain the dust ingress protection.

A built-in battery indicator is located next to the charging port, which displays the battery status for 3 seconds every time the torch is turned on when using the included battery. A solid green light indicates saturated, flashing green is sufficient, solid red is poor and flashing red is critical. The battery indicator also acts as a low voltage warning light while the torch is in use when using the included battery.

The overheat protection will automatically reduce the turbo or high lumen output if the temperature of the torch reaches 60°C or above in order to protect the LED from overheating. This will last until the torch drops below 60°C after which the turbo and high modes will be selectable again. When using the included battery, if the battery voltage drops below 3 V the torch is programmed to downshift to a lower brightness level until eco output is reached, at which point the light will flash 3 times every 5 minutes to remind you to charge the battery.

The clip allows easy attachment to a pocket, clothing or backpack and the included holster and lanyard make carrying the PD35R easy.

Product Features

Low voltage warning & overheat protection
Boot up battery status indicator
Intelligent memory function
Tactical and function tail switch
USB-C fast charging

Operational Modes

Eco: 10 lumens, 100 hours run-time; 26 m beam range
Low: 50 lumens, 38 hours run-time; 60 m beam range
Mid: 350 lumens, 4 hours, 45 minutes run-time; 163 m beam range
High: 1000 lumens, 2 hours, 55 minutes run-time; 278 m beam range
Turbo: 1700 lumens, 2 hours, 15 minutes run-time; 353 m beam range*
Strobe: 1700 lumens

Note: *The turbo mode is measured at total run-time including any reduced output levels due to the temperature regulation design.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix 3400 mAh 18650 lithium-ion USB rechargeable battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.

Technical Details

Type: Hand held rechargeable LED torch
Operating Modes: Eco / Low / Mid / High / Turbo / Strobe
Luminous Flux: Up to 1700 lumens
Lamp Type: Luminus SFT40 LED
Beam Range: Up to 353 m
Batteries Required: 1 x 18650 lithium-ion rechargeable (included)
Overall Length: 136 mm
Head Diameter: 25.4 mm
Body Diameter: 23.2 mm
Weight: 140 grams (including battery)
Body Colour: Black
Body Material: High strength and oxidation resistant aluminium
Body Finish: Premium type III hard anodised anti-abrasive finish
Switch Type: Dual tail switch
Impact Resistance: 1 m
Environmental: Waterproof and dust resistant to IP68 Standard (2 m)
Warranty: 5 years (torch) / 1 year (battery)

Packaging and Contents

Supplied in retail packaging and includes:
Fenix PD35R LED torch x 1
Fenix 18650 3400 mAh lithium-ion battery x 1
USB-C to USB-A charging cable x 1
Durable nylon holster x 1
Lanyard x 1
Spare O-ring x 1
Manual x 1
