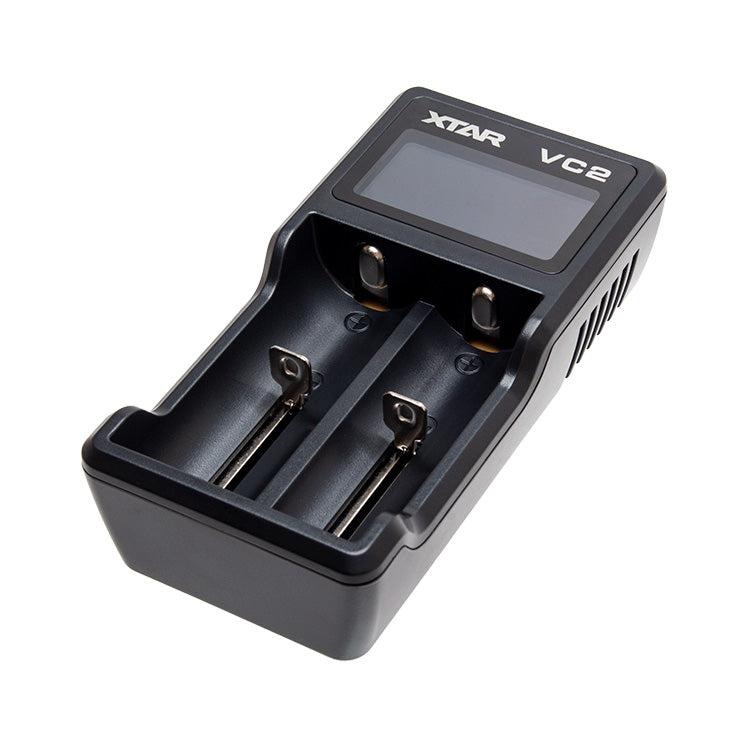

Xtar VC2 Dual Bay Lithium-ion Battery Charger

The Xtar VC2 is a lithium-ion battery charger with two charging bays.

The VC2 is suitable for charging the following batteries 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 20700 & 21700 (without protection board only), 22650, 25500, 26650 lithium-ion type batteries. For charging 3.6 V or 3.7 V lithium-ion batteries only.

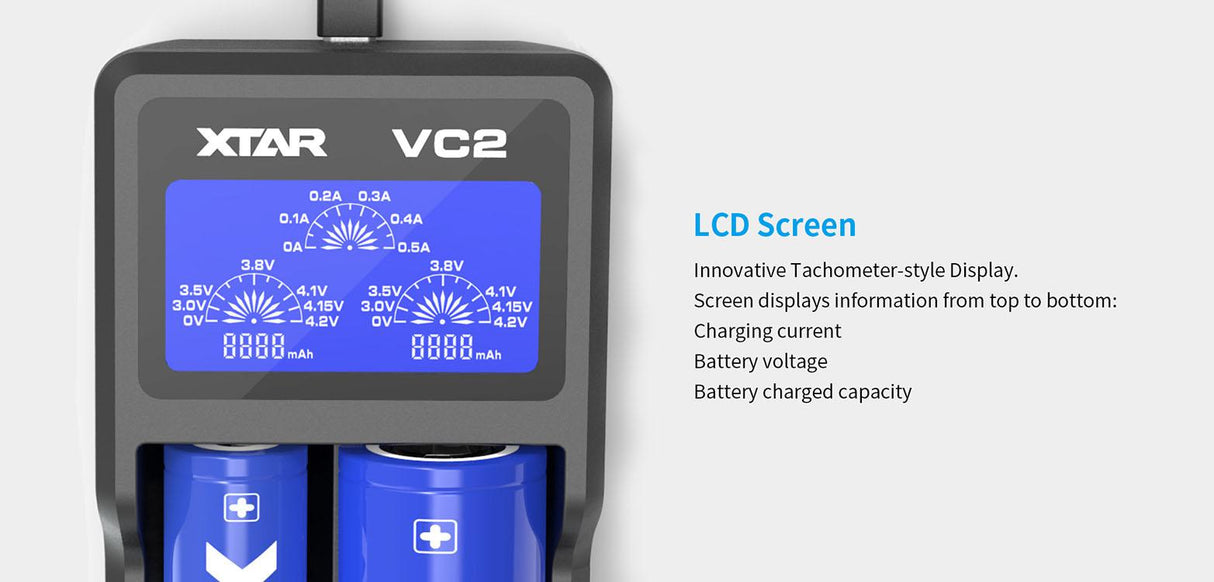

The LCD screen displays charging current, battery voltage and charging capacity. The charger will intelligently identify the power input and automatically adjust the charging current to the suitable mode.

If you need a mains charger adaptor, please see above (underneath the add to basket button).

Note: Always use in accordance with instruction manual and read before first use.

Product Features

Three-modes ( TC.CC.CV ) charging system
Reverse polarity and short circuit protection

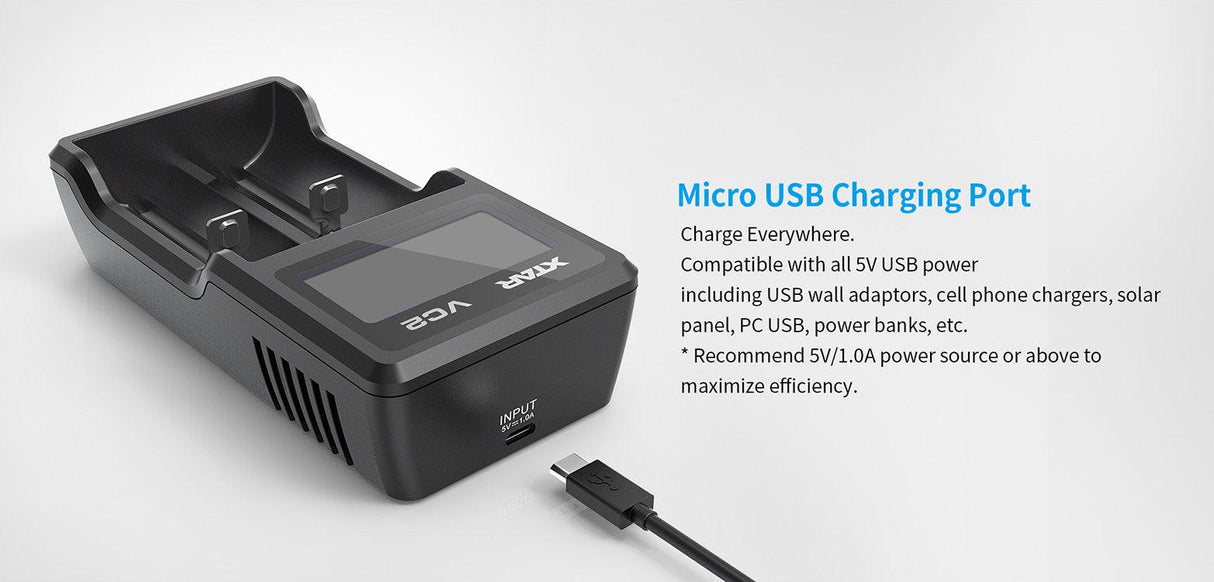

Micro USB port to supply power for the charger

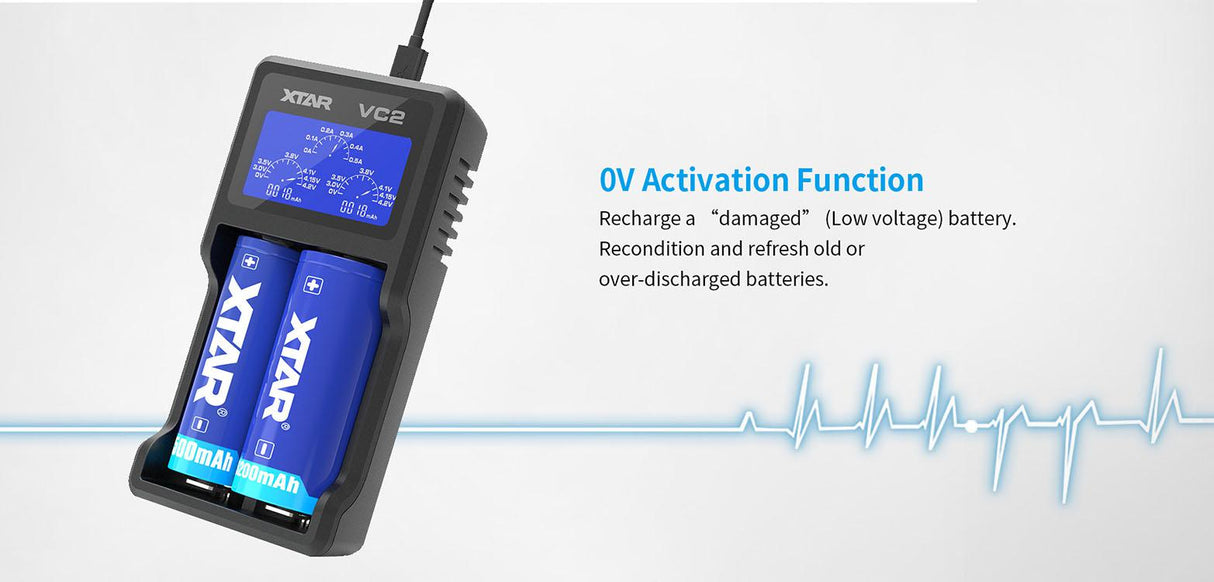

0 V activation function to revive over-discharged batteries
Independent charging bays
Soft start charging

Operation Temperature: 0 to 40℃
IC Temperature Monitoring
Input Voltage: 5 V dc @ 1000 mA
Constant Charge Current: 500 mA (per bay)
Cut-off Voltage: 4.2 V

Supplied in retail packaging and includes:
VC2 dual bay charger x 1
USB charge cable x 1
Instruction manual x 1

Safety Notes

1. Charge only rechargeable 3.6/3.7 V lithium-ion batteries.
2. Charging any other types of batteries may cause them to leak rupture or explode.
3. Do not disassemble or modify any part of the charger or use as a power source.
4. Always unplug the charger from outlet before attempting maintenance or cleaning.
5. This charger should not be used by persons without adequate training or knowledge.
