Home Torches Handheld Torches Tank007 Ultraviolet TK566 LED AA Torch (365 nm)
Tank007  |  SKU: UV365

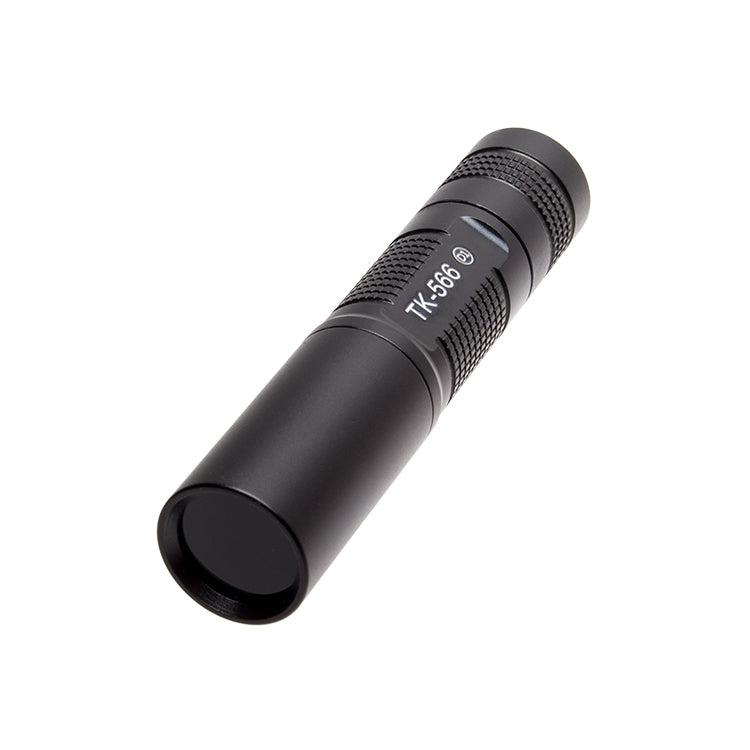

Tank007 Ultraviolet TK566 LED AA Torch (365 nm)

£37.98 £44.94

This Tank007 TK566 Ultraviolet torch is a superbly engineered compact tool that delivers UV light with a wavelength of 365 nm and has now been updated to a 3 W Korean LED.

The torch now features two levels of high and low, with the high operating at a 3 W output and the low operating at a 1 w output. The two levels are changed between by half pressing the tail switch with the light on.

A vacuum coated aluminium reflector provides a uniform beam with no black spot in the middle, while the clear lens has been updated to a black filter that absorbs 99% of visible light but provides high transmission in the UV wavelength of light that is designed to target the 365 nm wavelength this torch provides.

Constructed of tough aluminium it is designed to give a reliable and long service life.

Uses Include

Bank note inspection, best wavelength for UK bank notes
ID and document Verification, such as passports and driving license
Fluorescent agent detection, such as UV inks
Insect illumination, such as scorpions
Jewellery and antique appraisal and forgery detection
Detects jewellery and antique repairs
Art work conservation and preservation
Curing of certain inks and glue
Forensic marking (Smart Water and SelectaDNA)
Detection of leaks in air conditioning and car circulatory systems

Technical Details

Type: Hand Held UV Torch
Operating Modes: High (3 W )/ Low (1 W)
LED Life: 20,000 hours
Lamp Type: 3 Watt Korean UV LED
Wavelength: 365 nm UV-A
Batteries Required: 1 x AA alkaline battery (not included)
Run Time: Up to 1 hour, 18 minutes on high
Overall Length: 97 mm
Body Diameter: 21 mm
Weight: 47.8 grams (excluding battery)
Body Colour: Black
Body Material: Aircraft grade T6061 aluminium
Lens: Tempering optical lens
Switch Type: Tail cap push button
Impact Resistance: 1.5 m
Environmental: Waterproof to IPX8 standard
Warranty: 1 year

Packaging and Contents

Supplied in a retail box and includes:
Tank007 TK566 3 Watt, 365 nm UV LED torch x 1
Wrist lanyard x 1

Customer Reviews

Based on 40 reviews
90%
(36)
10%
(4)
0%
(0)
0%
(0)
0%
(0)
M
Michael C.
Bright and dark

Good little torch, no background spill into visible so only see emission, powerful enough to see banknotes nicely and some fungi

S
Stephen E.
Good, but not powerful enough for outdoors

No complaints with the service or product quality at all, just too feeble to be good fun, If you want to play around outdoors I suggest you go for a wider beam much more powerful multi-led torch.To be fair outdoors was not one of its described uses, so my fault really.

Hi Stephen, Thanks for your feedback it is appreciated. With this being a UV torch it does not throw out much visible light due to the wavelength of the light emitted. The UV aspect of the torch is useful for many applications where a UV light at 365 nm is a requirement.

K
Keith R.
Suitable for lichen identification

Got this one as those lichen that fluoresce only do so at the shorter wavelength. Works as expected and is robust. Delivery etc were fine.
