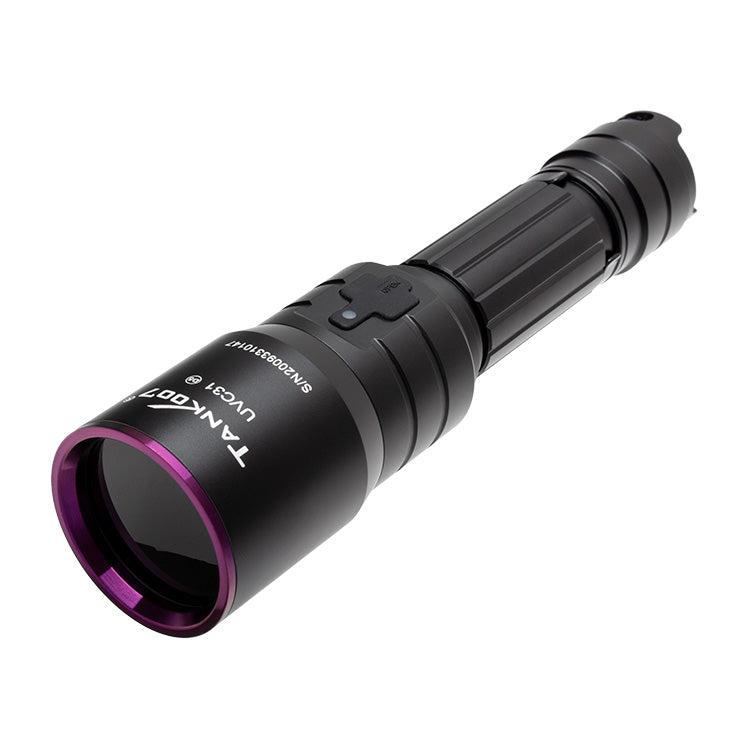

Tank007 UVC31 Ultraviolet Rechargeable LED Torch Kit (365 nm)

The Tank007 UVC31 is a powerful ultraviolet torch that delivers UV light with a wavelength of 365 nm from a Nichia 6 W UV LED, and features a stylish purple bezel to easily identify your UV torch from your regular torch. This torch is best suited to uses such as forensic detection of bodily fluids, pet stains and in techniques used for identifying mechanical leaks.

This torch provides a beam pattern that comprises of a focused central hotspot surrounded by wider circumference of spill light. The central beam diameter is 5 cm and the outer beam diameter is 15 cm when at a distance of 15 cm, 12 cm and 34 cm respectively when at a distance of 38 cm.

The torch turns on and off with the rubberised tail cap for easy one handed operation. A black filter absorbs 99% of visible light but provides high transmission in the UV wavelength of light that is designed to target the 365 nm wavelength this torch provides, and UV400 100% protection glasses are included to protect your eyes, and also help filter out the purple light to illuminate fluorescent objects more easily.

Included is a Tank007 18650 2600 mAh lithium-ion battery which charges inside the torch via the USB-C charging port for faster charging. With the torch off, remove the dust cover from the USB-C port located on the neck of the torch, and plug the included cable into the torch one end and the other end into a USB power source.

The LED charging indicator next to the port will go red to indicate charging is in progress and will turn green once charging is complete. Once the charging cable has been removed, remember to insert the dust cover properly and check the tail cap is tight to ensure the IPX7 rating is maintained.

Constructed of tough T6061 aluminium it is drop resistant up to 1.5 metres and is waterproof to IPX7 rating.

Note: Use of the included glasses is required with this UV torch as the power output is stronger than other models. The UV intensity output is 72000 μw/cm2 at 15 cm distance and 30000 μw/cm2 at 38 cm distance.

Uses Include

Fluorescent agent detection, such as UV inks & dyes
Detection of engine coolant leakage
Jewellery and antique appraisal and forgery detection
Detects jewellery and antique repairs
Art work conservation and preservation
Curing of certain inks and glue
Pet urine and pest stains

Technical Details

Type: Hand Held UV Torch
Operating Modes: On / Off
Lamp Type: UV LED
Wavelength: 365 nm
UV Power: 72000 μw/cm2 at 15 cm / 30000 μw/cm2 at 38 cm
Batteries Required: 1 x 18650 lithium-ion battery (included)
Run Time: 3 hours
Overall Length: 159 mm
Body Diameter: 26 mm
Head Diameter: 40 mm
Weight: 194 grams (excluding battery)
Body Colour: Black
Body Material: Aircraft grade T6061 aluminium
Switch Type: Tail cap push button
Impact Resistance: 1.5 m
Environmental: Waterproof to IPX7 standard
Warranty: 1 year

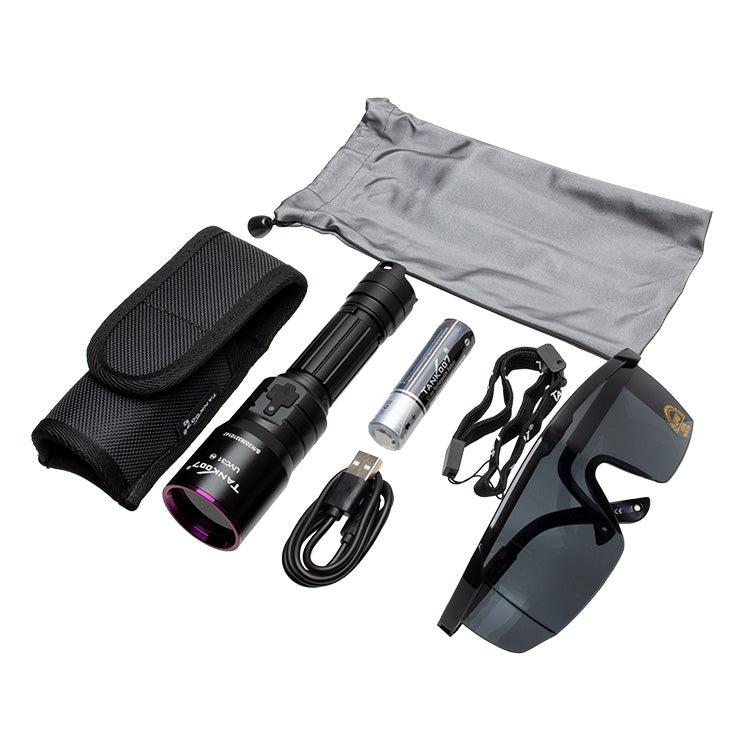

Packaging and Contents

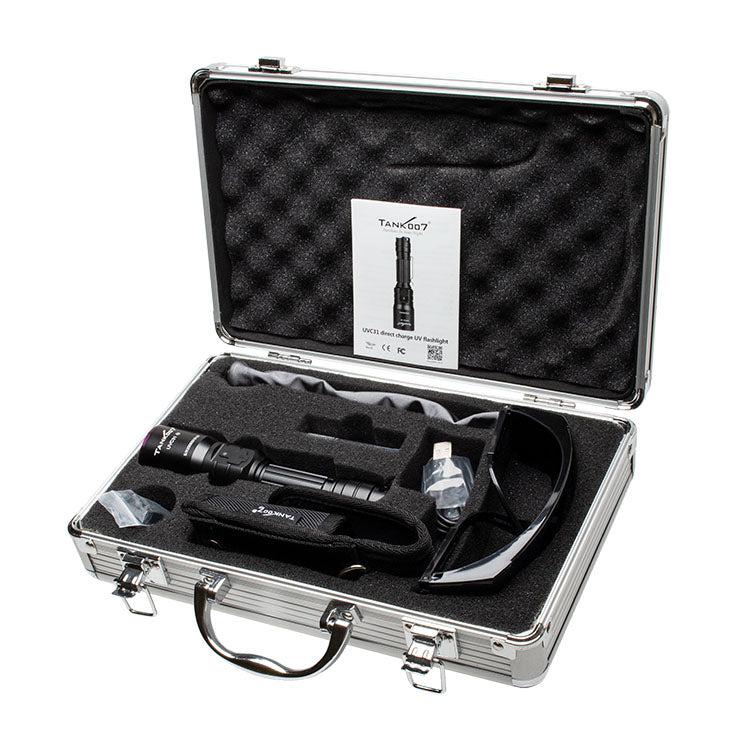

Supplied in a retail box and includes:
Tank007 UVC31 365 nm UV LED torch x 1
Tank007 18650 2600 mAh lithium-ion battery x 1
UV400 100% UV protection glasses x 1
USB-A to USB-C charging cable x 1
Nylon torch holster x 1
Pull string glasses pouch x 1
Wrist lanyard x 1
Manual x 1
