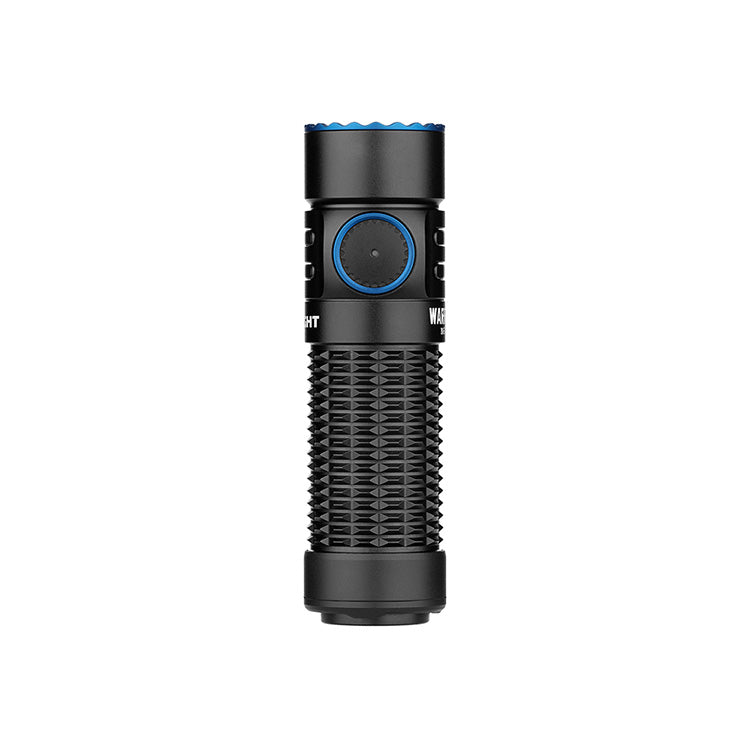

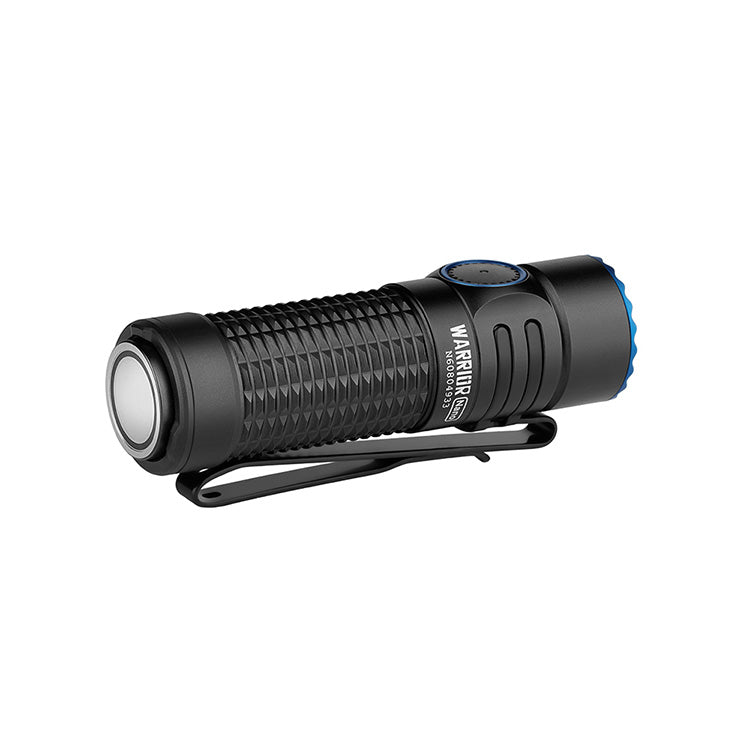

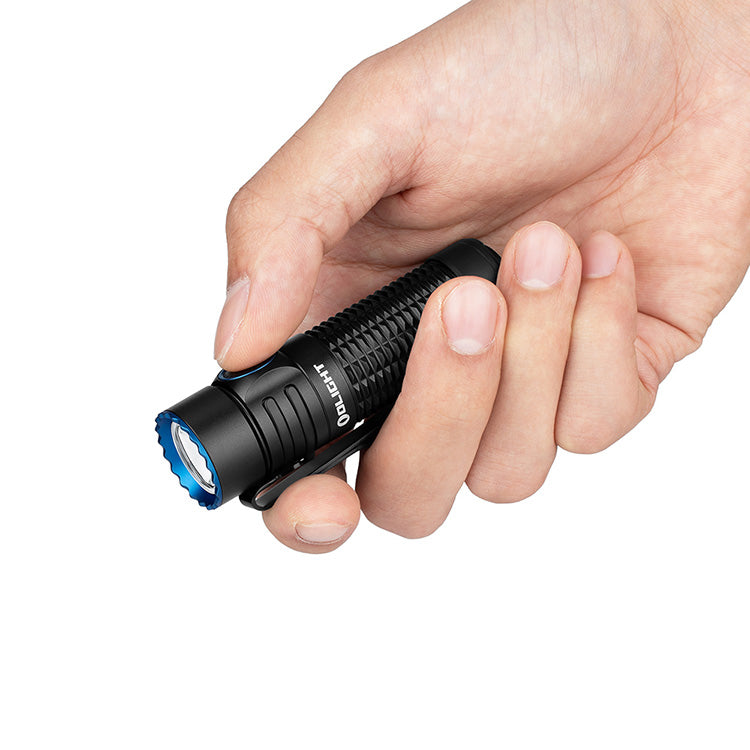

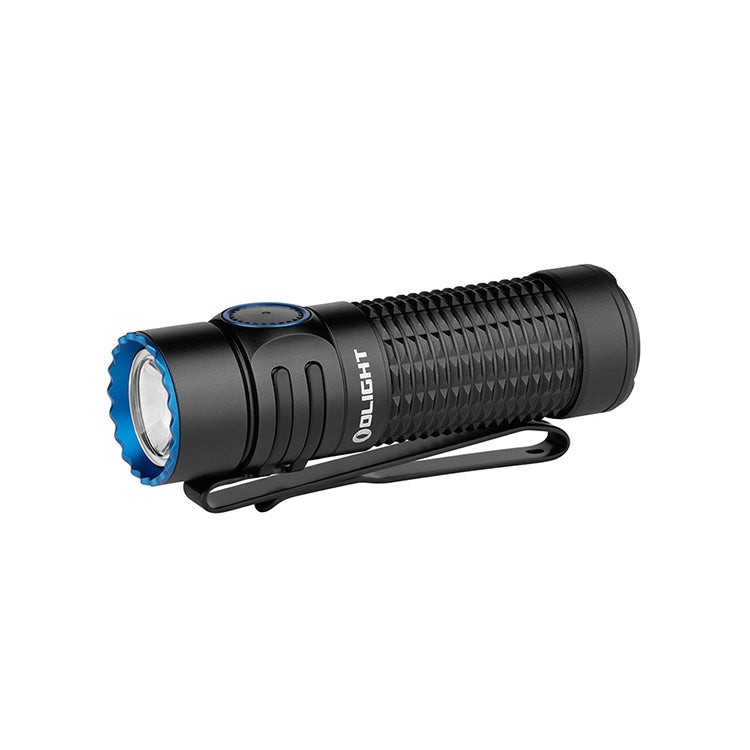

Olight Warrior Nano Rechargeable LED Torch

The Olight Warrior Nano is the latest pocket sized addition to the Warrior series, featuring an output of up to 1200 lumens and a half-turbo setting making it the perfect everyday carry torch.

Utilising a TIR optic lens, the Warrior Nano provides high light quality with a smooth and balanced beam profile.

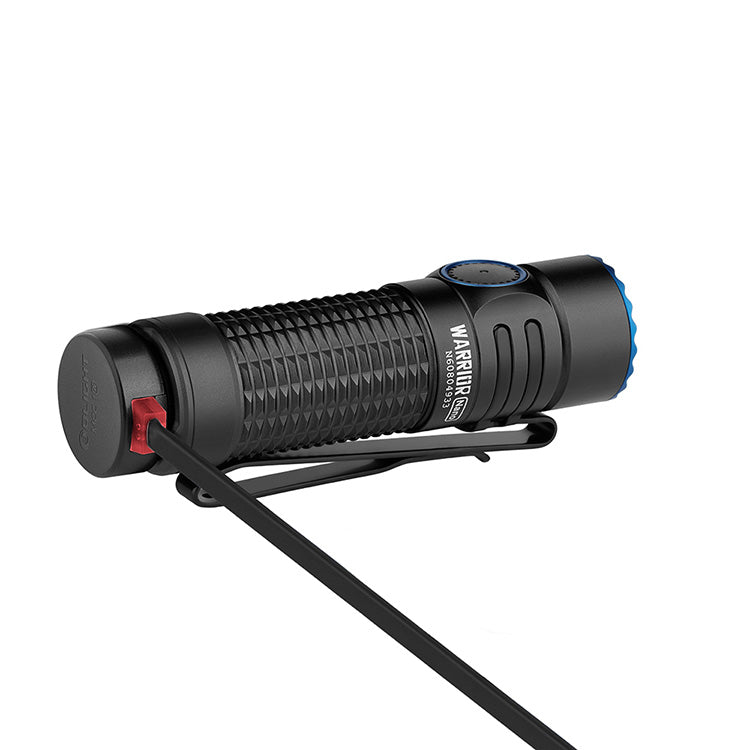

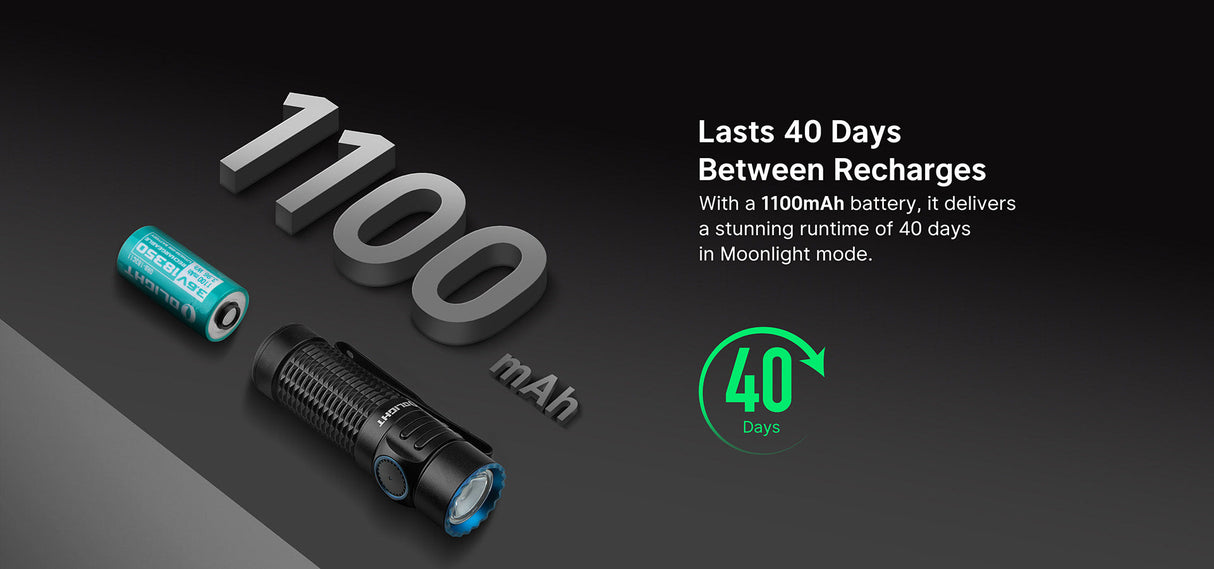

The included Olight 18350 1100 mAh lithium-ion battery is specially designed and only this battery can be charged within the torch. The battery is recharged inside the torch using the included MCC-1A magnetic charging cable.

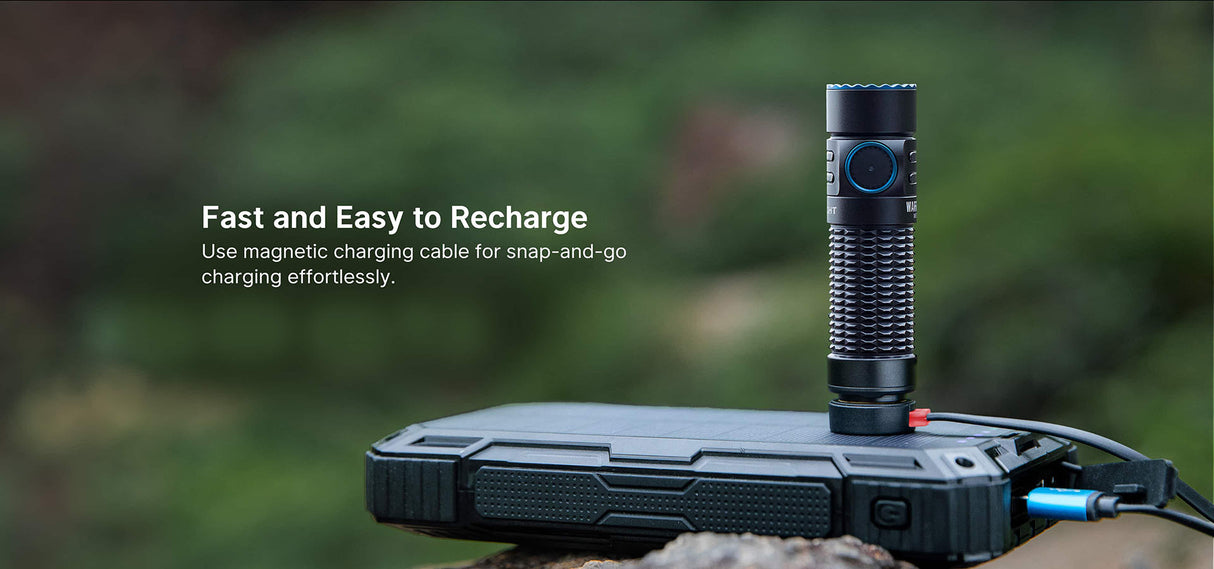

Simply connect the magnet to the base of the torch and plug the USB end into suitable USB power source. The light on the cable will go red to show charging is in progress and turn green once charging is complete.

Featuring six brightness levels and strobe, the torch is turned on and off with a single press of the side mounted push button. Select the brightness level with the torch turned on, by holding the switch to cycle through low, mid and high, releasing on the desired output. The moonlight mode of 0.5 lumens can be accessed directly when the torch is off by pressing and holding down the switch. Thanks to the memory function the Warrior Nano will memorise the last used used output, excluding the turbo and strobe outputs.

Quickly double pressing the side switch will enter and exit turbo mode, while three quick presses with the light on will activate the strobe mode. The memory function will remember the last mode used for moonlight, low, mid and high.

The redesigned tactical tail switch is now created using Nano Moulding Technology for easy maintenance and provides stronger magnetism. The tactical tail switch is a quiet press button with minimal noise for tactical purposes and can be used in two modes; either configuration 1 or configuration 2. The torch default setting is configuration 1 and to switch to configuration 2, deep press and hold the tail switch then single press the side switch. In Configuration 1 the tail switch will provide mid output with a half press or half-turbo output with a full press, and can provide momentary operation by holding down the button either half or fully. Configuration 2 will provide the mid output with a half press or strobe when pressing and holding the switch fully. To change hard press to full turbo tur the torch off and begin charging. While charging enter the lockout mode and the torch will automatically switch the outputs. This will be updated in the configurations.

There is a battery level indicator built into the side switch that lets you know when the battery needs charging. A green light indicates above 60% power, a orange light indicates 10% to 60 % power a red light indicates 10% to 5% power and a red flashing light indicates less than 5% power and that the torch needs to be charged.

A handy lockout function prevents the torch from being accidentally activated and is accessed by pressing and holding the switch for 2 seconds to lock it (it will enter moonlight mode first and then lockout) and the same again will unlock it.

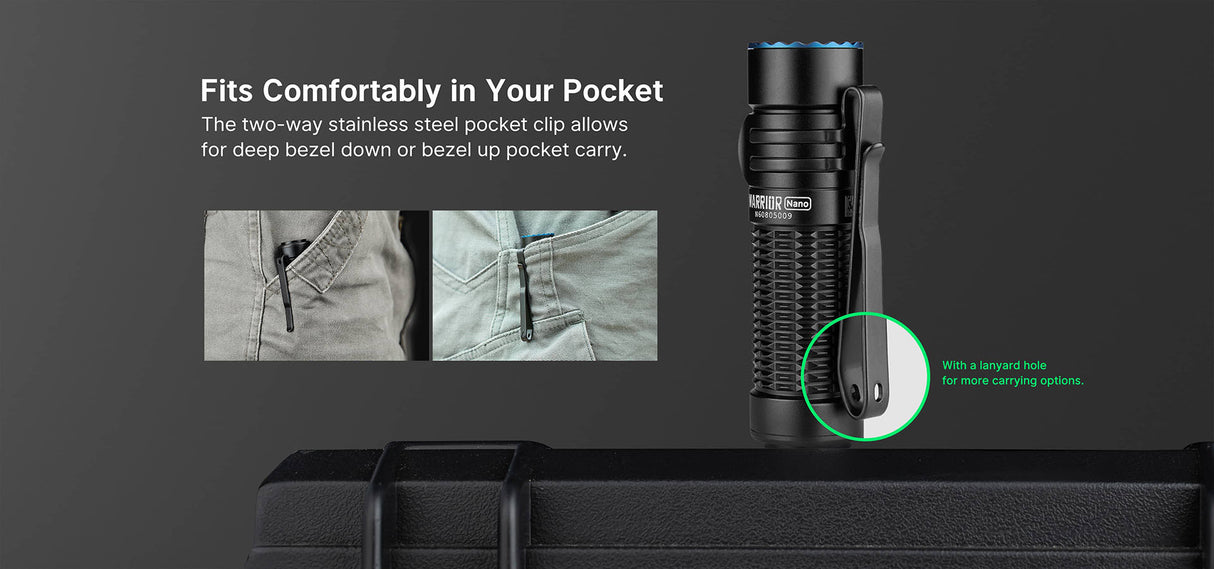

The Warrior Nano also features a dual purpose magnetic tail cap, so you can use it as a hands-free work light on magnetic surfaces, and attach it securely to the included charging cable. The innovative two way pocket clip makes it easy to carry the Warrior Mini 3 on clothing and it comes with a circular opening which a lanyard can be attached through. The Warrior Mini 3 also comes with an L-Stand for easy storage which is also compatible with other Olight products.

Please note: Ensure the torch is stowed away from magnetic objects and is placed in lockout mode for transport and storage. ALWAYS fully read the manual before use.

Operational Modes

Turbo*:
1200 lumens; 3 minutes run-time; 135 m beam range
400 lumens; 77 minutes run-time

Half-Turbo:
600 lumens; 10 minutes run-time; 96 m beam range
400 lumens; 75 minutes run-time

High*:
400 lumens; 85 minutes run-time; 80 m beam range
60 lumens; 35 minutes run-time

Mid: 60 lumens; 10 hours run-time; 32 m beam range
Low: 15 lumens; 36 hours run-time; 16 m beam range
Moonlight: 0.5 lumen; 40 days run-time

Please note: *The turbo, half-turbo & high settings will reduce in output to protect the LEDs from overheating, and will continue to decrease as the battery voltage decreases.

The above results are based on ANSI/NEMA FL1-2009 standard and are tested using the included battery.

Technical Details

Type: EDC hand-held LED torch
Operating Modes: Moonlight / Low / Mid / High / Turbo / Half-Turbo / Strobe
Luminous Flux: Up to 1200 lumens
Lamp Type: High Performance White LED
Lens: TIR reflector
Beam Range: Up to 135 m
Batteries Required: 1 x 1100 mAh 18650 lithium-ion (included)
Overall Length: 81 mm
Bezel Diameter: 23 mm
Body Diameter: 23 mm
Weight: 85 grams (including battery)
Body Colour: Black
Body Material: Aluminium alloy
Body Finish: Type III hard-anodised
Switch Type: Tactical tail switch
Impact Resistance: 1.5 m
Environmental: IPX8
Warranty: 5 years (torch only)

Packaging and Contents

Supplied in retail packaging and contains:
Olight Warrior Nano torch x 1
MCC-1A USB magnetic charging cable x 1
L-Stand x 1
Manual x 1
