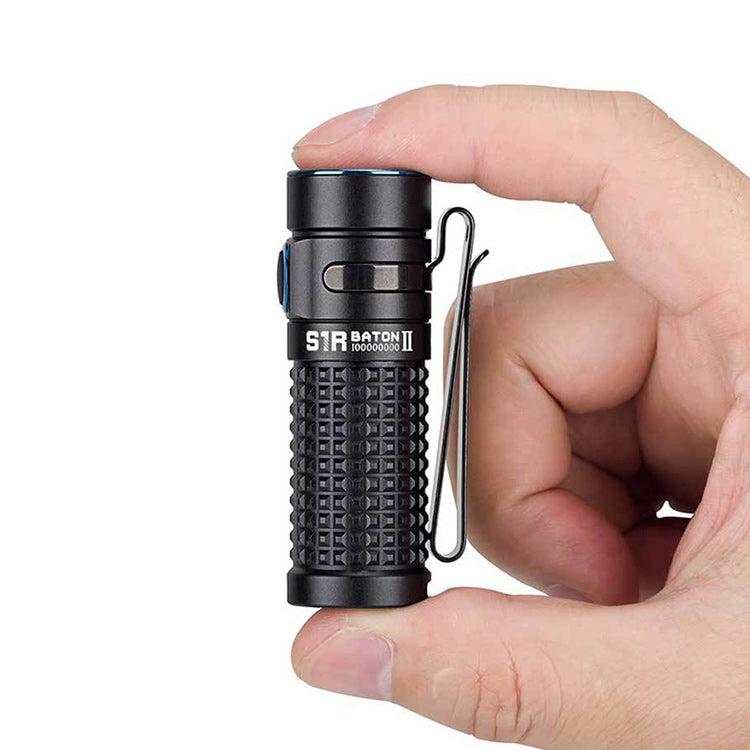

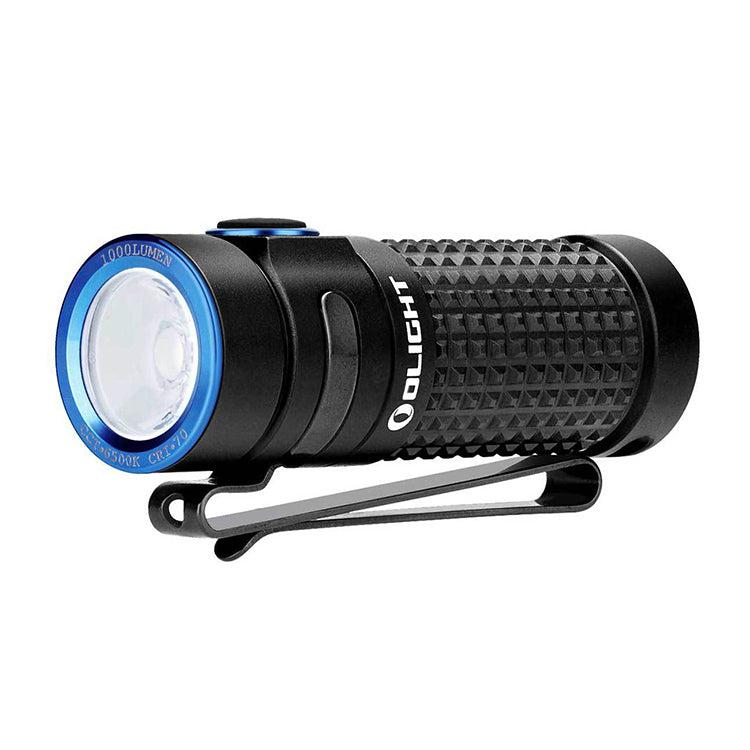

Olight S1R Baton II Rechargeable LED Torch

The Olight S1R Baton II is an upgraded version of the popular S1R Baton and still has the same compact design but now offers 1000 lumens output on the highest setting, before dropping down to 300 lumens after 1 minute, 30 seconds to prevent the LED from overheating.

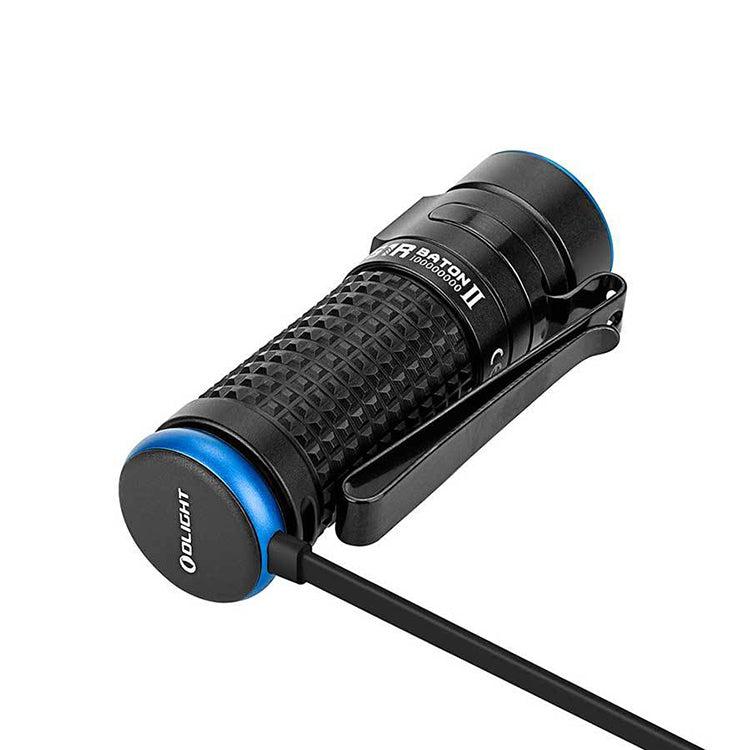

The S1R II can only be powered using the included Olight tailored IMR16340 550 mAh lithium-ion battery type. The battery is recharged inside the torch using the included magnetic MCC1A charging cable. Simply connect the magnet to the base of the S1R II and plug the USB end into a computer or suitable adaptor. The light on the cable will go red to show charging is in progress and turn green once charging is complete, a full charge takes approximately 50 minutes.

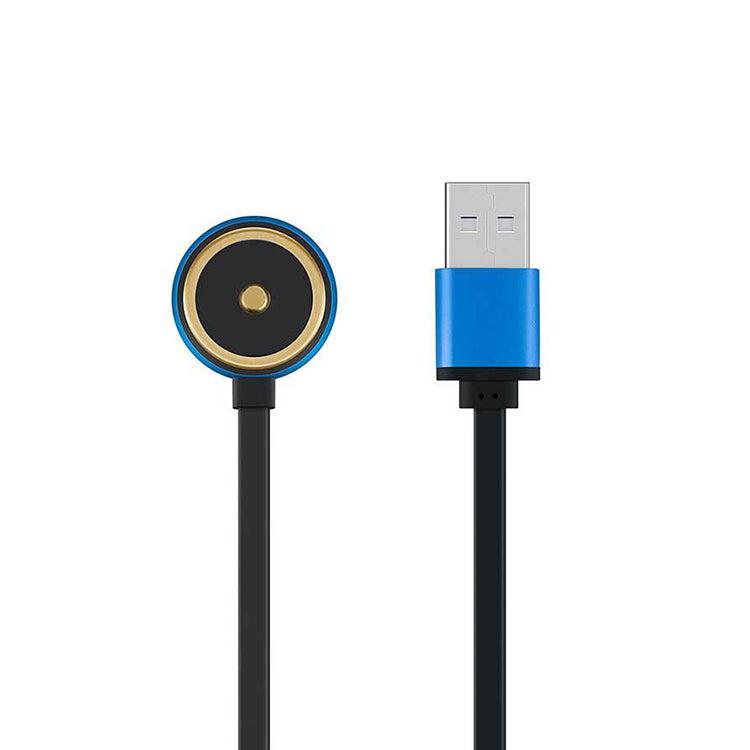

The charger cable design has been improved and the MCC1A now charges at a faster speed of 1 A, but it is still compatible for use with the same products that can be charged with the MCC.

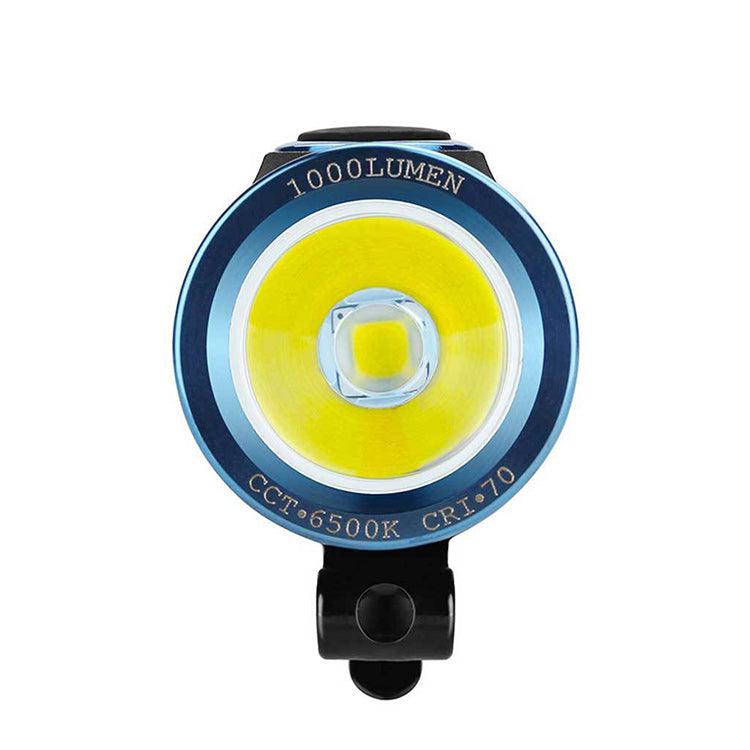

Utilising a Cree XM-L2 cool white LED and second generation TIR optic lens, the beam is pushed to a new level with unmatched clarity and produces a wide, balanced hot spot with a maximum beam distance of 145 metres.

Featuring five brightness levels and strobe, the torch is turned on and off with the side mounted push button. Select the brightness level with the torch turned on by holding the switch to cycle through low, mid and high in turn, whilst the moonlight mode of 0.5 lumens can be accessed directly when the torch is off by pressing and holding down the switch. Turbo is accessed by a quick double press when the light it off or on.

Strobe is activated by three quick presses while the torch is on. The memory function will remember the last mode used for moonlight, low, mid, high and turbo.

The S1R II contains two timer settings; long timer (9 minutes) and short timer (3 minutes). Double click and hold the side switch while the light is on to enter this setting. One blink indicates the 3 minutes mode, and two blinks indicates the 9 minutes mode.

A handy lockout function prevents the torch from being accidentally activated and is accessed by pressing and holding the switch for 2 seconds to lock it and the same again will unlock it. The S1R II also features a dual purpose magnetic tail cap, so you can use it as a hands-free work light, and attach it securely to the included charging base.

Operational Modes

Turbo: 1000 lumens; 1.5 minutes run-time, 300 lumens; 37 minutes run-time; 145 m beam range*
High: 600 lumens; 1.5 minutes run-time; 300 lumens; 45 minutes run-time; 100 m beam range*
Mid: 60 lumens; 3 hours, 40 minutes run-time; 40 m beam range
Low: 12 lumens; 20 hours run-time; 15 m beam range
Moonlight Mode: 0.5 lumens; 8 days run-time
Strobe: 10 Hz

Please note: *The turbo and high setting after 1.5 minutes run-time will decrease to 300 lumens to protect the LED from overheating.

The above results are based on ANSI/NEMA FL1-2009 standard and are tested using the included battery.

Technical Details

Type: Hand-held LED torch
Operating Modes: Moonlight / Low / Mid / High / Turbo / Strobe (10 Hz)
Luminous Flux: Up to 1000 lumens
Lamp Type: Cree XM-L2 CW LED
Lens: TIR reflector
Beam Range: Up to 145 m
Batteries Required: 1 x Olight tailored IMR16340 Li-ion (included)
Run Time: Up to 15 days at lowest setting
Overall Length: 63 mm
Diameter: 21 mm
Weight: 51 grams (including battery)
Body Colour: Black
Body Material: Constructed from 6061-T6 aluminium alloy
Body Finish: Type III hard-anodised
Switch Type: Side mounted
Other Technology: Magnetic base
Impact Resistance: 1.5 m
Environmental: Waterproof to IPX8 Standard (2 m)
Warranty: 5 years (torch), 1 year (battery)

Packaging and Contents

Supplied in retail packaging and contains:
Olight S1R Baton II torch x 1
Olight tailored IMR16340 550 mAh lithium-ion battery x 1
MCC1A magnetic USB charging cable x 1
Lanyard x 1
Stainless steel pocket clip x 1
Pull string pouch x 1
Manual x 1
