Olight Baton 4 Rechargeable LED Torch

The Olight Baton 4 is the latest addition to Olight's Baton series with an upgraded 1300 lumens output on the highest setting, from the same compact body.

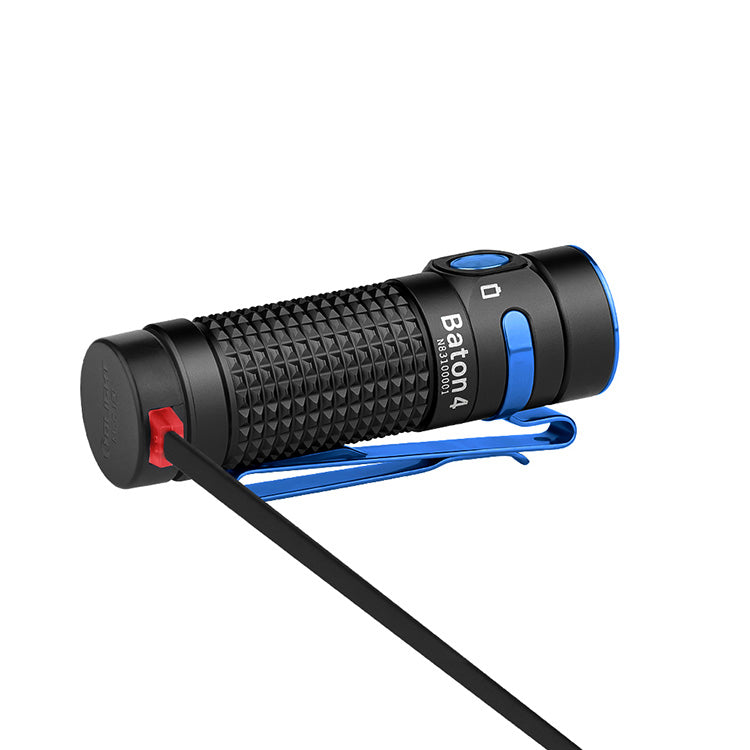

The Baton 4 can only be powered using the included Olight customised IMR16340, 650 mAh lithium-ion battery type. The battery is recharged inside the torch using the included magnetic charging cable. Simply connect the magnet to the base of the Baton 4 and plug the USB end into a suitable USB power source. The light on the cable will go red to show charging is in progress and turn green once charging is complete.

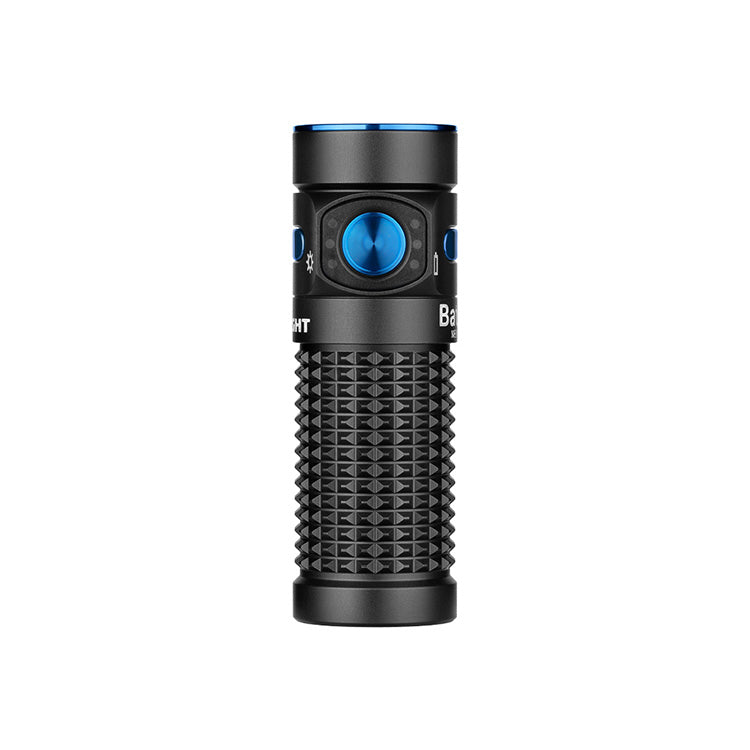

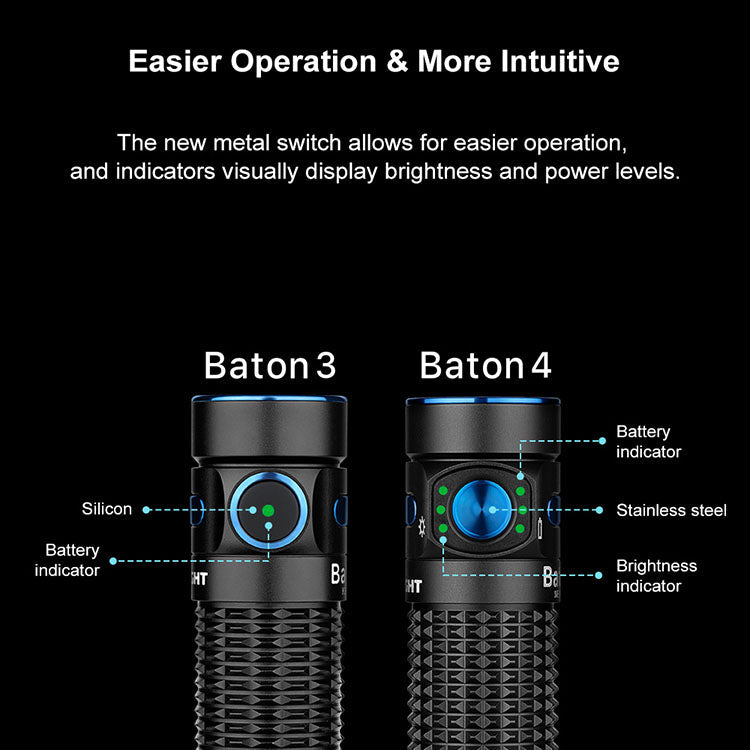

A new upgraded feature is the battery level indicator located on the right side of the switch that lets you know when the battery needs charging.Three green lights indicates above 60% power, two greenlights indicates 10-60 % power, one green light indicates less than 5-10% power and one red light means less than 5% power and that the torch needs to be charged.

Utilising a high performance cool white LED and TIR optic lens, the beam produces a wide, balanced hotspot with an increased maximum beam distance of 170 metres.

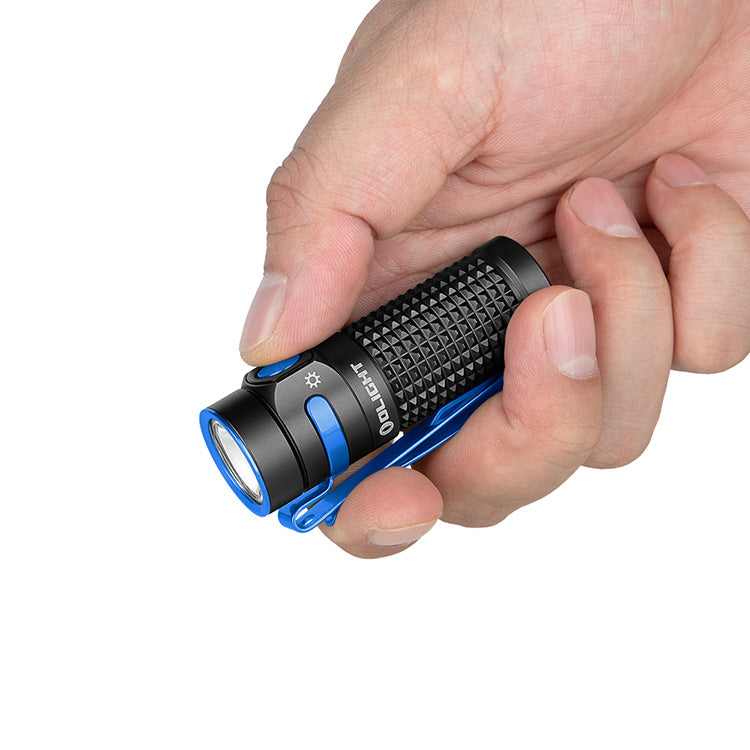

The Baton 4 features five brightness levels and strobe, the torch is turned on and off with a single press of the side mounted push button. Select the brightness level with the torch turned on by holding the switch to cycle through low, mid and high in turn, whilst the moonlight mode of 0.5 lumens can be accessed directly when the torch is off by pressing and holding down the switch. Turbo is accessed by a quick double press and strobe is activated by three quick presses. The memory function will remember the last mode used for moonlight, low, mid, high. The left hand indicator shows the current brightness level while using the torch.

The Baton 4 contains two timer settings; long timer (9 minutes) and short timer (3 minutes). Double click and hold the side switch while the light is on to enter this setting. One blink indicates the 3 minutes mode, and two blinks indicates the 9 minutes mode.

A handy lockout function prevents the torch from being accidentally activated and is accessed with the light off by pressing and holding the switch for 2 seconds to lock it and the same again will unlock it.

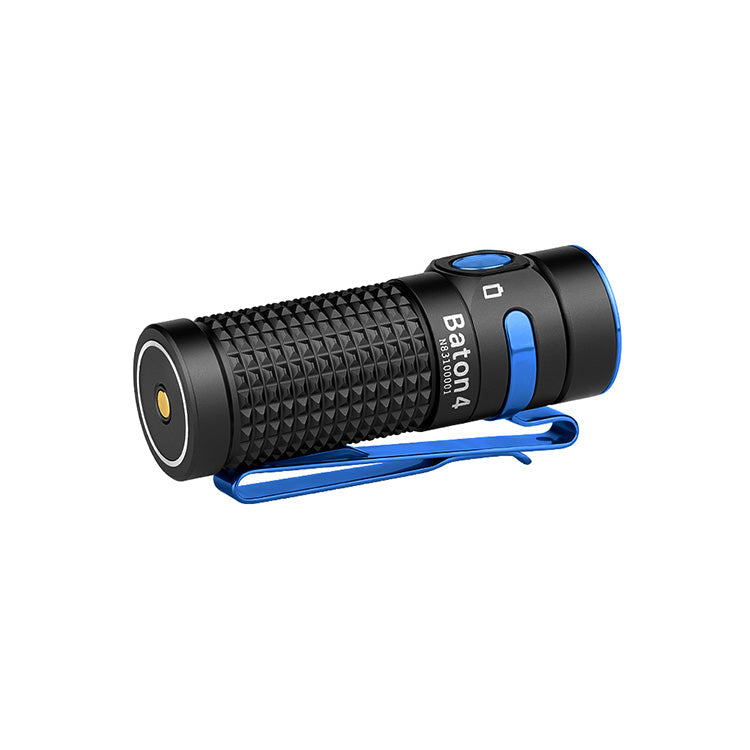

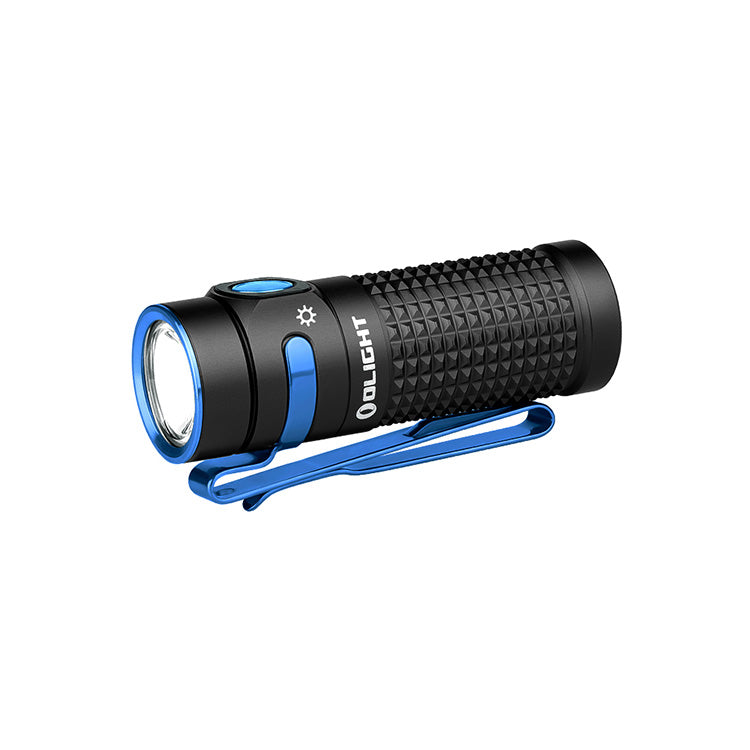

The Baton 4 also features a dual purpose magnetic tail cap, so you can use it as a hands-free work light, andan innovative two way pocket clip makes it easy to carry the torch on clothing or a backpack.

Operational Modes

Turbo:
1300 lumens; 1.5 minutes run-time; 170 m beam range
600 lumens; 2.5 minutes run-time
300 lumens; 73 minutes run-time

High:
600 lumens; 7 minutes run-time; 110 m beam range
300 lumens; 72 minutes run-time
60 lumens; 16 minutes run-time

Medium: 60 lumens; 8 hours run-time; 38 m beam range
Low: 12 lumens; 35 hours run-time; 18 m beam range

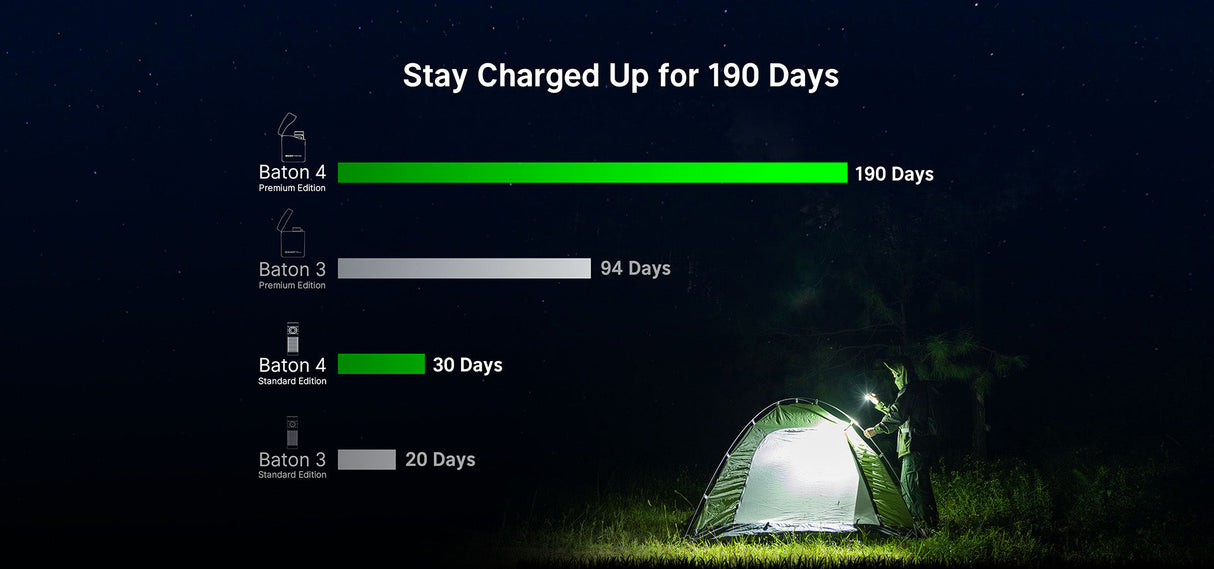

Moonlight: 0.5 lumens; 30 days run-time

Please note: *The turbo and high settings will decrease the lumen outputs to protect the LED from overheating.

The above results are based on ANSI/NEMA FL1-2009 standard and are tested using the included battery.

Technical Details

Type: EDC LED torch
Operating Modes: Moonlight / Low / Mid / High / Turbo / Strobe
Luminous Flux: Up to 1300 lumens
Lamp Type: High performance CW LED
Lens: TIR reflector
Beam Range: Up to 170 m
Batteries Required: 1 x Olight customised IMR16340 Li-ion (incl.)
Overall Length: 63 mm
Diameter: 21 mm
Weight: 52.5 grams (including battery)
Body Colour: Black with blue clip
Body Material: Aluminium alloy
Body Finish: Type III hard-anodised
Switch Type: Side mounted
Impact Resistance: 1.5 m
Environmental: IPX8
Warranty: 5 years (torch), 1 year (battery)

Packaging and Contents

Supplied in retail packaging and contains:
Olight Baton 4 LED torch x 1
Olight customised IMR16340, 650 mAh 3.6 lithium-ion battery x 1
MCC-1A magnetic USB charging cable x 1
Storage pouch x 1
Manual x 1
