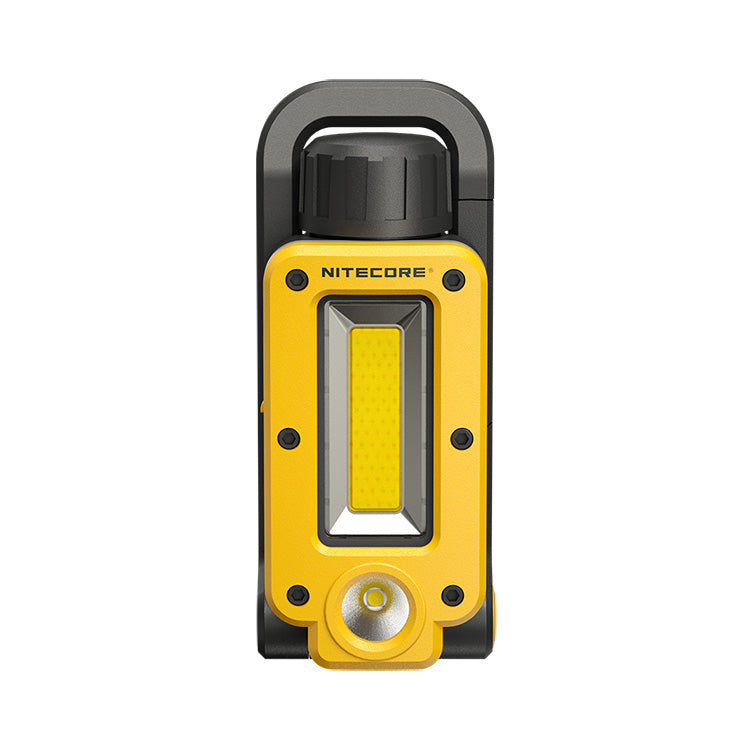

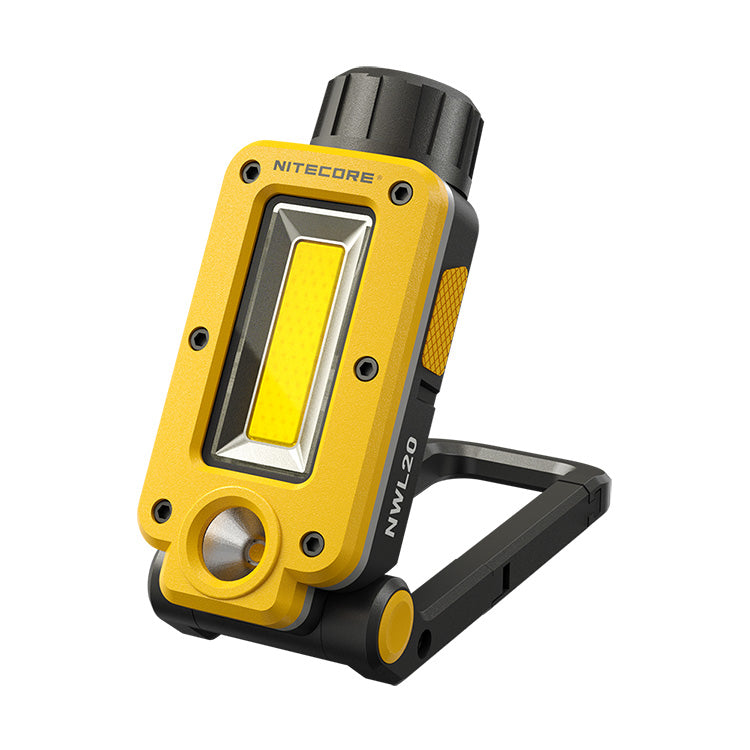

Nitecore NWL20 Rechargeable LED Work Light

The Nitecore NWL20 is a multifunctional triple output rechargeable work light, offering both a flood and spot light with both white and red light outputs making it the perfect for outdoor work, camping and even as emergency lighting.

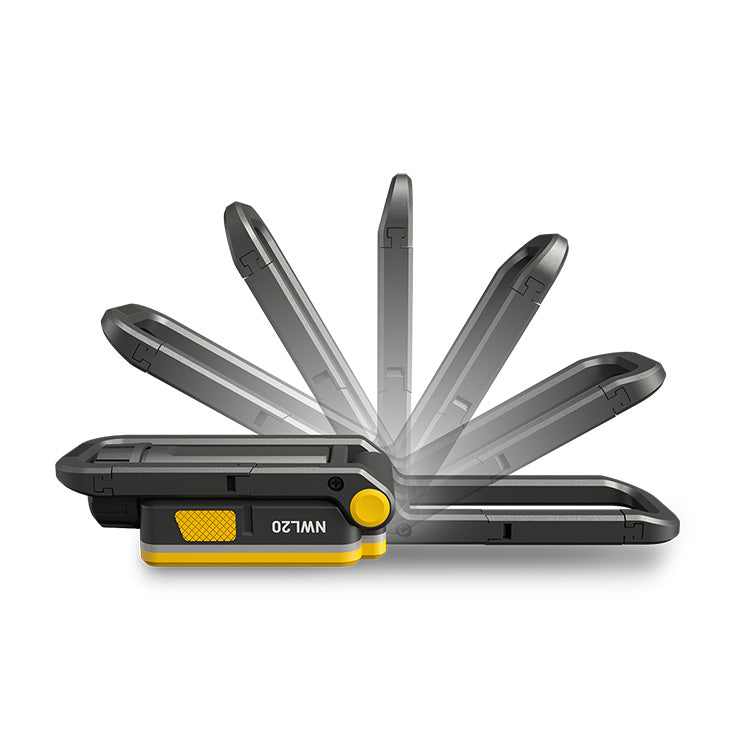

The NWL20 has multiple hands free uses with the 180° rotating handle that can be put at up to 45° angle as a flat stand, used to attach to magnetic surfaces with the strong magnets or pulled all the way out to use as a hanging hook with a hinged attachment to place over pipes for example.

A single button on the side operates all light functions, simply press to turn the light on in the floodlight mid or spotlight high. The memory function will remember the last used output and recall that next time the light is turned on. Long press the power button while the light is on to switch between the flood and spot lights. When in the floodlight mode, short press the power button to cycle through the mid, high, low, red constant, red flash and finally off. When in the spotlight mode short press to cycle high, low and off. Ensure that when cycling through the outputs in any mode you press the power button within three seconds or the next press will turn the torch off. When turning the torch off simply wait the three seconds without operation and press the power button.

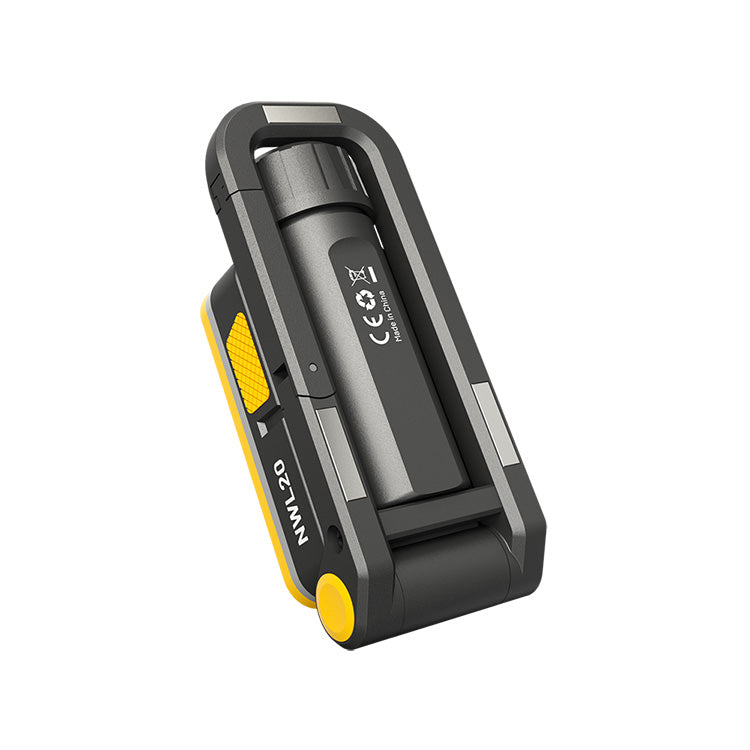

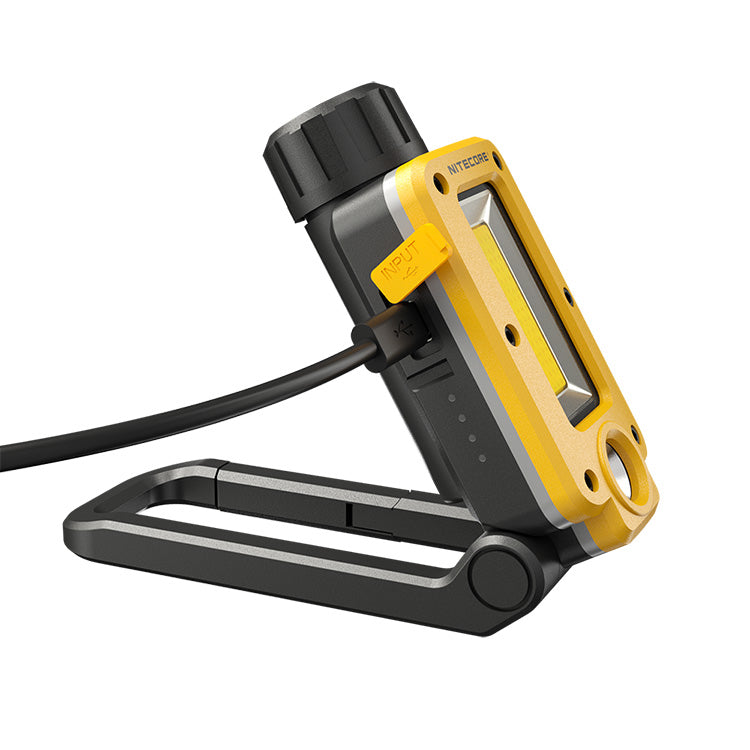

Utilising a 21700, 5000 mAh lithium-ion rechargeable battery, the NWL20 has a run time of up to 6 hours on the highest setting. Unscrew the battery cap to remove or replace the battery, ensure the battery cap is tightly re-screwed for a secure connection. The battery is easily recharged by inserting the charging cable into the USB-C port on the side of the light at one end and inserting the other end into a suitable USB power source. While charging the four charging indicators on the back will display charging progress with one light flashing to start with before becoming solid and the next light flashing until eventually all four LEDs are solid after approximately 3 hours.

The four LED indicators also light up when the torch is turned on to show remaining battery power at the current output. Four LEDs is 75-100% power, three LEDs is 50-75% power, two LEDs is 25-50% power, one LED is 5-25%. IF the battery is low when the torch is turned on the power indicator will flash and should be charged as soon as possible.

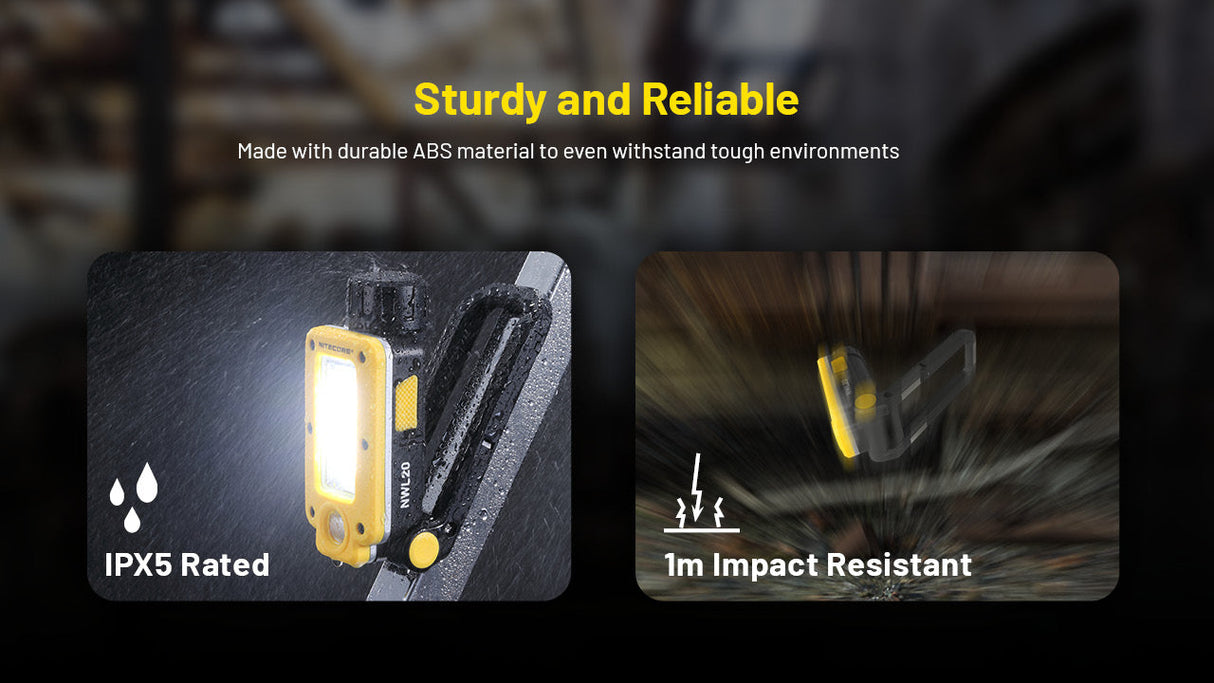

The NWL20 is made from super tough construction with yellow polycarbonate for increased robustness, durability and visibility, and also features a a glow in the dark LED strip for extra visibility.

Product Features

Heavy Duty Housing
Magnetic base for hands free use
Fluorescent body for greater visibility
Adjustable stand for Light Angle
USB rechargeable

Operational Modes

Flood High: 600 lumens; 6 hours run-time; 43 m beam range
Flood Mid: 250 lumens; 10 hours run-time; 20 m beam range
Flood Low: 30 lumens; 78 hours run-time; 7 m beam range
Spot High: 290 lumens; 10 hours run-time; 93 m beam range
Spot Low: 125 lumens; 15 hours run-time; 60 m beam range
Red Constant: 30 lumens; 30 hours run-time; 7 m beam range
Red Flashing: 30 lumens; 60 hours run-time; 7 m beam range

Technical Details

Type: Rechargeable work light
Operating Modes: Flood: High / Mid / Low, Spot: High / Low, Red Light: Constant / Flashing
Luminous Flux: Up to 290 lumens
Focus: Flood or spot
Beam Range: Up to 93 m
Battery Required: 1 x 21700, 5000 mAh lithium-ion (included)
Charging Time: 3 hours
Measurements: 216.7 x 50 x 41.2 mm
Weight: 224 g
Switch Type: Side push button
Environmental: IPX5
Warranty: 5 year

Packaging and Contents

Supplied in retail packaging and includes:
Nitecore NWL20 rechargeable work light x 1
Nitecore NL2150 lithium-ion battery x 1
USB-C charging cable x 1
Manual x 1
