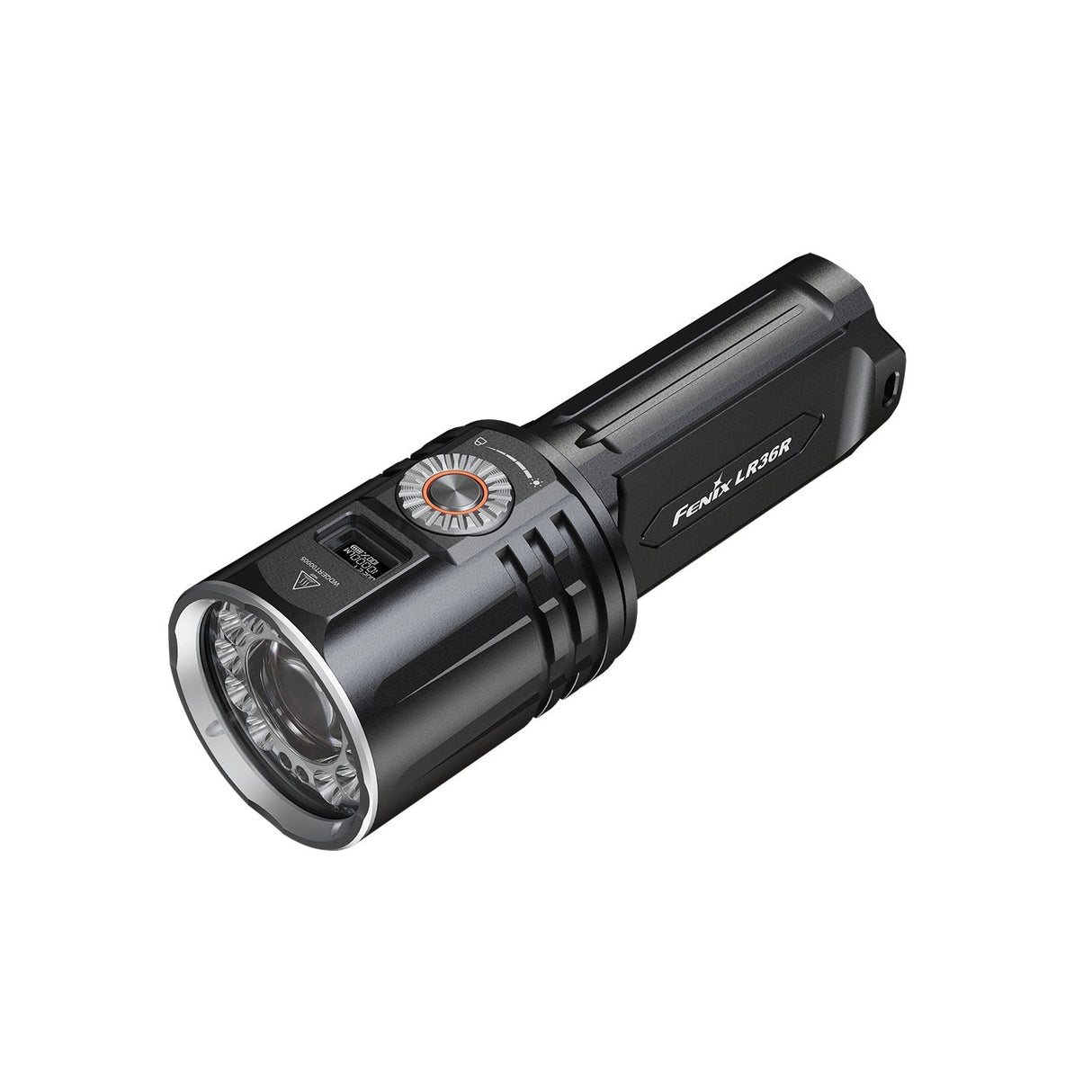

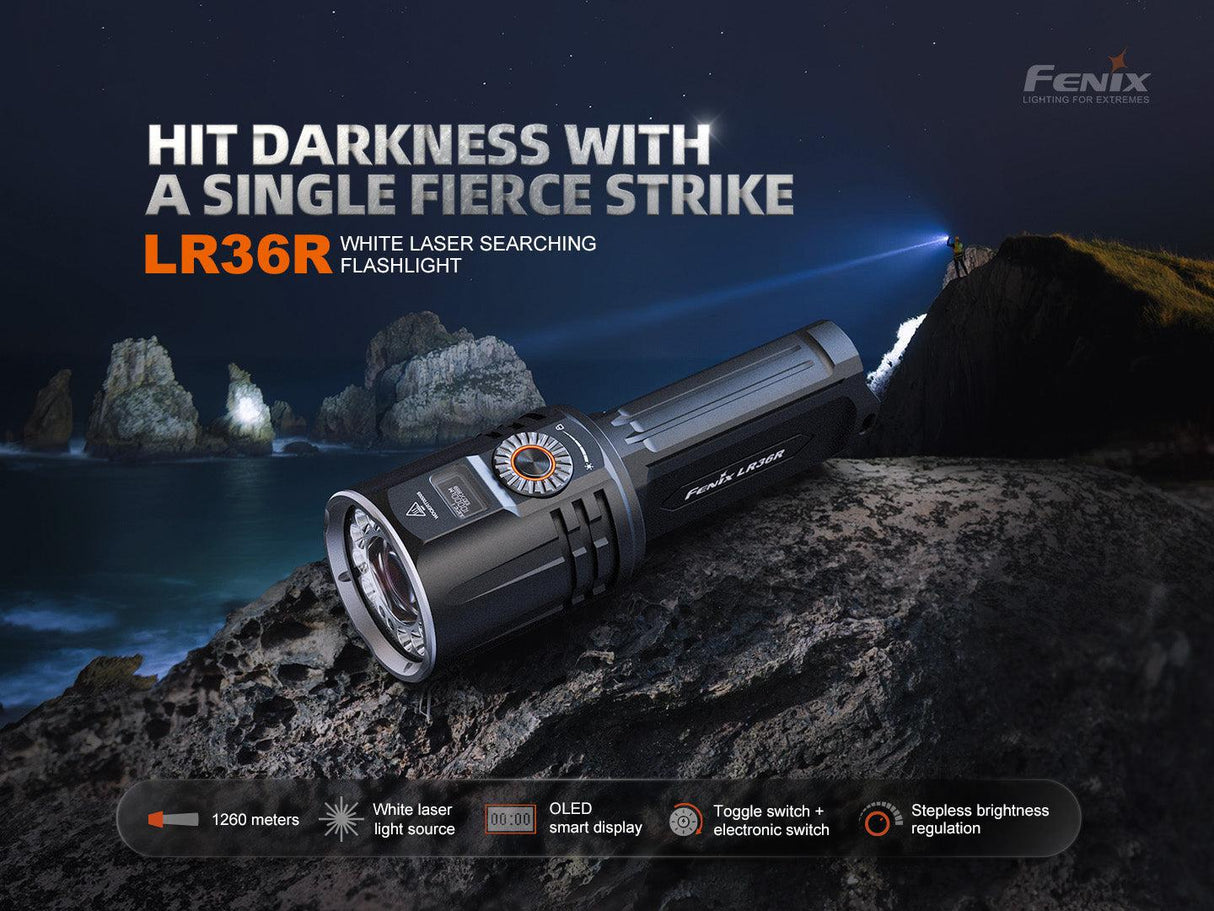

Fenix LR36R Rechargeable LEP Searchlight with LED Semi Floodlight

The Fenix LR36R is a high performance rechargeable LEP laser searchlight with a LED semi floodlight that delivers a maximum output of up to 10,000 lumens and a beam range of 1260 metres.

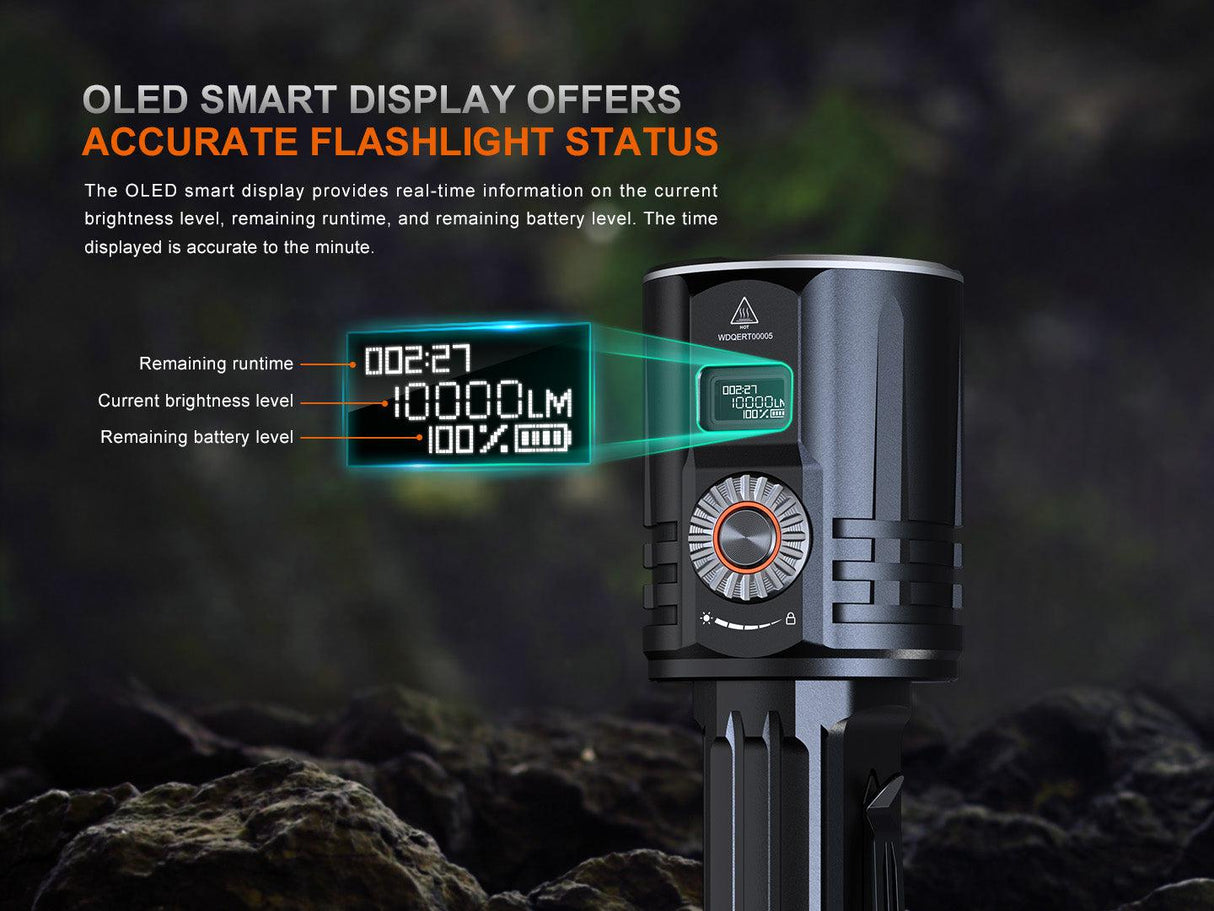

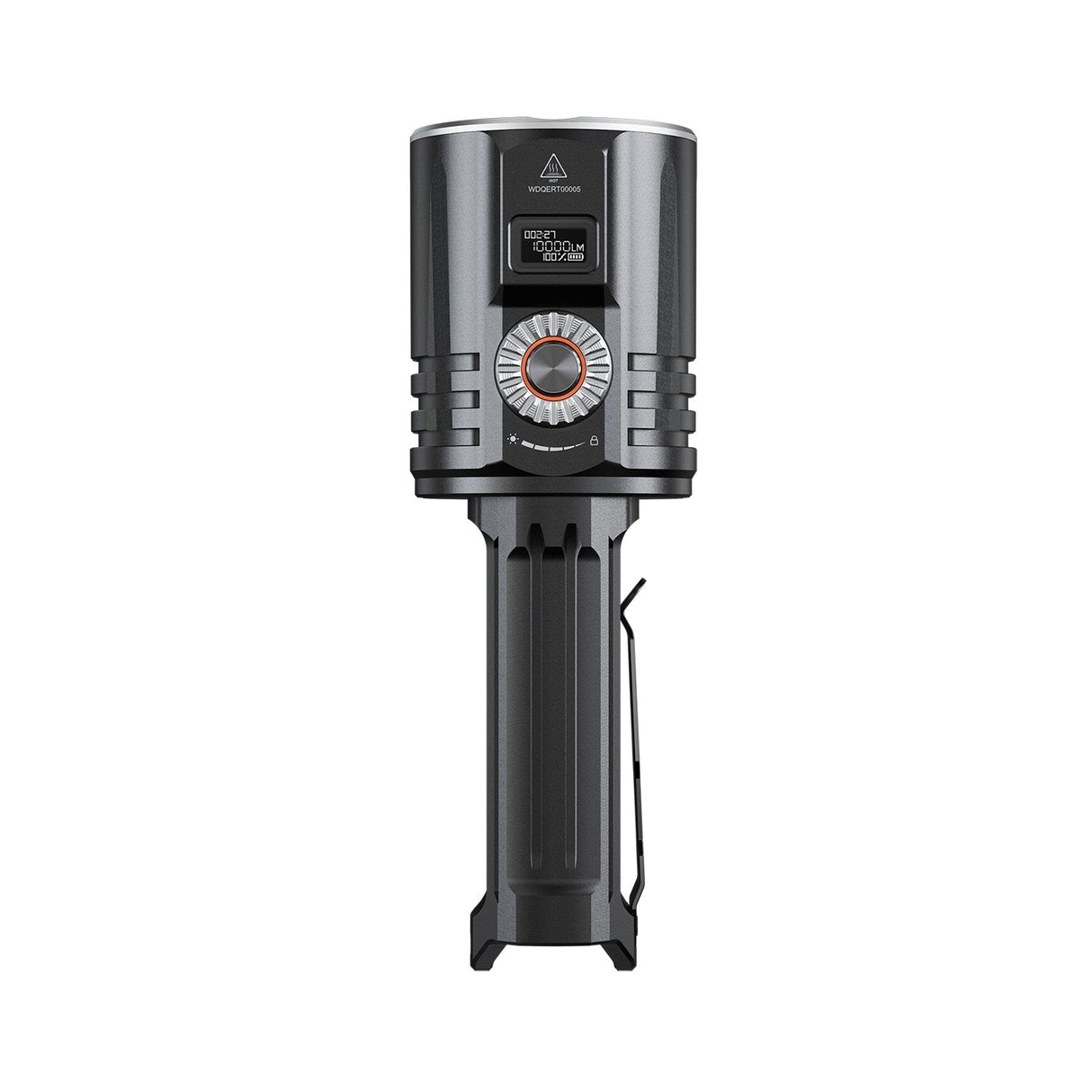

The OLED smart display on the LR36R offers precise and immediate updates on brightness level, runtime, and battery life down to the minute.

The white laser produces a bright beam with excellent beam collimation, making it perfect for long-range illumination and precise positioning. Additionally, it can serve as a signal light in low visibility conditions. The LR36R also features a broad floodlight which is perfect for outdoor searching and caving. The laser and floodlight can be combined for am impressive 10,000 lumens outputs and 1250 metres beam range.

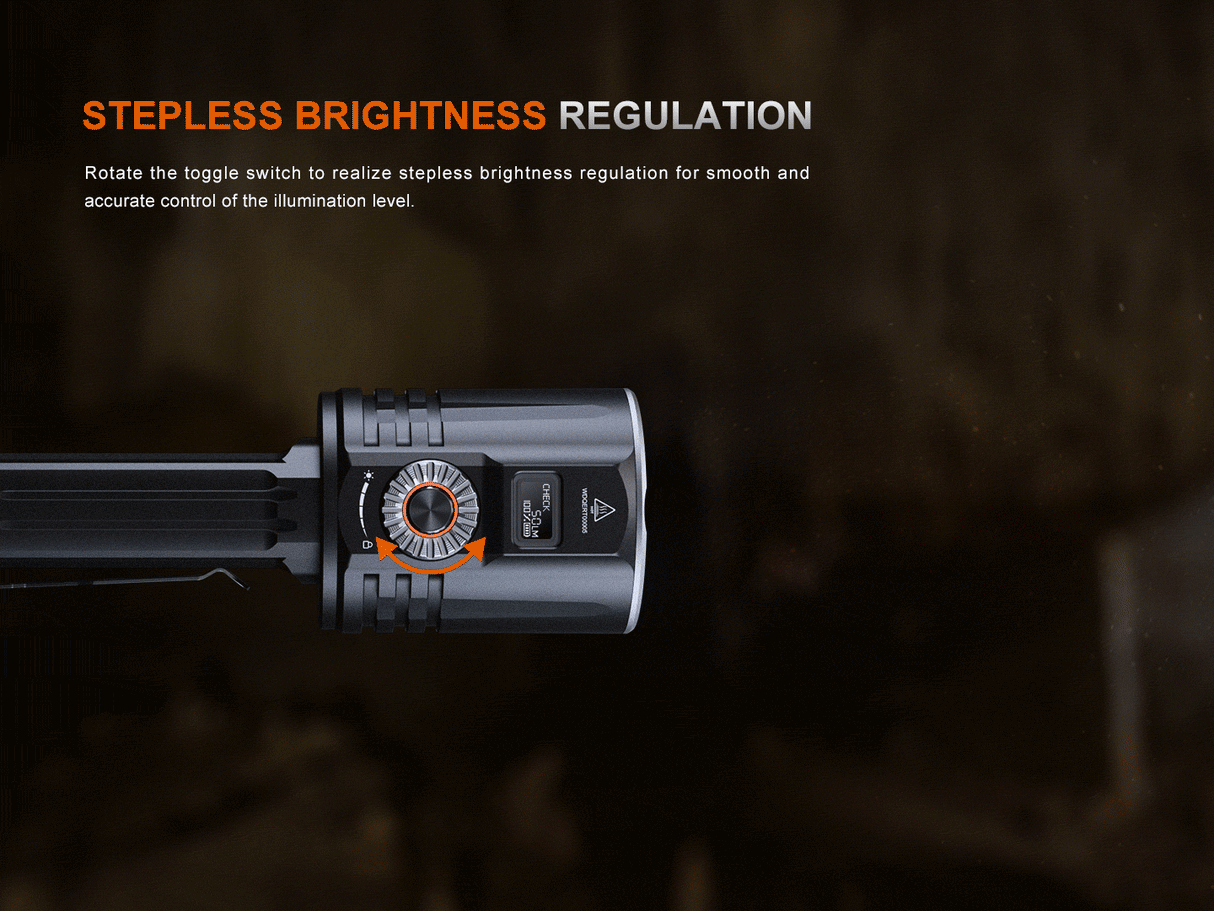

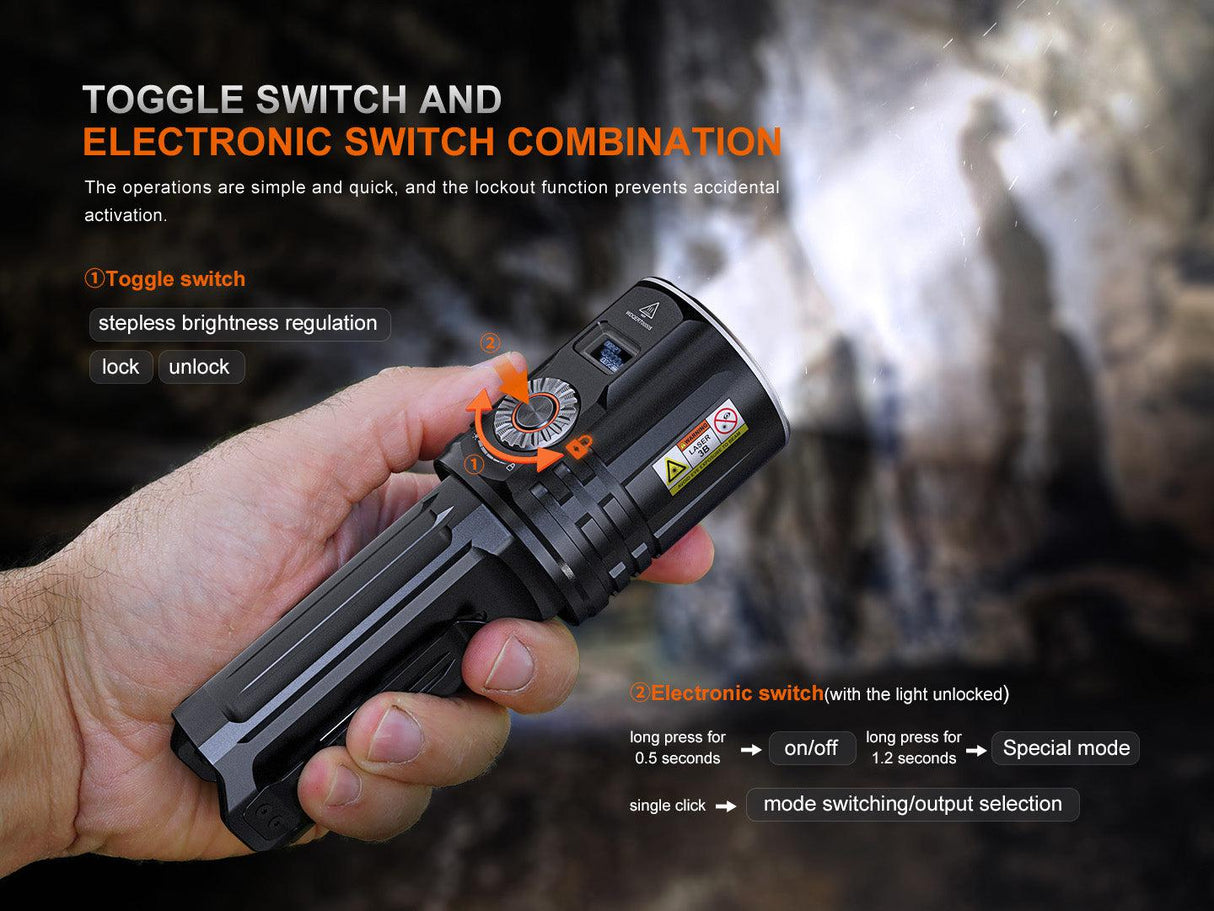

Four modes of floodlight mode, laser mode, combined mode and special modes are available and controlled using the centre push button and surrounding rotary switch for easy operation.

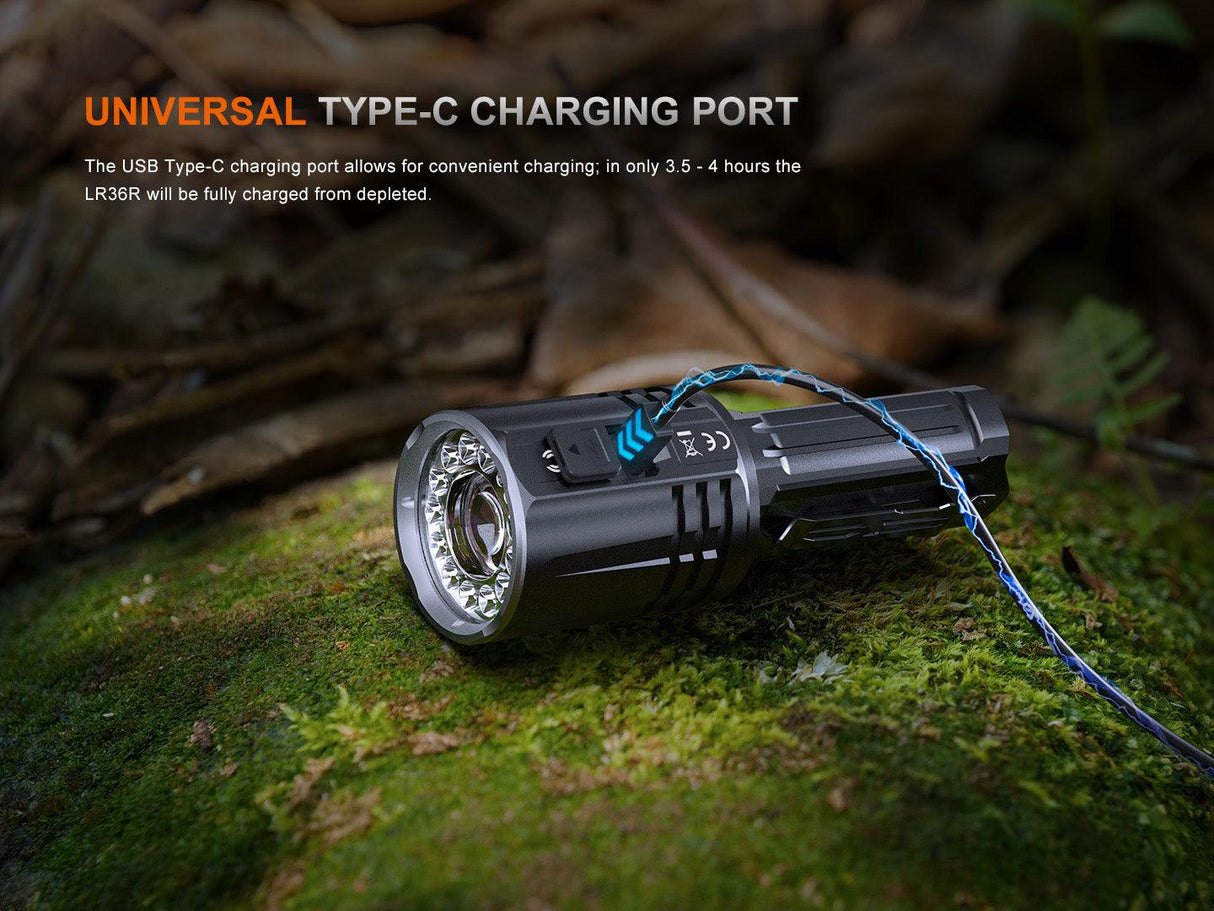

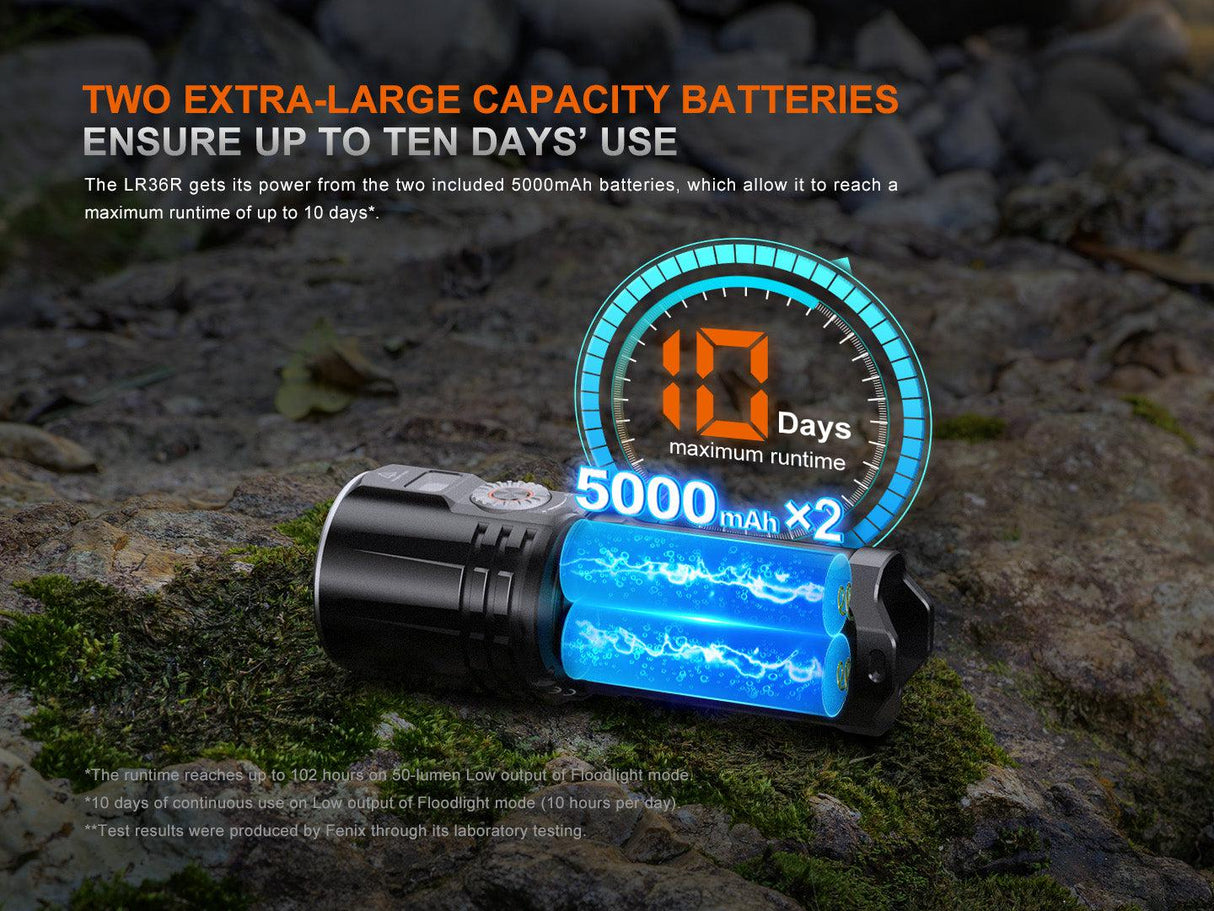

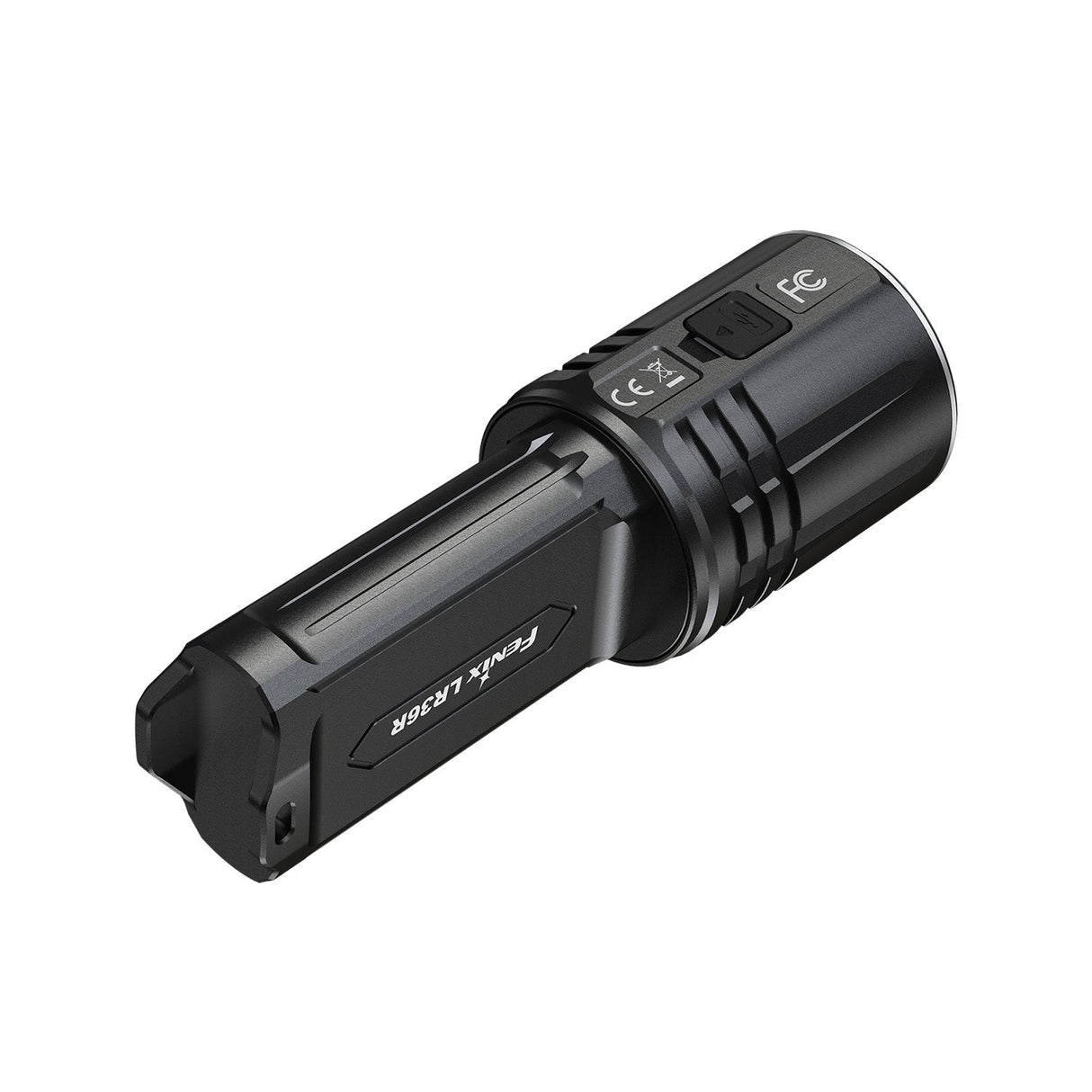

The LR36R is powered by the included two 21000 5,000 mAh lithium-ion batteries, which have a large capacity  in order to access the high output of the torch. The batteries are easily charged inside the torch via the USB-C charging port on the neck of the torch. While charging the OLED screen will display the battery level of the torch.

To prevent accidental activation, the LR36R features a lockout mode. Simply rotate the rotary switch to the lock symbol to lock the torch.

A low battery voltage warning function is programmed to downshift to a lower brightness level when the voltage drops below the preset level. Once it reaches low output the OLED screen will show an empty battery to remind you to charge the batteries.

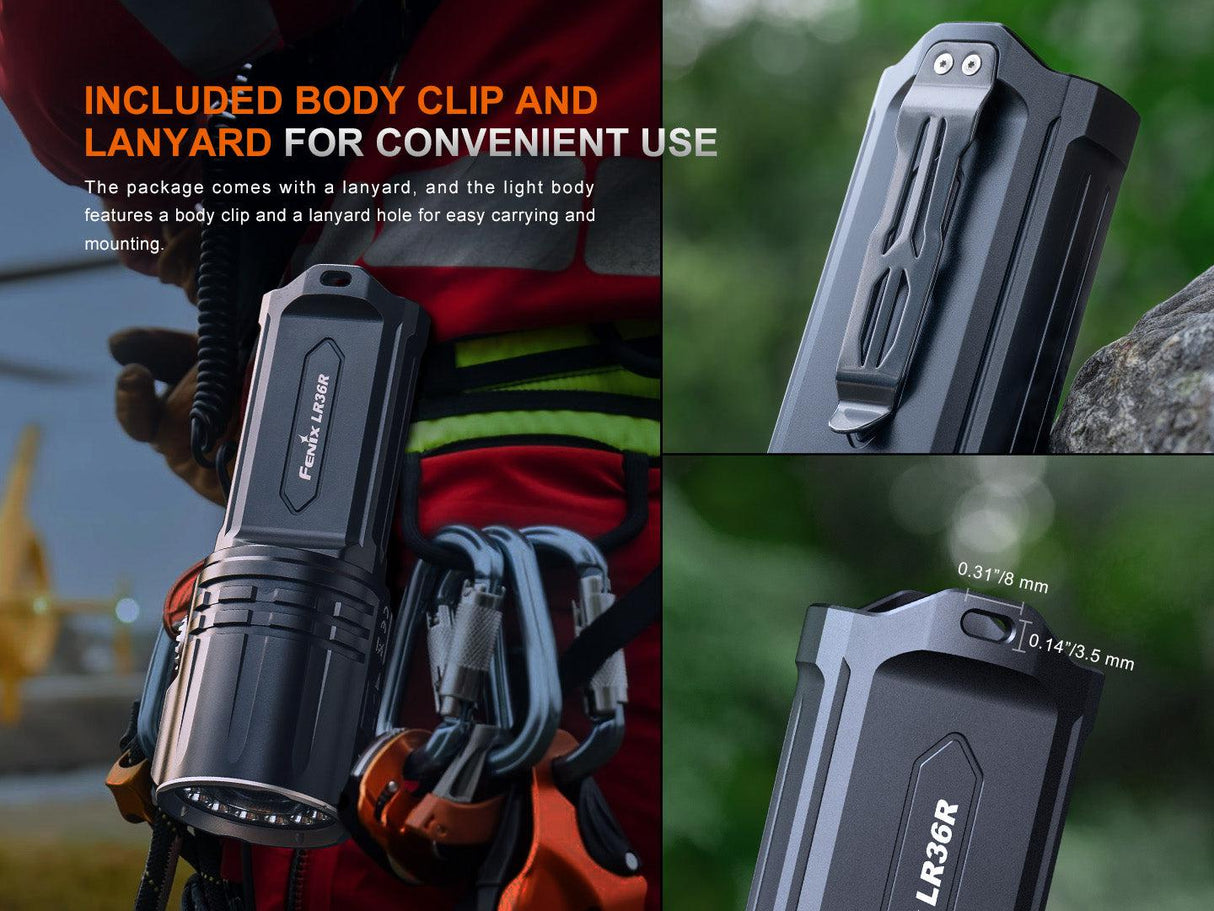

A lanyard and holster are included to provide easy carry and transport of the torch, and the fixed pocket clip allows for easy attachment to a belt, pocket or backpack.

Please note:
To avoid overheating the torch has two types of inbuilt protection. The temperature protection will lower the output of the torch if the temperature reaches 55°C or above when using turbo, high and mid modes. Once the torch has cooled below 55° the brightness can be reset to the higher outputs. Please see images for a run-time graph.

Product Features

Single metal side switch for easy operation
LED battery indicator built into the switch
Lockout function to prevent accidental activation
Reverse polarity protection
USB Type- C charging port
Intelligent overheat protection

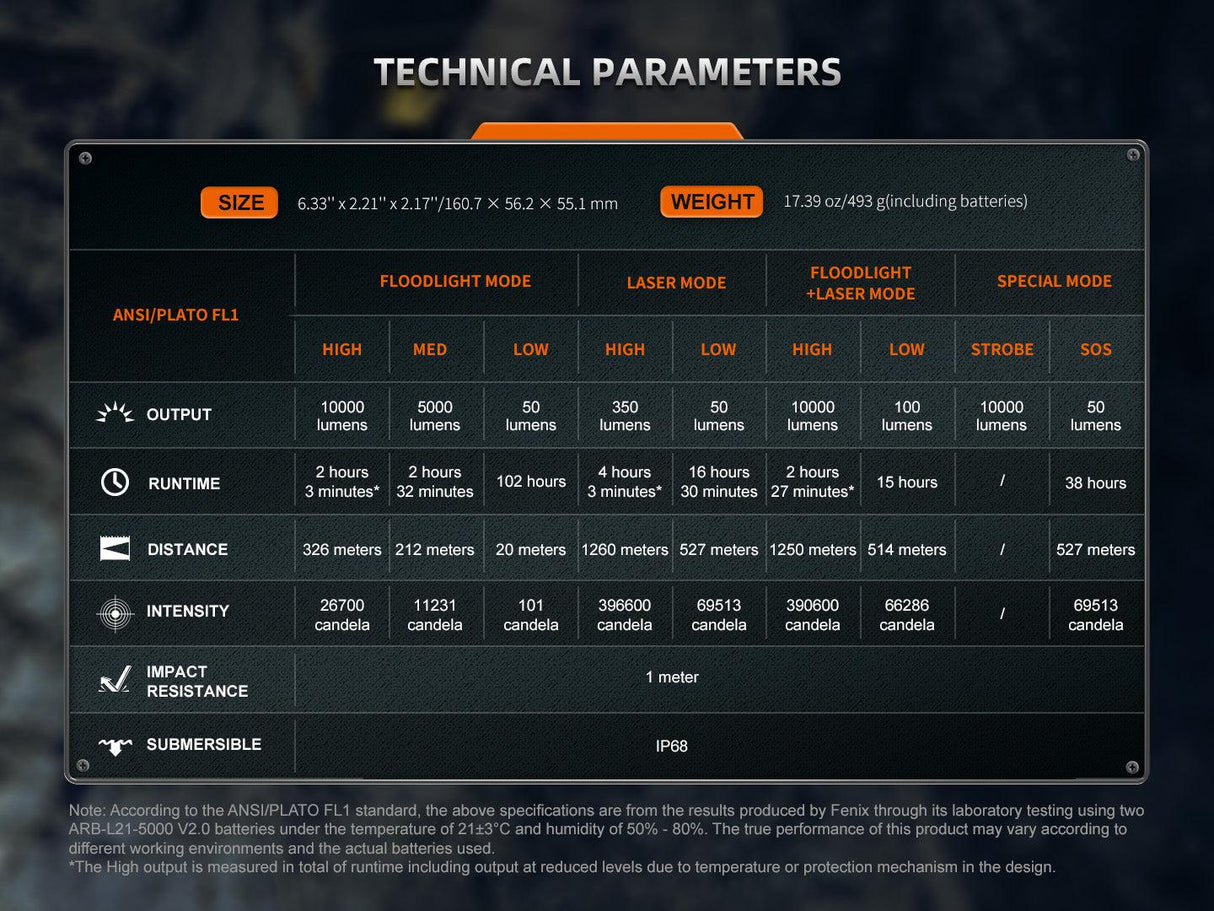

Operational modes

Floodlight Mode:
High: 10,000 lumens; 2 hours 3 minutes run-time; 326 m beam range*
Medium: 5,000 lumens; 2 hours, 32 minutes run-time; 212 m beam range
Low: 50 lumens; 102 hours run-time; 20 m beam range

Laser Mode:
High: 350 lumens; 4 hours, 3 minutes run-time; 1260 m beam range
Low: 50 lumens; 16 hours, 30 minutes run-time; 522 m beam range

Combined Mode:
High: 10,000 lumens; 2 hours, 27 minutes run-time; 1250 m beam range
Low: 100 lumens; 15 hours run-time; 514 m beam range

Special Mode:
SOS: 50 lumens; 28 hours run-time; 527 m beam range
Strobe: 10,000 lumens

Note: *The turbo output is measured in total run-time including any reduced output due to the temperature protection mechanism in the design.

Lab tested to ANSI / PLATO FL 1 standard using the two included Fenix ARB-L21-5000 5,000 mAh lithium-ion rechargeable batteries. Real use conditions may be different and therefore results may vary.

Technical Details

Type: Rechargeable LED hand torch
Operating Modes: Floodlight / Laser / Combined / SOS / Strobe
Luminous Flux: Up to 10,000 lumens
Lamp Type: 1 x CT-1 Mini and 12 x SST25 LED
Beam Range: Up to 1260 m
Batteries Required: 2 x ARB-L21-5000 V2 lithium-ion battery (included)

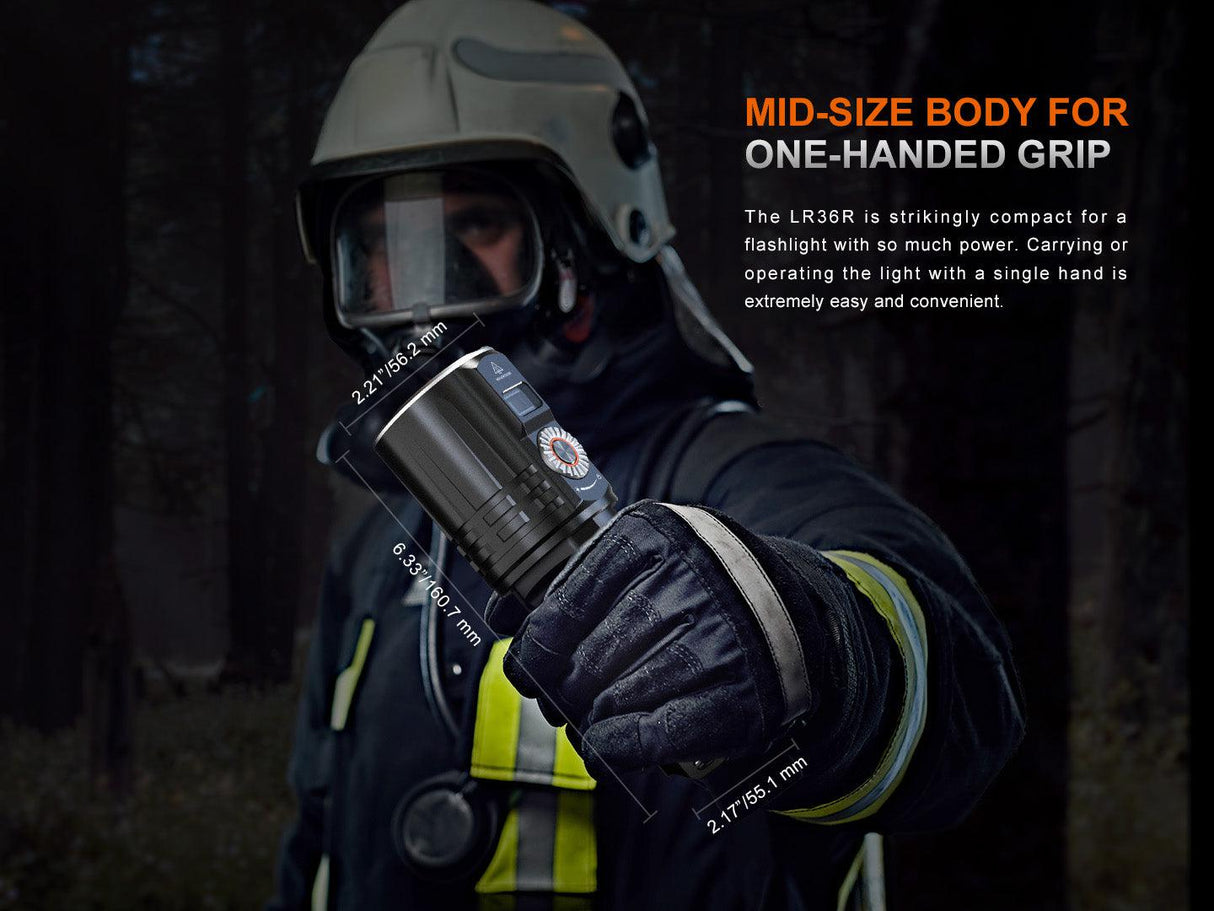

Dimensions: 160.7 mm x 56.2 mm x 55.1 mm
Weight: 493 grams
Body Colour: Black
Body Material: Aluminium alloy
Body Finish: HAIII hard anodised anti abrasive finish
Switch Type: Central push button and rotary switch

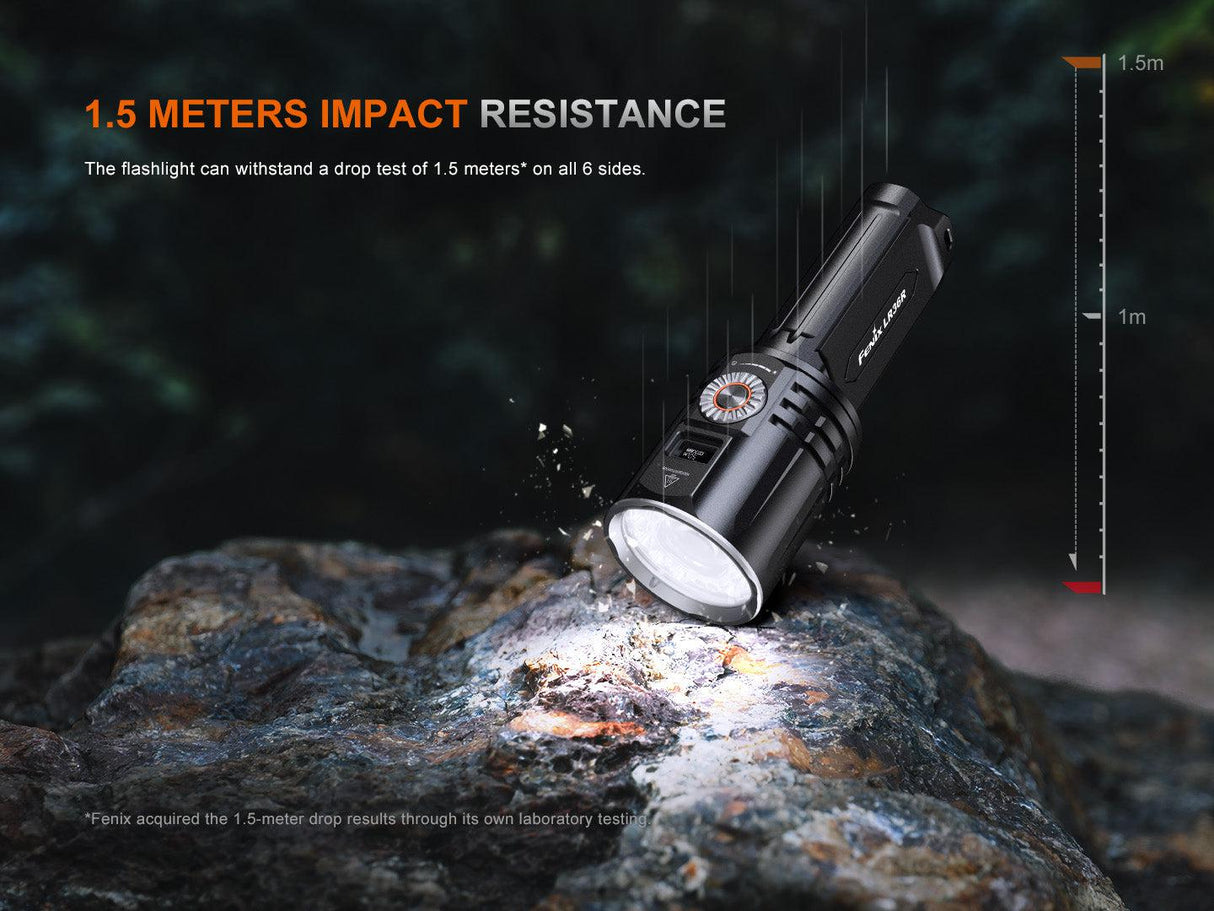

Impact Resistance: 1 m

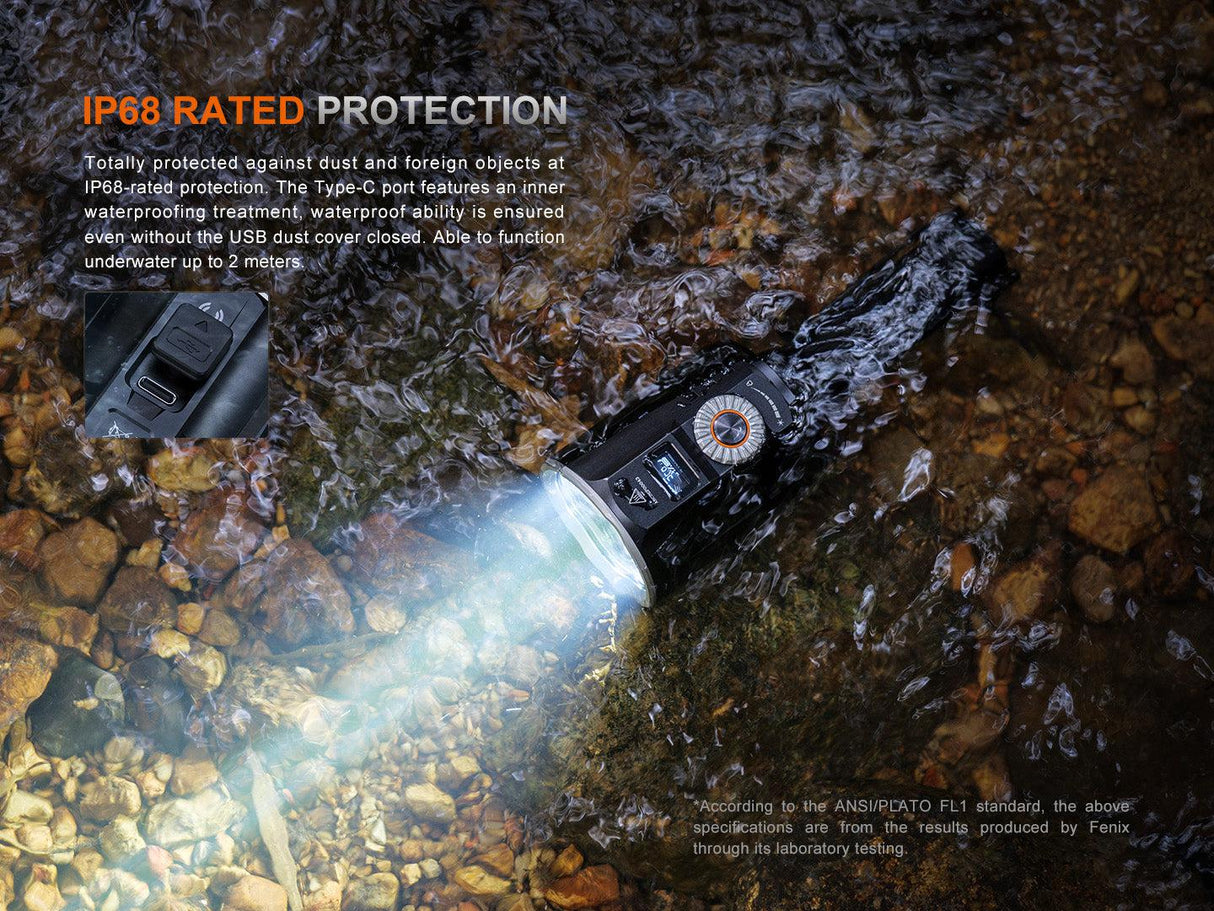

Environmental: IPX8
Warranty: 5 years (torch) / 1 year (batteries)

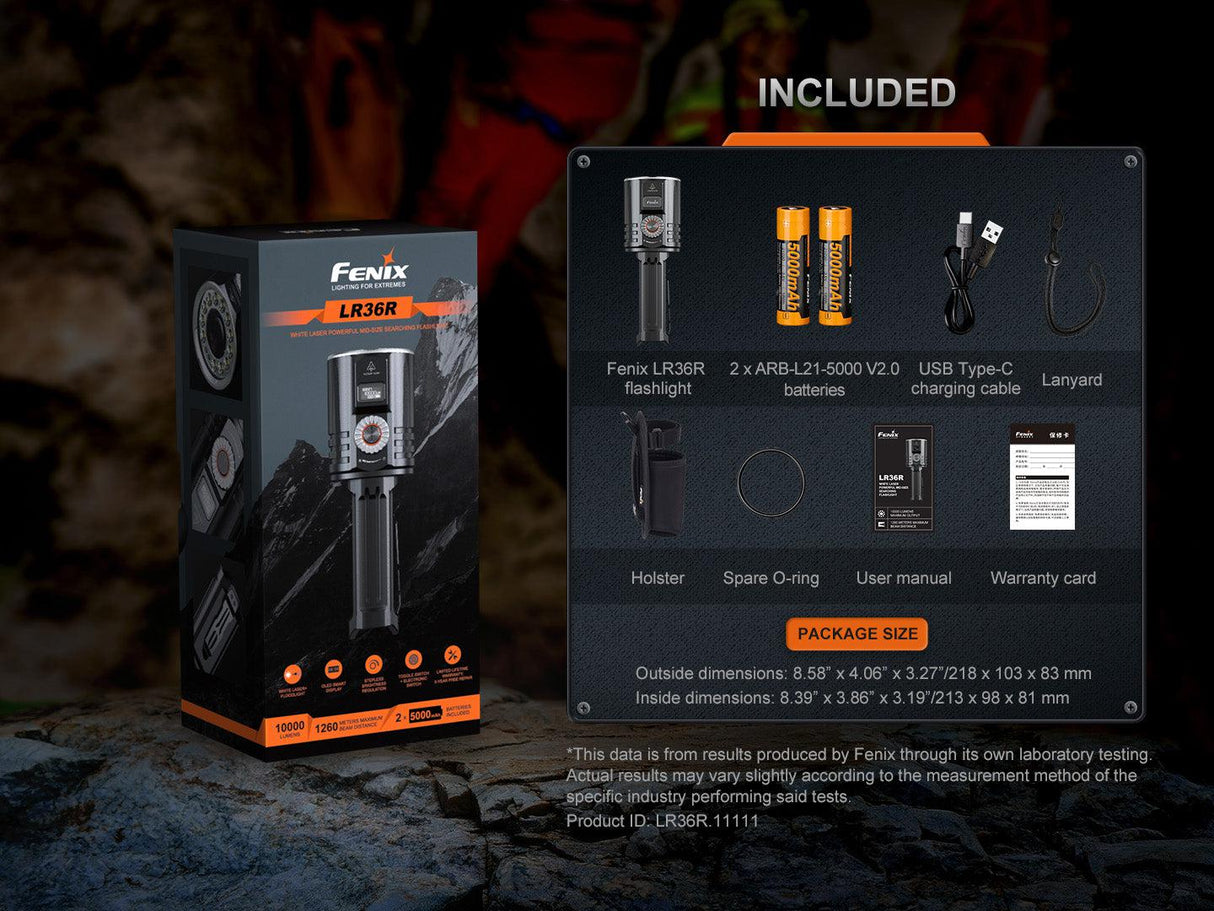

Packaging and Contents

Supplied in retail packaging and includes:
Fenix LR36R LED searchlight x 1
Fenix ARB-L21-5000 V2 li-ion battery x 2
USB-C charging cable x 1
Lanyard x 1
Holster x 1
Spare O-ring x 1
User manual x 1
