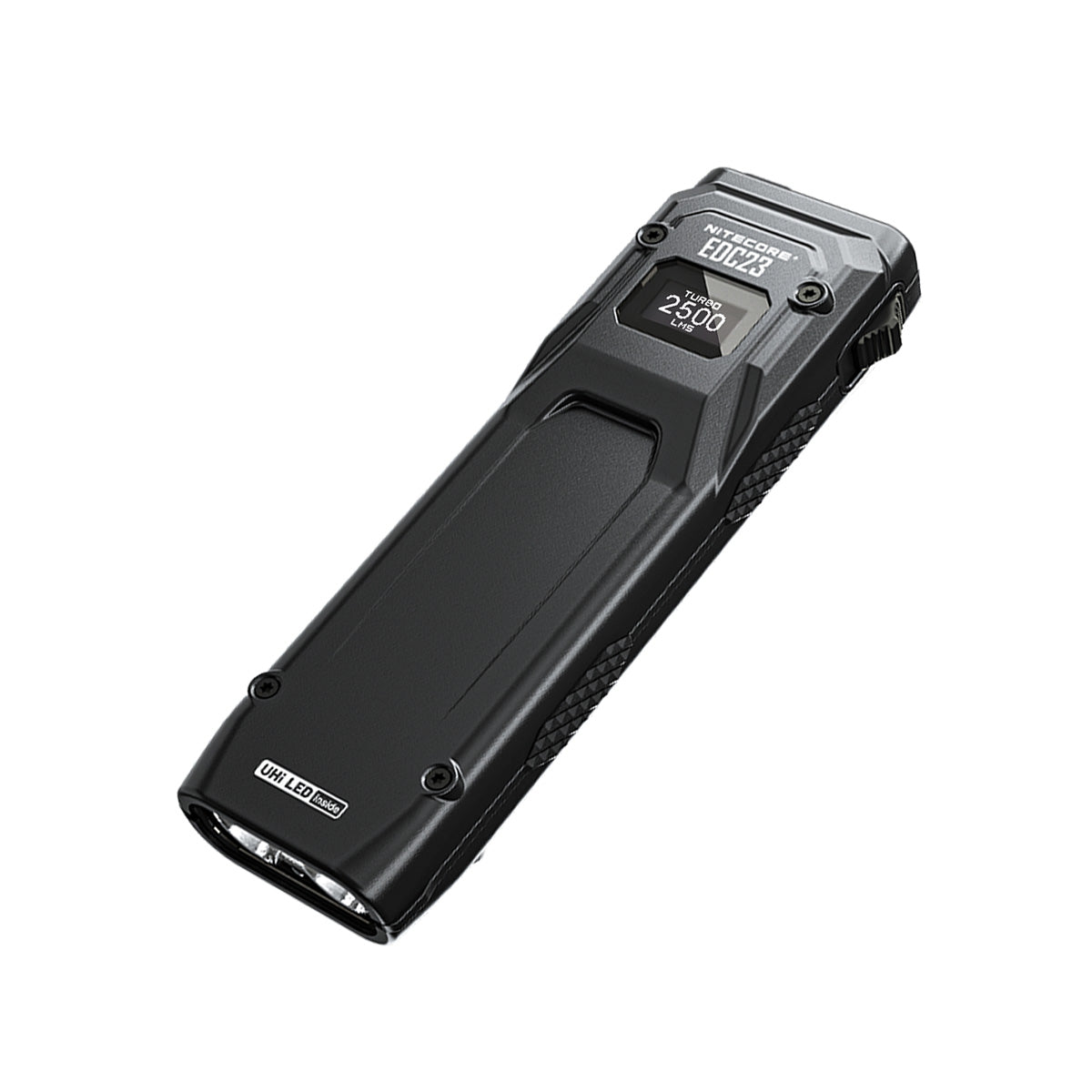

Nitecore EDC23 Slim Rechargeable LED Torch

The EDC23 is an ultra slim and versatile high performance rechargeable torch with a maximum output of 2500 lumens from two NiteLab UHI 25 LED's.

The UHi 25 LED's offer a small but high-intensive core which offers long-range coverage and extreme brightness, ensuring the EDC23 is perfect for a range of tasks.

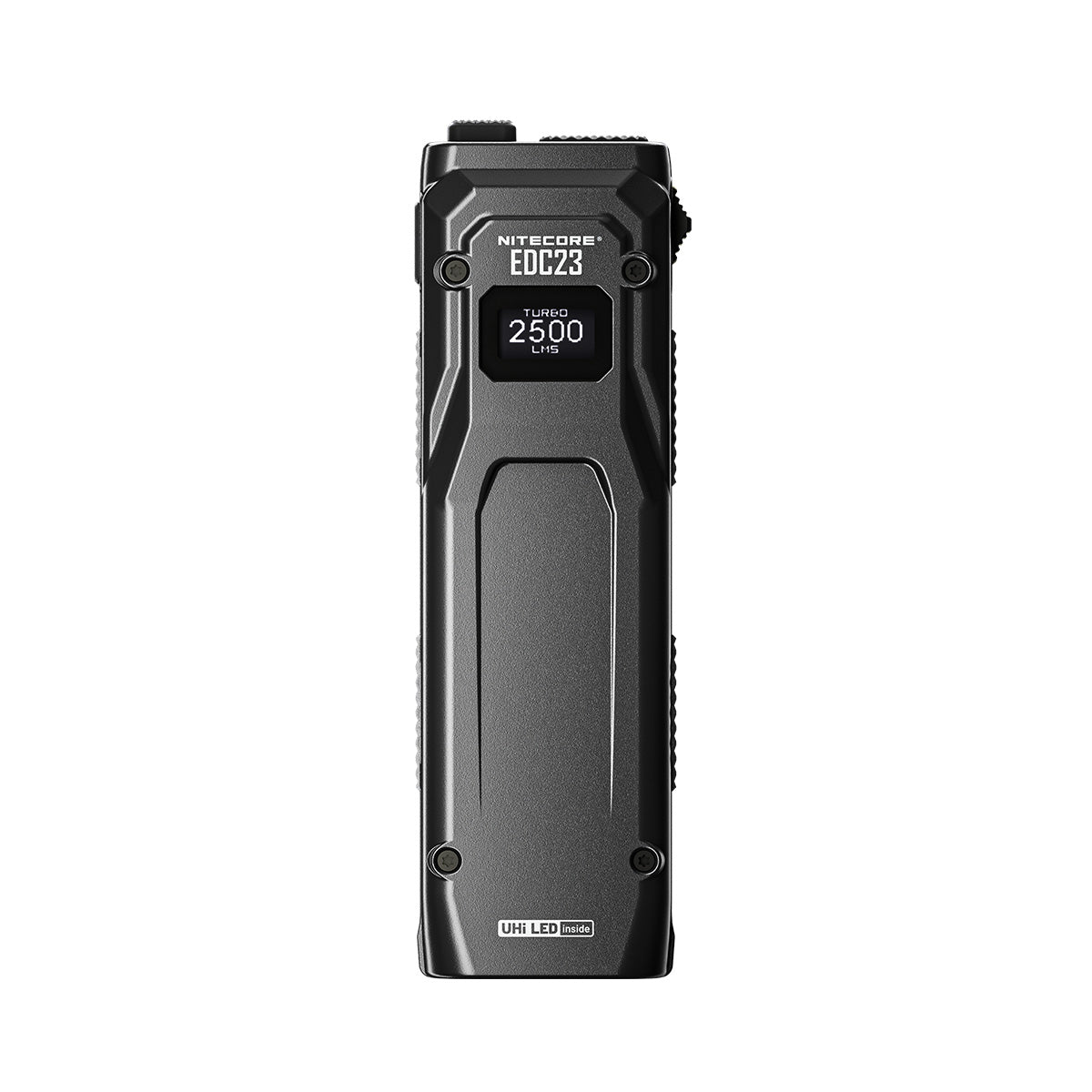

The OLED display provides information about the current status of the EDC23 when the light is turned on. It successively shows the brightness level & lumen output, the user mode and the run-time remaining.

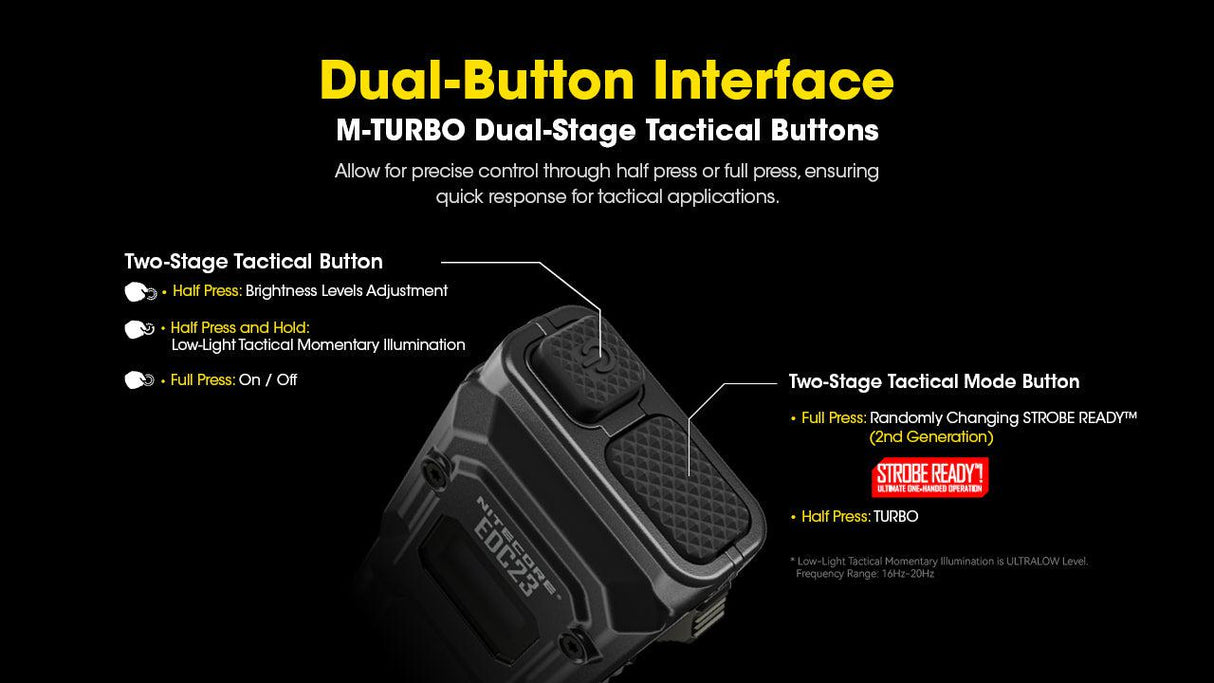

Two independent switches are located at the top of the torch, a power button and a mode button for easy operation of the five outputs, plus the strobe output.

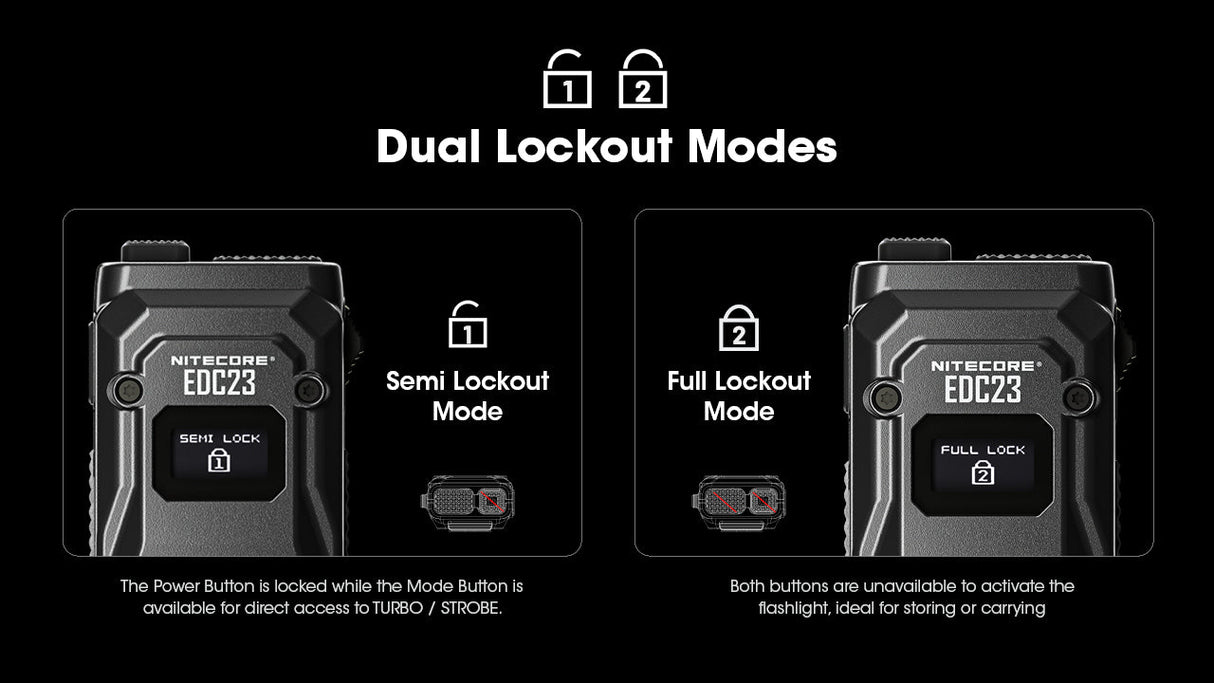

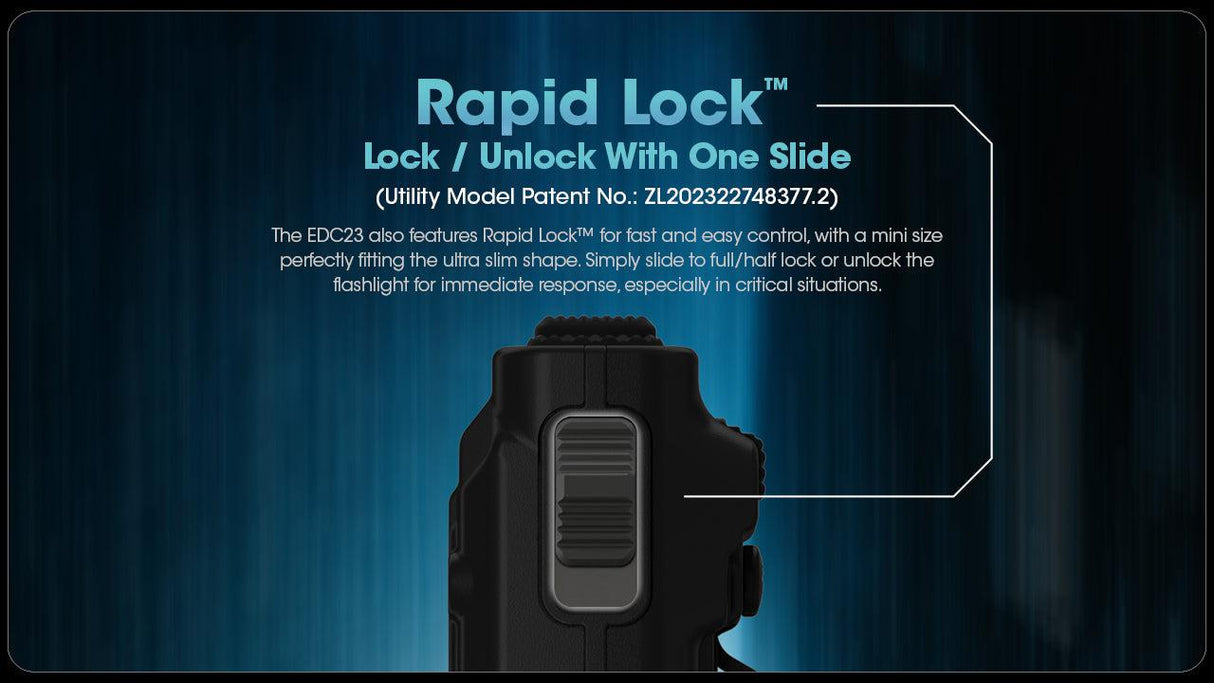

To prevent accidental activation, the EDC23 has two lockout modes. Semi lockout mode is a half lockout mode and disables the use of the power button while the full lockout mode disables all output functions.

The EDC23 features a built-in optical sensor which detects obstructions and automatically reduces the output to 200 lumens to protect the torch from overheating. Once the obstruction is removed the torch will return to the previous output. This function is only available in the high, turbo and strobe outputs.

The EDC23 is powered by a built-in 1500 mAh lithium-ion rechargeable battery which is recharged via the USB-C charging port located on the back of the torch. The screen will display battery status while charging is in progress. A battery protection circuit is incorporated that provides over-discharge, over-charge and anti short circuiting protection.

Remaining battery power is indicated by pressing the power switch while the EDC23 is turned off and the OLED screen will display the battery level bar and the voltage.

The advanced temperature regulation module allows the EDC23 to regulate its output and adapt to the ambient environment to maintain optimal performance.

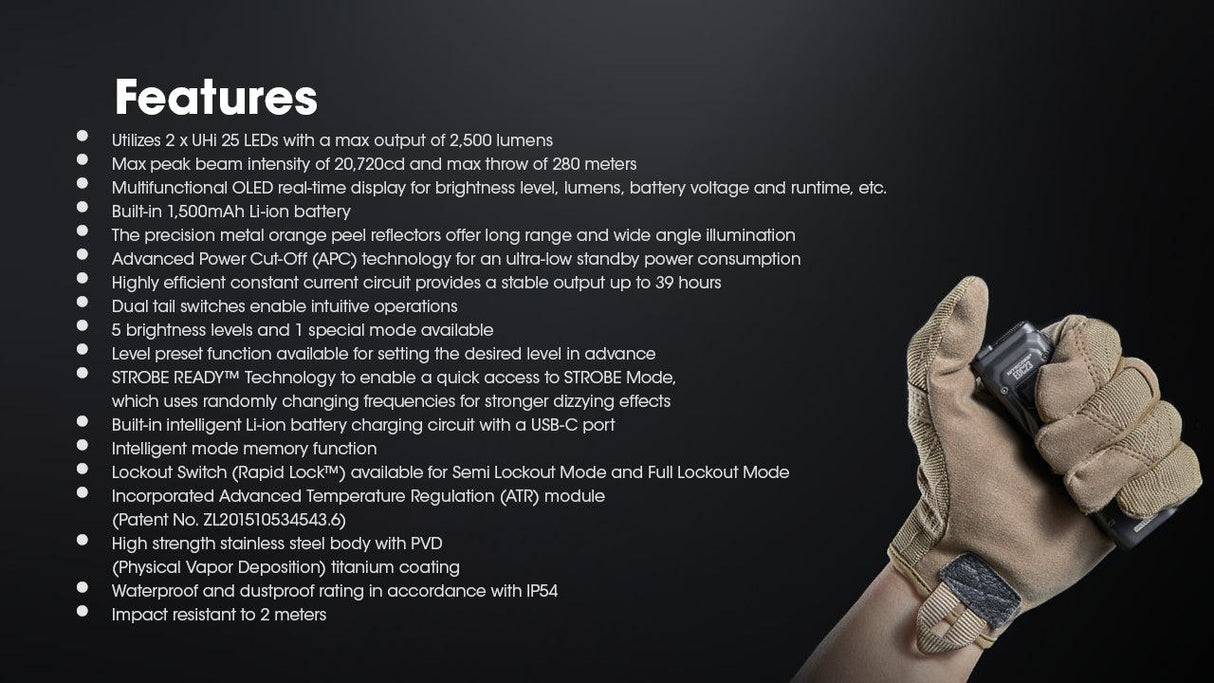

Product Features

Built-in rechargeable lithium-ion battery with USB-C charging
Integrated intelligent Li-ion battery charging circuit
Over-discharge, overcharge and short circuit protections
Advanced temperature regulation
Lightweight, compact and portable

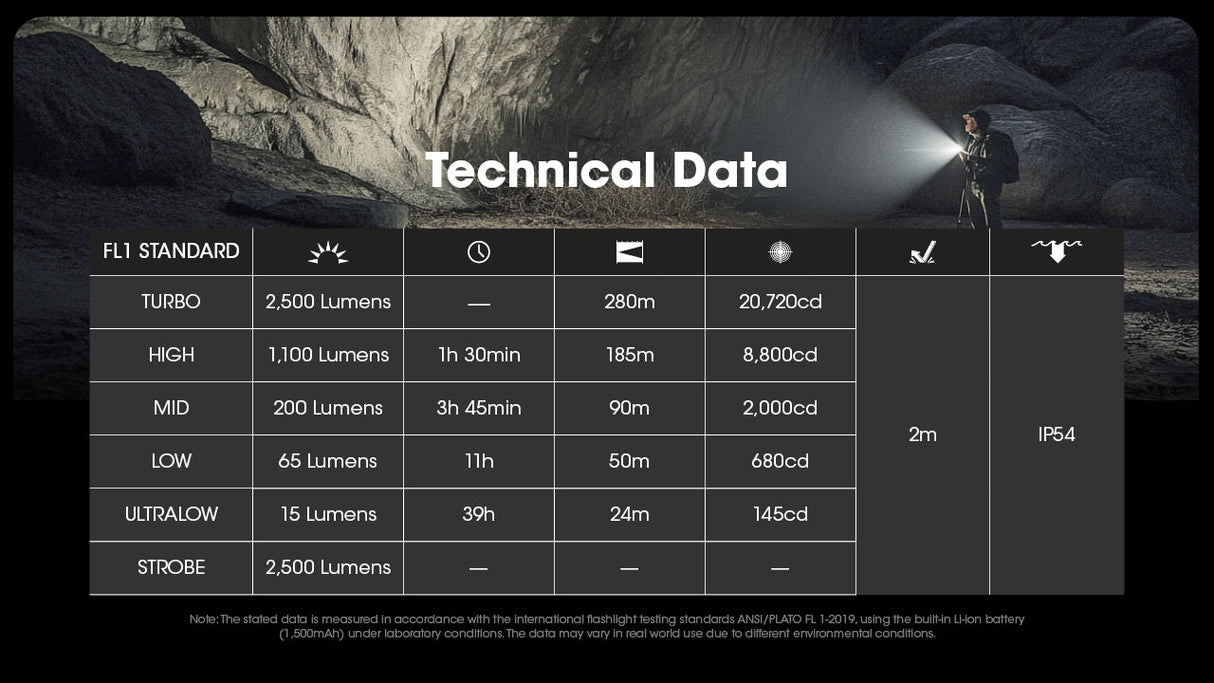

Operational Modes

Turbo: 2500 lumens; 280 m beam range
High: 1100 lumens; 1 hour, 30 minutes run-time; 185 m beam range
Medium: 200 lumens; 3 hours, 45 minutes run-time; 90 m beam range
Low: 65 lumens; 11 hours run-time; 50 m beam range
Ultra Low: 15 lumens; 39 hours run-time 24 m beam range
Strobe: 2500 lumens

Advanced temperature regulation dynamically adjusts output to prevent the LED from overheating, therefore these run-times are variable.

Technical Details

Type: LED torch
Operating Modes: Turbo / High / Medium / Low / Ultra-low / Strobe
Luminous Flux: Up to 2500 lumens
Beam Range: Up to 280 m
Lamp Type: 2 x NiteLab UHi 25 LED
Batteries Required: Built-in 1500 mAh, lithium-ion battery
Length: 102.8 mm
Head diameter: 33 mm
Weight: 101 grams
Body Colour: Black
Body Material: Military grade aluminium alloy
Environmental: IPX4
Impact Resistance: 1 m
Warranty: 2 years

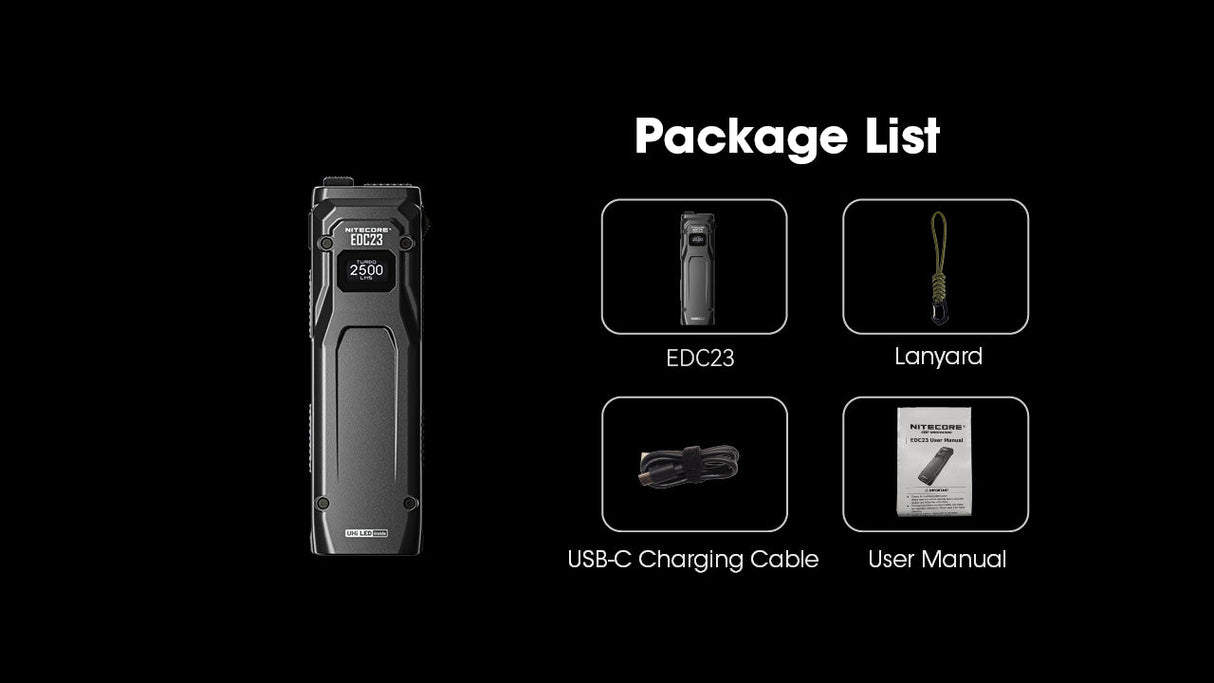

Packaging and Contents

Supplied in retail packaging and includes:
Nitecore EDC23 LED torch x 1
USB-C charging cable x 1

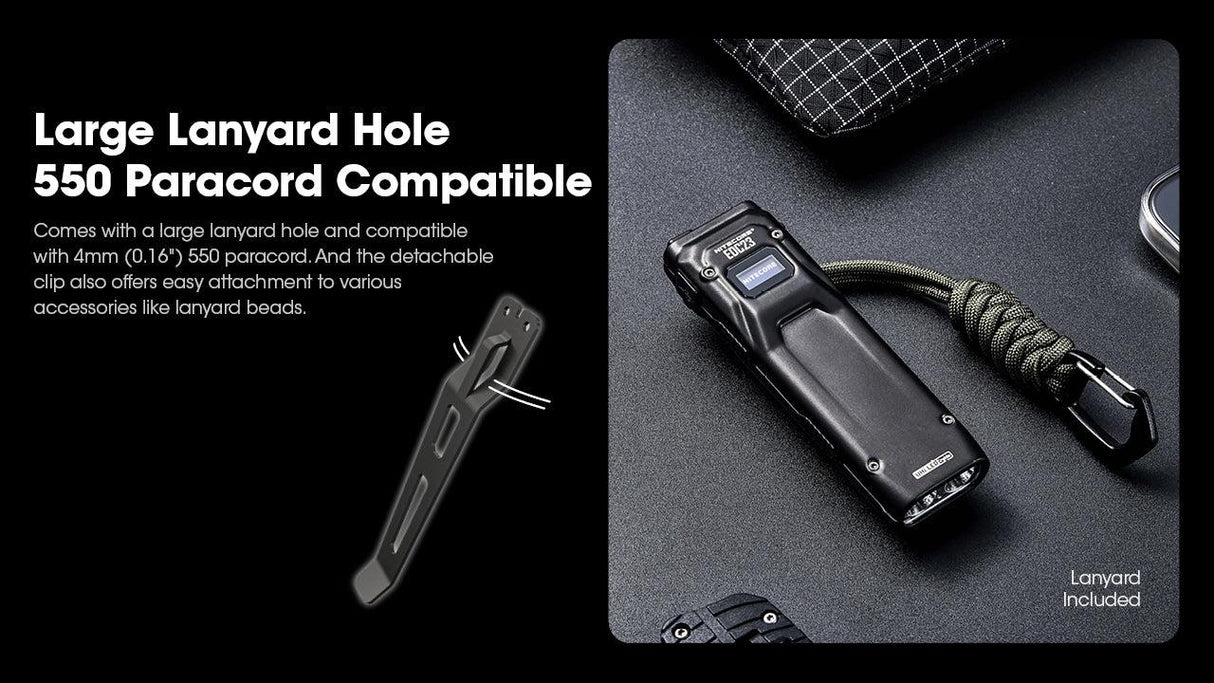

Lanyard x 1
Manual x 1
