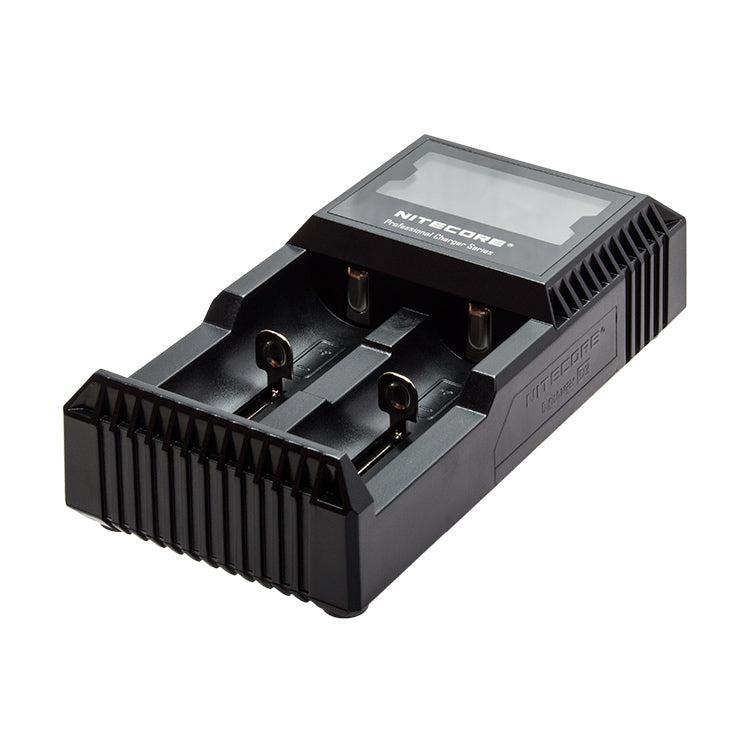

Nitecore Digicharger D2EU Two Bay Battery Charger

The Nitecore Digicharger D2EU, is a universal smart charger compatible with a wide range of rechargeable batteries.

Four independent charging bays automatically detect Li-ion, IMR, NiMH and NiCd batteries, and through manual selection it is also capable of charging LiFePO4 batteries.

Compatible with and identifies the following rechargeable batteries

The D2EU has intelligent charging circuitry that selects the optimal charging mode (CC, CV and dV/dt) for a given battery and each of the D2EU’s four microcomputer-controlled charging slots then monitors and charges the battery independently.

Furthermore, an integrated digital LCD screen clearly displays charging progress, voltage, charging current and elapsed charging time. The side mode button can be pressed to cycle through these displays.

For charging batteries overnight you can put the charger into nocturnal mode by holding the side 'slot' button down for more than one second until the LCD backlight turns off. In this mode sleep will be undisturbed by the LCD light and blinking LEDs and can exited by holding the 'slot' button down again.

When charging is complete, all five battery indicator bars will illuminate steadily and 'Chg.Finish' will appear on the LCD screen, while an intelligent automatic power-off function terminates current when charging is complete.

Note: Always use in accordance with instruction manual and read before first use.

Product Features

Capable of charging two batteries simultaneously
Each of the two battery slots monitors and charges independently
Optimised charging design for IMR batteries
Integrated LCD panel clearly displays charging parameters and progress
Two side buttons allow easy selection of specific battery types and charging parameters
Detects the battery type and status before entering automatic charge mode
Compatible with small capacity batteries
Automatically stops charging when complete
Features over-charge prevention to protect batteries
Incorporates temperature monitoring to prevent overheating
Made from durable ABS (fire retardant / flame resistant)
Features reverse polarity protection
Designed for optimal heat dissipation

Specifications

Input: 100 - 240 V ac, 50/60 Hz, 250 mA (max), 10 W
Input Voltage: 12 V dc @ 1000 mA
Output Current: 500 mA x 2
Output Voltage: 4.2 V ± 1% / 3.7 V ± 1% / 1.48 V ± 1%
Dimensions: 143 x 74 x 36 mm
Weight: 168 g
Warranty: 1 year

Packaging and Contents

Supplied in retail packaging and includes:
Nitecore Digicharger D2EU x 1

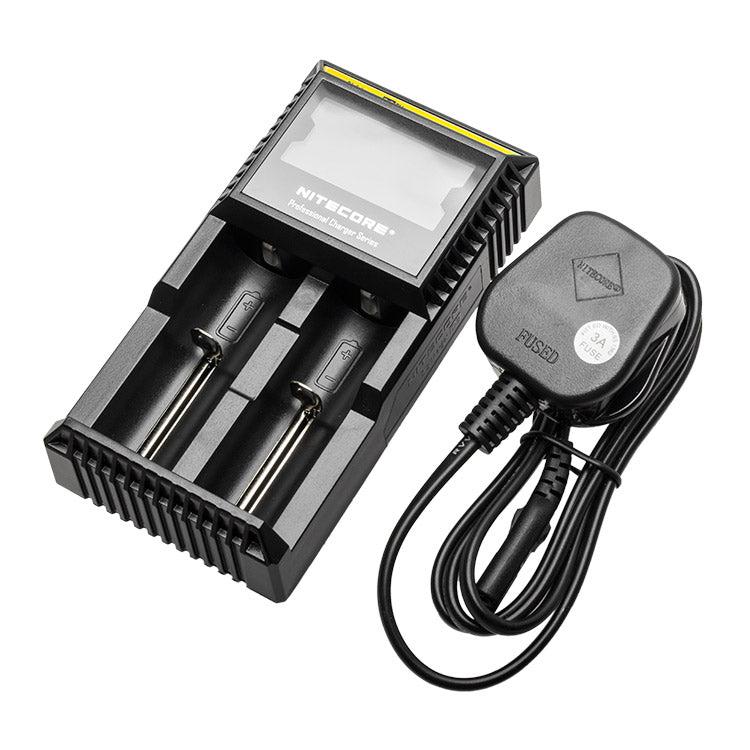

UK mains adaptor x 1
Instruction booklet x 1

Safety Notes

1. Charge only 1.2V NiMH/NiCd, 3.7V Li-ion/IMR or 3.2V LiFePO4 rechargeable batteries.
2. Charging any other types of batteries may cause them to leak rupture or explode.
3. Do not disassemble or modify the charger or attempt to use as a power source.
4. Always unplug the charger from outlet before attempting maintenance or cleaning.
5. This charger should not be used by persons without adequate training or knowledge.
