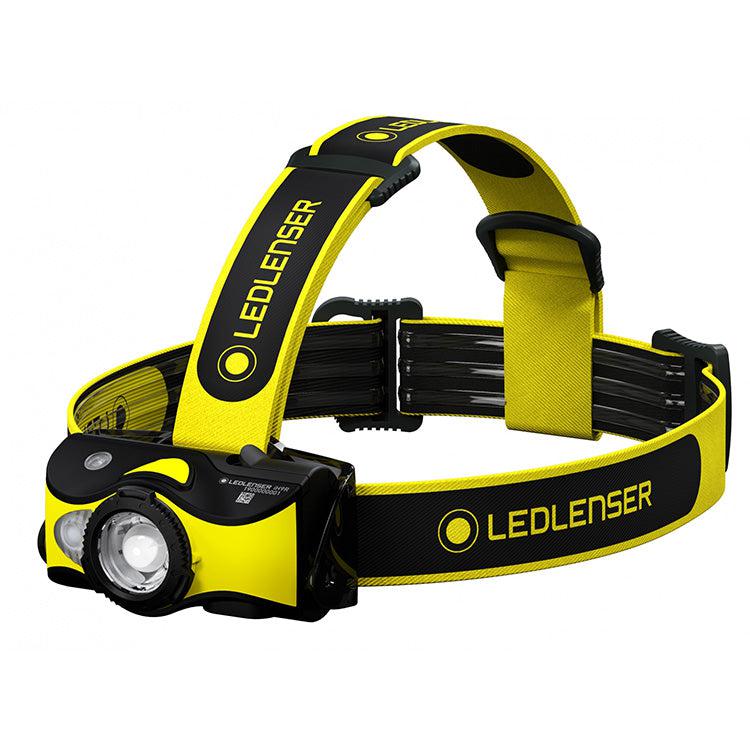

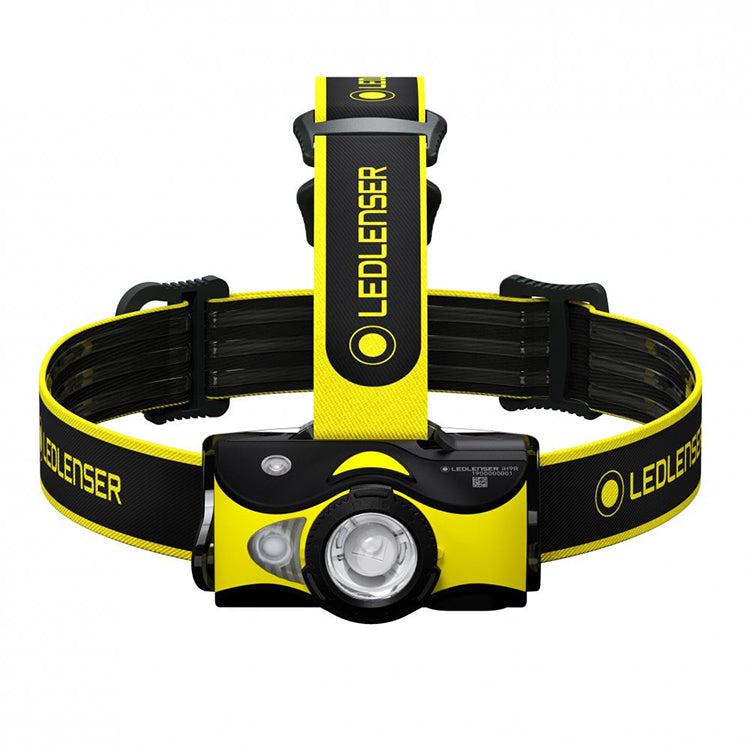

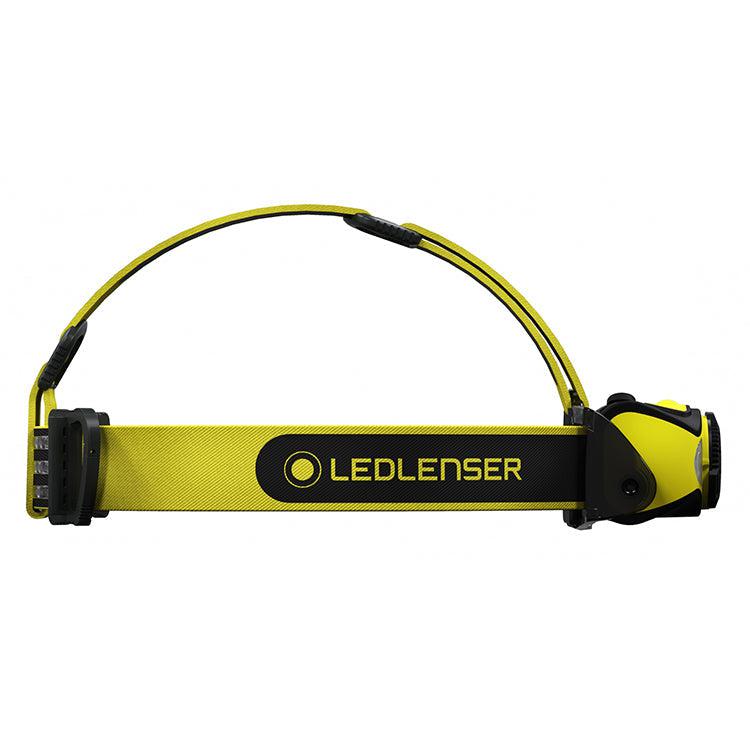

Ledlenser iH9R Rechargeable LED Head Torch

The Ledlenser iH9R offers a maximum output of 600 lumens white light from a single high powered LED on the boost setting and has a yellow body design that is the signature style of the industrial series range.

The white light cycles through the four constant settings of low, mid, high, bink and then off with each press. If in any setting for longer that 5 seconds, the next press will turn the head torch off. The boost mode is momentary and is turned on by double pressing the button within 5 seconds in any state. After 10 seconds the boost will revert back to the previous output or off if it was activated with the light off.

The iH9R also features a red, blue and green light which are useful for low level lighting, preserving the users night vision, animal spotting map reading amongst other uses. The white and RGB light can be switched between by holding the button down on the top of the torch for 3 seconds in any state. Once in the RGB mode, quick press to cycle through in the order of red light, green light and blue light.

When the light is first turned on, the battery indicator will display a green, yellow or red light for 2 seconds to show the charge status of the battery so that you know when it needs charging. If the battery is very low, the light will blink four times while in use.

The light can be focused from a flood beam to a spot beam by twisting the focusing bezel outwards and the hinged bracket allows the iH9R to be swivelled within a 60° angle so that you can position the light where you need it. The torch can be taken off the bracket / head band and used hands free.

The iH9R is powered by a lithium-ion battery pack which is included, but it can also use two AA alkaline batteries as a back up if you run out of charge (the run-times will be different when using different battery types). To install or change the batteries the head lamp firstly needs to be removed from the bracket. The battery cover can then be popped open so that you can put in the rechargeable lithium-ion battery or two non-rechargeable AA alkaline batteries.

To charge the lithium-ion battery you need to connect the magnetic end of the included cable to the charging point on the underside of the head lamp and the standard USB at the other end plugs into a computer or compatible USB adaptor (not included). The battery indicator light will turn red to show charging is in progress and will go green once charging is complete. If the battery is inserted the wrong way round or you attempt to charge AA batteries the indicator light will blink red/green to show there is a problem.

To prevent accidental activation in transit the iH9R can be put into a lockout state by holding down the button for 5 seconds from off until either light blink four times rapidly. To unlock the torch hold the button down again for 3 seconds until the light first blink twice, followed by four blinks.

A choice of constant current mode or energy saving mode is available and they will each offer different outputs and run-times. They are changed between by firstly putting the torch into lockout mode and then holding down the button for 7 seconds. The light will either come on at 100% power and decrease until off to indicate energy saving, or it will come on at 5% and increase to 100% before turning off to indicate constant current. The light is defaulted to energy saving mode.

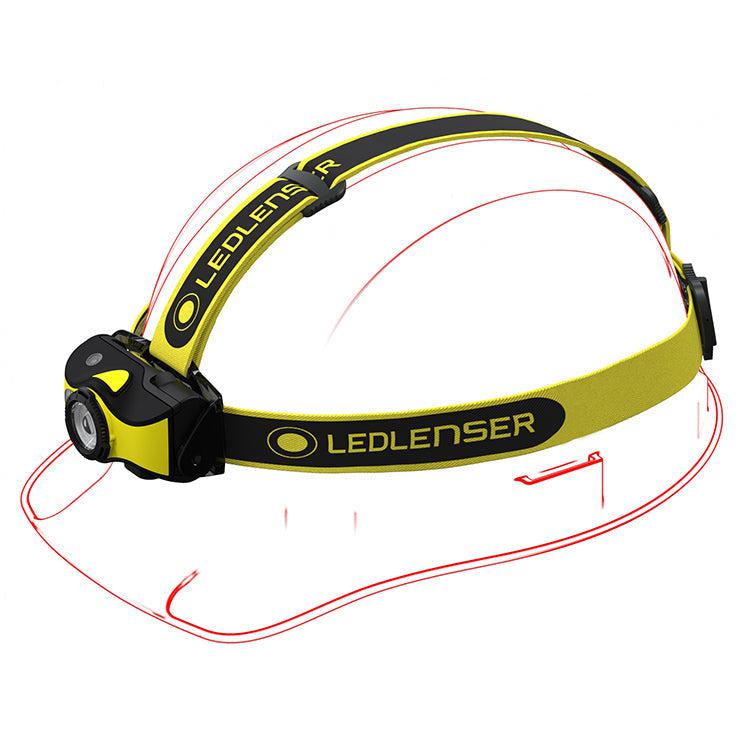

A separate adhesive bracket is included so that the iH9R can easily be mounted to a helmet, and with the ability to pop the torch in and out of the head band or helmet bracket, it means you can leave the bracket securely on your helmet but still keep your torch with you at the end of the day.

A great head torch for everyday use and for in the work environment thanks to the high visibility colour.

Operational Modes

Constant Current:
Low: 20 lumens; 40 hours run-time; 40 m beam range
Mid: 120 lumens; 8 hours run-time; 100 m beam range
High: 220 lumens; 3 hours, 30 minutes run-time; 140 m beam range
Boost: 600 lumens; 10 seconds momentary operation; 200 m beam range

Energy Saving:
Low: 20 lumens; 60 hours run-time; 40 m beam range
Mid: 170 lumens; 10 hours run-time; 120 m beam range
High: 400 lumens; 7 hours run-time; 180 m beam range
Boost: 600 lumens; 10 seconds momentary operation; 200 m beam range

Technical Details

Type: Focusing head torch
Operating Modes: Low / Mid / High / Blink / Boost / Red / Green / Blue
Luminous Flux: Up to 600 lumens
Lamp: 1 x white LED / 1 x RGB LED
Beam Range: Up to 200 m
Batteries Required: 1 x lithium-ion rechargeable battery pack (included) / 2 x AA alkaline batteries
Run Time: Up to 60 hours (low setting ES)
Weight: 139 g (including battery pack)
Body Colour: Black and yellow
Strap: Adjustable elastic
Switch Type: Push button switch
Environmental: Water resistant to IP54 standards
Warranty: 5 years head torch / 2 years battery

Packaging and Contents

Supplied in retail packaging and includes:
Ledlenser iH9R LED head torch x 1
Ledlenser 1550 mAh 3.7 V lithium-ion battery pack x 1
USB charging cable x 1
Helmet attachment x 1
Manual x 1
