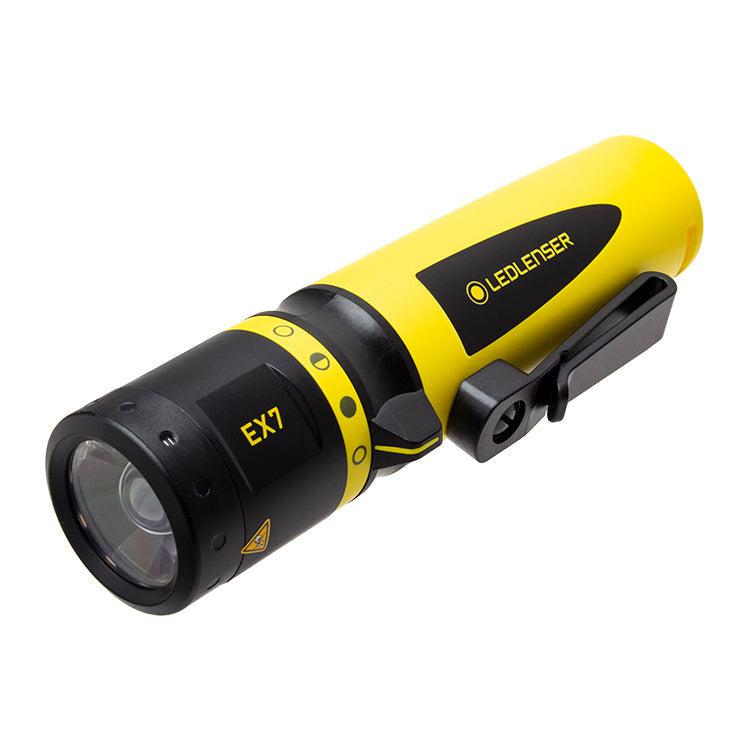

Ledlenser EX7 ATEX Zone 0/20 LED Torch

The Ledlenser EX7 is an intrinsically safe torch is ATEX Zone 0 / 20 compliant and uses a high quality LED to deliver 200 lumens of white light.

The industrial strength polycarbonate body features a removable pocket clip so that it can be easily carried on a shirt pocket or on a trouser pocket. The pocket clip is screwed into place and can be removed using a flat head screwdriver and in it's place you can attach a wider belt clip instead. The belt clip need to be assembled first by connecting to the ring, which then slides over the body over the torch and locks into place.

The EX7 is powered by three AA alkaline batteries which are fitted by unscrewing the head of the torch, removing the battery carrier and then inserting the batteries into the carrier as indicated by the + and- at the ends of each battery slot. The battery carrier is then reinserted into the body of the torch, ensuring that the arrow on the carrier lines up with the arrow on the rim of the body and the head is then screwed back on tightly. Never open the torch when in a zone 0 / explosive environment.

The selector ring switch on the body has two off positions, low position and high position so you can easily select the brightness level required. A fresh set of batteries provides a run-time of up to 45 hours on low. Always remove depleted batteries as soon as possible and also remove batteries before storing the torch to avoid battery leakage.

The IP66 rating means that this torch is dustproof as well as water resistant to a powerful water jet.

Note: Please carefully read all warnings in the product manual before use.

Only specific types of AA alkaline batteries are permitted for use in this torch, they are as follows;

Alkaline: Duracell Plus Power

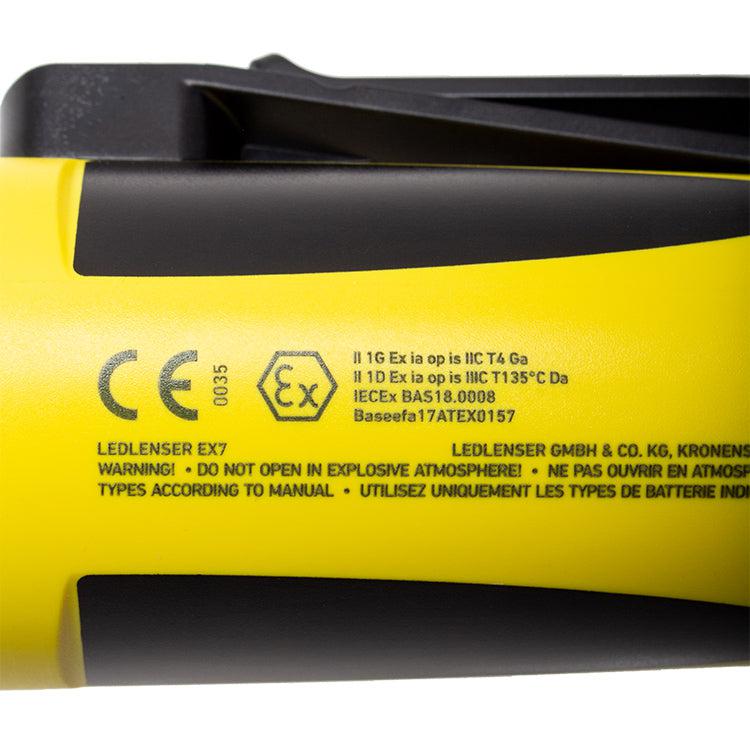

Certifications

II 1G Ex ia op is IIC T4 Ga
II 2D Ex ia op is IIIC T135°C Da

Certification number:
Baseefa17ATEX0157

Certificate of conformity:
IECEx BAS18.0008

Operational Modes

High: 200 lumens; 16 hours run-time; 120 m beam range
Low: 60 lumens; 45 hours run-time; 70 m beam range

Please Note: The output will gradually decrease in order to prolong the run-time.

Technical Details

Type: ATEX hand torch
Operating Modes: High / Low / Off
Luminous Flux: Up to 200 lumens
Lamp: White LED
Beam Range: Up to 120 m
Batteries Required: 3 x AA alkaline (included)
Run Time: Up to 45 hours
Dimensions: 161.4 x 41.1 mm
Weight: 232 grams (excluding batteries)
Body Colour: Yellow and black
Body Material: Polycarbonate housing
Switch Type: Selector ring
Environmental: IP66 standard (dust proof and water resistant)

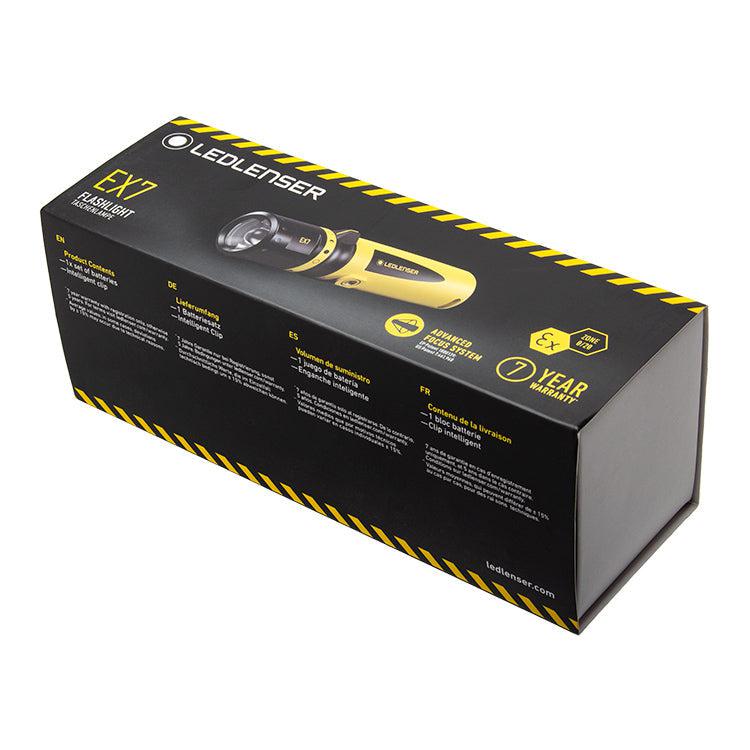

Packaging and Contents

Supplied in retail packaging and includes:
Ledlenser EX7 Zone 0 torch x 1
Removable pocket clip x 1
Removable belt clip x 1
AA alkaline battery x 3
Instruction leaflet x 1
