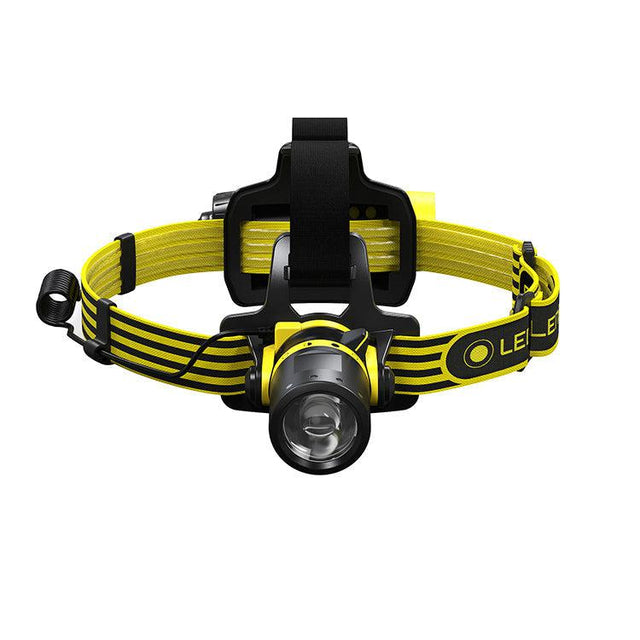

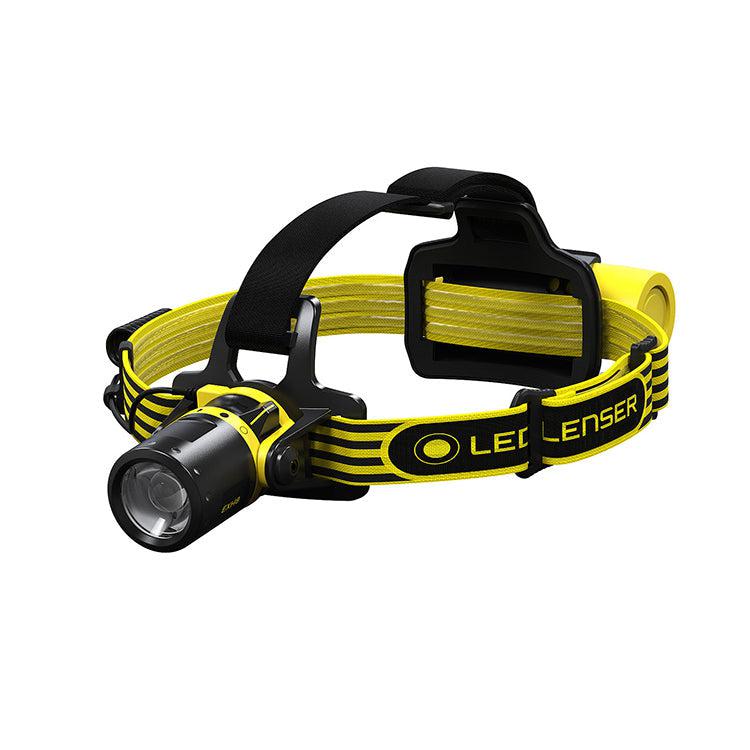

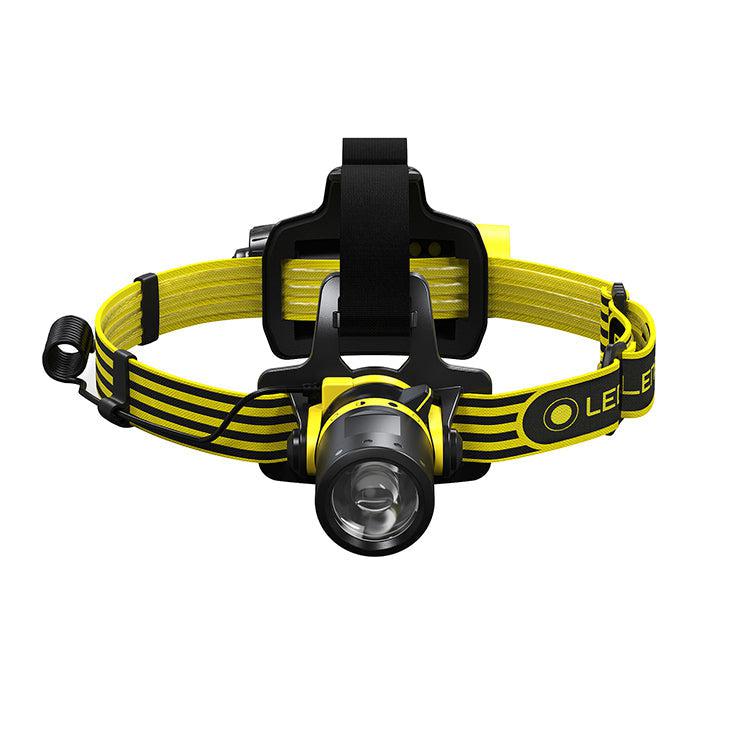

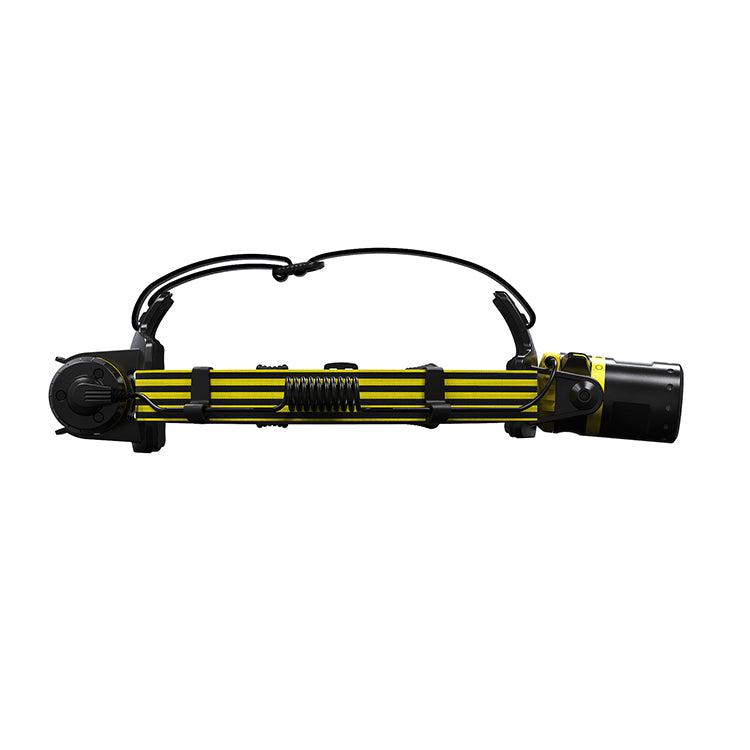

Ledlenser EXH8 ATEX Zone 0/20 LED Head Torch

The Ledlenser EXH8 is an intrinsically safe head torch for use in hazardous locations with an output of 180 lumens using a white LED.

The EXH8 is powered by three AA alkaline batteries which are fitted by unscrewing the side of the battery compartment on the rear of the head band, removing the battery carrier and then inserting the batteries into the carrier as indicated by the + and - at the ends of each battery slot. The battery carrier is then reinserted into the battery compartment, ensuring that the arrow on the carrier lines up with the arrow on the rim of the body and the cover is then screwed back on tightly. Never open the torch when in a zone 0 / explosive environment.

The selector ring switch on the head has two off positions, low position and high position so you can easily select the brightness level required. A fresh set of batteries provides a run-time of up to 40 hours on low and the battery compartment features a red light to warn you when the batteries need replacing. Always remove depleted batteries as soon as possible and also remove batteries before storing the torch to avoid battery leakage.

Like most Ledlenser head torches, the EXH8 has a focusing feature on the head of the torch that can be twisted to focus the light between spot and flood light to suit your requirements.

The IP66 rating means that this torch is dustproof as well as water resistant to a powerful water jet.

Note: Please carefully read all warnings in the product manual before use.

Only specific types of AA alkaline batteries are permitted for use in this torch, they are as follows;

Alkaline: Duracell Plus Power

Certifications

II 1G Ex ia op is IIC T4 Ga
II 2D Ex ia op is IIIC T135°C Da

Certification number:
Baseefa17ATEX0157

Certificate of conformity:
IECEx BAS18.0008

Operational Modes

High: 180 lumens; 16 hours run-time; 120 m beam range*
Low: 60 lumens; 45 hours run-time; 70 m beam range**

* The lumen output will gradually decrease from 100% to 60% over 2 hours and then from 60% to 20% over 8 hours and it will run at 20% for the remainder of the battery life in order to prolong the run-time.
** The lumen output will gradually decrease from 100% to 60% over 5 hours and then from 60% to 20% over 30 hours and it will then run at 20% for the remainder of the battery life in order to prolong the run-time.

Technical Details

Type: ATEX head torch
Operating Modes: High / Low / Off
Luminous Flux: Up to 180 lumens
Lamp: White LED
Beam Range: Up to 120 m
Batteries Required: 3 x AA alkaline batteries (included)
Run Time: Up to 40 hours
Weight: 345 grams (including batteries)
Body Colour: Yellow and black
Body Material: Durable polycarbonate construction
Switch Type: Selector ring
Environmental: IP66 standard (dust proof and water resistant)

Packaging and Contents

Supplied in retail packaging and includes:
Ledlenser EXH8 Zone 0 head torch x 1
AA alkaline battery x 3
Manual x 1
