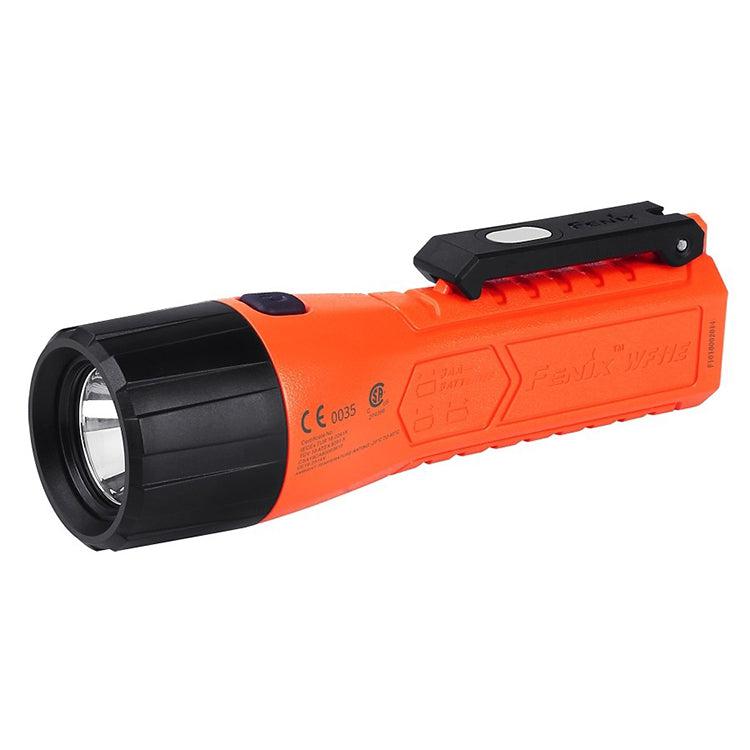

Fenix WF11E ATEX Intrinsically Safe LED Torch

The Fenix WF11E is an intrinsically safe torch for use in locations that are at risk of explosion and it has passed the necessary tests and was certified by IECEx, ATEX and CSA.

Thus this product can be safely used in Zone 0, Zone 1 and Zone 2, where there is explosive gas mixture in classes IIA, IIB and IIC and the WF11E is also rated for Zone 20, Zone 21 and Zone 22 combustible dust areas, such as petroleum, chemical and textile industries, fire controlling, metallurgical areas, electric power stations and areas, paper producing plants, etc.

It uses a Cree XP-G2 neutral white LED to provide a maximum output of 200 lumens and also offers two other brightness levels. The light is operated by holding down the button on the neck of the torch for 0.5 seconds, and once turned on each press will cycle through low, mid and high.

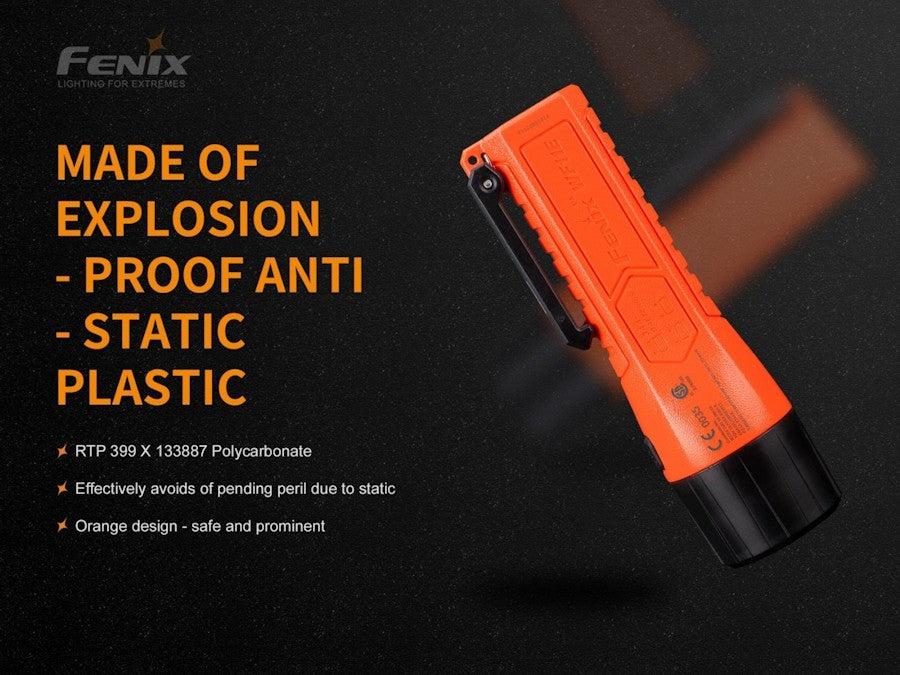

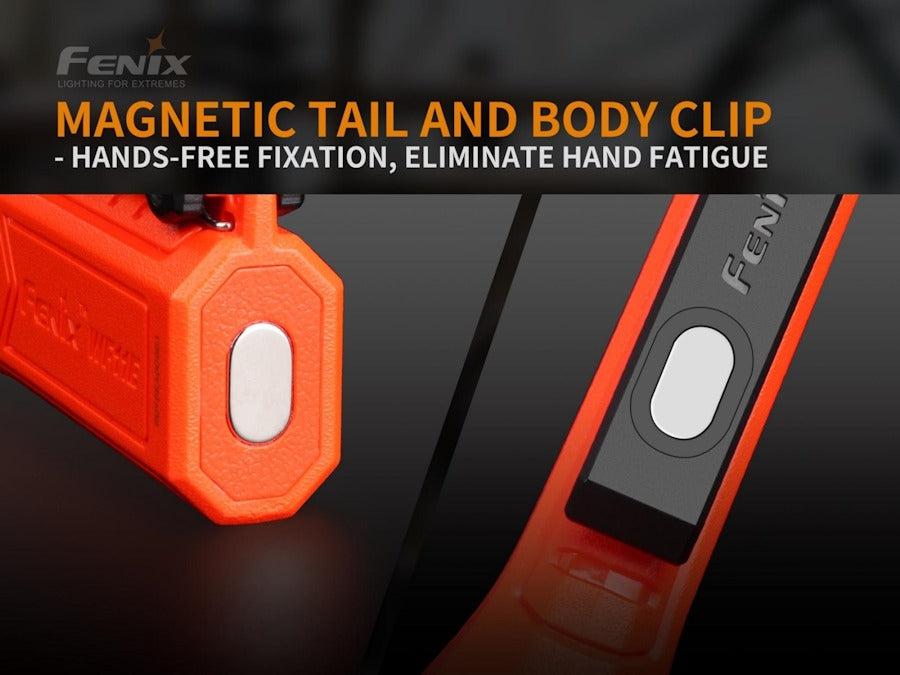

The body is made from explosion proof and anti-static plastic and is coloured orange to aid the visibility of the torch for extra safety measures. The pocket clip allows for easy carry and also features a magnet, as does the base of the torch to allow for easy attachment to magnetic surfaces while working.

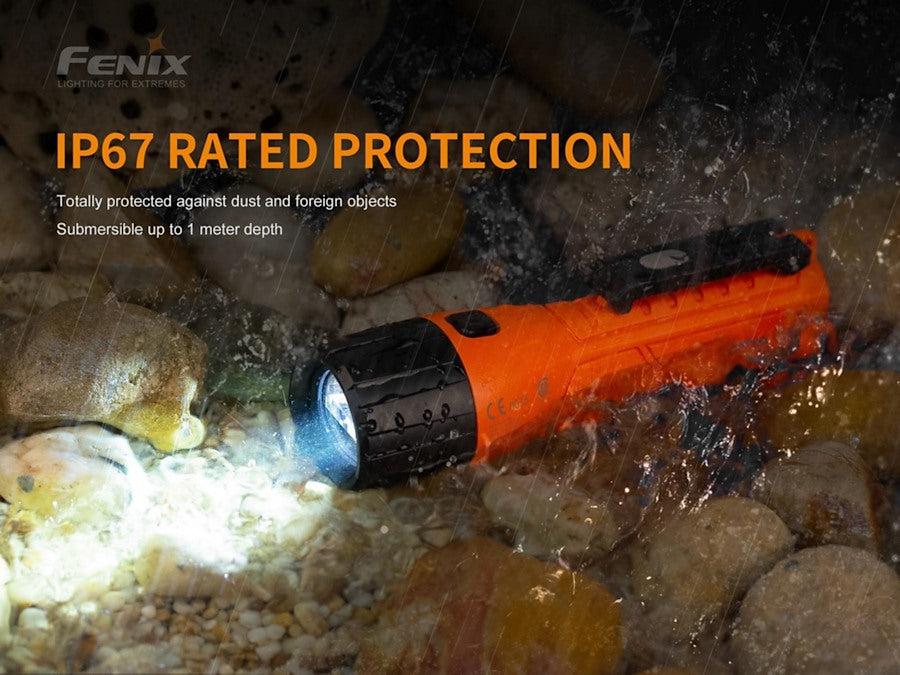

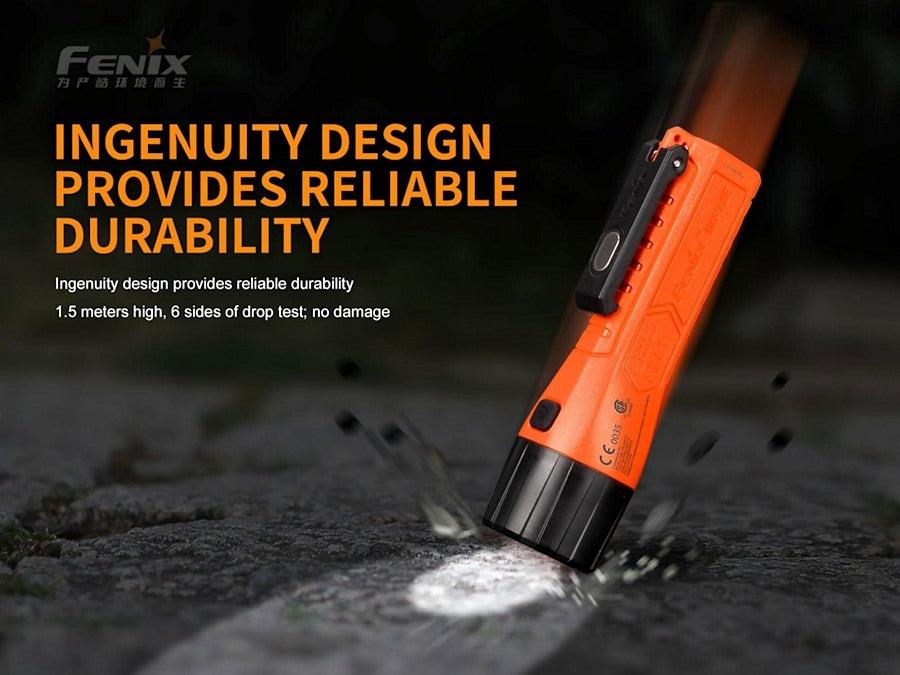

The IP67 rating means that this torch is dustproof as well as waterproof and can be submerged underwater up to 1 metre and it has a drop resistance of 1.5 metres to ensure it's robustness.

Powered by three AA alkaline batteries, the WF11E has a run-time of up to 10 hours on the highest setting. Because of the intended use of the torch only alkaline batteries can be used with this torch and to maintain product certification you must use either Energizer E91, Duracell MN1500 or Rayovac 815 AA alkaline batteries.

Product Features

ATEX Zone 0,1, 2, 20, 21 and 22 compliant
Three output levels
Magnetic pocket clip & base

Certifications

IECX:
II 1G Ex ia IIC T4 Ga
II 1D Ex ia IIIC T130°C Da IP66/IP67

ATEX:
Ex ia IIC T4 Ga
Ex ia IIIC T130°C Da IP66/IP67

CSA:
Class I Div 1 Grp ABCD, T4
Class II Div 1 Grp EFG, T4
Class III
Class I, Zone 0 A / Ex ia IIC T4 Ga
Zone 20 A / Ex ia IIIC T130°C Da

PCEC:
Ex ia IIC T4 Ga
Ex iaD 20 T130°C

Operational Modes

High: 200 lumens; 10 hours run-time; 185 m beam range
Mid: 100 lumens; 29 hours, 30 minutes run-time; 141 m beam range
Low: 30 lumens; 70 hours run-time; 81 m beam range

Technical Details

Type: ATEX hand torch
Operating Modes: Low / Mid / High
Luminous Flux: Up to 200 lumens
Lamp: Cree XP-G2 NW LED
Beam Range: Up to 185 m
Batteries Required: 3 x AA alkaline (either Energizer E91, Duracell MN1500 or Rayovac 815)
Run Time: Up to 10 hours
Overall Length: 167.5 mm
Head Diameter: 49 mm
Body Diameter: 24 mm
Weight: 160 grams (excluding batteries)
Body Colour: Orange
Body Material: Explosion proof and anti-static plastics
Switch Type: push button
Impact Resistance: 1.5 m
Environmental: IP66 /IP67 standard

Packaging and Contents

Supplied in retail packaging and includes:
Fenix WF11E ATEX LED torch x 1
Energizer E91 AA alkaline battery x 3
Spare O-ring x 1
Lanyard x 1
Manual x 1
