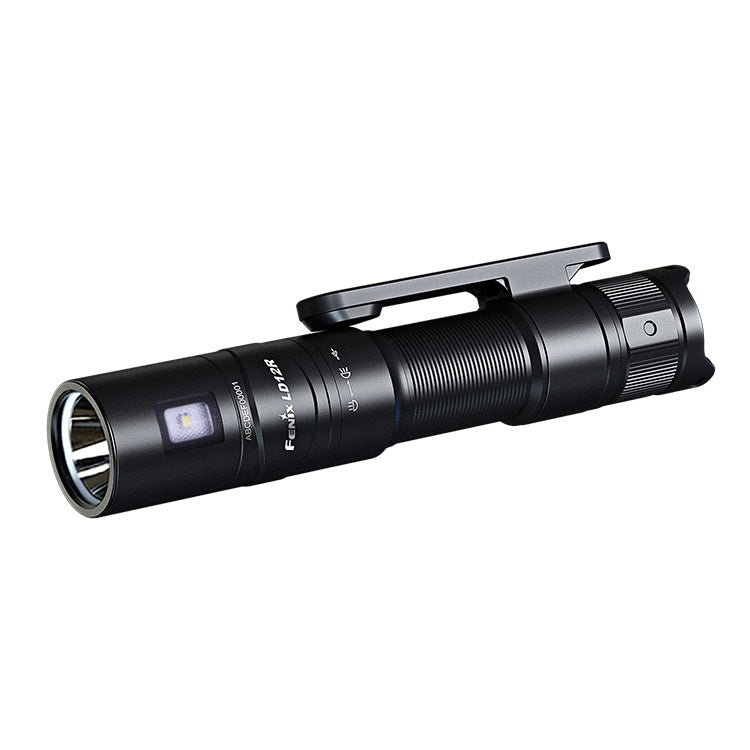

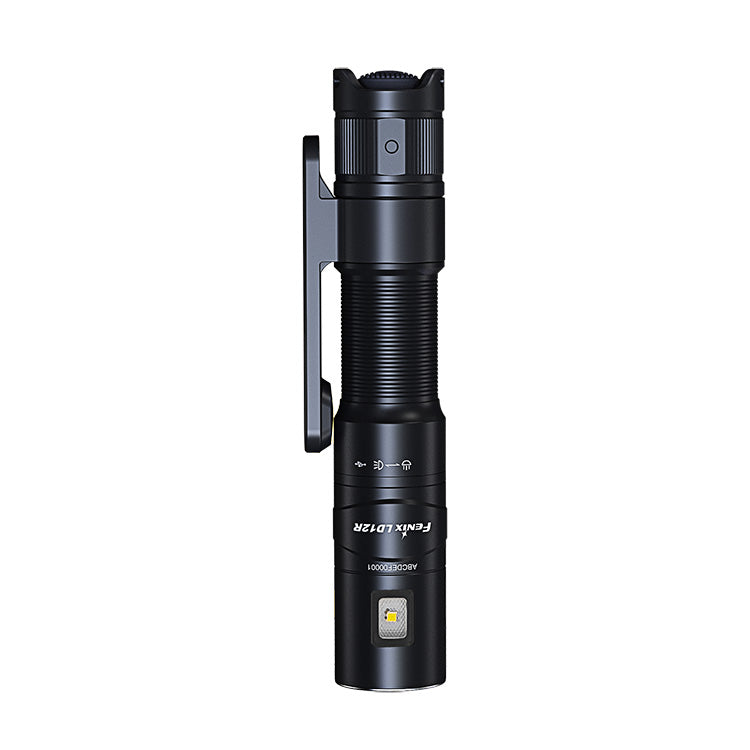

Fenix LD12R Rechargeable LED Torch

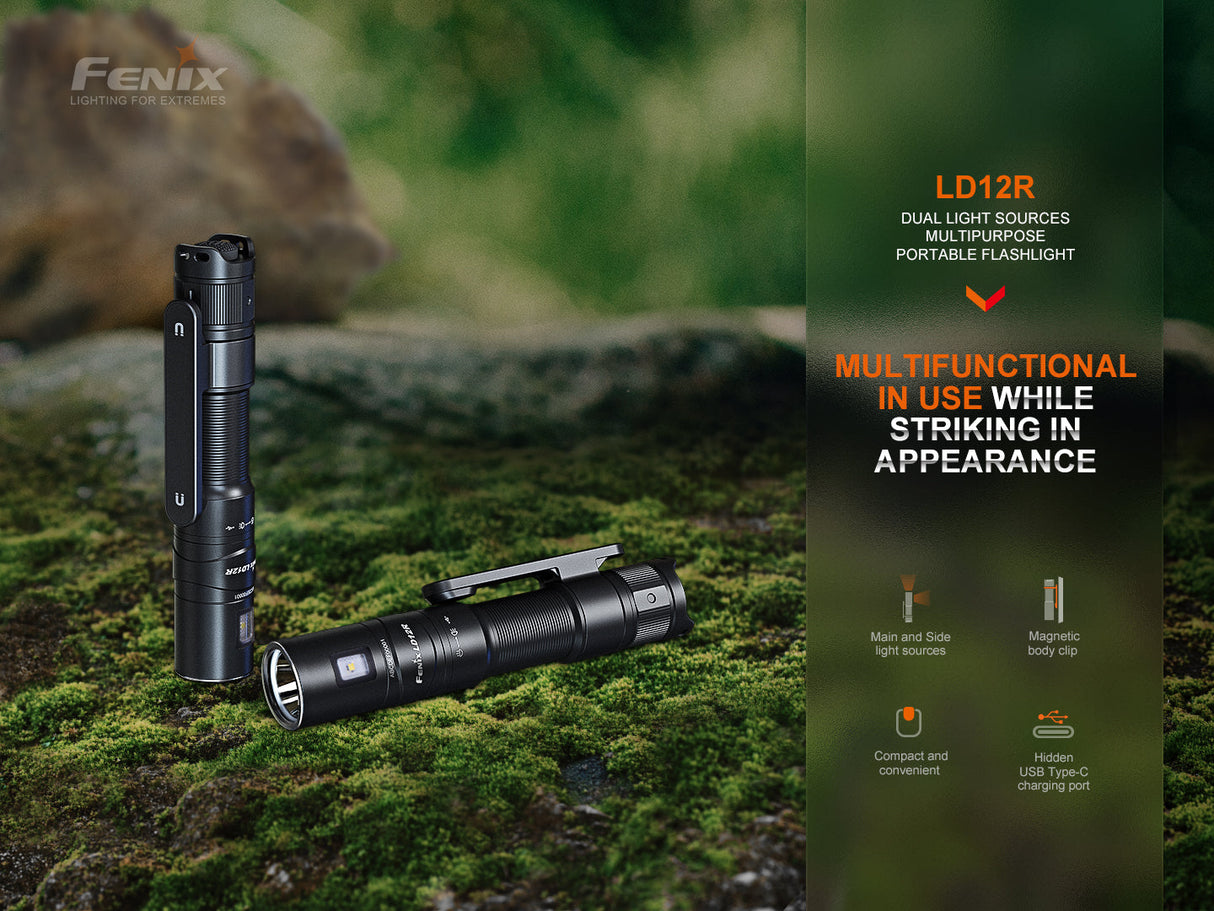

The Fenix LD12R is a compact, high quality LED torch that is perfect for every day carry. The LD12R offers a maximum output of 600 lumens from the main light and also features a side light with a 100 lumen output.

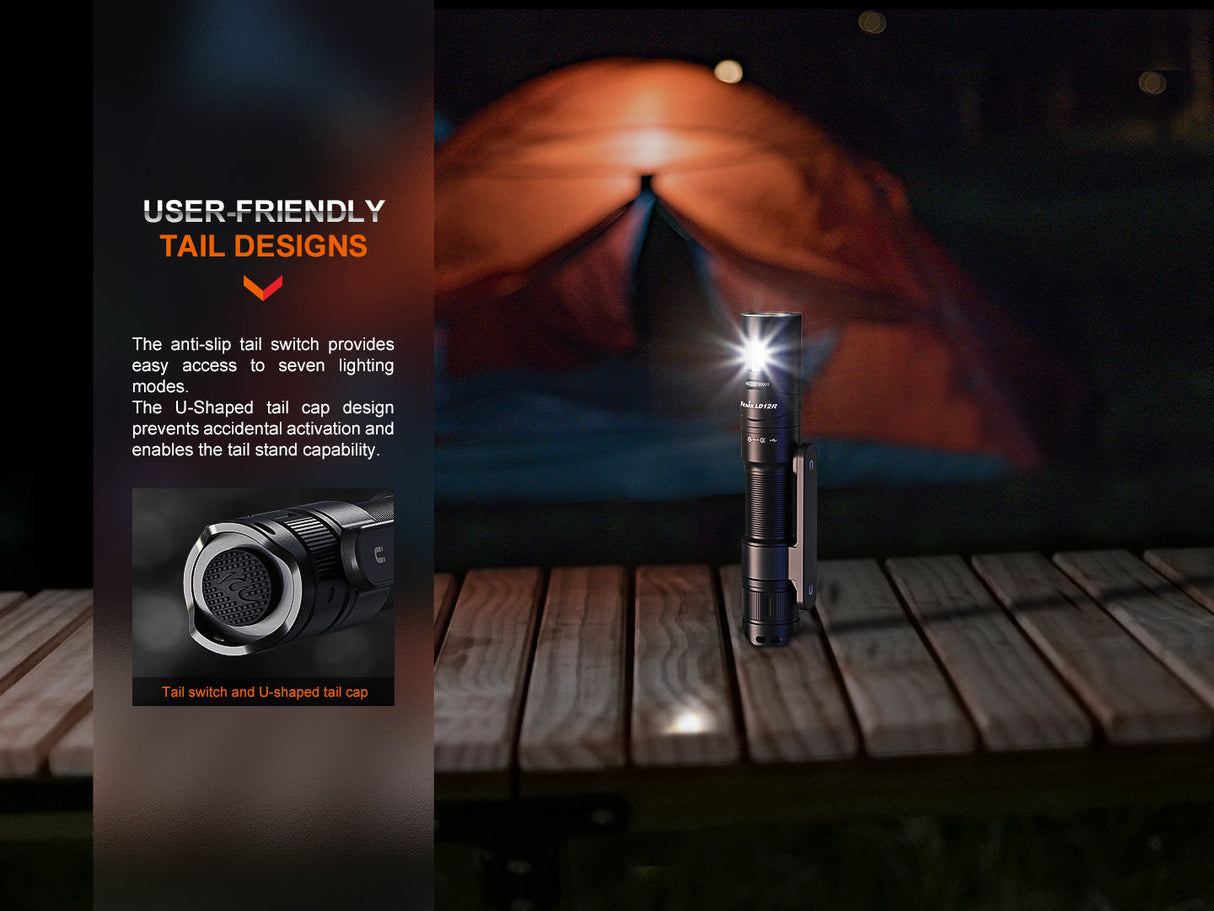

Four brightness settings are available from the main light and three are available from the side light. The tail switch controls both lights, to switch from the main light to the side light while the light is on simply loosen the head of the torch until the light turns off, then re-screw the head on ensuring it is completely tight. When on the main light output a full press of the tail cap turns the light on with each half press after cycling through the outputs of moonlight, low, medium and high. While in the sidelight output, a full press of the tail cap turns the light on. Each half press after cycles through the outputs of low, medium and high. To turn the torch off while using either light fully press the tail cap button. The torch will always turn on in the main light setting and the intelligent memory circuit will remember the last setting in the main light used for your convenience.

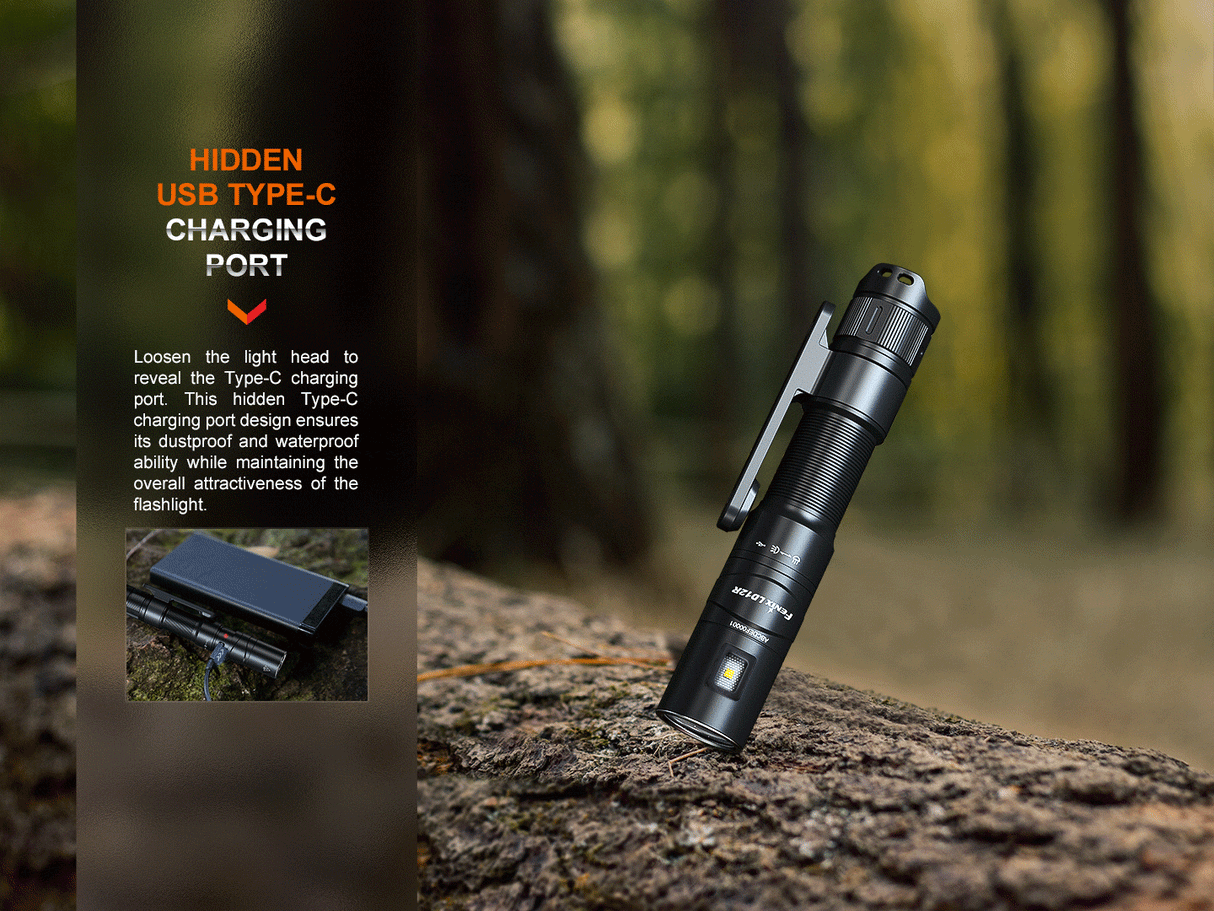

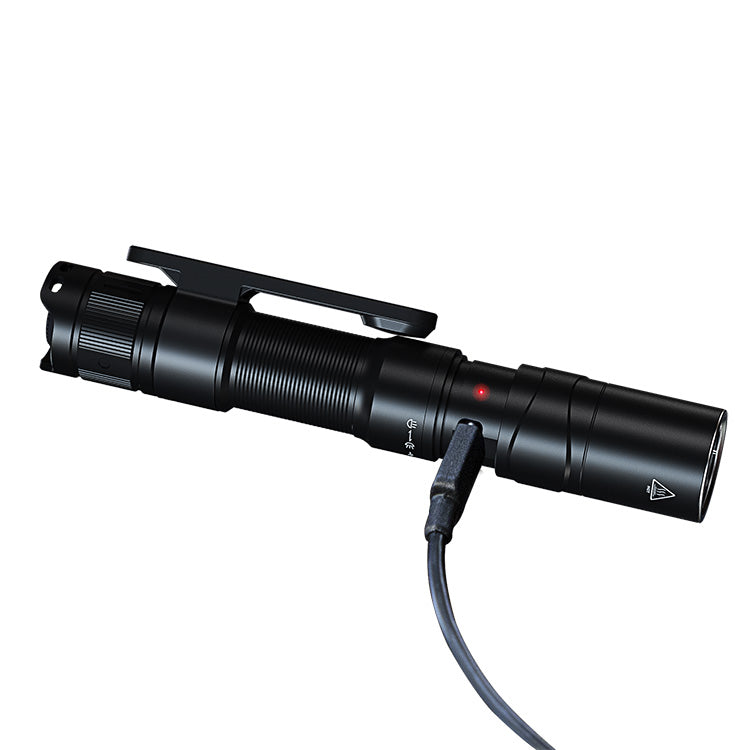

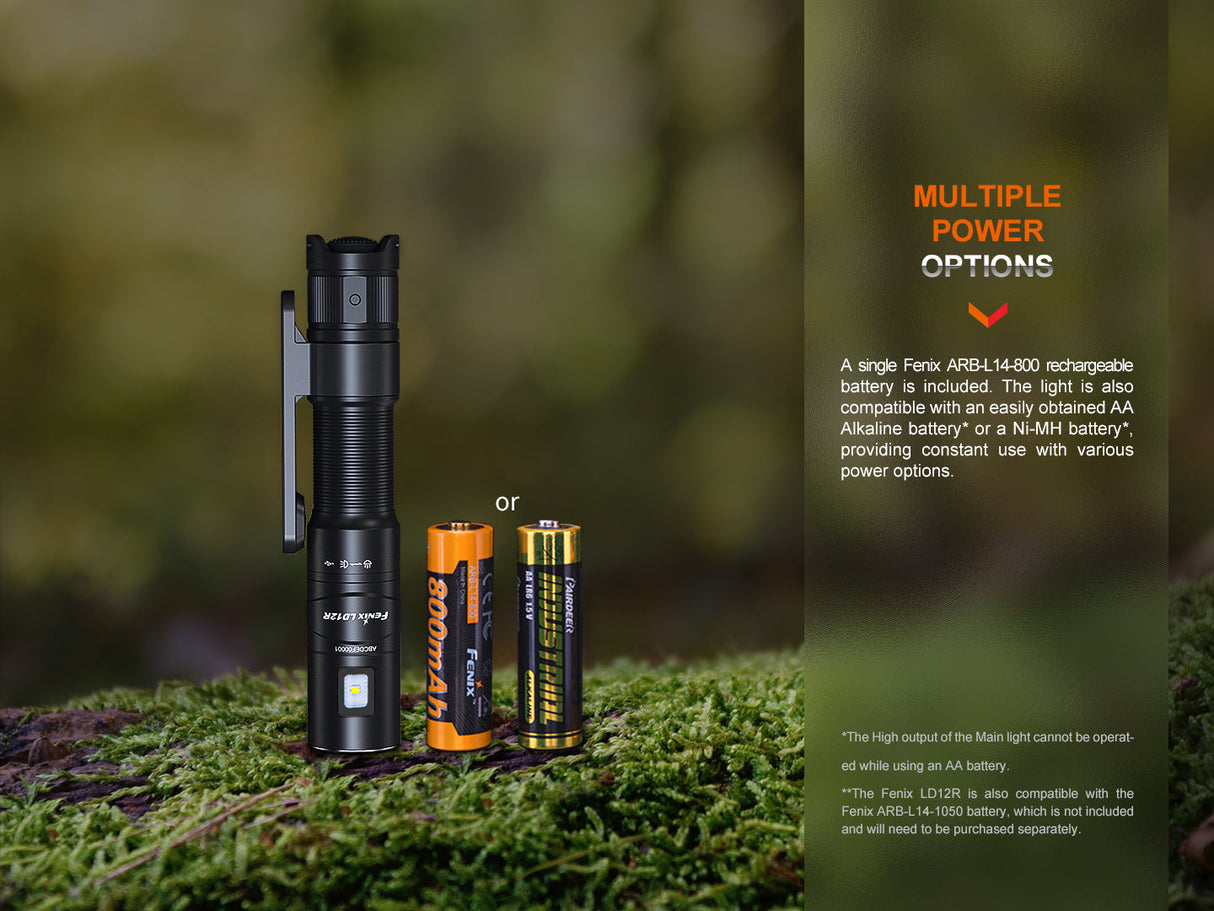

The LD12R is powered by the included Fenix ARB-L14 14500 battery which can be charged inside the torch. With the light switched off loosen the head of the torch to reveal the hidden integrated USB-C charging port. Plug the USB-C into the torch and the other end into a suitable power outlet. The indictor will display red while charging is in progress and turn green once the torch is fully charged. The normal charging time for the included ARB-L14-800 battery is approximately 2 hours. The LD12R can also use AA Alkaline and Ni-MH batteries as well as non-rechargeable lithium-ion batteries which allows for backup power options.

To reveal the battery indicator loosen the head of the torch and press the tail cap switch, the battery indicator will flash for three seconds. A green light indicates 100%-85%, a green light flashing indicates 85%-50%, a red light indicates 50%-25% and a red light flashing indicates 25%-1%.

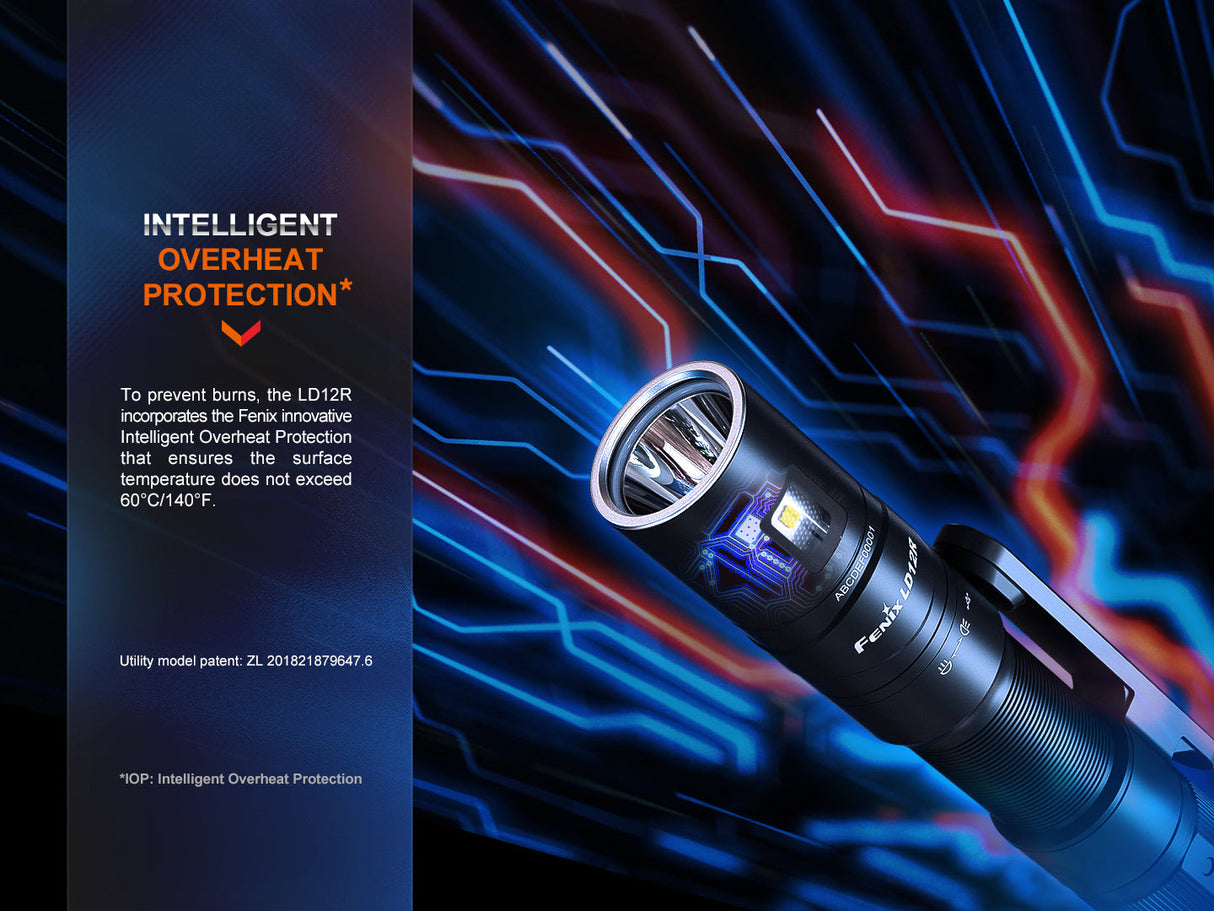

The intelligent overheat protection will automatically downshift the lumen output to reduce the temperature to a safe level and protect the torch and a low voltage reminder will downshift to a lower brightness level until moonlight output is reached. The torch will then blink three times every 5 minutes to remind you when the battery needs charging or replacing.

Product Features

Low battery voltage reminder
Magnetic body clip for hands free use
Built-in battery level indicator
Intelligent overheat protection

Operational Modes

Main Light:
Moonlight: 1 lumen; 9 m beam range
Low: 30 lumens; 16 hours, 20 minutes run-time; 40 m beam range
Mid: 150 lumens; 3 hours, 20 minutes run-time; 90 m beam range
High: 600 lumens; 1 hours, 20 minutes run-time; 186 m beam range

Side Light:
Low: 5 lumens; 3 m beam range
Mid: 30 lumens; 14 hours, 30 minutes run-time; 7 m beam range
High: 100 lumens; 4 hours run-time; 12 m beam range

 Note: * When using a 14500 lithium-ion battery the torch will automatically downshift from high to prevent the LED from overheating.

Technical Details

Type: EDC hand held torch
Operating Modes: Moonlight / Low / Mid / High
Luminous Flux: Up to 600 lumens
Beam Range: 186 m
Batteries Required: 1 x 14500 lithium-ion battery
Overall Length: 121 mm
Head Diameter: 22 mm
Body Diameter: 19 mm
Weight: 74 grams (excluding batteries)
Body Colour: Black
Body Material: Made from CNC aluminium
Body Finish: Premium Type III hard-anodised anti-abrasive finish
Switch Type: Tail cap switch and side mode switch
Impact Resistance: 1 m

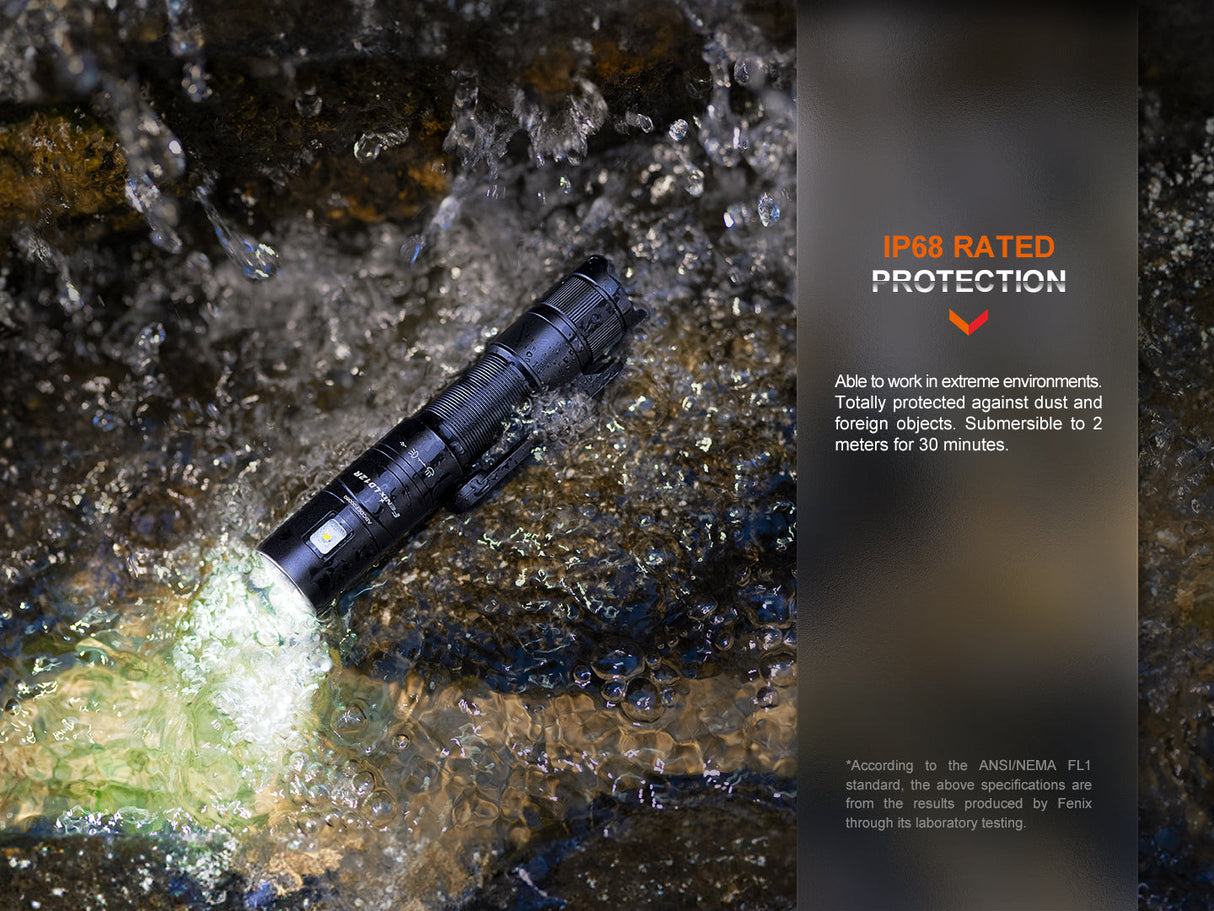

Environmental: IPX8
Warranty: 5 years

Packaging and Contents

Supplied in retail packaging and includes:
Fenix LD12R LED torch x 1
Fenix ARB-L14-800 battery x 1
USB-C charging cable x 1
Lanyard x 1
Spare O-ring x 1
Manual x 1
