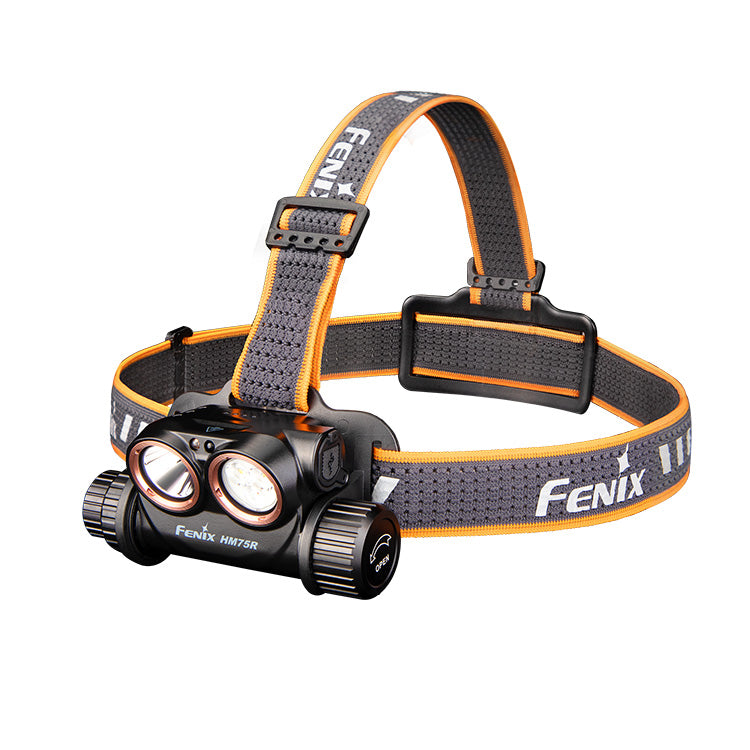

Fenix HM75R SE Industrial Head Torch (without battery extender)

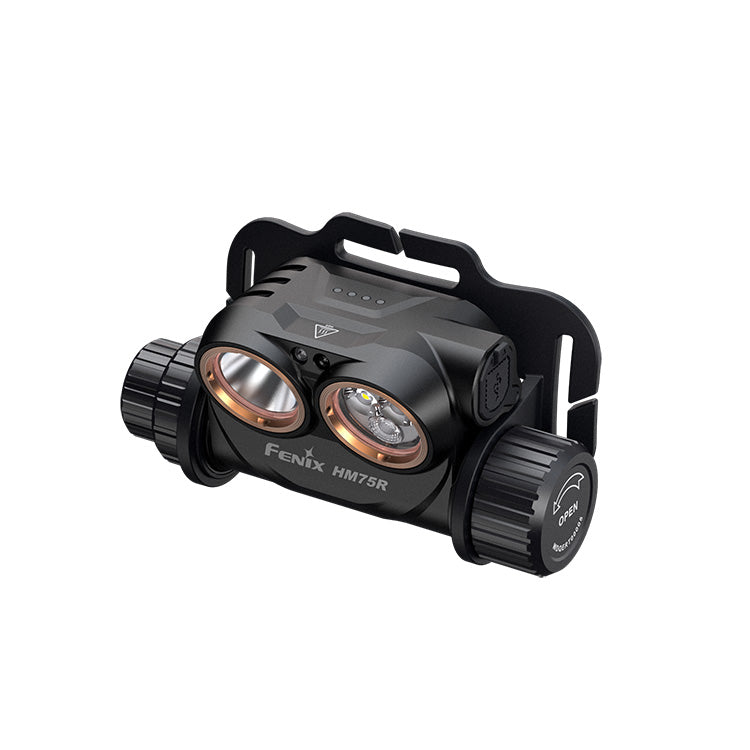

The Fenix HM75R SE is an industrial rechargeable head torch with multiple power options, an output of up to 1600 lumens, both a spot and flood beam, plus a red light.

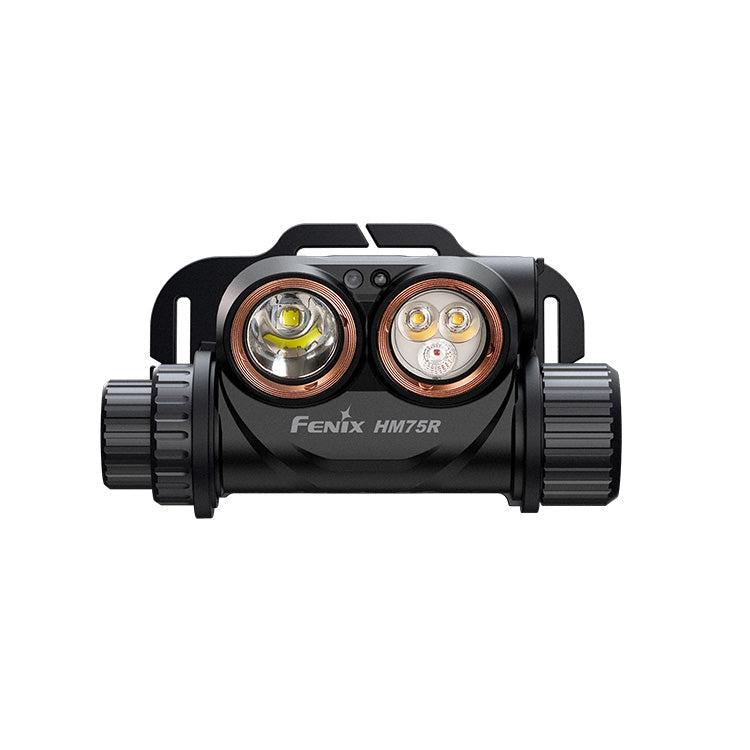

With dual power options the HM75R SE has an impressive beam range of up to 223 metres and features a Luminus SST40 cool white LED, two Luminus SST20 neutral white LED's and a Osram GRQSSPA1.23 red LED.

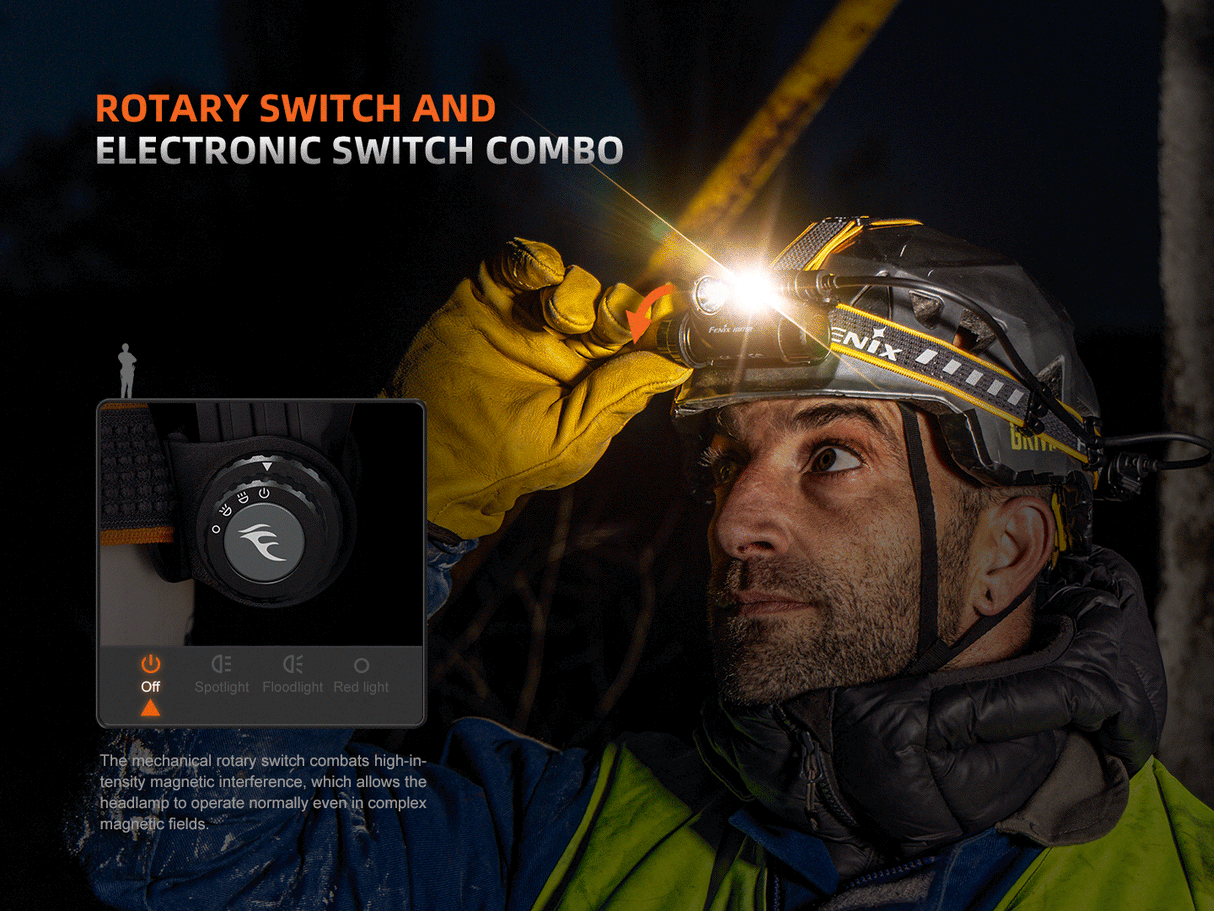

To turn the torch on, turn the rotary switch counter clockwise to cycle through the spotlight, floodlight and red light. To turn off, turn clockwise to the off position. While in the desired output press the switch within the rotary switch to cycle through the low, medium, high and turbo output in the white light outputs or flash in the red output.

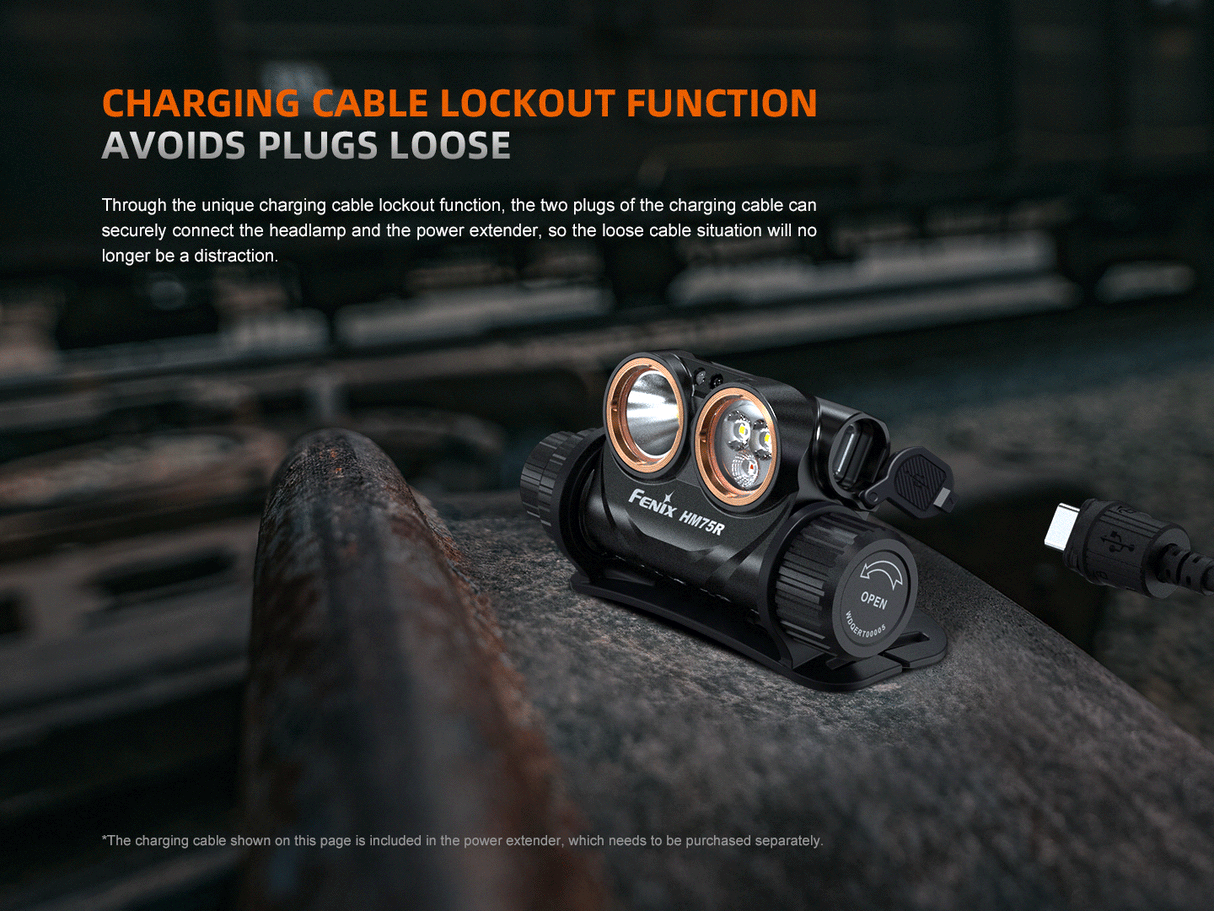

To charge the included Fenix 18650 battery simply lift the dust cover on the right side of the head torch and connect a USB-C cable to the torch and the other end to a suitable USB power source. The charging indicators on the top of the torch will flash in sequence until the battery is full charged.

While off, pressing the side button on the head torch will display the battery level of the 18650 battery for three seconds, or turning the torch on will display the battery level. Four indicators show 100-80%, three show 80-60%, two show 60-40%, one shows 40-20% and one light flashes indicates 20-1% charge remaining.

The head torch can be operated while charging however only the low and medium outputs are available when using a 5V charger. The turbo output is only available when using a 9V charging cable. The first time using after connecting to a power source the torch will flash twice on low when using a 5V charger and four times on low when using a 9V charger before returning to the previous output.

The headband is comfortable and adjustable, has a silicone strip on the inside that channels sweat and rain away from the eyes and the weaved design is hollow to not only reduce the weight but also provides more breathability and comfort. On the outer part of the headband there are reflective strips, which are excellent for enhanced visibility. The head torch bracket is ergonomically designed to comfortably fit the curvature of the head and it also allows the head torch to be tilted within a 90° angle.

For extra durability and resilience the HM75R SE is made from lightweight aluminium is waterproof to IPX8 standard.

Product Features

Cool white, neutral white & red outputs
LED battery & charging indicator
Can be rotated within a 90° angle
USB Type- C charging port

Operational modes

Spotlight:
Turbo: 1600 lumens; 1 hour, 30 minutes; 233 m beam range
High: 800 lumens; 3 hours, 30 minutes run-time; 150 m beam range
Medium: 350 lumens; 11 hours run-time; 101 m beam range
Low: 50 lumens; 50 hours, 50 minutes run-time; 39 m beam range

Floodlight:
Turbo: 1000 lumens; 1 hour, 50 minutes run-time; 60 m beam range
High: 400 lumens; 4 hours run-time; 43 m beam range
Medium: 150 lumens; 8 hours run-time; 25 m beam range
Low: 5 lumens; 100 hours run-time; 5 m beam range

Red Light:
High: 120 lumens; 5 hours, 20 minutes run-time; 16 m beam range
Medium: 30 lumens; 32 hours run-time; 9 m beam range
Low: 5 lumens; 110 hours run-time; 4 m beam range
Flash: 5 lumens; 220 hours run-time

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix 5000 mAh 21700 lithium-ion rechargeable battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.

Technical Details

Type: Rechargeable LED head torch
Operating Modes: Spotlight, Floodlight, Red Light: Turbo / High / Medium / Low / Red Flash
Luminous Flux: Up to 1600 lumens
Lamp Type: Luminus SST40 x 1, Luminus SST20 x 2, Osram GRQSSPA1.23 red x 1
Beam Range: Up to 223 m
Batteries Required: 18650 lithium-ion batteries (included) or 2 x CR123 lithium-metal batteries (not included)
Dimensions: 91 mm x 41 mm x 53.5 mm
Weight: 169 grams
Body Colour: Black

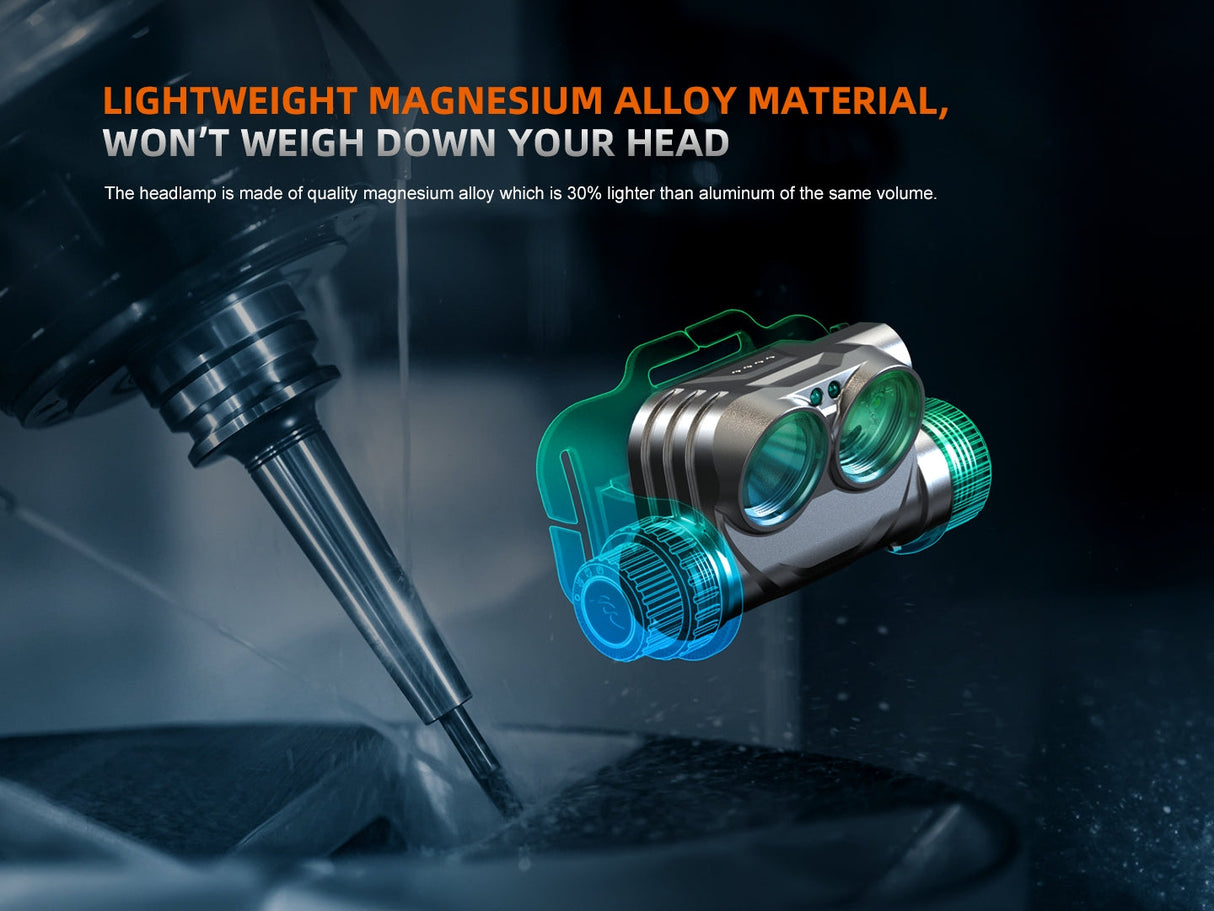

Body Material: Magnesium alloy
Window Type: Toughened ultra-clear glass lens with anti-reflective coating
Switch Type: Rotary switch and push button
Environmental: IPX8
Warranty: 2 years warranty

Packaging and Contents

Supplied in retail packaging and includes:
Fenix HM75R SE LED head torch unit x 1
Fenix ARB-L18-3400 lithium-ion battery x 1
USB-C charger x 1
Spare O-ring x 2
Manual x 1
