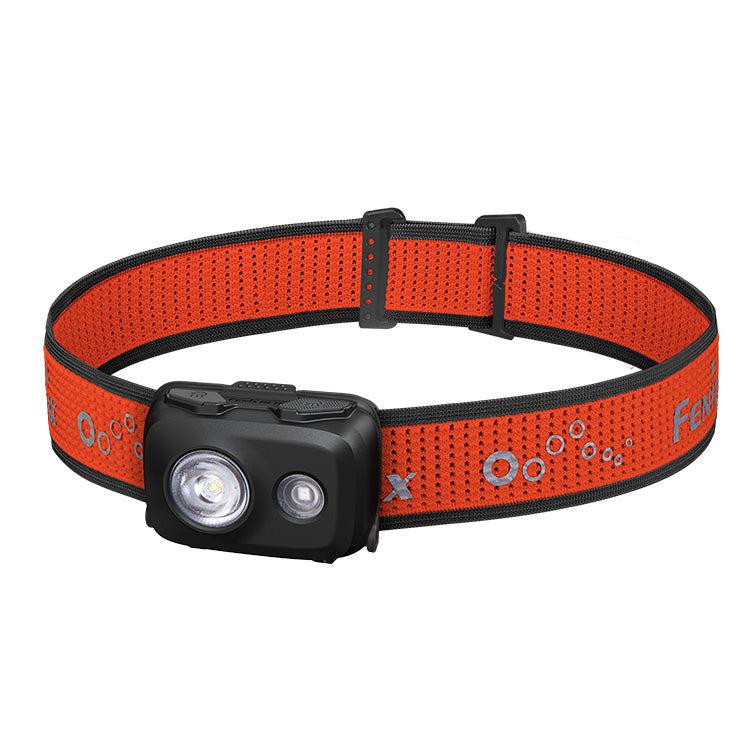

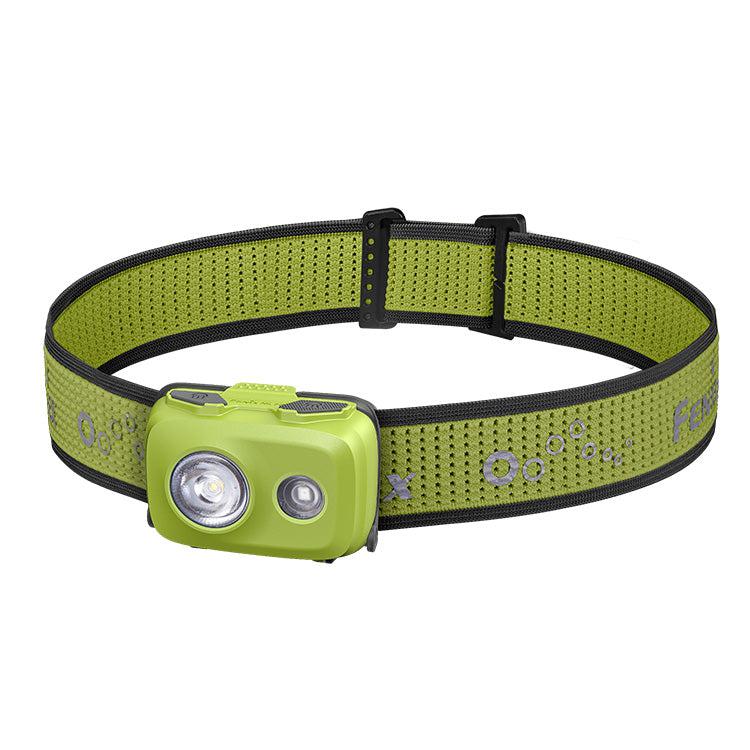

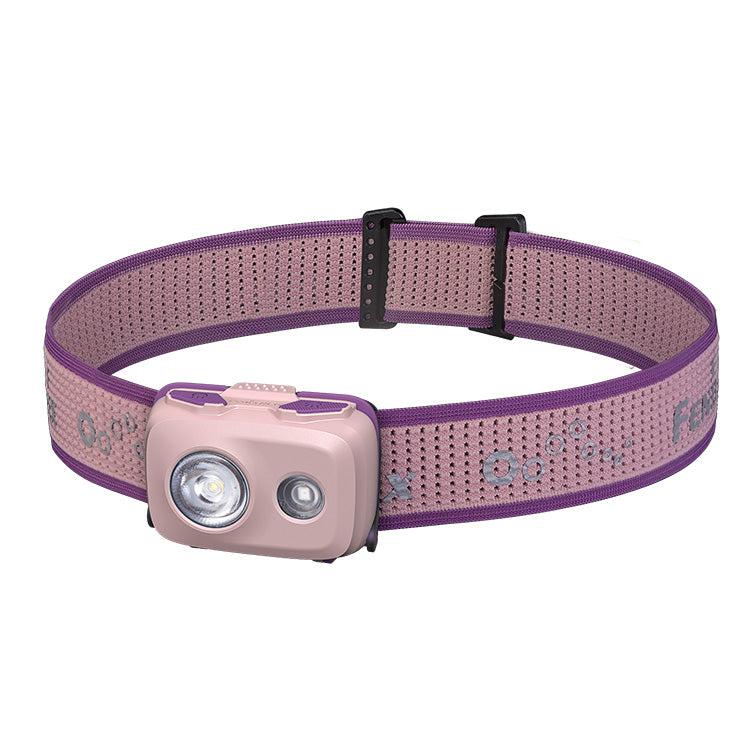

Fenix HL16 Lightweight LED Head Torch

The Fenix HL16 is a lightweight head torch with a maximum output of 450 lumens and designed for outdoor activities such as hiking, camping and running.

The two high power LEDs output a bright beam of 450 lumens on the turbo output, which is designed as a boost setting, allowing 30 seconds output at a time in order to prevent the temperature of the torch becoming too high and thus protecting the LEDs. The high output is a constant setting of 150 lumens that lasts for 8 hours and two other brightness settings are available as well a red output and SOS output.

A dual push button switch is located on the top of the head torch for easy operation. Turn the white LED on by holding the right switch for 0.5 seconds and then each press after that will cycle through the modes. The last used white output will be remembered next time the light is turned on. Turn the red LED on by holding the left switch for 0.5 seconds and then each press after that will cycle through the modes. While the torch is on, press either button to switch to the other mode and press and hold either button while the torch is on to turn off.

The HL16 has a lock function to prevent accidental turn on. To access lock mode press and hold either or both of the buttons for three seconds while the torch is off. The torch will blink red four times to indicate locked mode. To unlock simultaneously hold both buttons for three seconds, the torch will blink red four times and then turn on in the red mode.

Apart from being lightweight, the HL16 has a number of other features that make it great for outdoor activities. The headband is perforated and adjustable for comfort and on the outer part of the headband there are reflective strips, which are excellent for enhanced visibility and safety.

The direction of the light can be altered with the hinged bracket that allows the torch to tilt forwards at a 60° angle and when the light is in the upright position a plastic lip sits over the button to prevent accidental activation of the light.

Built-in overheat protection will automatically reduce the lumen output slightly if the temperature reaches 65°C in order to protect the torch and LED's, once the torch begins to cool the output will gradually increase.

Product Features

Single switch for easy operation
Digitally regulated output maintains constant brightness
Hinged bracket provides 60° tilt capability
Intelligent memory circuit remembers the last white brightness setting used

Operational Modes

Turbo: 450 lumens; 3 hours run-time; 104 m beam range*
High: 150 lumens; 8 hours run-time; 58 m beam range
Mid: 50 lumens; 27 hours run-time; 32 m beam range
Low: 5 lumens; 100 hours run-time; 10 m beam range
Red: 5 lumens; 100 hours run-time; 6 m beam range
SOS: 5 lumens; 200 hours run-time; 6 m beam range

Please Note: *Only stays in turbo mode for 30 seconds before dropping down due to overheat protection, therefore a constant run-time is not available. The high can be accessed again after it drops down, but if the HL16 becomes overheated it will stay in the lower output until the torch cools.

Technical Details

Type: Lightweight LED head torch
Operating Modes: Low / Mid / High / Turbo / Red / SOS
Luminous Flux: Up to 450 lumens
Beam Range: Up to 104 m
Batteries Required: 3 x AAA alkaline (included) or 3 x AAA NiMH
Run Time: See information above
Measurements: 64 x 48 x 27 mm
Weight: 97.2 g
Body Material: Made from aircraft grade aluminium and quality plastics
Body Colour: Black, Green or Pink
Switch Type: Dual push button
Impact Resistance: 1 m
Environmental: Waterproof and dust resistant to IP66 standard
Warranty: 5 years

Packaging and Contents

Supplied in retail packaging and includes:
Fenix HL16 LED Head torch x 1
AAA alkaline battery x 3
Manual x 1
