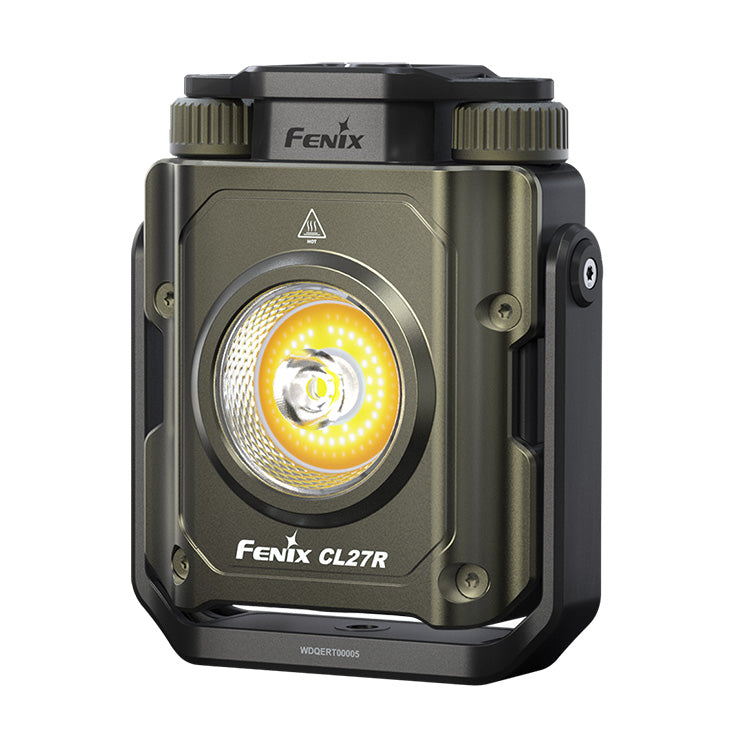

Fenix CL27R Rechargeable LED Lantern

The Fenix CL27R is a compact lantern with a variable output that offers a maximum of 1600 lumens on the highest setting and a minimum of 5 lumens on the lowest setting from a high performance white LED, as well as a variable colour temperatures between 2700 K and 6500 K.

There is also a red LED that provides constant red or red flashing outputs, which preserves your night vision and is good for signalling, wildlife observation, stargazing, night reading and night photography amongst other uses.

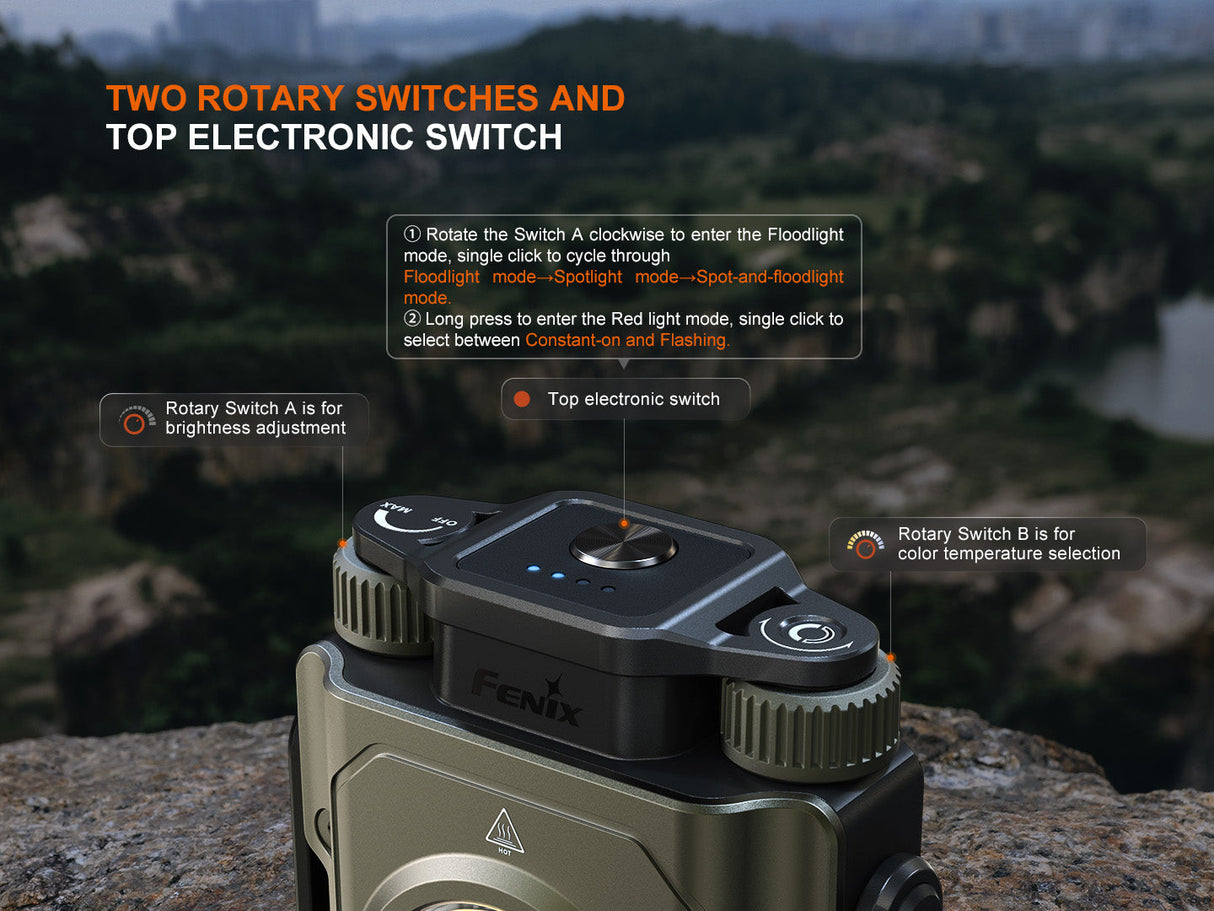

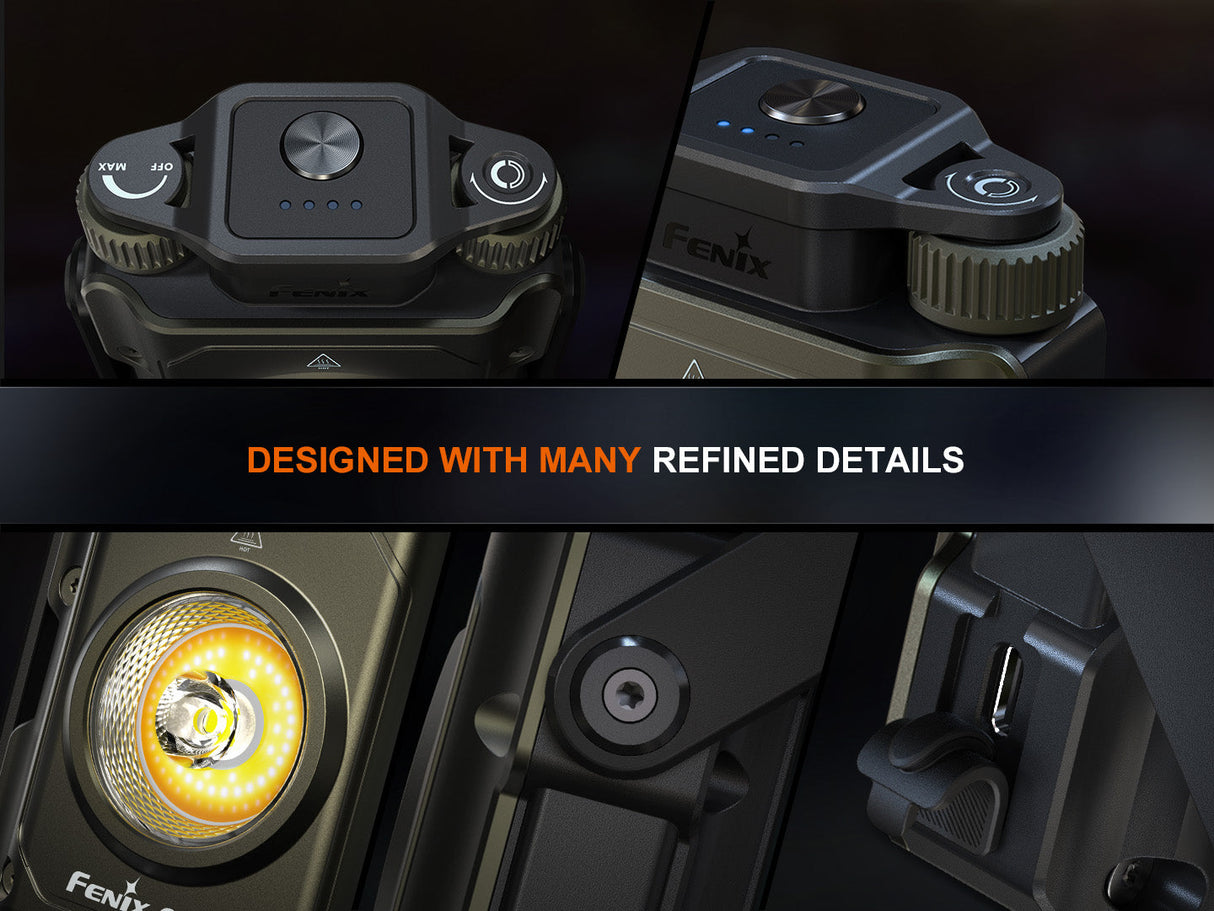

Offering excellent light spread and power the CL27R features two rotary dials on the top to control all the settings. Rotary dial A is on/off button and controls the white brightness output by twisting the switch to the clockwise to gradually increase the output to set it at your desired level, or anti-clockwise to turn it off again, and will click when it turns on/off. The rotary switch B changes the colour temperature by twisting the switch clockwise for warmer light or anti-clockwise for cooler white light. The last used colour temperature will be memorised when the light is next turned back on in the white light using dial A.

There is also a push button on top of dial A that will access the red light by holding the button while the light is off, and then each press will cycle between red constant and red flashing. To turn the red light off hold down the red button again, or instead access the white mode by rotating the dial clockwise. Red light can only be accessed from off and therefore cannot be accessed while the white light is on.

Four LED power indicators are built into the front of the light and will display the battery level when the red button is pressed once while the lantern is turned off. Four lights is 80-100%, three lights is 60-80%, two lights is 40-60%, one light is 20-40%, one light flashing is 1-20% and requires charging as soon as possible.

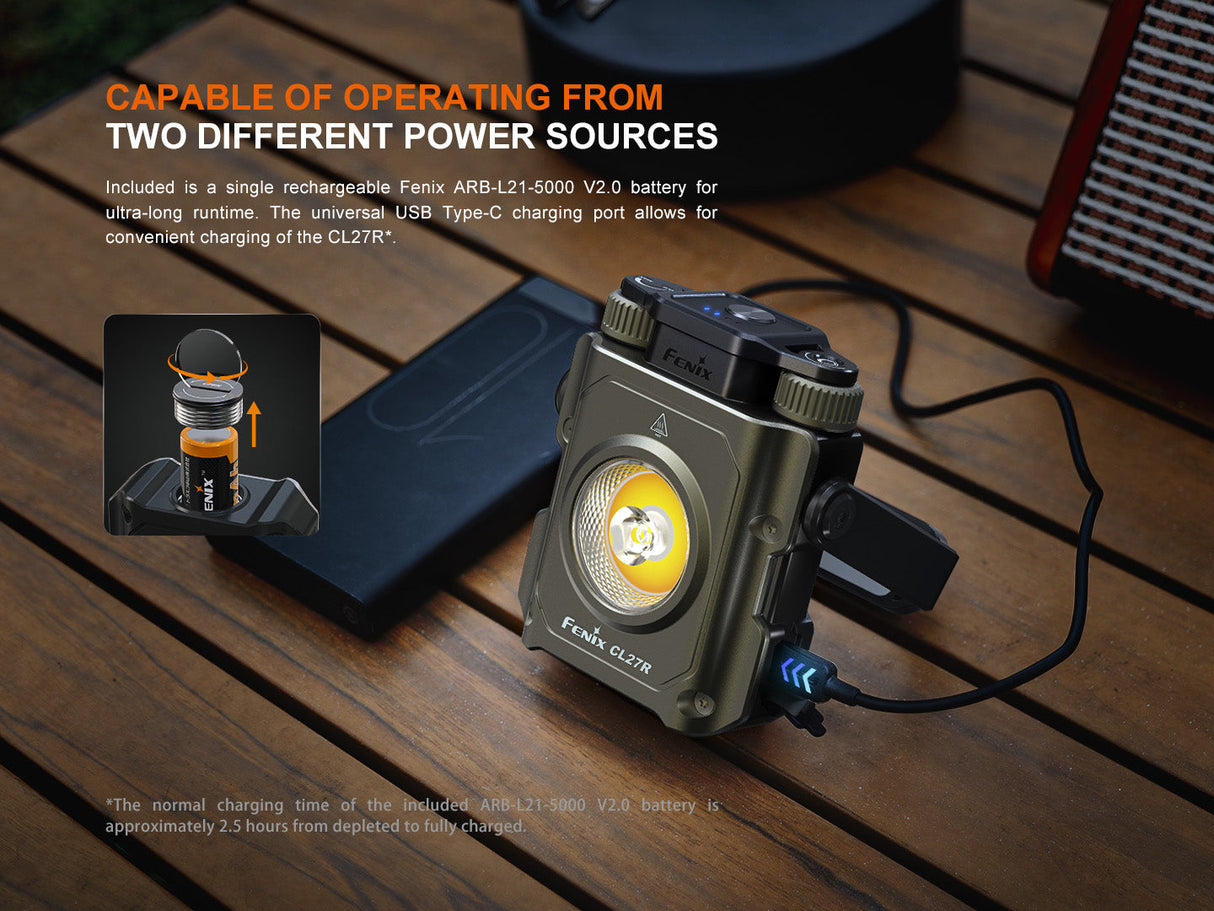

Utilising a 5000 mAh 21700 lithium-ion rechargeable batteries, the CL27R has a run time of up to 8 hours on the highest setting (output may be reduced during this time due to temperature regulation). With the light off, the battery is easily recharged by lifting the dust cover and inserting the charging cable into the USB-C port on the top of the light at one end, and inserting the other end into a USB-A port.

While charging the four charging indicators will display charging progress with one light flashing to start with before becoming solid and the next light flashing until eventually all four LEDs are solid after approximately 2.5 hours full charge time depending on the power input used. The USB-C port is also an output and sits next to a separate USB-A output, so that either (not simultaneously) can be used as a power bank to charge external devices such as torches, mobile phones, or tablets. When a device is plugged in the LED indicators will decrease as the battery is drained.

The overheat protection will automatically reduce the mid or high output by a few lumens every second if the temperature of the torch becomes to high in order to protect the LED's.

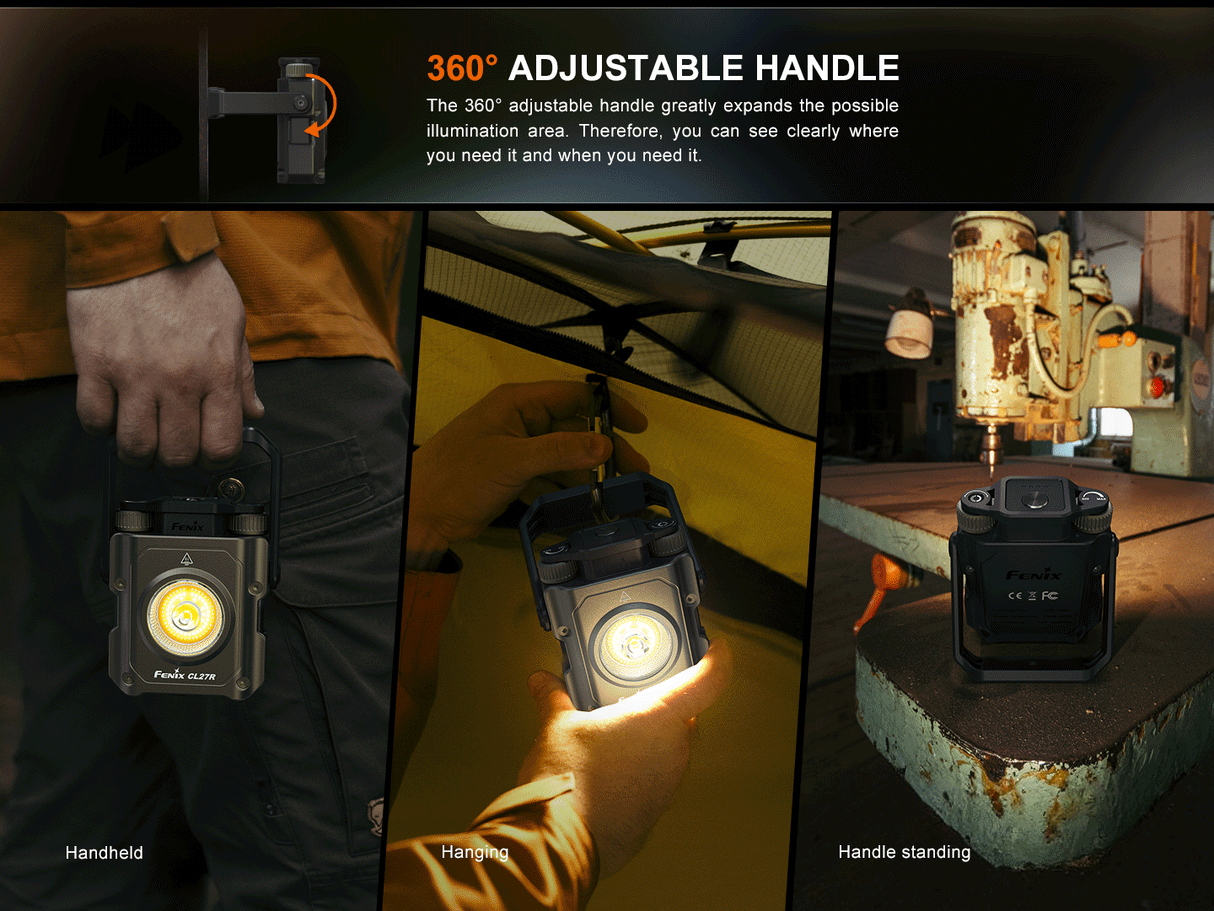

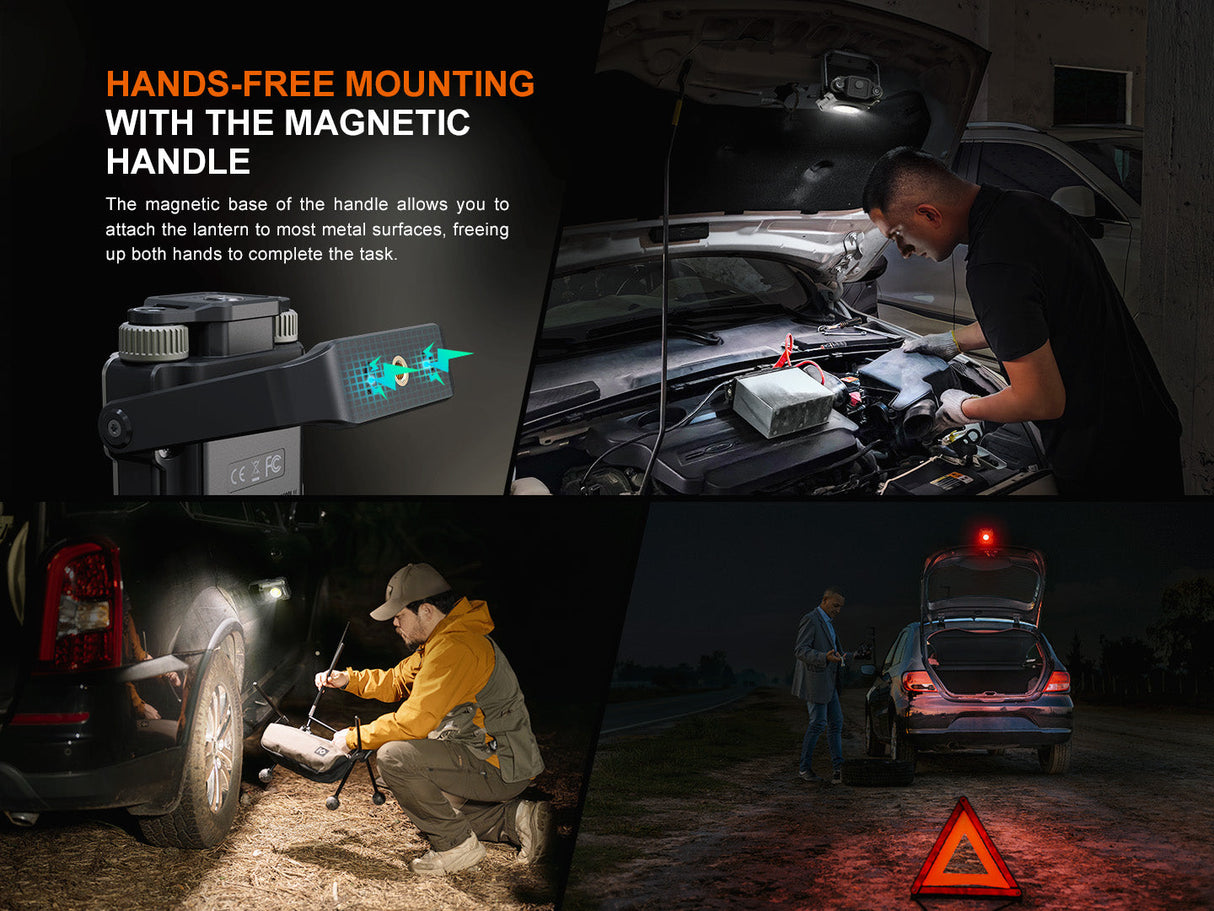

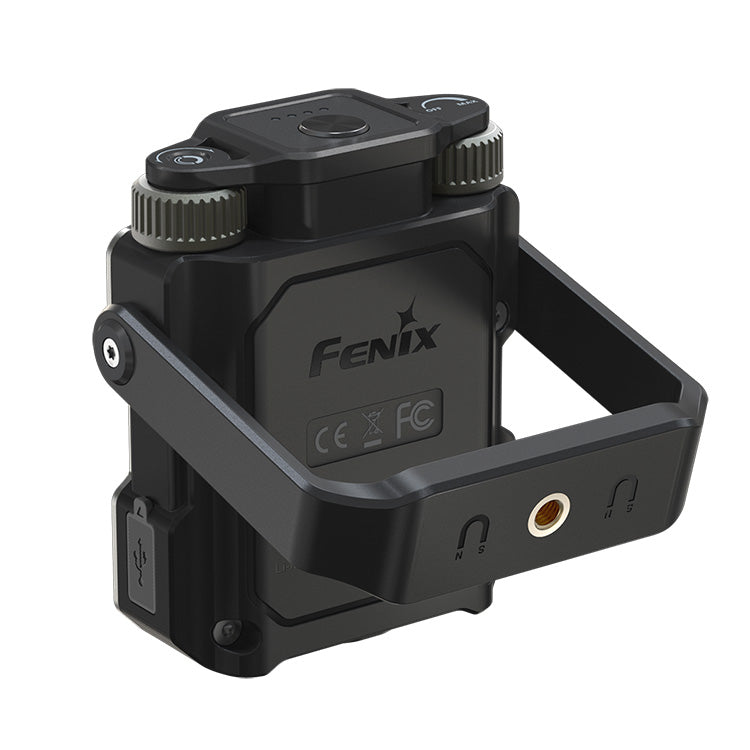

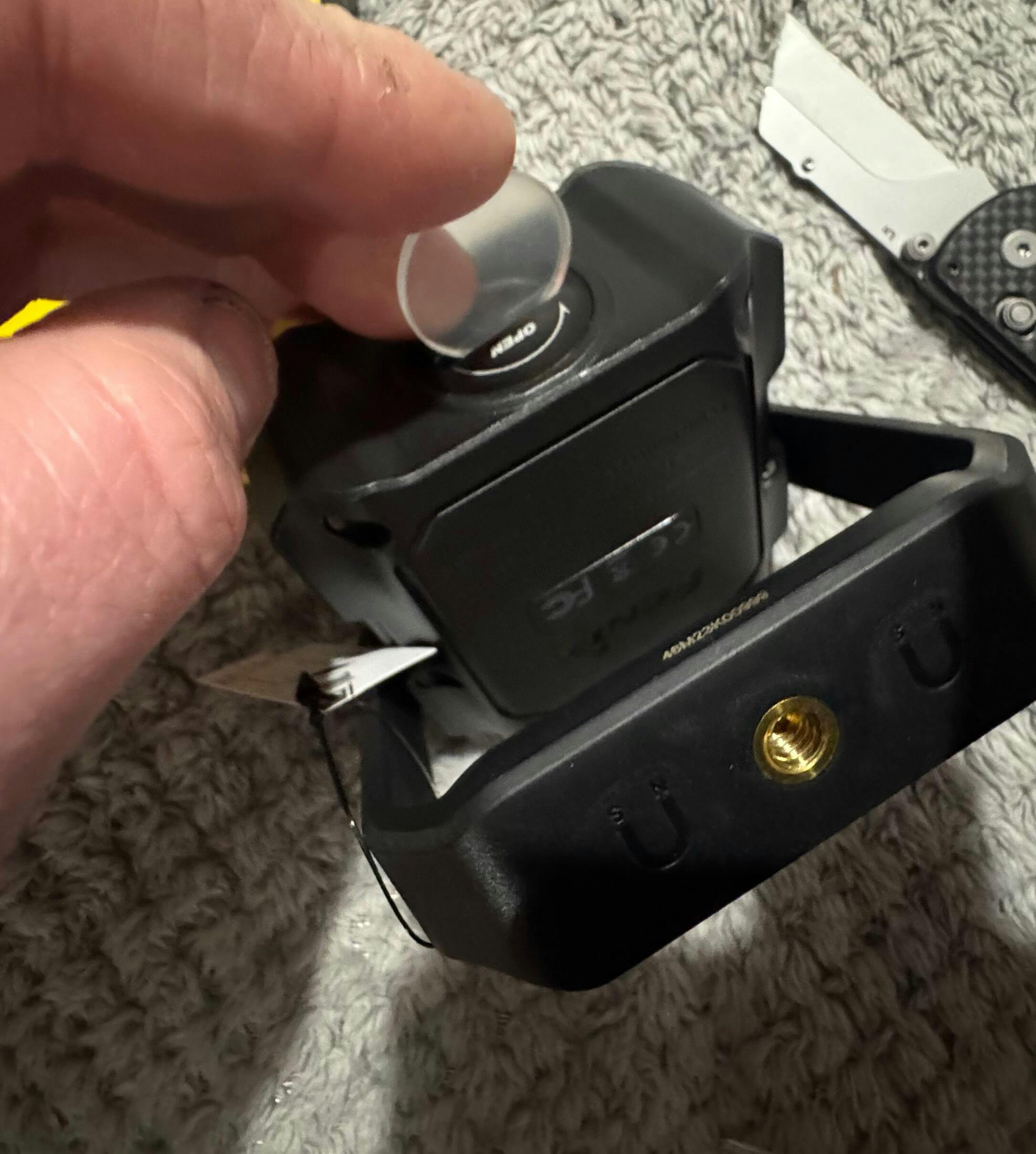

There's an abundance of ways and places to perfectly position your lantern where you need it. The CL27R has multiple hands free uses with the 360° rotating handle that can be used as a stand at different angles for a range of light positions, used to attach to magnetic surfaces with the strong magnets, fitted to a tripod with the tripod socket or used as a hanging hook.

Product Features

Variable brightness level and colour temperatures
Red light and red flashing outputs
Battery level and charging indicators
Power bank function
Fast USB-C charging

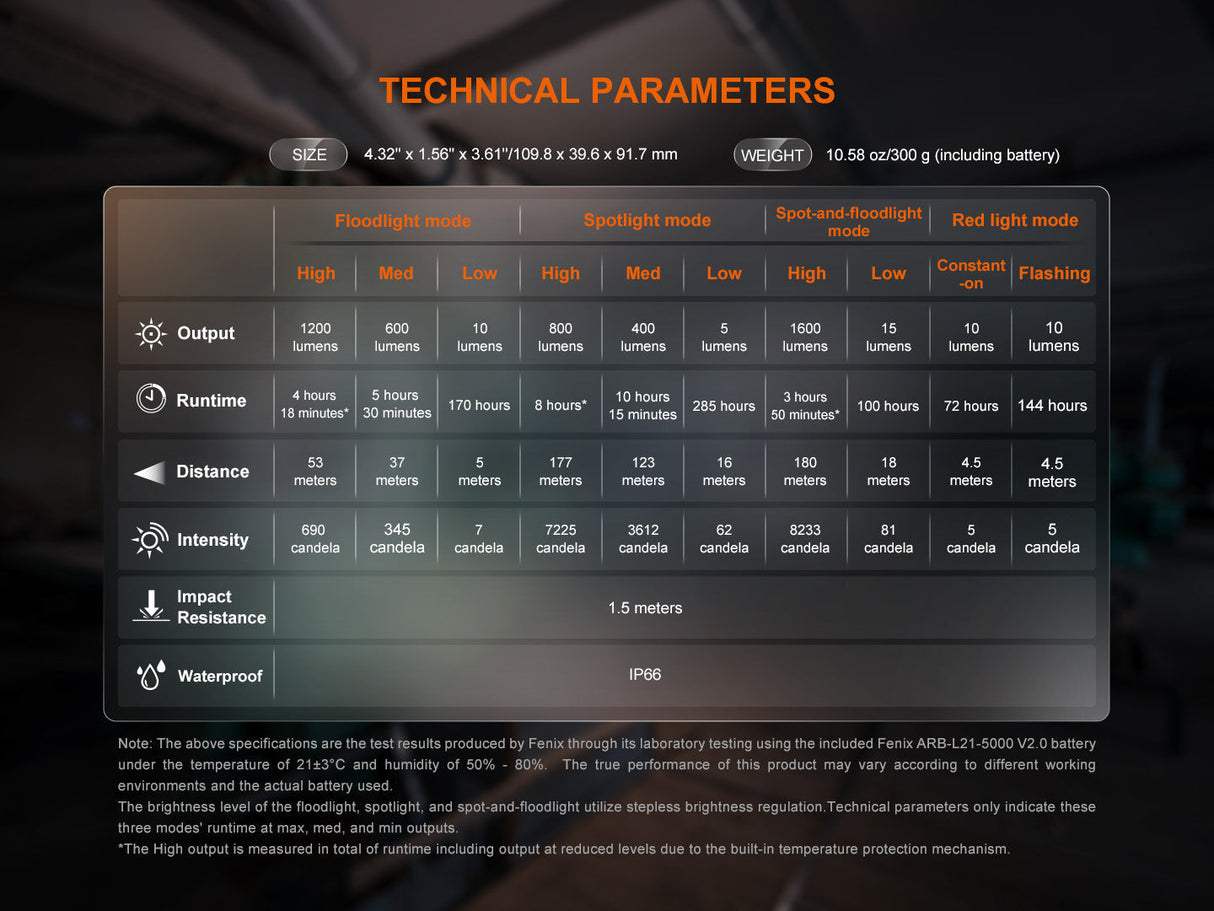

Operational Modes

Floodlight:
High: 1200 lumens; 4 hours, 18 minutes run-time; 53 m beam range
Medium: 600 lumens; 5 hours, 30 minutes run-time; 37 m beam range
Low: 10 lumens; 170 hours run-time; 5 m beam range

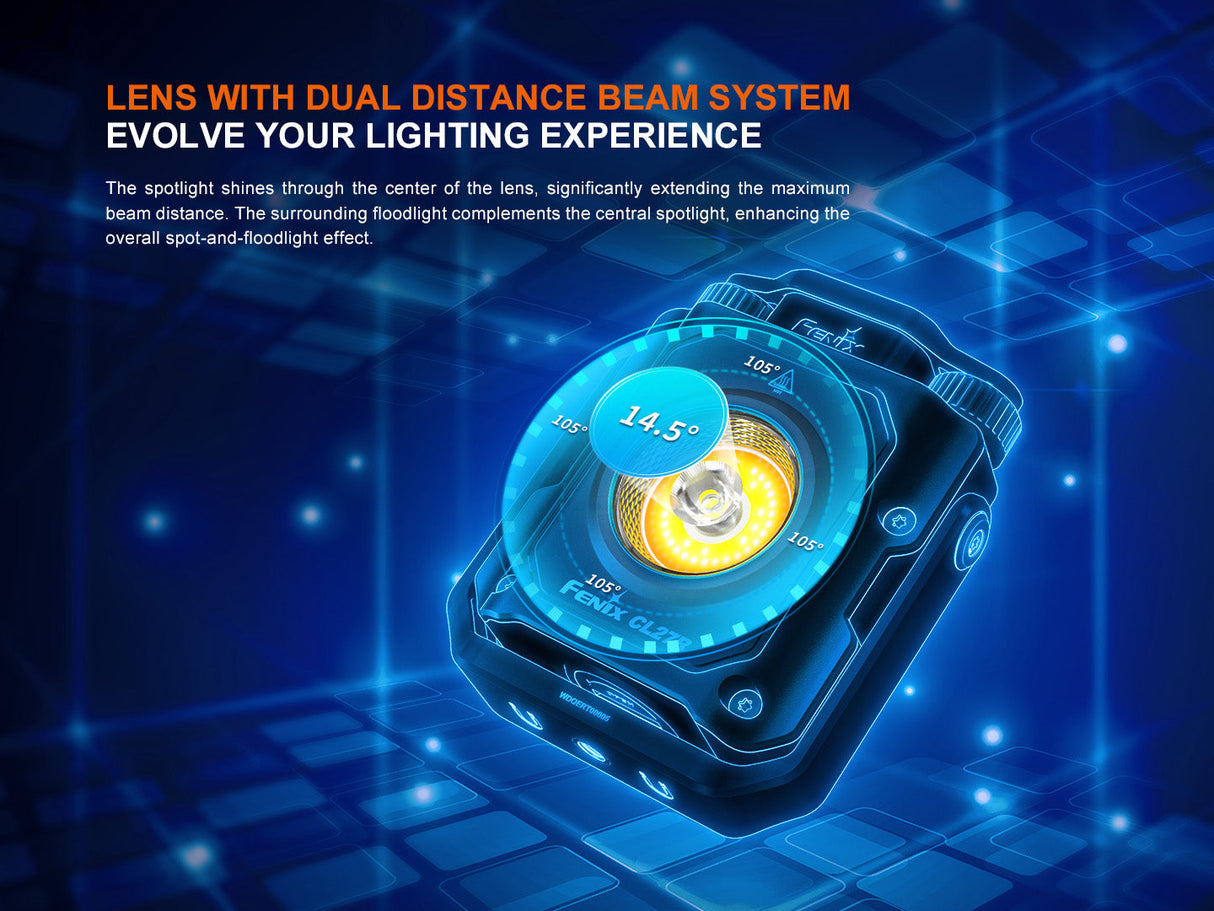

Spotlight:
High: 800 lumens; 8 hours run-time; 177 m beam range
Medium: 400 lumens; 10 hours, 15 minutes run-time; 123 m beam range
Low: 5 lumens; 285 hours run-time; 16 m beam range

Combined:
High: 1600 lumens; 3 hours, 50 minutes run-time; 180 m beam range
Low: 15 lumens; 100 hours run-time; 18 m beam range

Red Light:
Constant On: 10 lumens; 72 hours run-time; 4.5 m beam range
Flashing: 10 lumens; 144 hours run-time; 4.5 m beam range

Note: *The high mode is measured at total run-time including any reduced output levels due to the temperature regulation design.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using the 21700 5000 mAh lithium-ion battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.

Technical Details

Type: LED Work Light
Operating Modes: Floodlight / Spotlight / Combined / Red Constant / Red Flashing
Luminous Flux: Up to 1600 lumens
Lamp Type: White LED and red LED
Colour Temperature: Variable from 2700 K to 6500 K
Beam Range: Up to 180 m

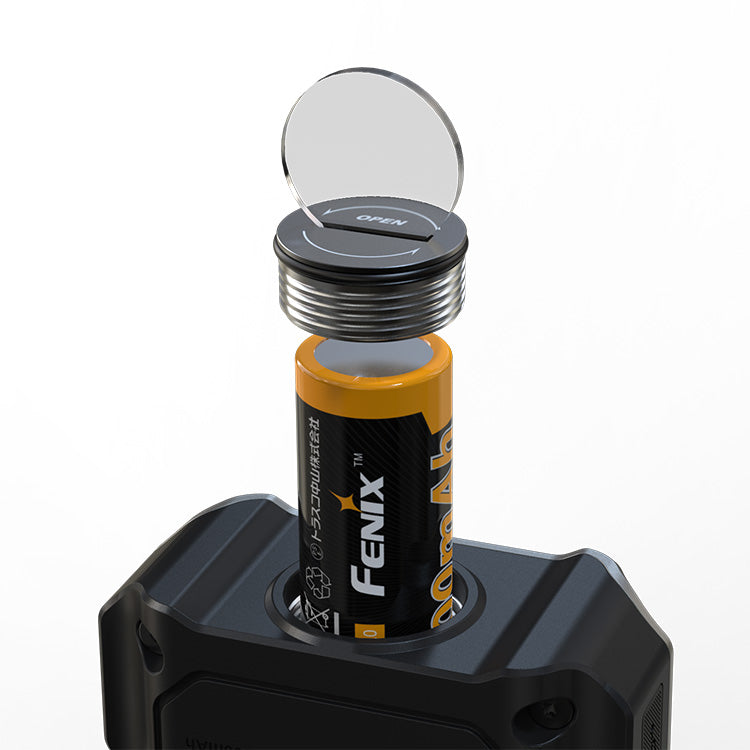

Batteries Required: 1 x 21700 5000 mAh li-ion battery
Measurements: 109.8 mm x 91.7 mm x 39.6 mm
Weight: 300 grams (including battery)
Body Colour: Wild Green & Blue Embossed
Switch Type: Rotary switches and push button

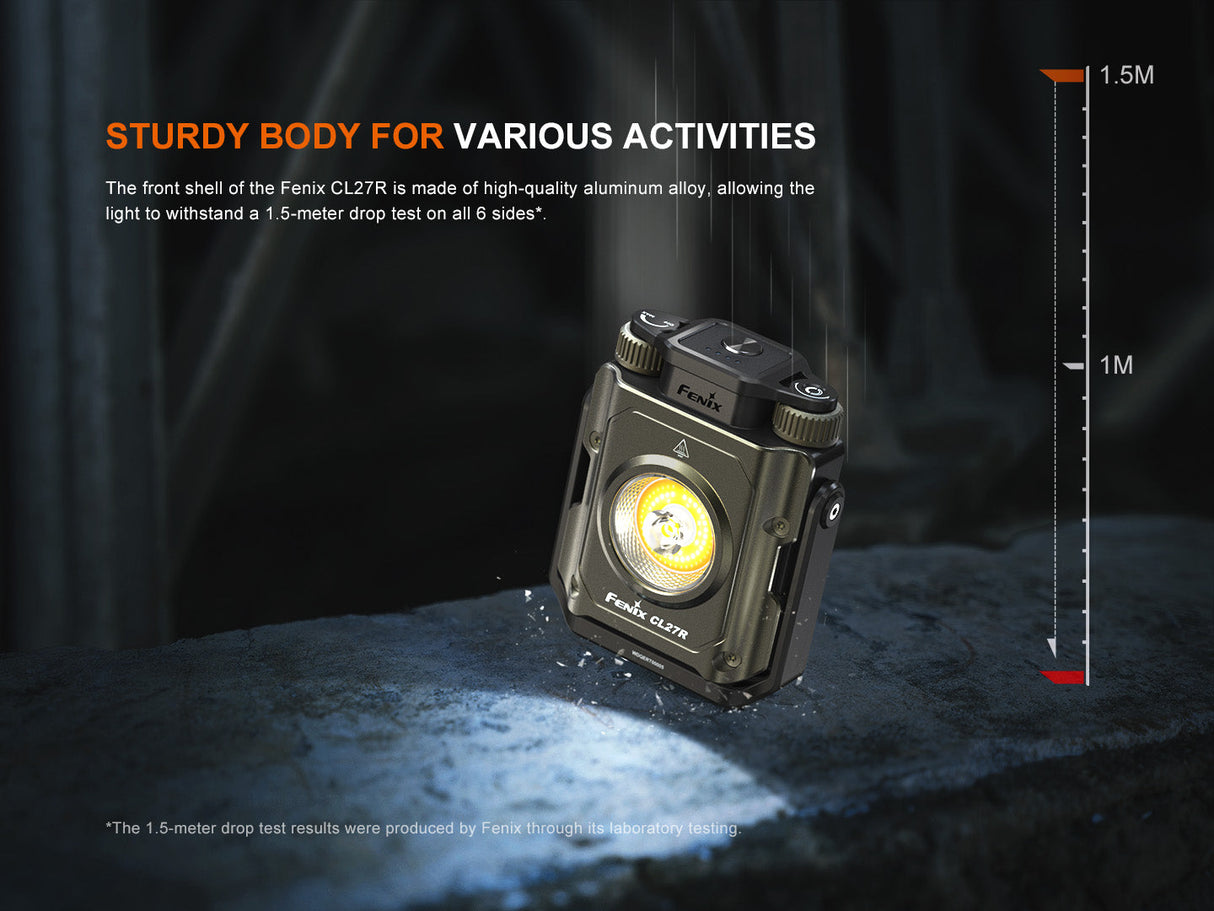

Impact Resistance: 1.5 m

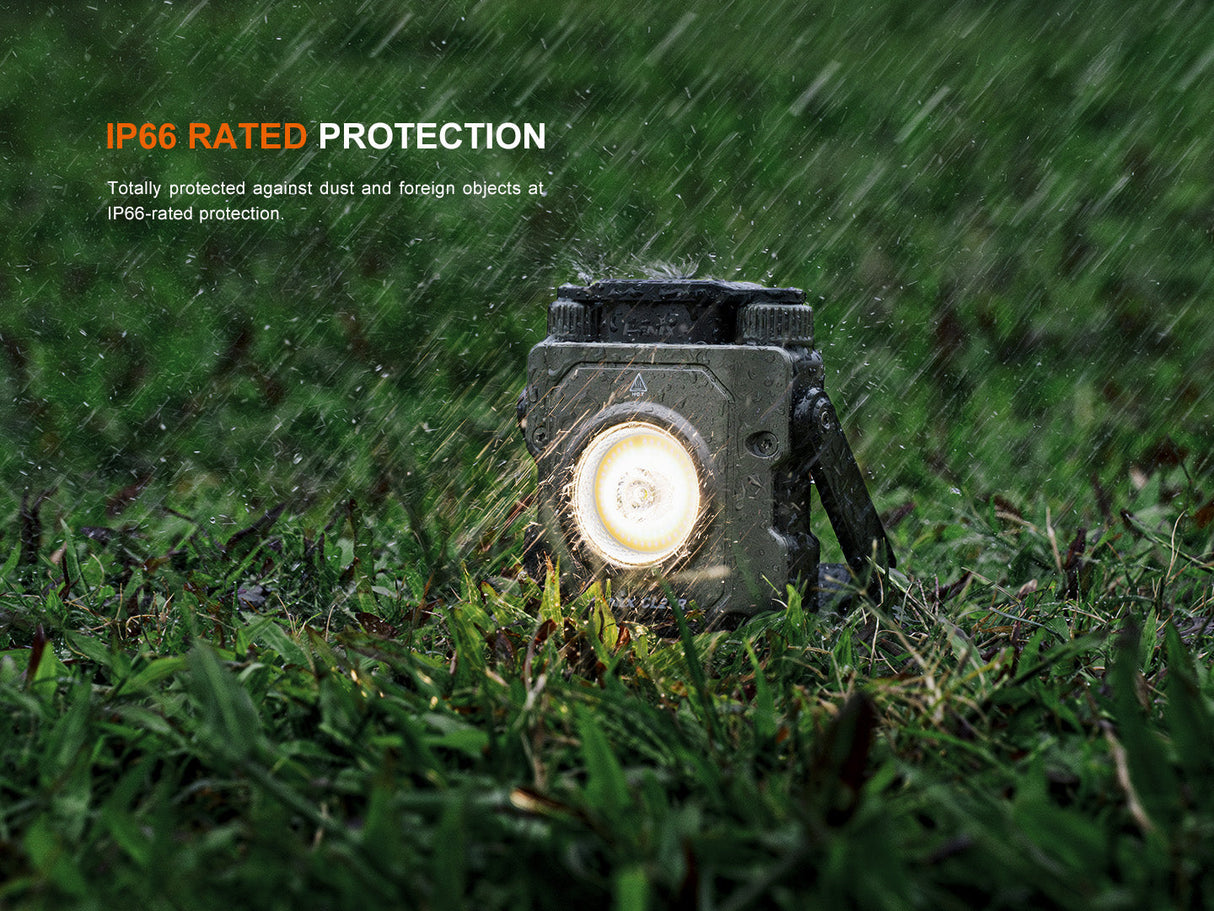

Environmental: IPX6
Warranty: 2 years

Packaging and Contents

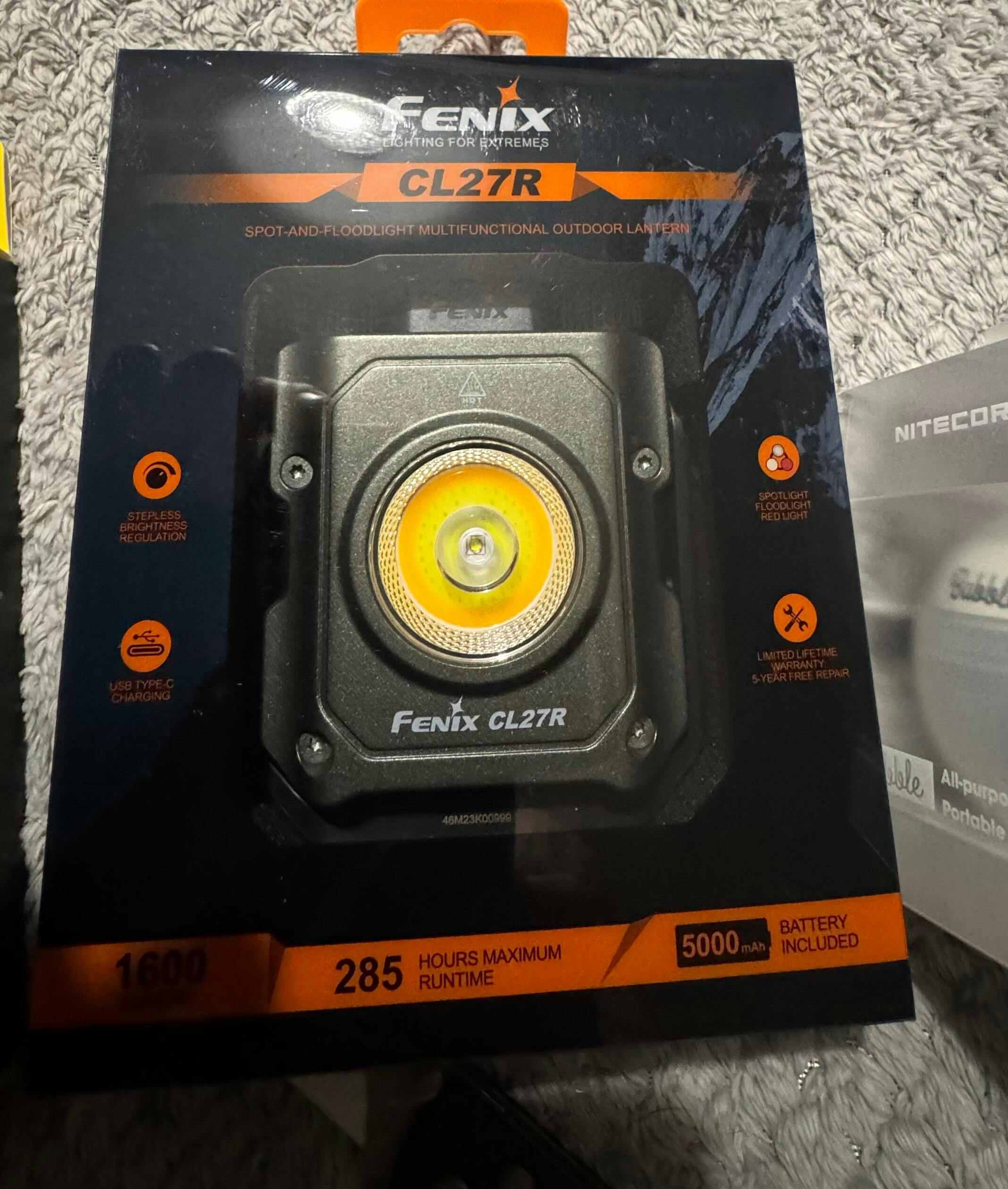

Supplied in retail packaging and includes:
Fenix CL27R LED Lantern x 1
USB-C charging cable x 1
Battery cover key x 1
Spare O-ring x 1
User manual x 1
