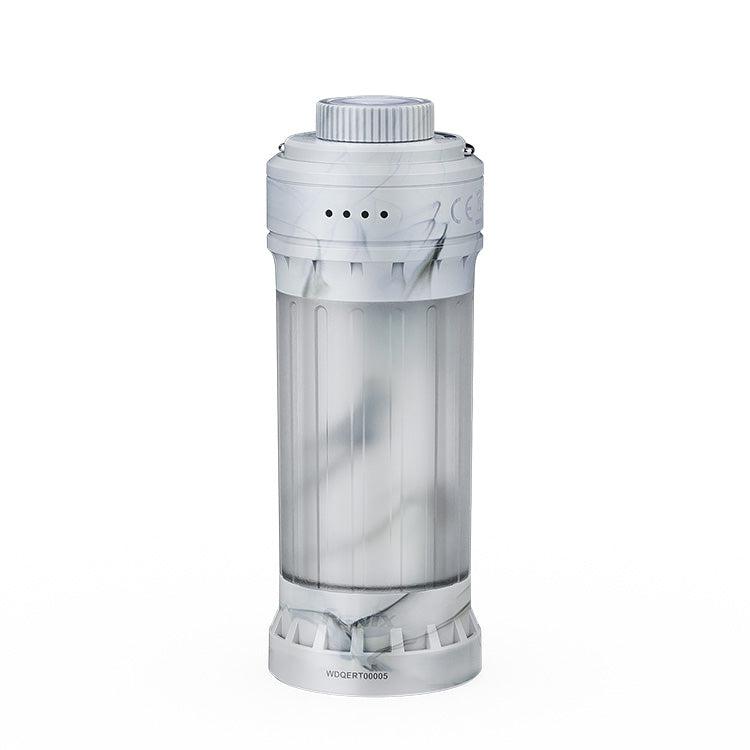

Fenix CL22R Rechargeable LED Camping Lantern

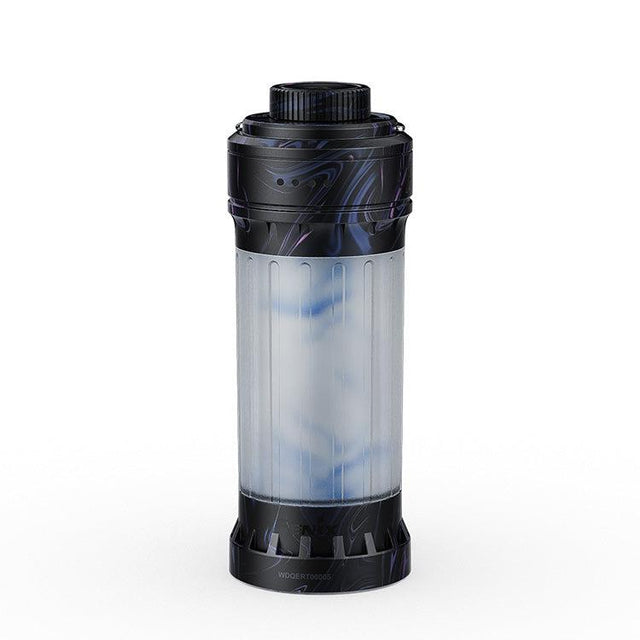

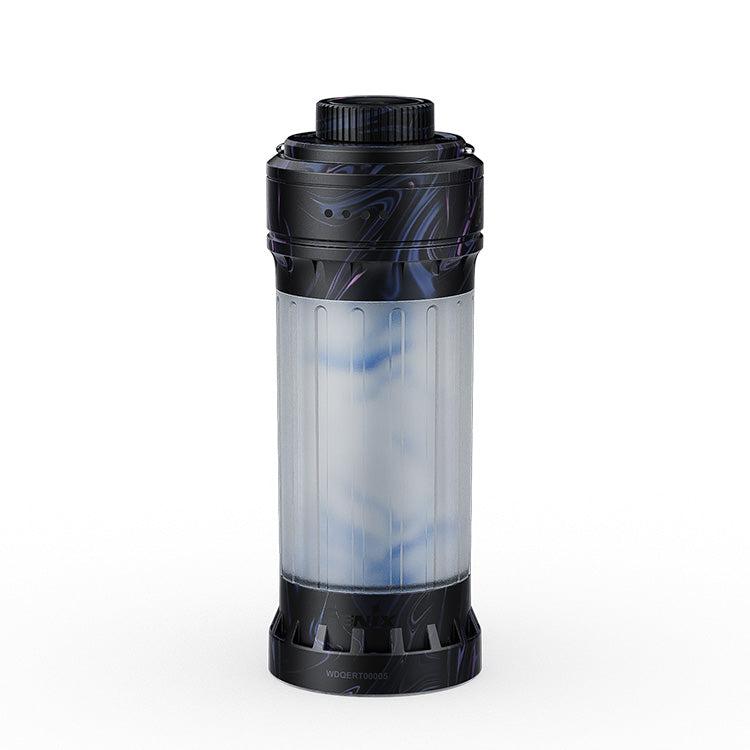

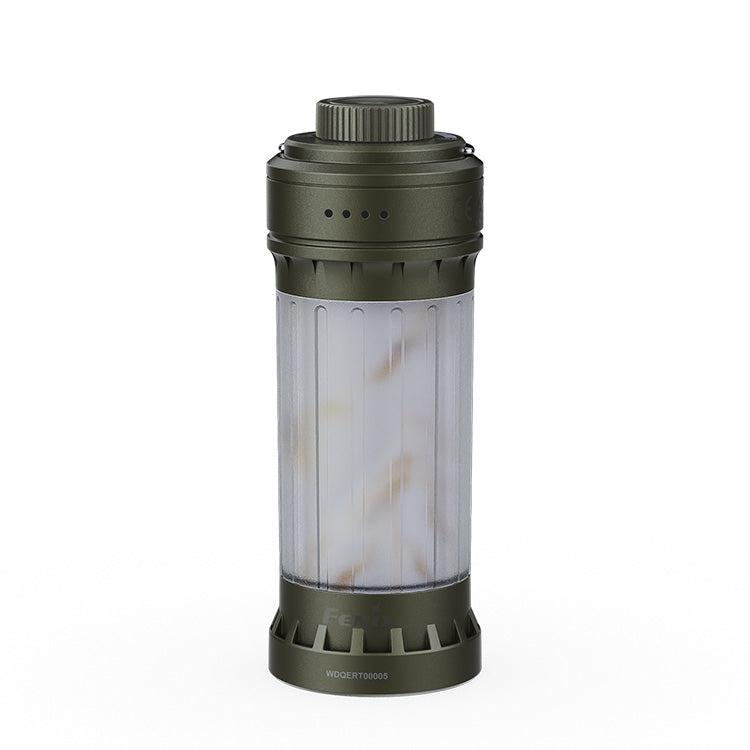

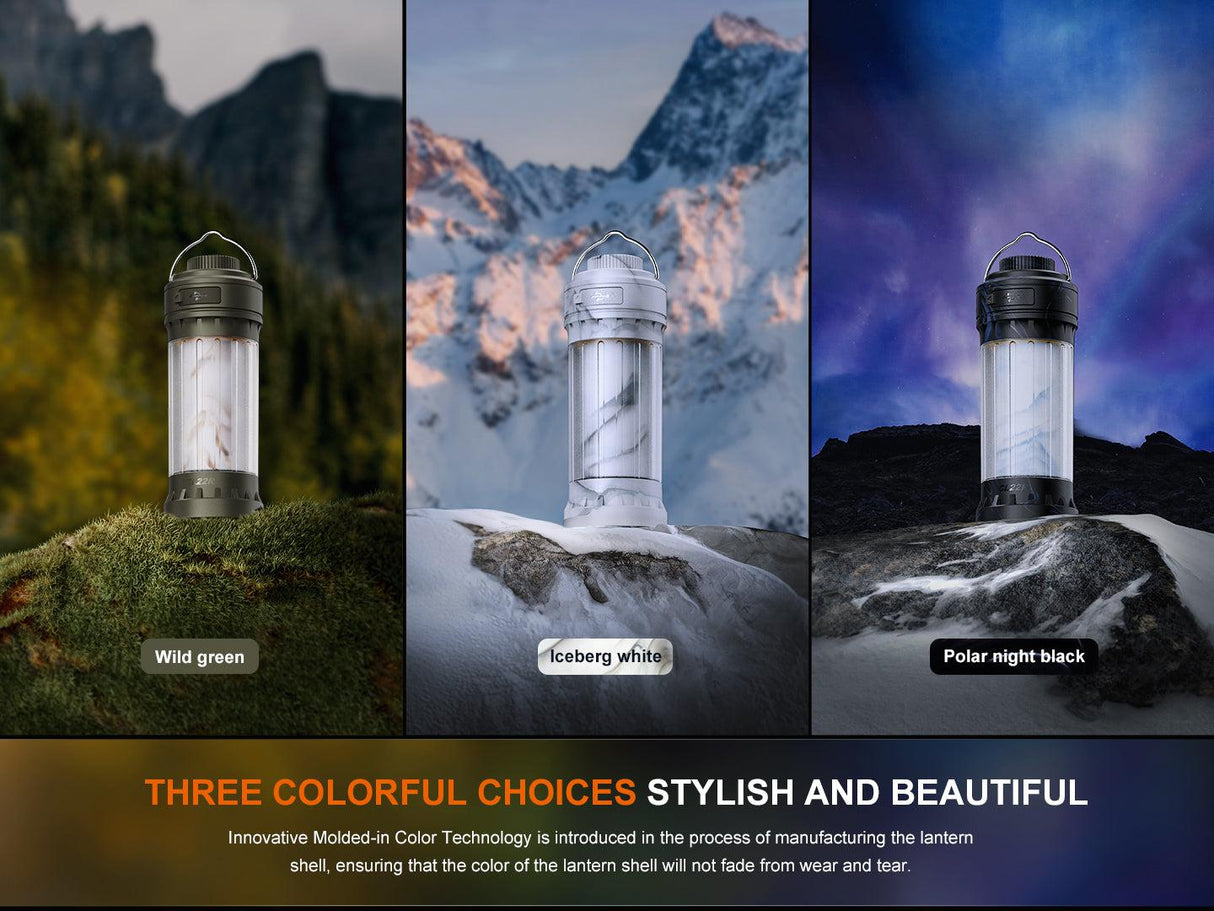

The Fenix CL22R lantern is a compact rechargeable atmospheric lantern, perfect for all your trips away. It is available in three colours to suit your style, with a choice of black, green or white.

The general mode features a full 360° lighting which is great for covering a larger area, a down light which is perfect for when hung up plus and combined mode for an extra boost of light. Turn the rotary switch on the front of the lantern clockwise to enter the general modes and turn the switch anticlockwise to turn the lantern off again.

As well as the general white outputs, the CL22R also features a scene mode which has a red output with constant illumination or flashing settings plus colouring jumping and morphing outputs. The red light is useful for preserving night vision while the red flash will easily attract attention if help is required and the colour outputs are perfect for providing ambient lighting.

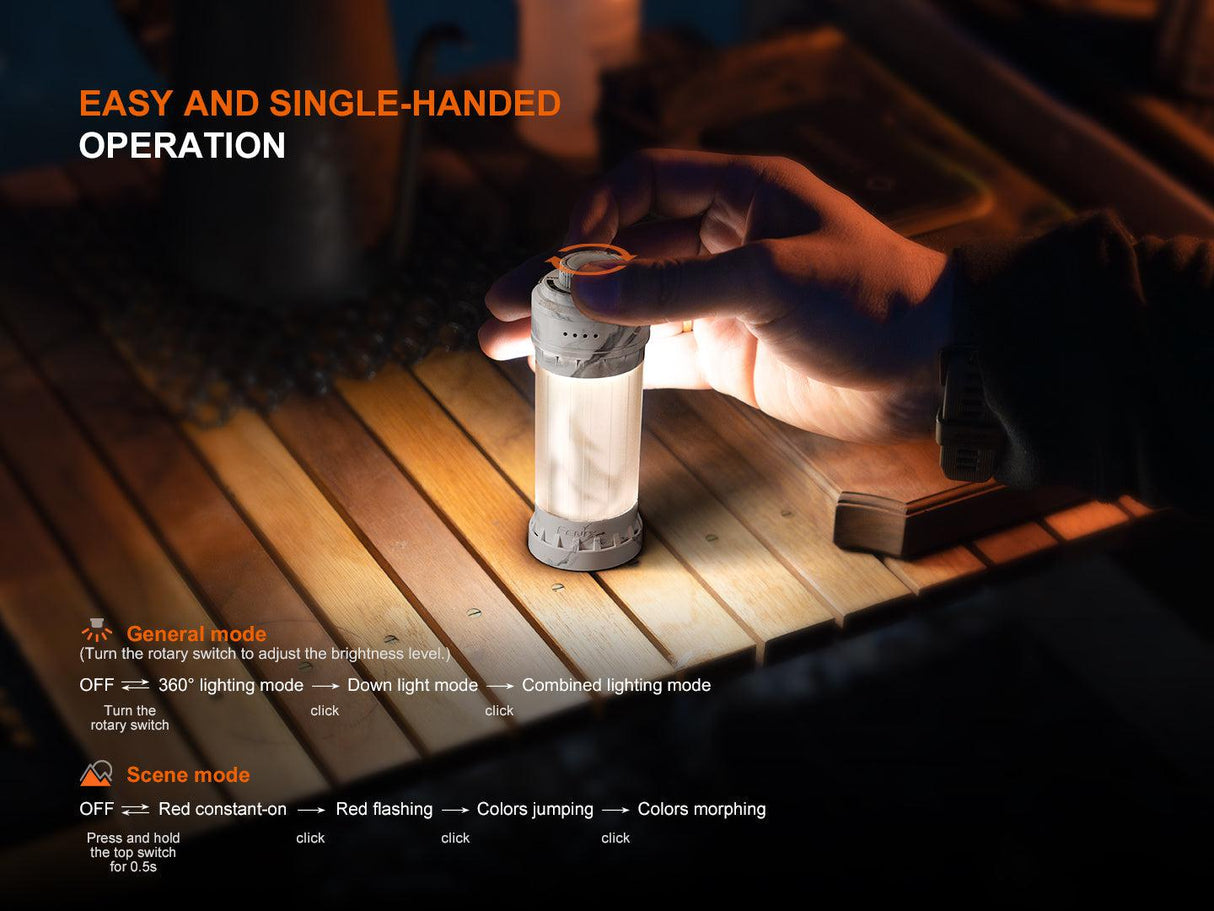

While in general mode, single click the top switch to cycle through the 360° mode, down lighting mode and the combined lighting mode. While in any of these modes, rotate the switch clockwise to change their brightness levels from low to high. Rotate counter clockwise to change the brightness from high to low. While in the scene mode, single click the switch to cycle through the red constant, red flashing, colour jump and colour morphing modes.

A LED power indicator is built into the front of the lantern just above the button will display when the button is pressed once while the lantern is turned off. There are four indicators in total and when the battery level is very low the first LED will flash rapidly.

The included Fenix 18650 lithium-ion battery is charged inside the lantern via the USB-C cable that fits into the back of the lantern by lifting the rubber dust cover and the other end of the cable plugs into a USB source. The indicator by the switch will show the charging status with all 4 indicators showing full charge after approximately 3 hours. The lantern can be used while charging however it is limited to 100 lumens and this will prolong the charging time.

There's an abundance of ways and places to perfectly position your lantern where you need it. Featuring a hanging hook so you can easily put it up inside the tent or hang from a structure outside, which works well with the downwards light settings.

Product Features

Battery level indicator
White and red lighting sources
Ultra-long run time

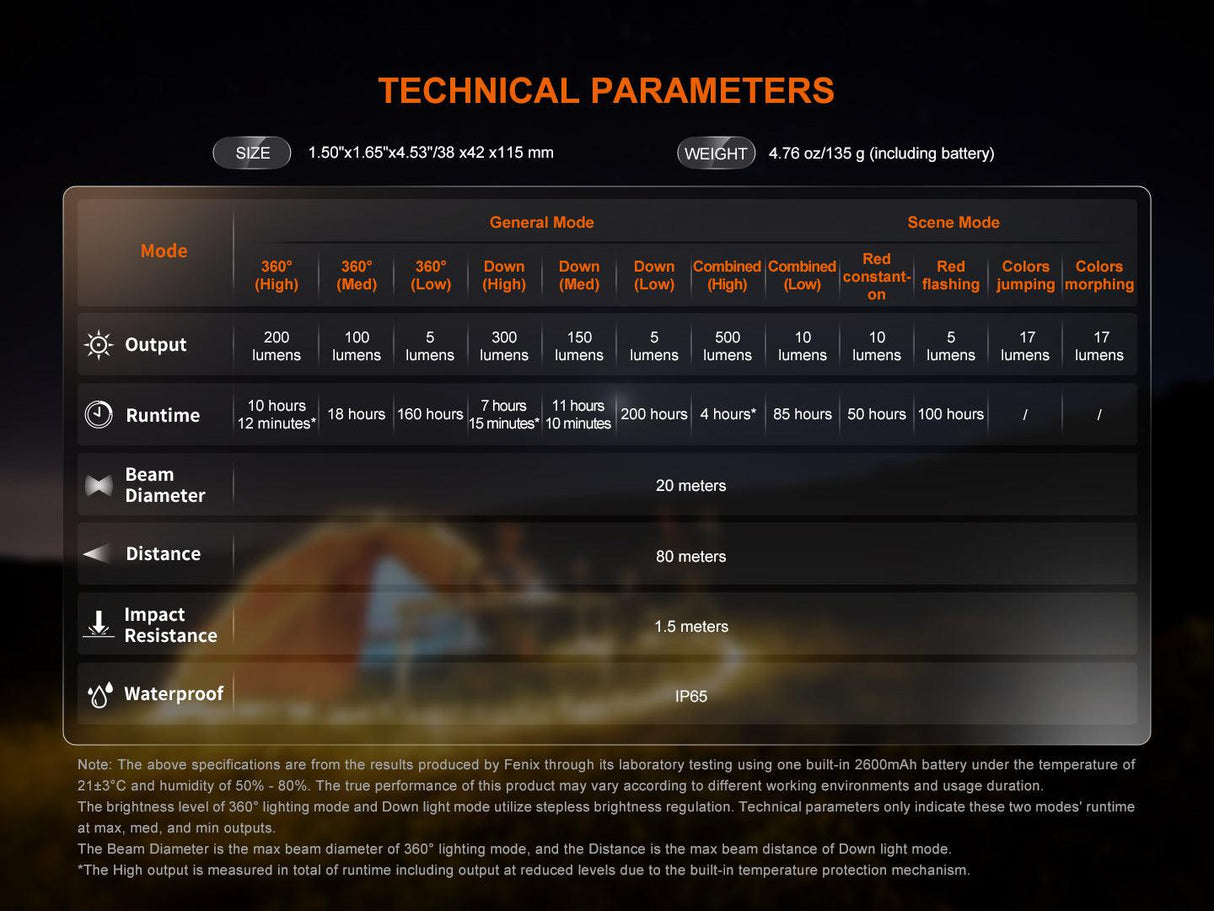

Operational Modes

General Mode:
360° High: 200 lumens; 10 hours, 12 minutes run-time
360° Medium: 100 lumens; 18 hours run-time
360° Low: 5 lumens; 160 hours run-time
Down High: 300 lumens; 7 hours, 15 minutes run-time
Down Medium: 150 lumens; 11 hours, 10 minutes run-time
Down Low: 5 lumens; 200 hours run-time
Combined: 500 lumens; 4 hours run-time
Combined Low: 10 lumens; 85 hours run-time

Scene Mode:
Red Constant: 10 lumens; 50 hours run-time
Red Flashing; 5 lumens; 100 hours run-time
Colours Jumping: 17 lumens
Colours Flashing: 17 lumens

Tested to ANSI / NEMA FL1 standard using 1 x Fenix ARB-L21-5000 V2.0 lithium-ion battery. Run-times may vary between lanterns and environment.

Technical Details

Type: LED camping lantern
Operating Modes: Low / Mid / High / Front / Down 1 / Down 2 / Down 3 / Red / Red Flash
Luminous Flux: Up to 500 lumens
Lamp Type: White LED and red LED
Beam Diameter: 15 m
Batteries Required: 1 x built-in 18650 lithium-ion (included)
Measurements: 38 mm x 42 mm x 115 mm
Weight: 135 grams
Body Colour: Black, White or Green
Switch Type: Rotary switch and push button
Impact Resistance: 1.5 m

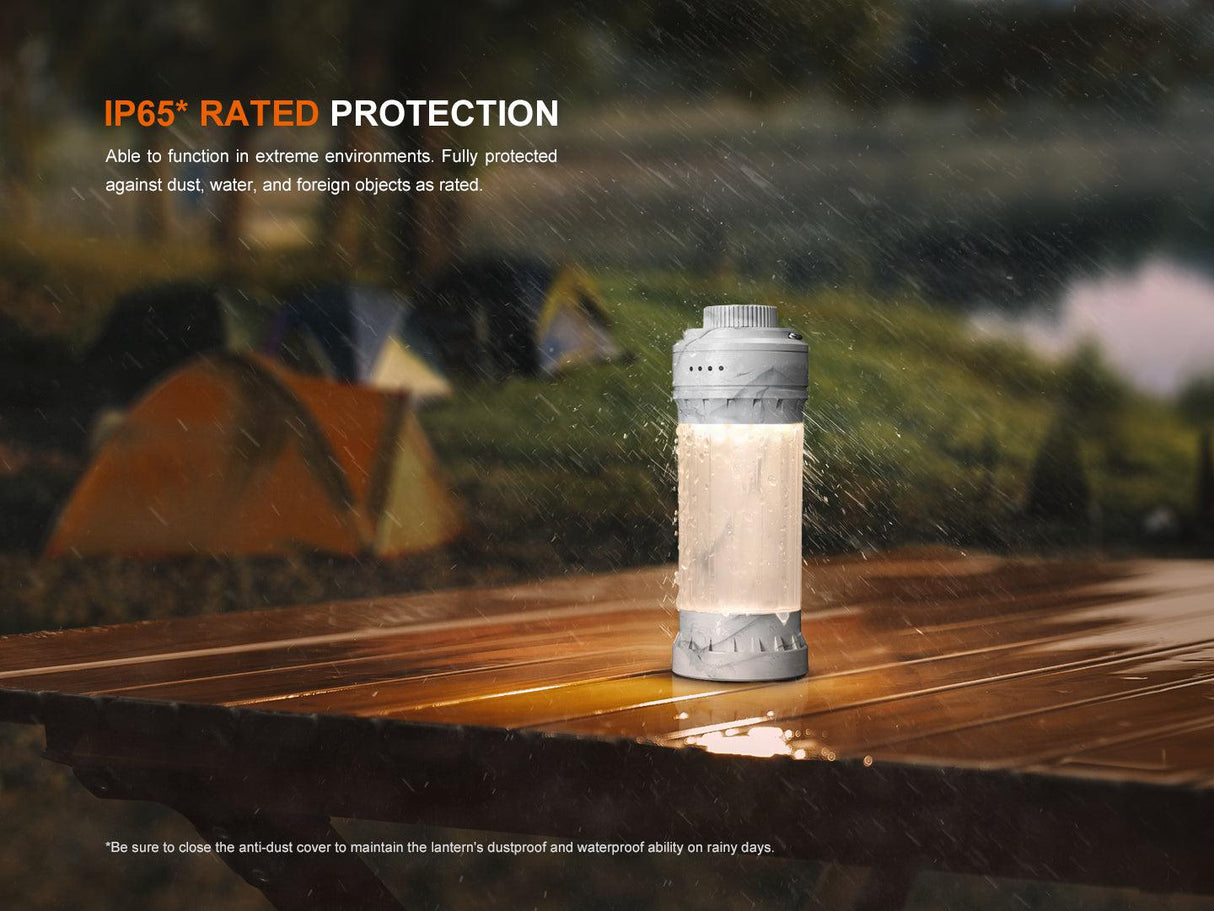

Environmental: IPX5

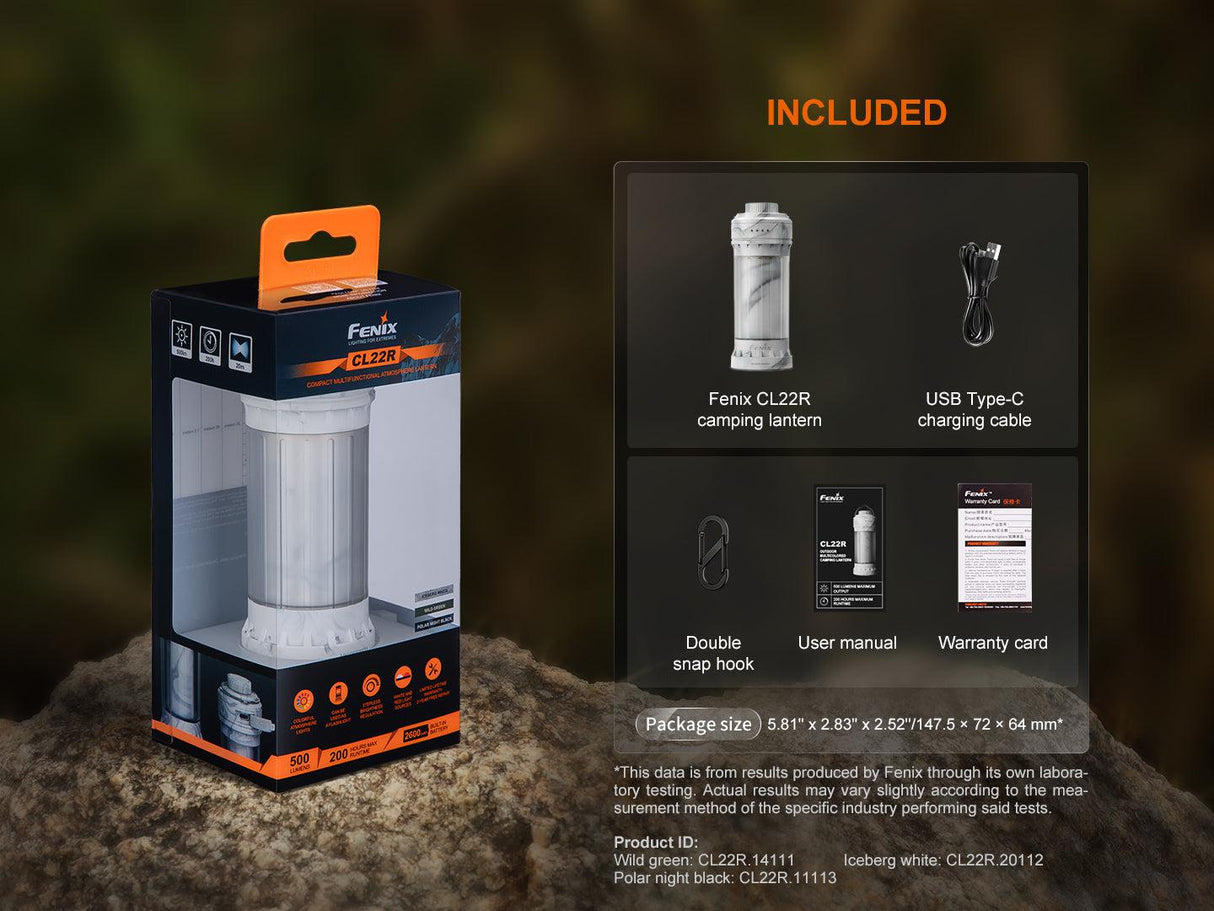

Packaging and Contents

Supplied in retail packaging and includes:
Fenix CL22R LED Lantern x 1
Fenix battery x 1
USB-C charging cable x 1
Double snap hook x 1
Warranty Card x 1
Manual x 1
