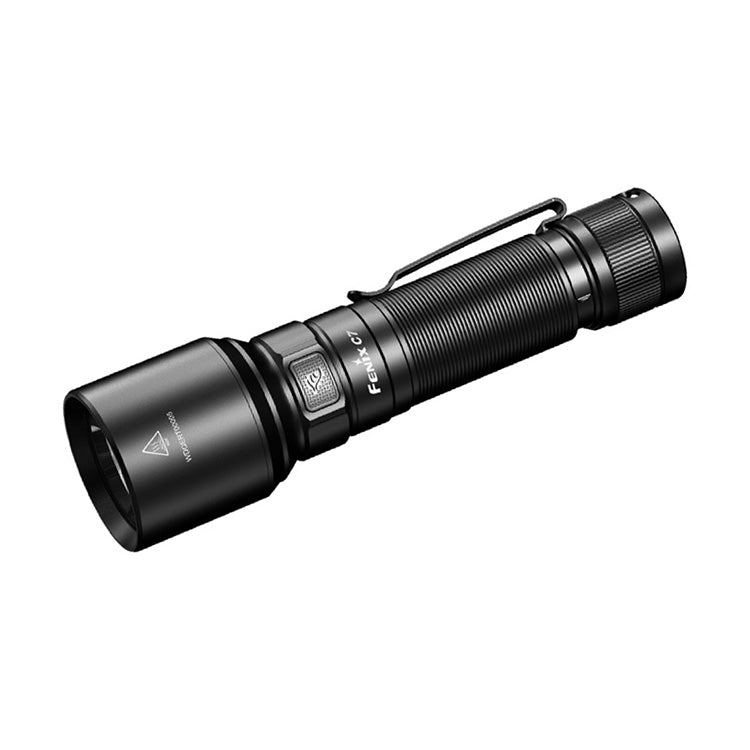

Fenix C7 Rechargeable LED Torch

The Fenix C7 is a high performance rechargeable torch, that offers 3000 lumens output in the turbo mode. With a magnetic base and a single large button operation, it is ideally suited to industrial and maintenance operations, but is equally useful for other tasks.

Equipped with a powerful Luminus SST70 LED and powered by one high capacity 21700 rechargeable lithium-ion battery, the Fenix C7 puts out a superb performance with a beam distance of 470 metres in turbo.

The included Fenix 21700 5000 mAh lithium-ion battery charges inside the torch via the USB-C charging port. Remove the dust cover from the USB-C port on the neck of the torch, and plug the included cable into the torch one end and the other end into a 5 V / 2 A USB power source. The LED charging indicator next to the charging port will go red to indicate charging is in progress and will turn green once charging is complete after approximately 3 hours when charging the included battery.

Five brightness levels are available in general mode, as well as strobe and SOS in flash mode. The side switch activates the torch by holding it for 0.5 seconds and then each press cycles through the modes of eco, low, mid, high and turbo. Hold the switch for 0.5 seconds again to turn the light off. The last used setting in general mode will be remembered the next time the torch is turned back on.

Flash mode is activated by holding the button for 1.2 seconds while the torch is on and a single press will cycle between strobe and SOS. Hold the button for 1.2 seconds to return to general mode, or 0.5 seconds to turn the torch off.

To prevent accidental activation when not in use the C7 has a lockout function. The electronic lockout is accessed by two quick presses of the button while the light is off and the torch will blink twice in eco to indicate it has entered lockout mode. It can be unlocked again in the same way, and if the button is pressed while in lockout the torch will blink twice to notify you of this.

A built-in battery level indicator displays the battery status for 3 seconds when the button is single pressed with the light off. It will show either a solid green, green flashing, solid red or red flashing light. A low battery voltage warning function is programmed to downshift to a lower brightness level when the voltage drops below the preset level. Once it reaches eco output it will blink three times every 5 minutes to remind you to charge the 21700 battery.

Intelligent overheat protection will automatically downshift the brightness slightly if the internal temperature reaches 60°C or above in turbo mode, and once the torch has cooled it will allow the user to reselect the higher outputs.

The base of the torch is magnetic, which is useful for hands free operation when carrying out tasks such as car maintenance or in an industrial environment.

Product Features

Lockout function to prevent accidental activation
Low power warning function and battery level indicator
Overheat protection to protect LED
Rechargeable via USB-C charging port


Operational Modes

Eco: 30 lumens, 68 hours run-time; 45 m beam range
Low: 100 lumens; 29 hours run-time; 80 m beam range
Mid: 400 lumens, 7 hours run-time; 160 m beam range
High: 1400 lumens, 2 hours run-time; 300 m beam range
Turbo: 3000 lumens; 1 hour run-time; 470 m beam range*
Strobe: 3000 lumens
SOS: 100 lumens

Note: *The turbo output is measured at total run-time, including output at reduced levels due to temperature or the built-in protection mechanism. The over-heat protection will gradually drop the turbo brightness level if the internal temperature reaches 60°C.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix ARB-L21-5000 21700 lithium-ion rechargeable battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.

Technical Details

Type: Rechargeable hand-held LED torch
Operating Modes: Turbo / High / Mid / Low / Eco / Strobe / SOS
Luminous Flux: Up to 3000 lumens
LED Type: Luminus SST70 LED
Beam Range: Up to 470 m
Batteries Required: 1 x 21700 rechargeable lithium-ion battery (included)
Charging Time: 3 hours approx. (with included battery)
Overall Length: 149 mm
Head Diameter: 40 mm
Body Diameter: 27 mm
Weight: 172 grams (excluding battery)
Body Colour: Black
Body Material: Durable aircraft grade aluminium
Body Finish: Premium type III hard anodised anti-abrasive finish
Switch Type: Rubber side button
Impact Resistance: 1 m
Environmental: Waterproof to IP68 standard
Warranty: 5 years (torch), 1 year (battery)

Packaging and Contents

Supplied in retail packaging and includes:
Fenix C7 LED torch x 1
Fenix 21700 5000 mAh lithium-ion battery x 1
USB-C charging cable x 1
Lanyard x 1
Spare O-ring x 1
Manual x 1
