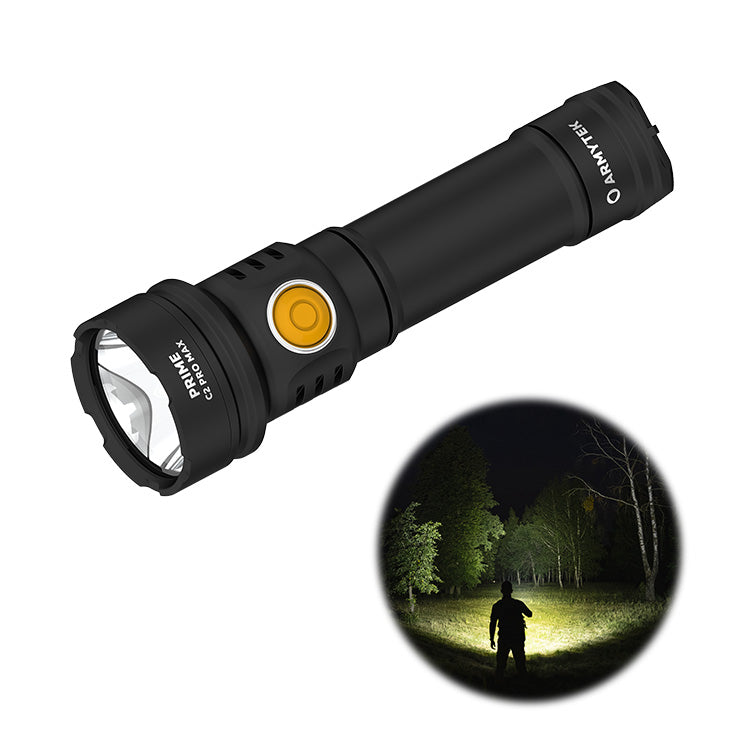

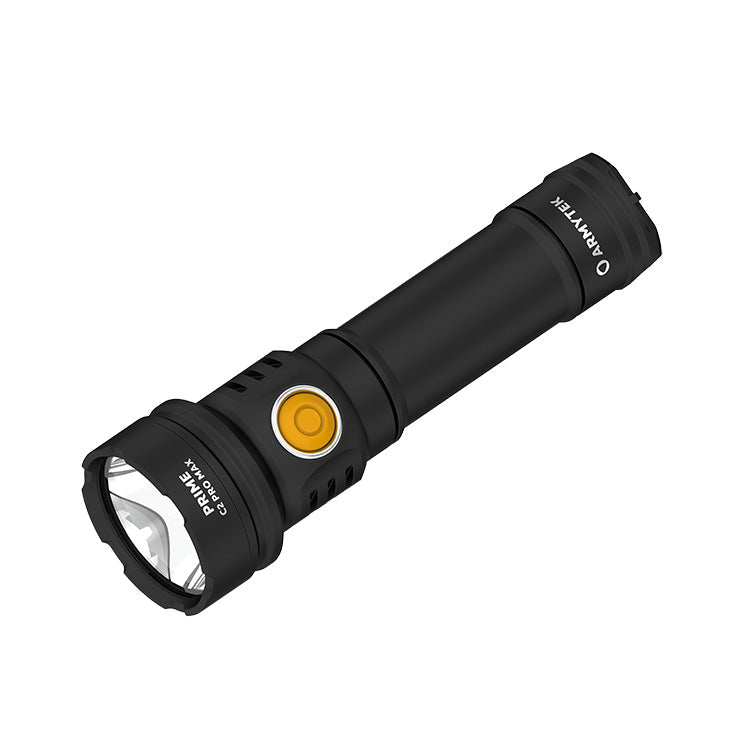

Armytek Prime C2 Pro Max EDC Rechargeable LED Torch

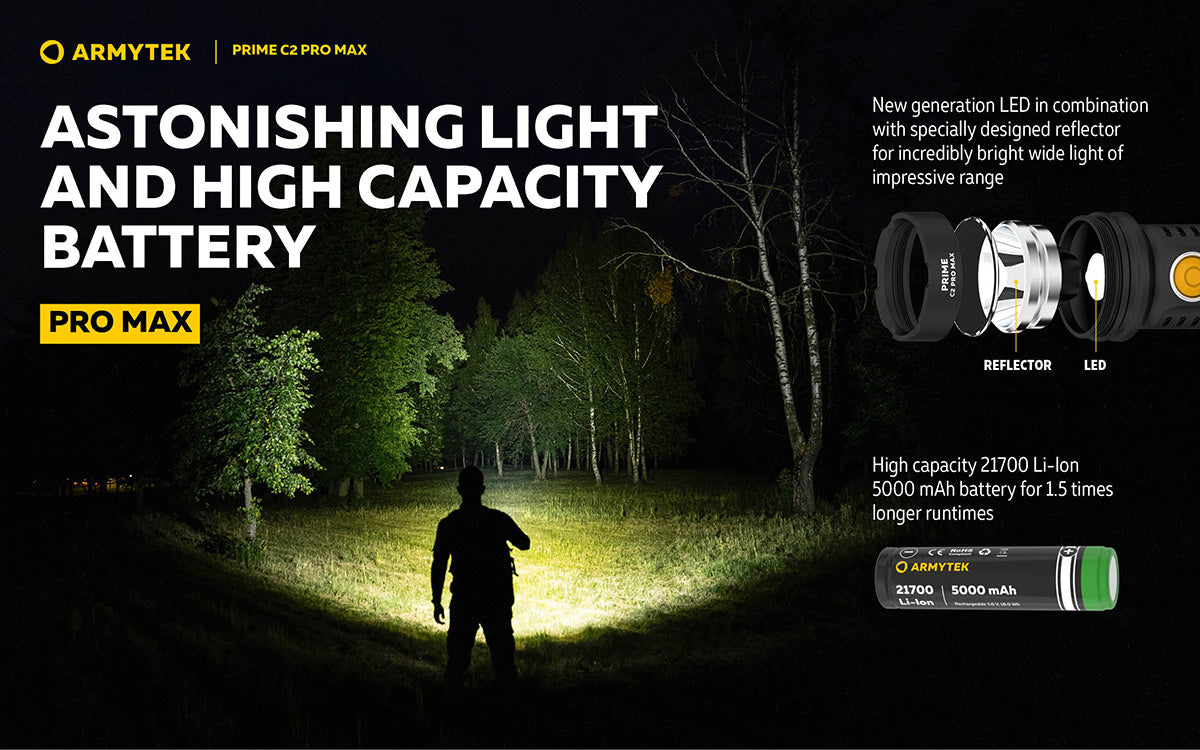

The Armytek Prime C2 Pro Max is a compact torch available in both cool and warm white light with a throw of up to 260 metres, making it the perfect everyday carry.

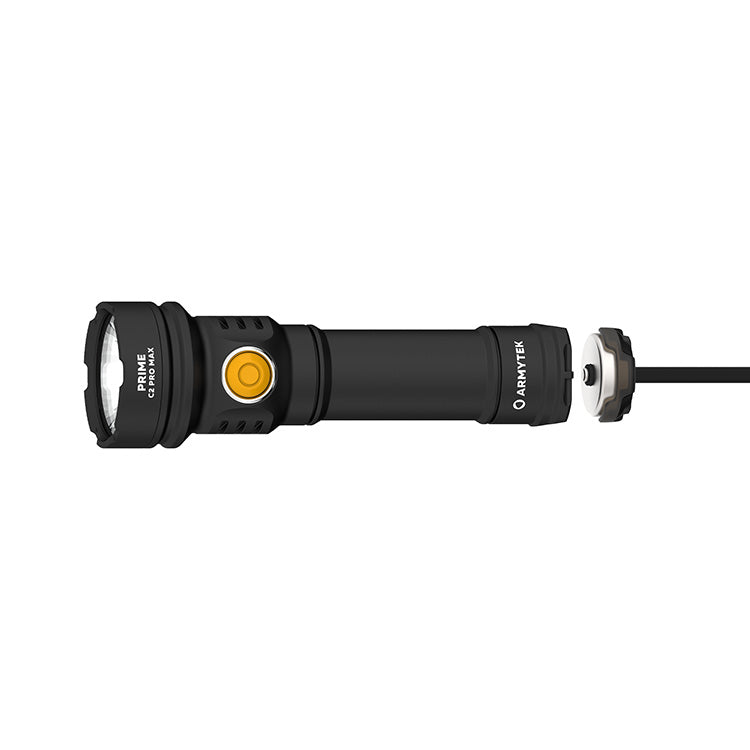

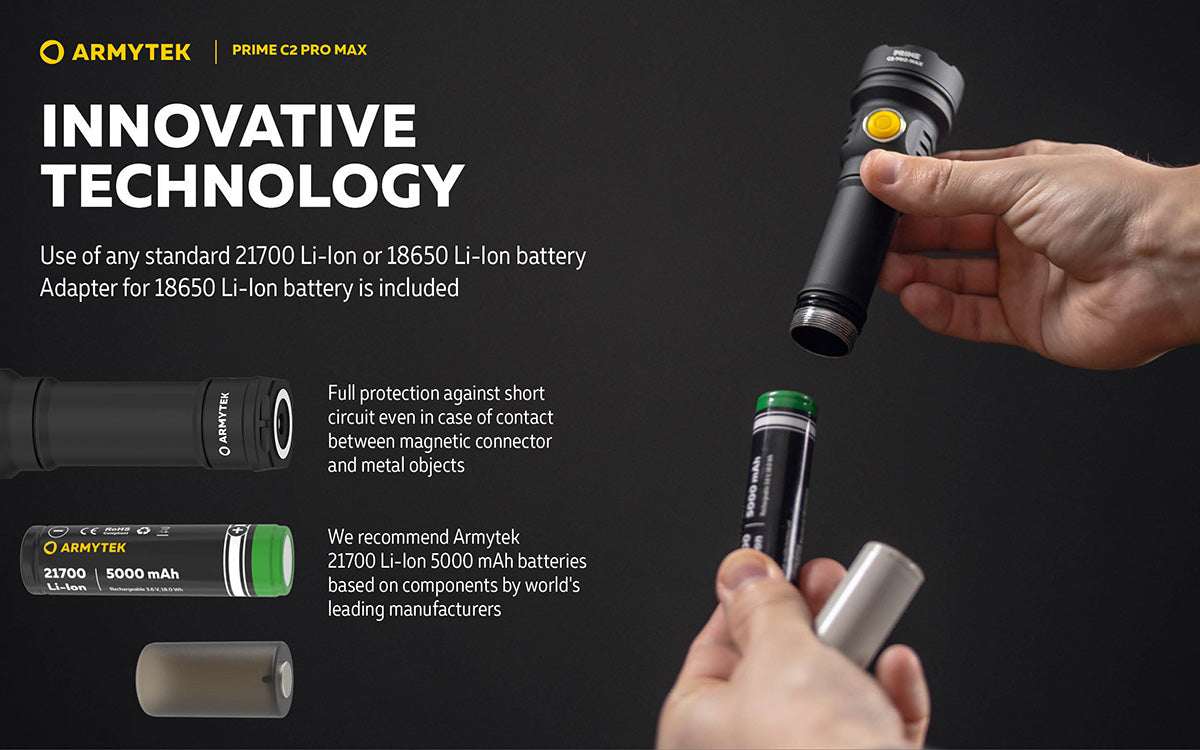

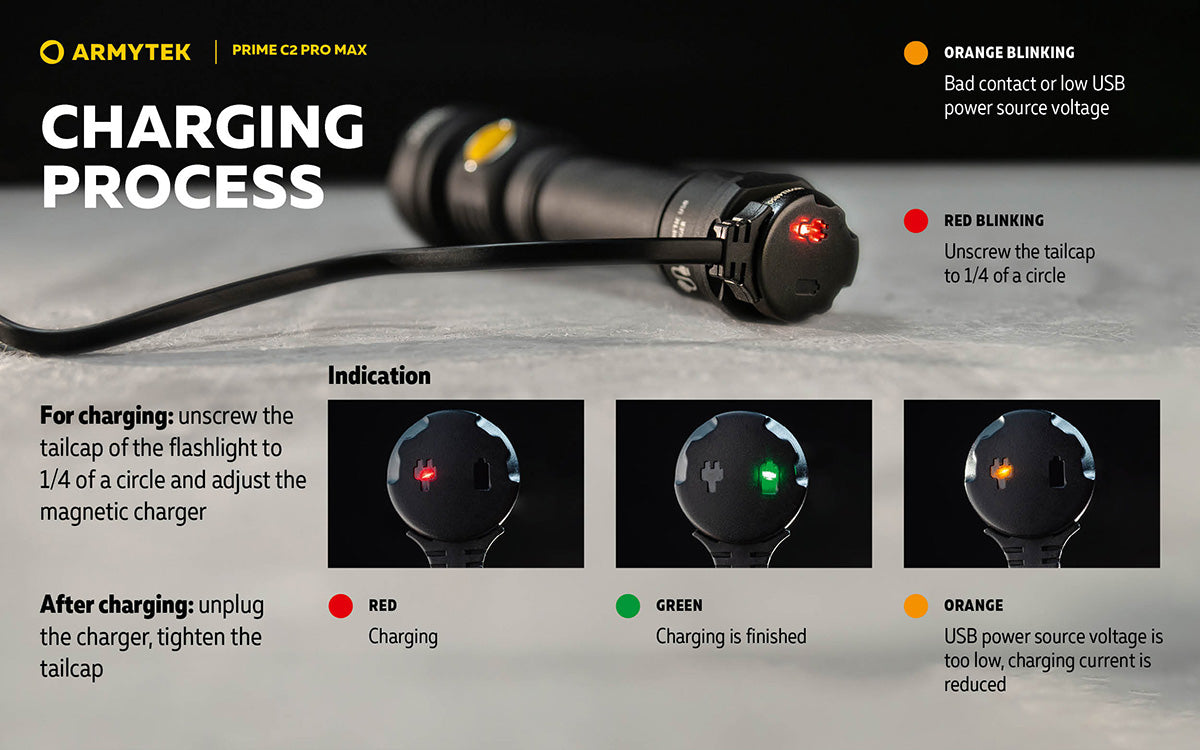

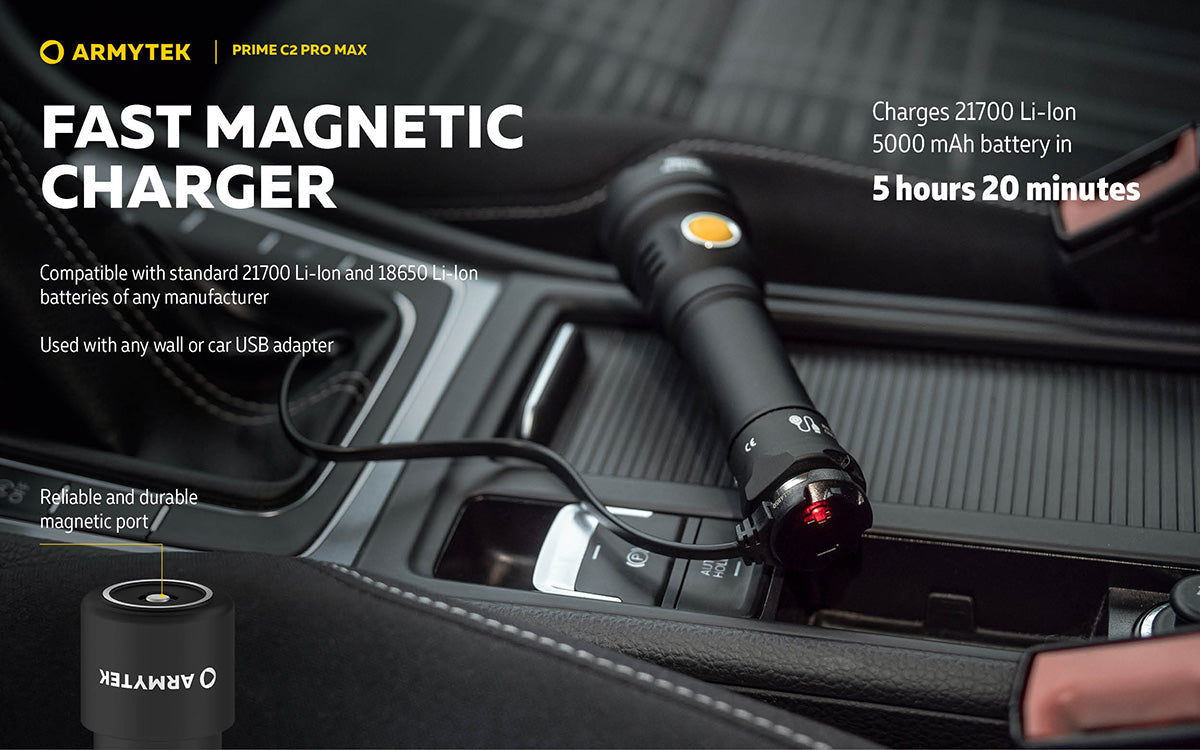

The Prime C2 Pro Max is powered by the included Armytek 21700, 5000 mAh high capacity lithium-ion battery. To charge the torch unscrew the tail cap by 1/4 before connecting the magnetic base of the included charger to the tail cap. Plug the charger into a suitable USB power outlet and the charger will flash red while charging is in progress and turn green once charging is complete after approximately 5 hours 20 minutes.

The Prime C2 Pro Max features both general and advanced modes. Simple mode features 6 outputs of the firefly, main and turbo modes while advanced mode features all 10 outputs, including the strobe modes. By default the torch will be in simple mode.

To turn the torch on or off press the side button, thanks to the memory function the torch will turn on in the last used output. Press and hold the button while the torch is off to cycle through the outputs of firefly 1 and firefly 2. Release the button in the desired output or continuing to hold will cycle through the main 1, main 2, main 3 and turbo 2 outputs. Press and hold the button while the torch is on and the torch will cycle through the main modes, release in the desired output.

To access the turbo output simply double press the button while the torch is on in any output. The next double press of the button returns the torch to the previous output.

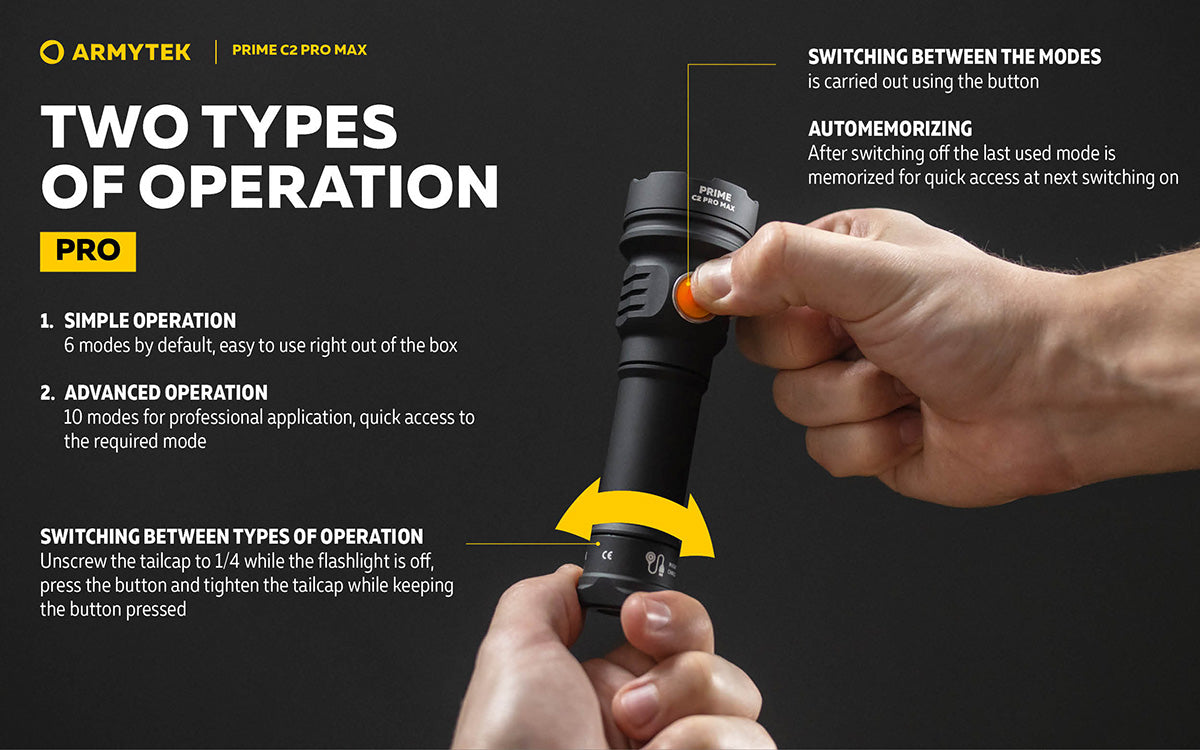

To access the advanced mode, unscrew the tail cap by 1/4 while the torch is off. Press and hold the side button while re-tightening the tail cap, then immediately unscrew the tail cap again while still holding the push button then release the button and retighten again.

While in advanced mode push the button to turn the torch on or off. Press and hold the button while the torch is off to cycle through the firefly 1, firefly 2 and firefly 3 outputs. While the torch is on two presses of the button will access the main 1, main 2 and main 3 modes. Three presses will access the turbo 1, turbo 2 and turbo 3 modes. Four presses will access the strobe 1, strobe 2 and strobe 3 modes. While in any mode simply press and hold the button to cycle through the outputs, releasing on the desired setting.

To prevent accidental activation unscrew the tail cap by 1/4 to enter lockout mode.

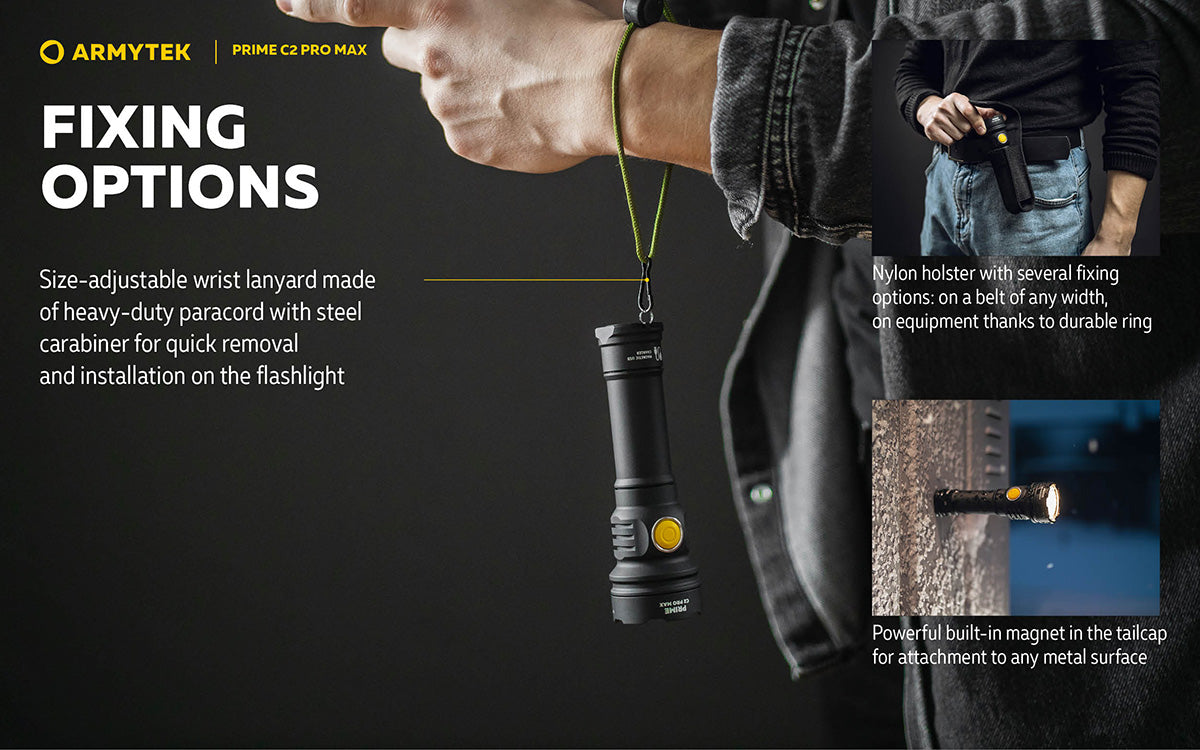

The Prime C2 Pro Max can be used in various ways to suit many activities. It can be used as a head torch with the included comfortable headband which is completely adjustable. The lightweight holder is made from composite material and features quick release silicone for additional fixation. The one motion installation allows for simple one handed operation.

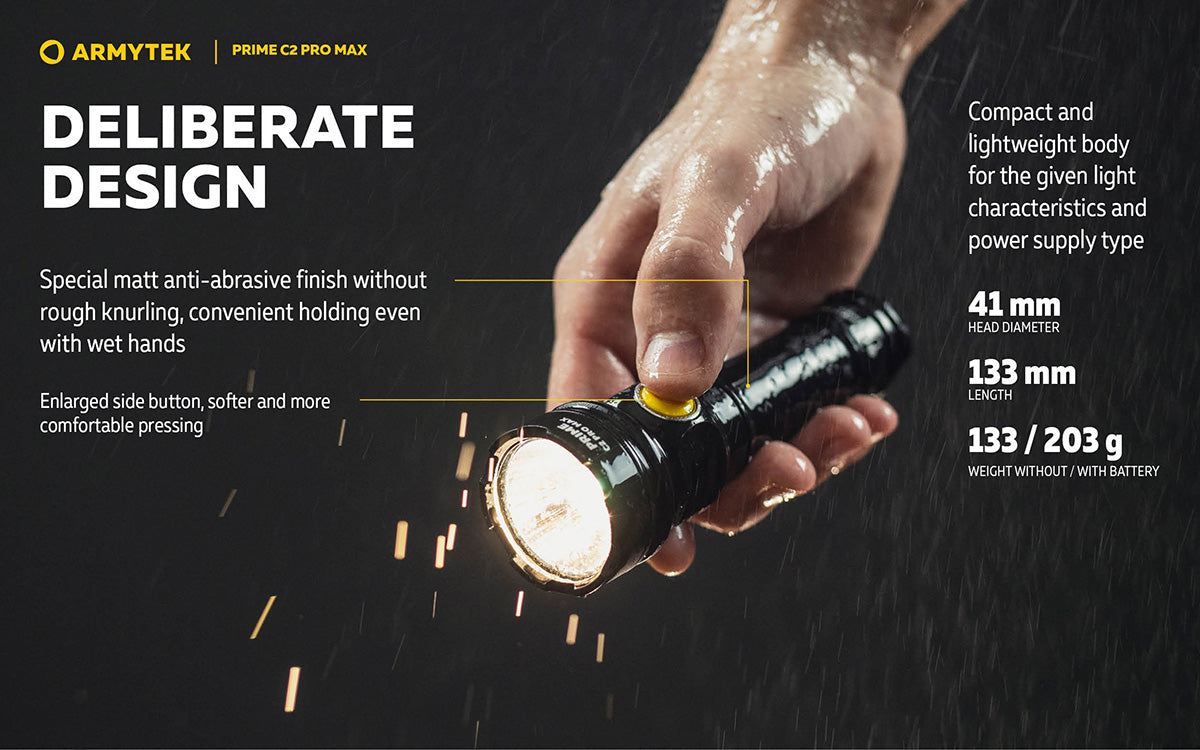

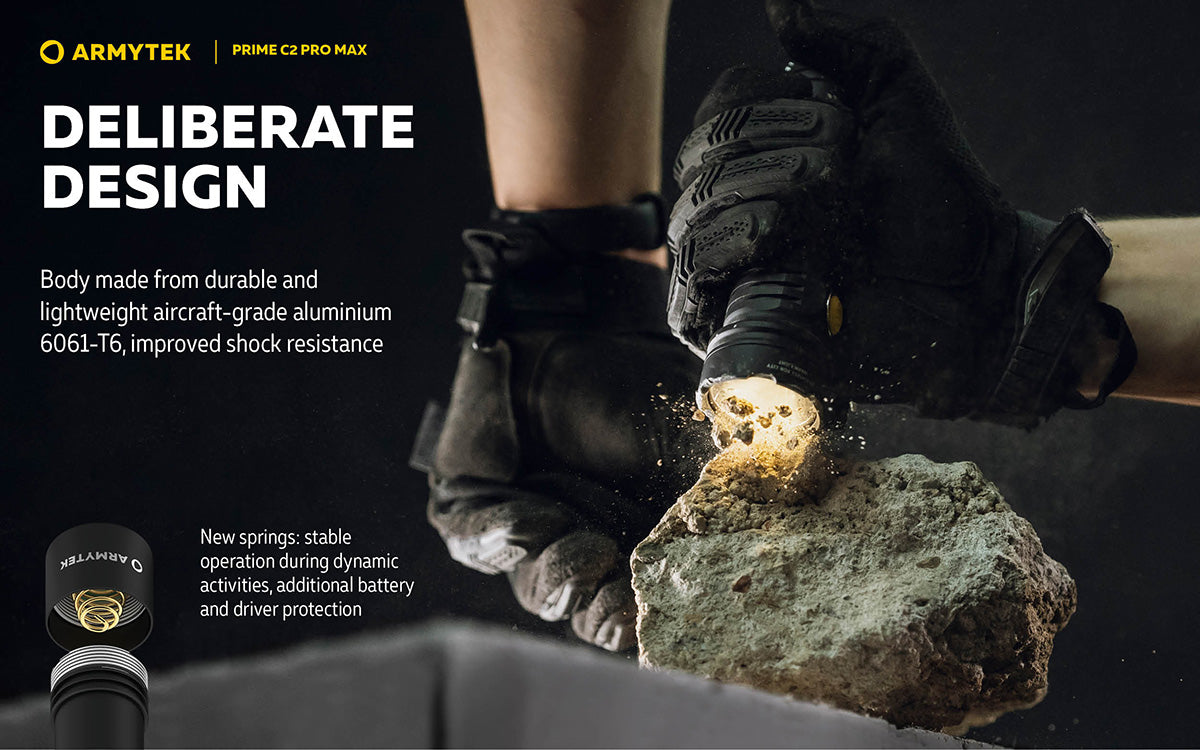

The torch can be used as an everyday carry with a steel clip included and magnetic base allowing for hands free illumination. The special matt anti-abrasive finish and rough knurling allows for strong grip even in in wet conditions. Or it is also perfect for sporting activities as it works seamlessly with a range of accessories and is easily mounted. The body is made from durable materials and is shock resistant.

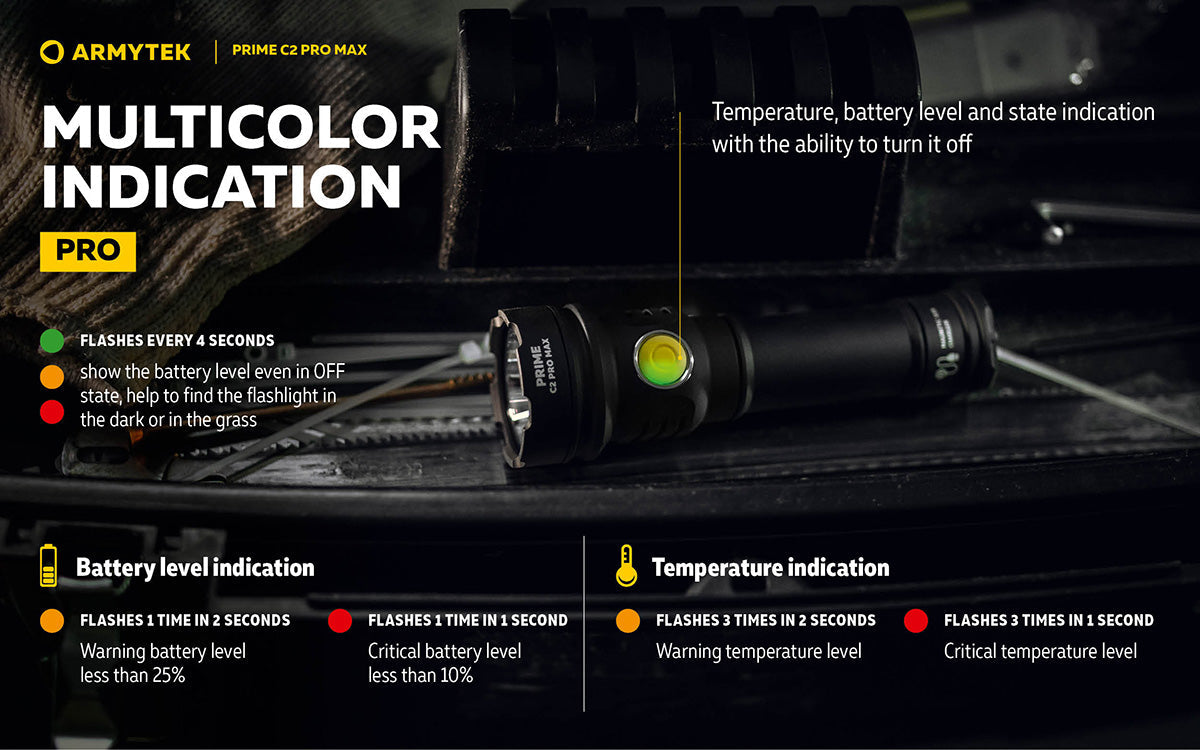

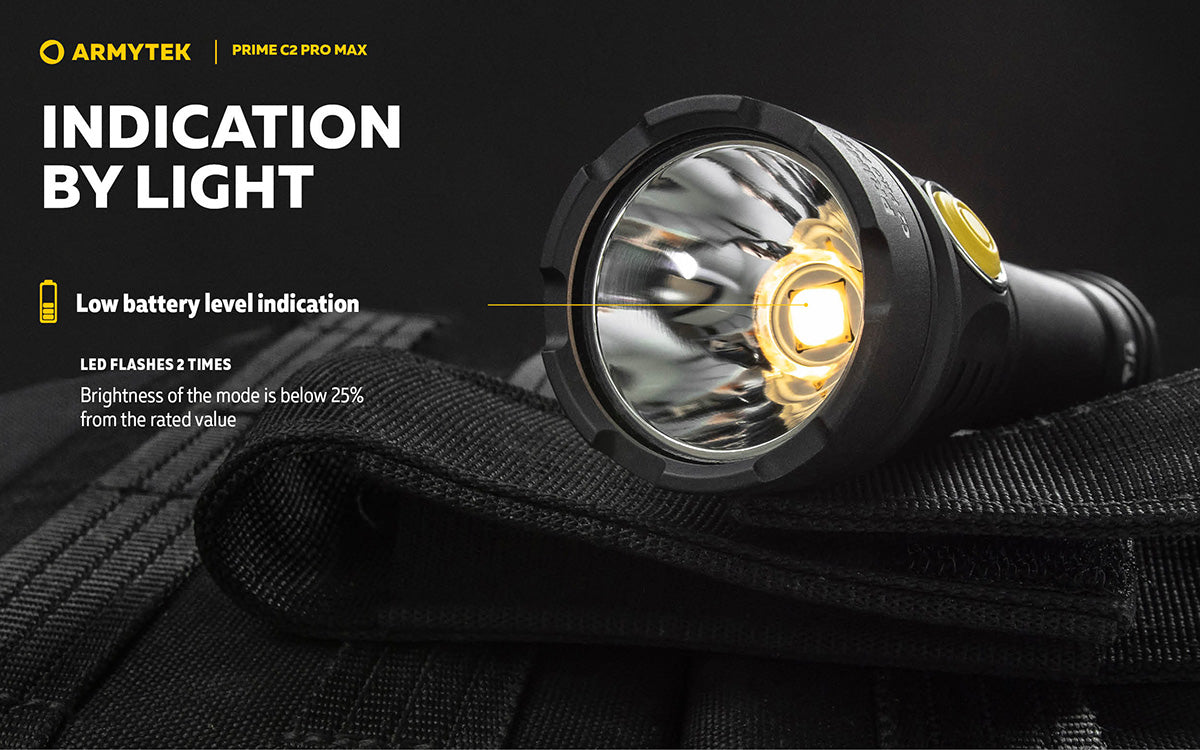

It also features a battery level and temperature indicator. The battery indicator will flash green every four seconds to show the torch is above 25% battery level, orange once within two seconds, warning that the battery is less than 25%. One red flash within one second means the battery level is critical and below 10%. The temperature indicator will flash orange three times within two seconds as a warning. Three red flashes within one second indicates the temperature level is critical.

The indicator is turned off in firefly modes by default but you are able to turn on or off the indicator by unscrewing the tail cap by 1/4 while the torch is off, then holding the side button while retightening and unscrewing the tail cap again.

Operational Modes

Cool Light:
Turbo 2: 4000 lumens; 3 hours, 4 minutes run-time*
Turbo 1: 1300 lumens; 3 hours run-time*
Main 3: 450 lumens; 6 hours, 25 minutes run-time
Main 2: 150 lumens; 21 hours run-time
Main 1: 45 lumens; 64 hours run-time
Firefly 2: 7 lumens; 10 days run-time
Firefly 1: 0.4 lumens; 64 days run-time
Strobe 3: 4000 lumens; 6 hours, 42 minutes run-time; 10 Hz*
Strobe 2: 4000 lumens; 12 hours, 30 minutes run-time; 1 Hz*
Strobe 1: 150 lumens; 90 hours run-time; 1 Hz

Warm Light:
Turbo 2: 3720 lumens; 3 hours, 2 minutes run-time*
Turbo 1: 1210 lumens; 3 hours run-time*
Main 3: 420 lumens; 6 hours, 25 minutes run-time
Main 2: 140 lumens; 21 hours run-time
Main 1: 42 lumens; 64 hours run-time
Firefly 2: 6.5 lumens; 10 days run-time
Firefly 1: 0.37 lumens; 64 days run-time
Strobe 3: 3720 lumens; 6 hours, 42 minutes run-time; 10 Hz*
Strobe 2: 3720 lumens; 12 hours, 30 minutes; 1 Hz*
Strobe 1: 140 lumens; 90 hours run-time; 1 Hz

*The turbo and strobe settings will decrease the lumen output to prevent the LED from overheating.

The above results are based on ANSI/NEMA FL1-2009 standard and are tested using the included battery.

Technical Details

Type: Hand-held LED torch
Operating Modes: Turbo 2 / Turbo 3 / Main 3 / Main 2 / Main 1 / Firefly 2 / Firefly 1 / Strobe 3 / Strobe 2 / Strobe 1
Luminous Flux: Up to 4000 lumens
Lamp Type: White LED

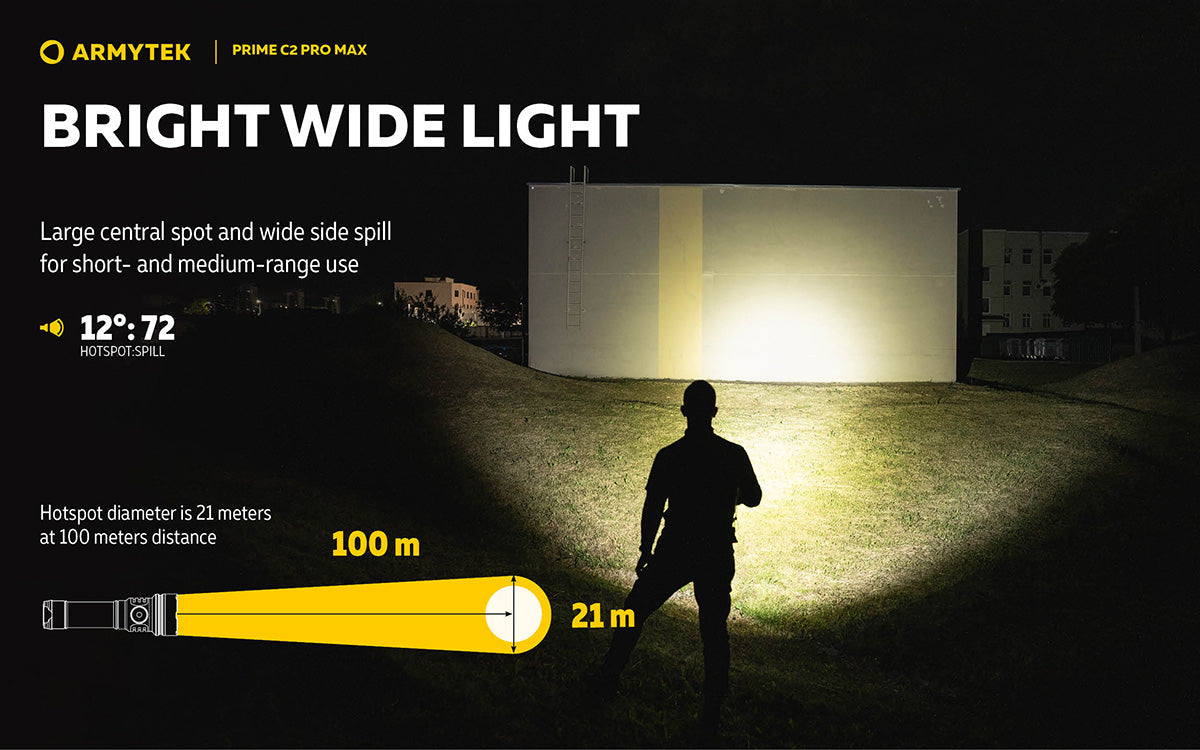

Beam Range: Up to 260 m
Batteries Required: 1 x 5000 mAh 21700 lithium-ion (included)
Overall Length: 133 mm
Bezel Diameter: 41 mm
Body Diameter: 25.4 mm
Weight: 133 grams (excluding battery)
Body Colour: Black
Body Material: Aluminium alloy
Body Finish: Type III hard-anodised
Switch Type: Side mounted
Impact Resistance: 10 m

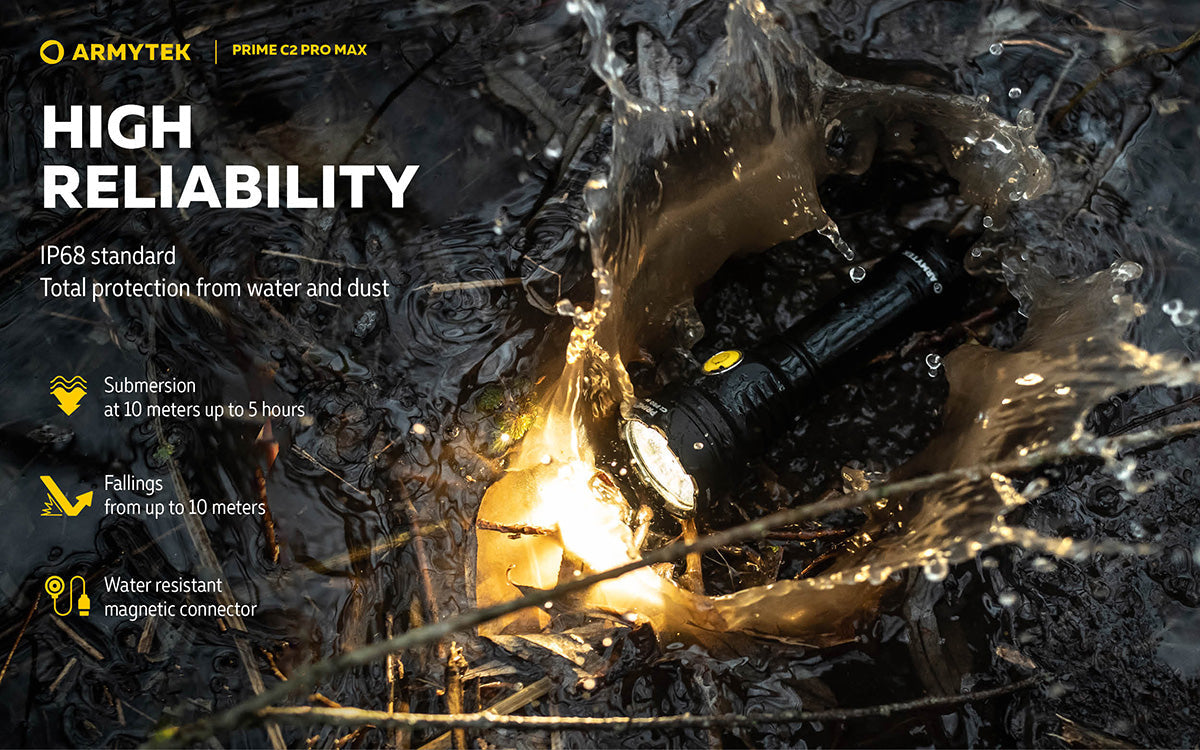

Environmental: IPX8
Warranty: 10 years manufacturer warranty

Packaging and Contents

Supplied in retail packaging and contains:
Armytek Prime C2 Pro Max torch x 1
Armytek 21700 5000 mAh lithium-ion battery x 1
Magnetic USB charging cable x 1
18650 battery adaptor x 1
Holster x 1
Clip x 1
Wrist lanyard x 1
Spare O-rings x 2
Manual x 1
