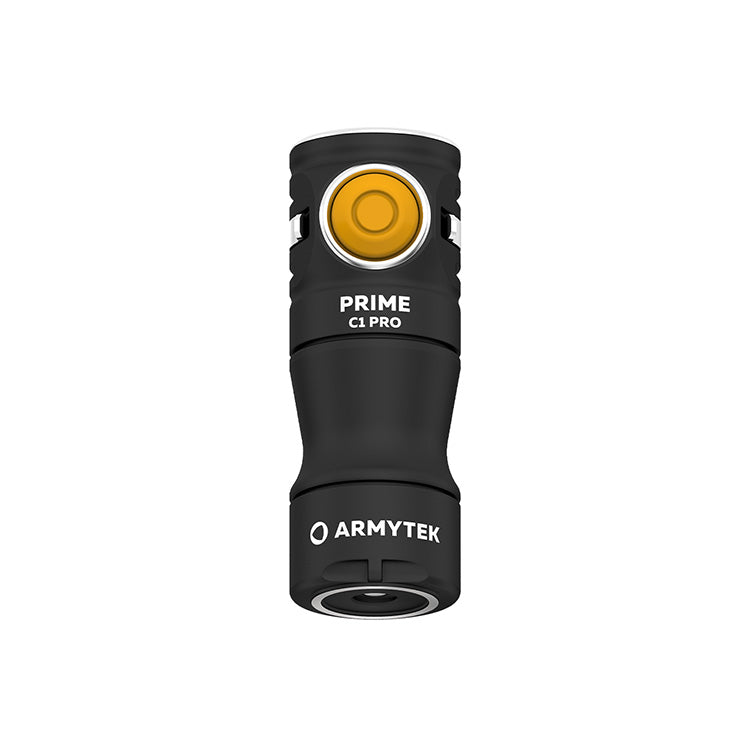

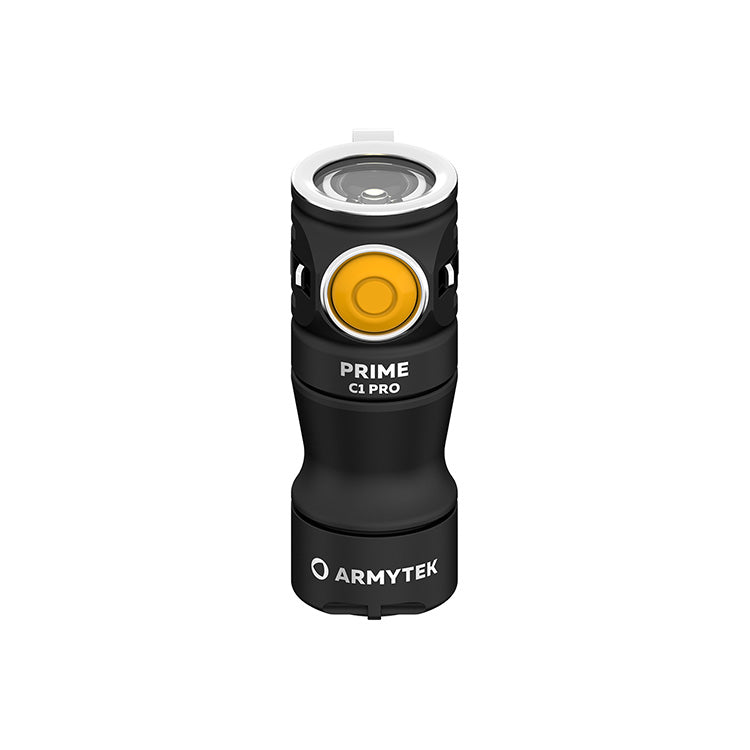

Armytek Prime C1 Pro EDC Rechargeable LED Torch

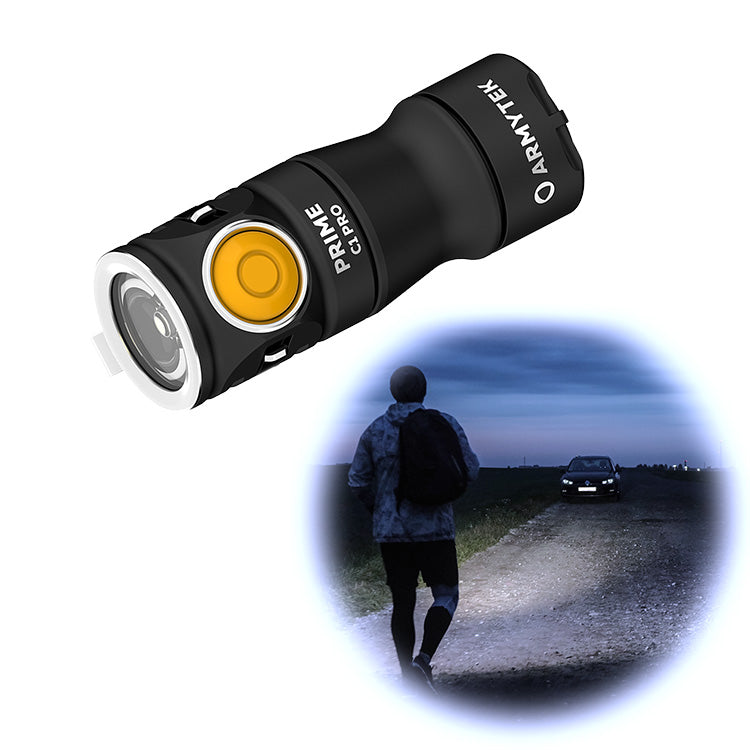

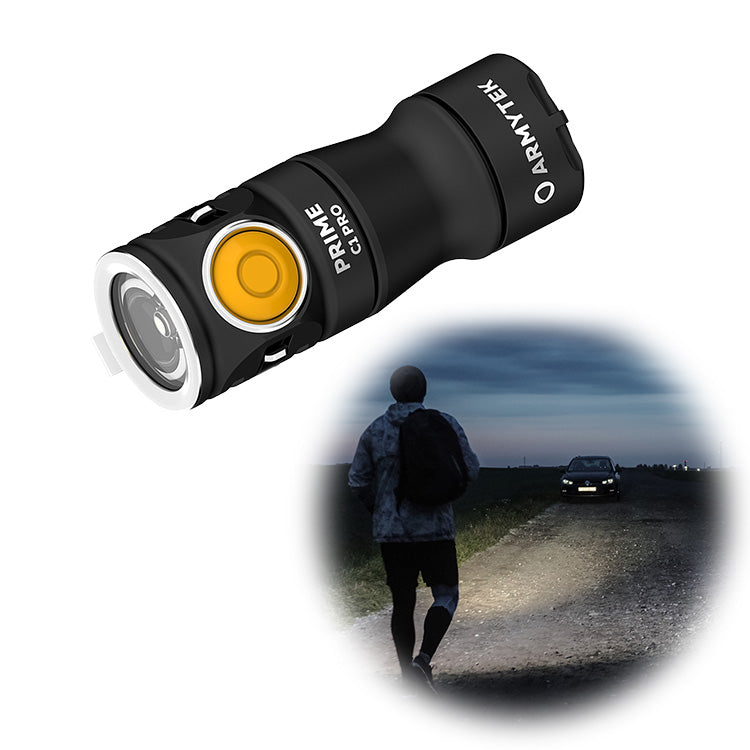

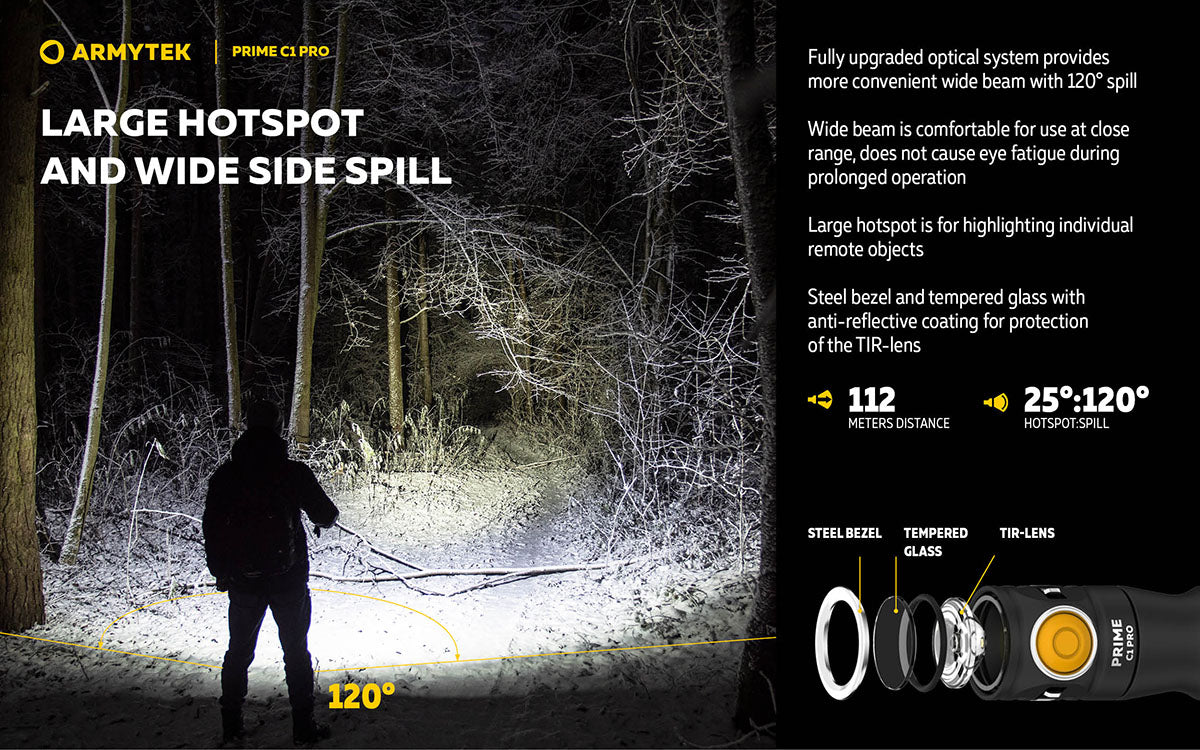

The Armytek Prime C1 is a compact torch perfect for everyday carry with multiple uses, a large hotspot and wide beam spill and is available in both cool and white light.

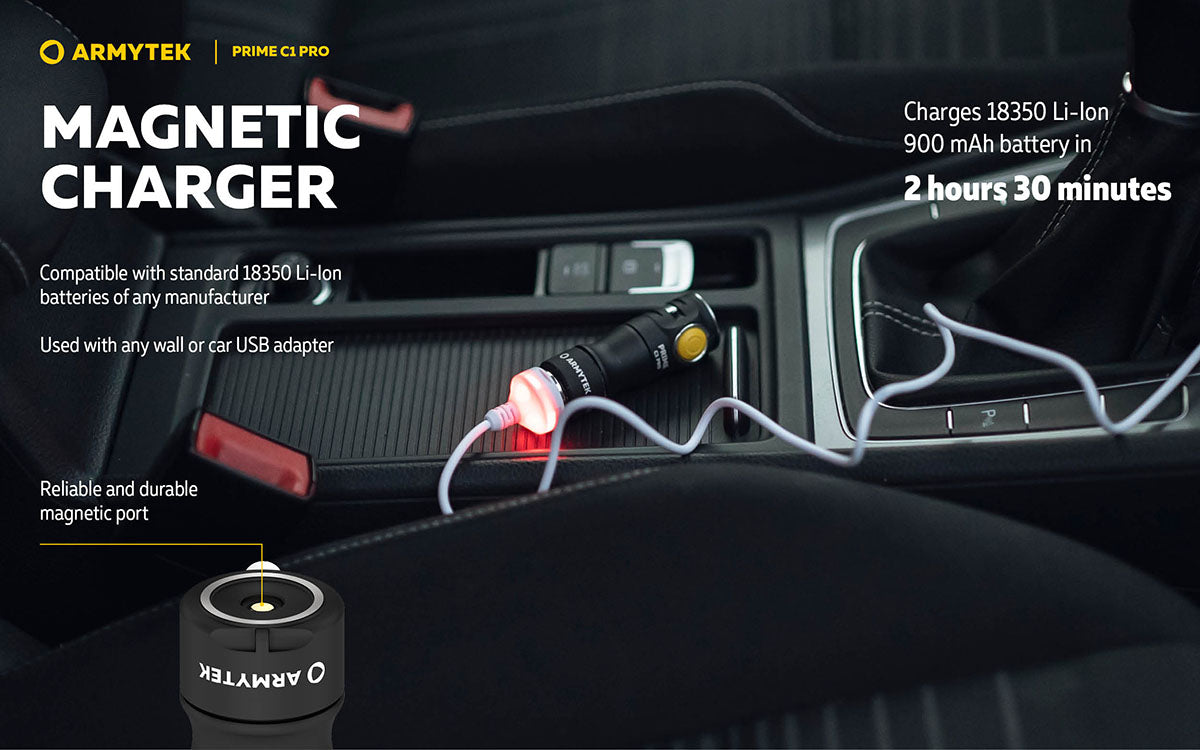

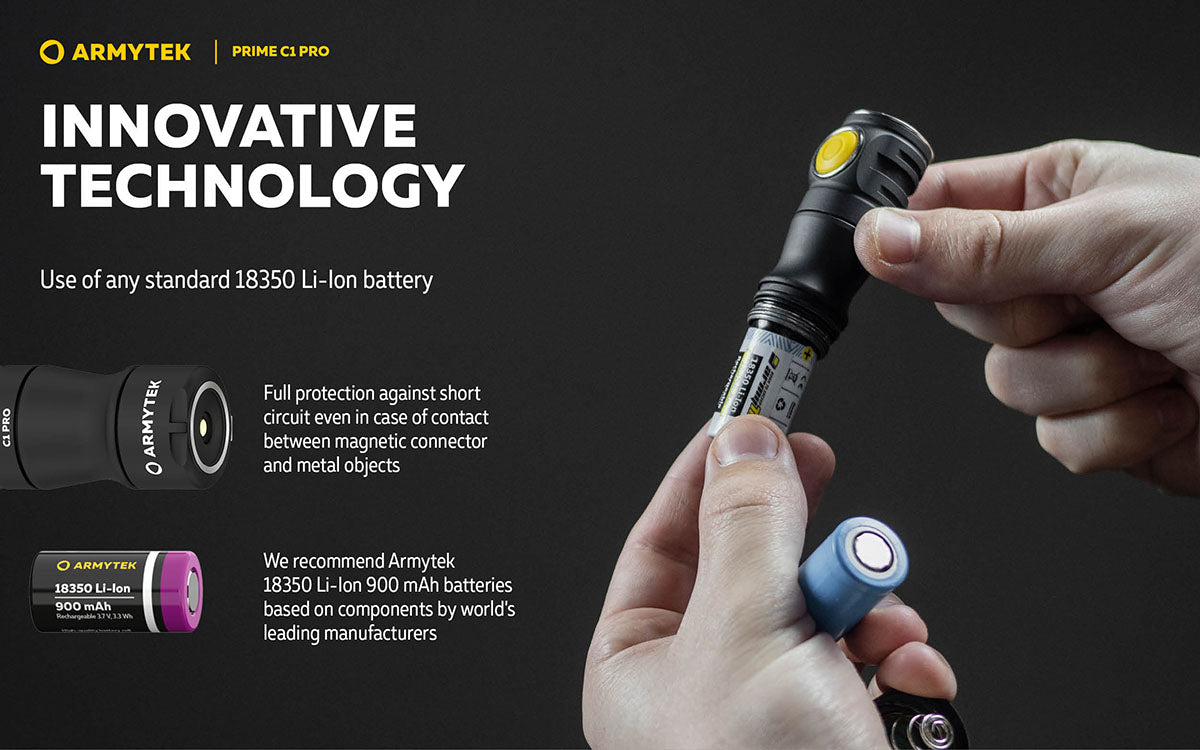

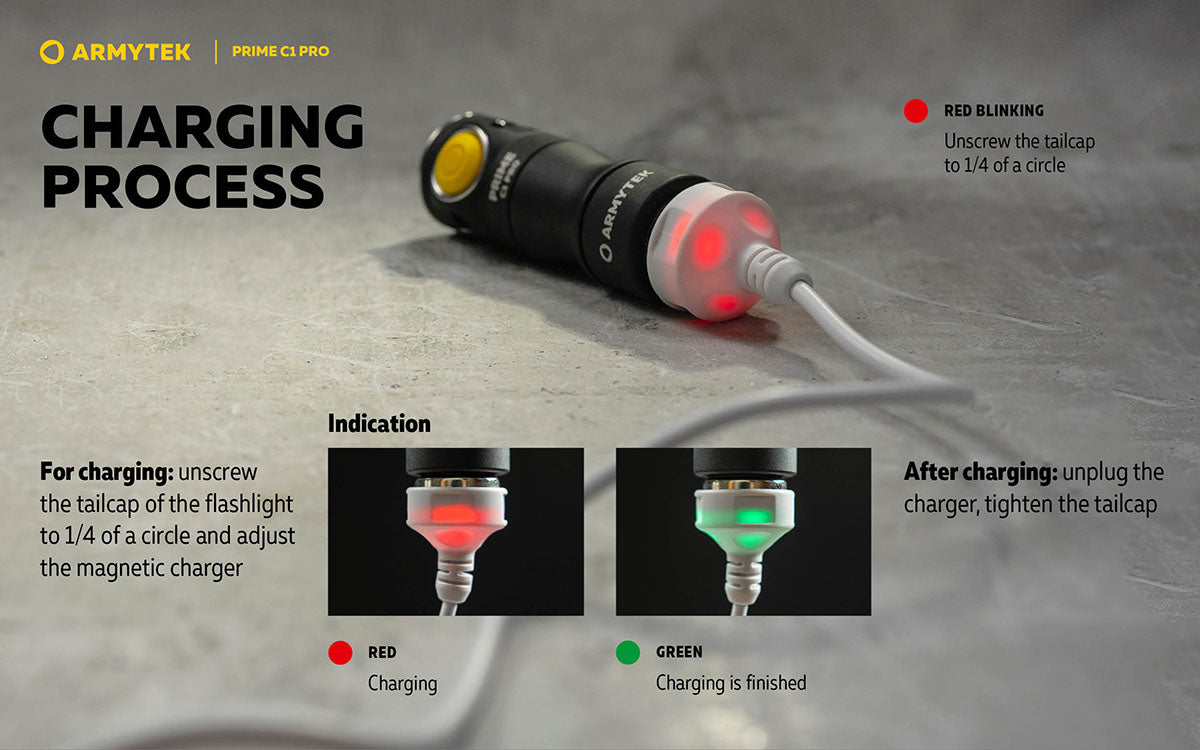

The Prime C1 is powered by the included Armytek 18650 900 mAh lithium-ion battery. To charge the torch unscrew the tail cap by 1/4 before connecting the magnetic base of the included charger to the tail cap. Plug the charger into a suitable USB power outlet and the charger will flash red while charging is in progress and turn green once charging is complete.

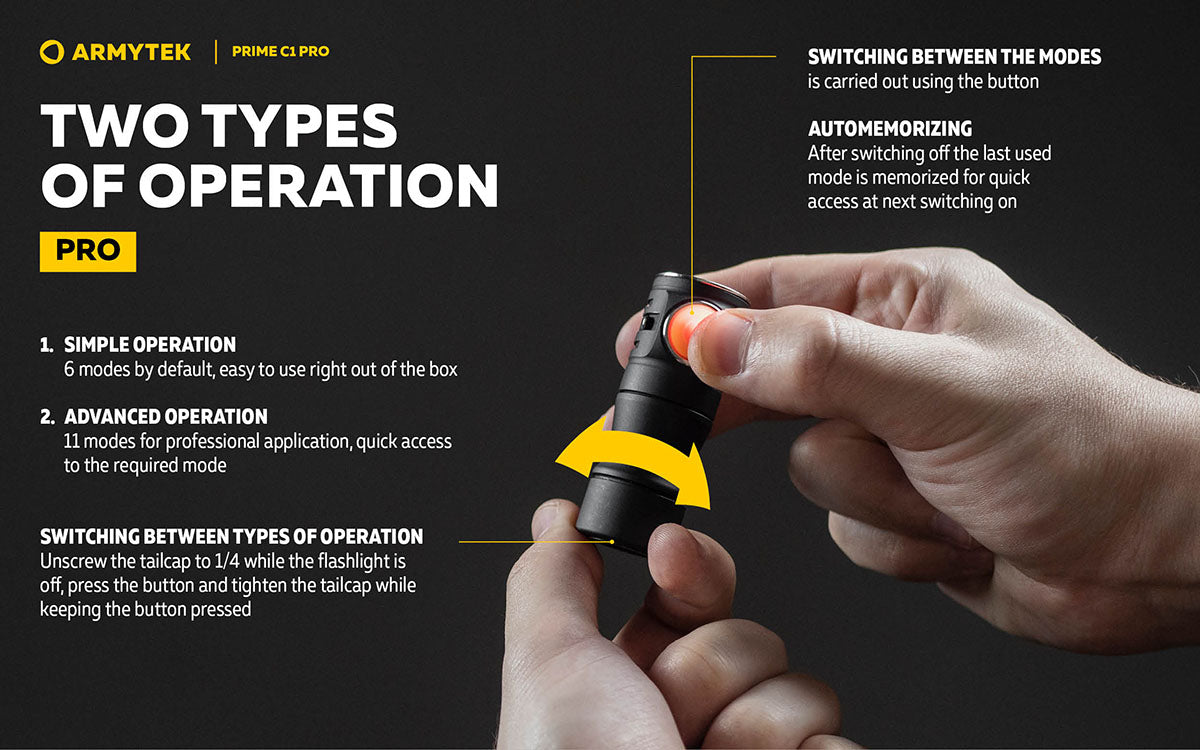

The Prime C1 Pro features both general and advanced modes. General mode features 6 outputs of the firefly, main modes and a turbo output while advanced mode features all 11 outputs, including the strobe and turbo modes. By default the torch will be in simple mode.

To turn the torch on or off press the side button, thanks to the memory function the torch will turn on in the last used output. Press and hold the button while the torch is off to cycle through the outputs of firefly 1 and firefly 2. Release the button in the desired output or continuing to hold will cycle through the main 1, main 2, main 3 and turbo 1 outputs. Press and hold the button while the torch is on and the torch will cycle through the main modes, release in the desired output.

To access the turbo output simply double press the button while the torch is on in any output. The next double press of the button returns the torch to the previous output.

To access the advanced mode, unscrew the tail cap by 1/4 while the torch is off. Press and hold the side button while re-tightening the tail cap, then immediately unscrew the tail cap again while still holding the push button then release the button and retighten again.

While in advanced mode push the button to turn the torch on or off. Press and hold the button while the torch is off to cycle through the firefly 1, firefly 2 and firefly 3 outputs. While the torch is on two presses of the button will access the main 1, main 2 and main 3 modes. Three presses will access the turbo 1 and turbo 2 modes. Four presses will access the strobe 1, strobe 2 and strobe 3 modes. While in any mode simply press and hold the button to cycle through the outputs, releasing on the desired setting.

To prevent accidental activation unscrew the tail cap by 1/4 to enter lockout mode.

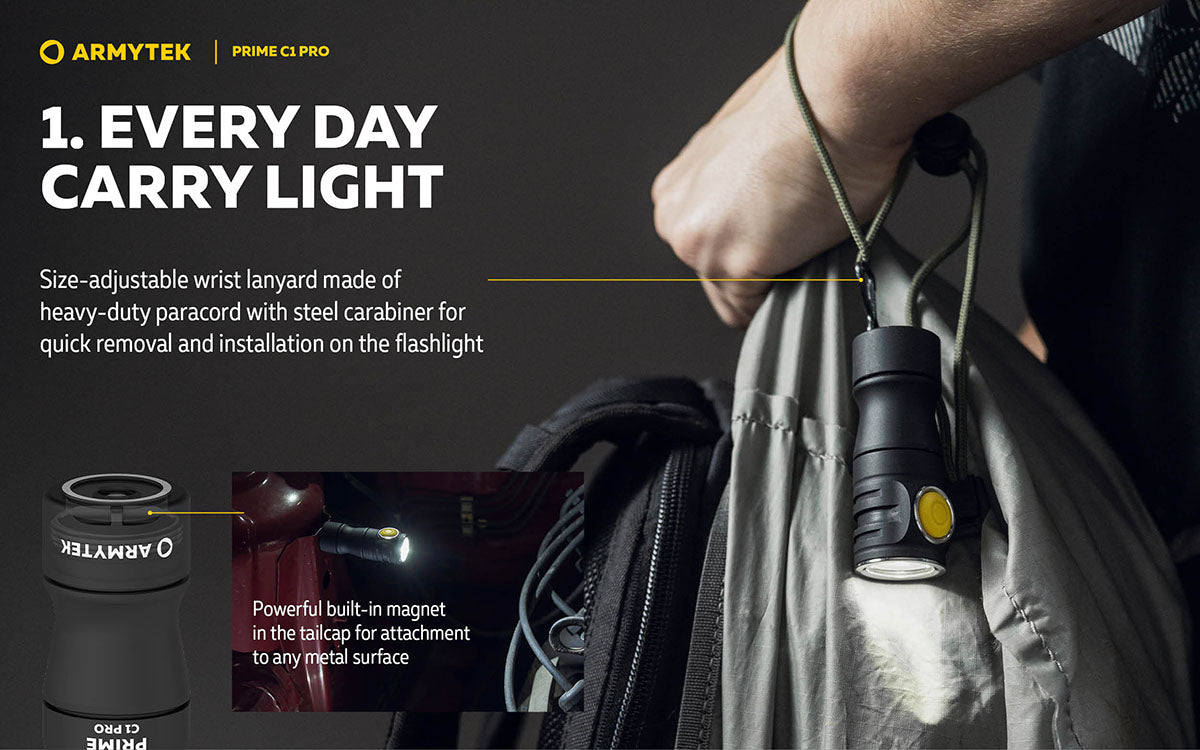

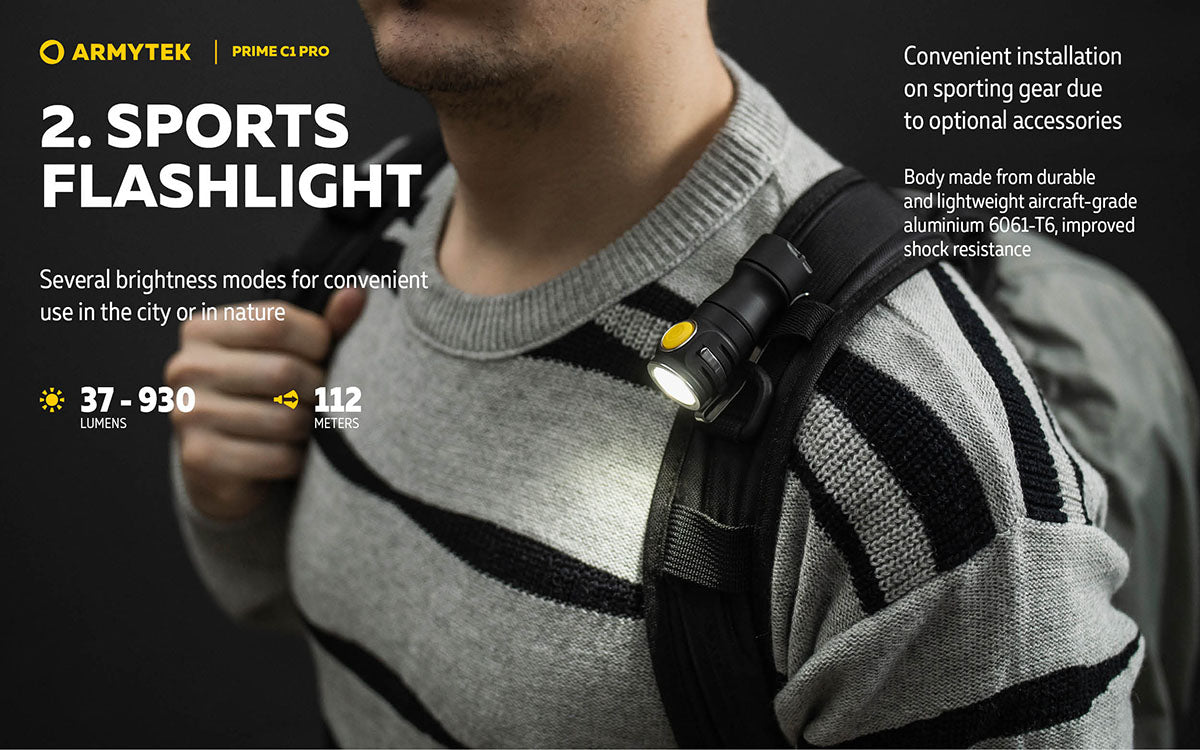

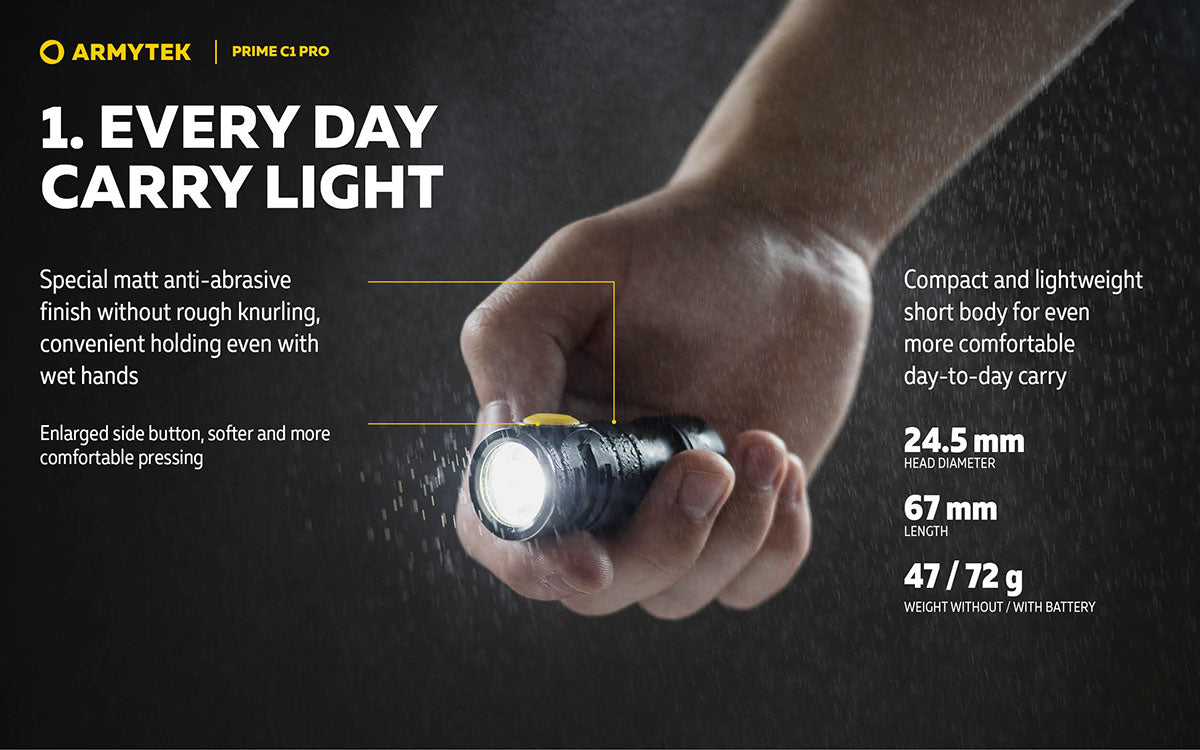

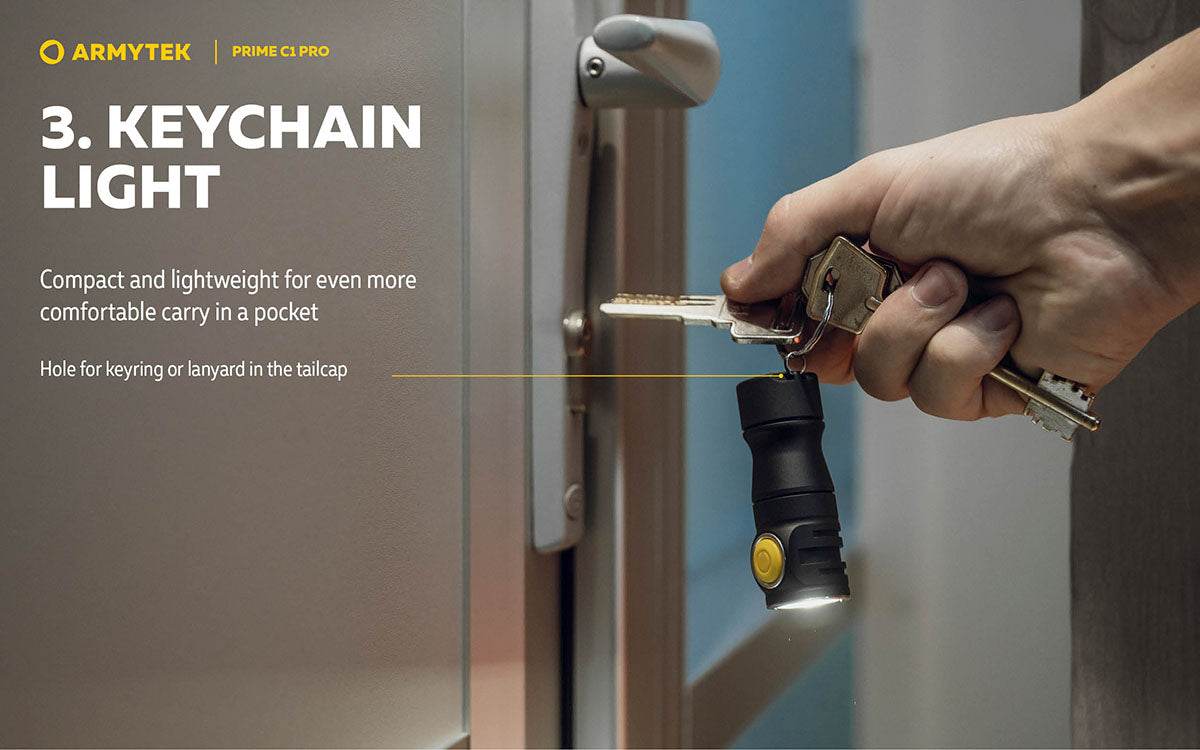

The Prime C1 Pro can be used in various ways to suit many activities. The torch can be used as an every day carry with a steel clip included and magnetic base allowing for hands free illumination. The special matt anti-abrasive finish and rough knurling allows for strong grip even in in wet conditions. Or it is also perfect for sporting activities as it works seamlessly with a range of accessories and is easily mounted. The body is made from durable materials and is shock resistant. Alternatively you are able to use the Prime C1 Pro as a keyring light as it features a hole for a a keyring or lanyard and is compact and lightweight.

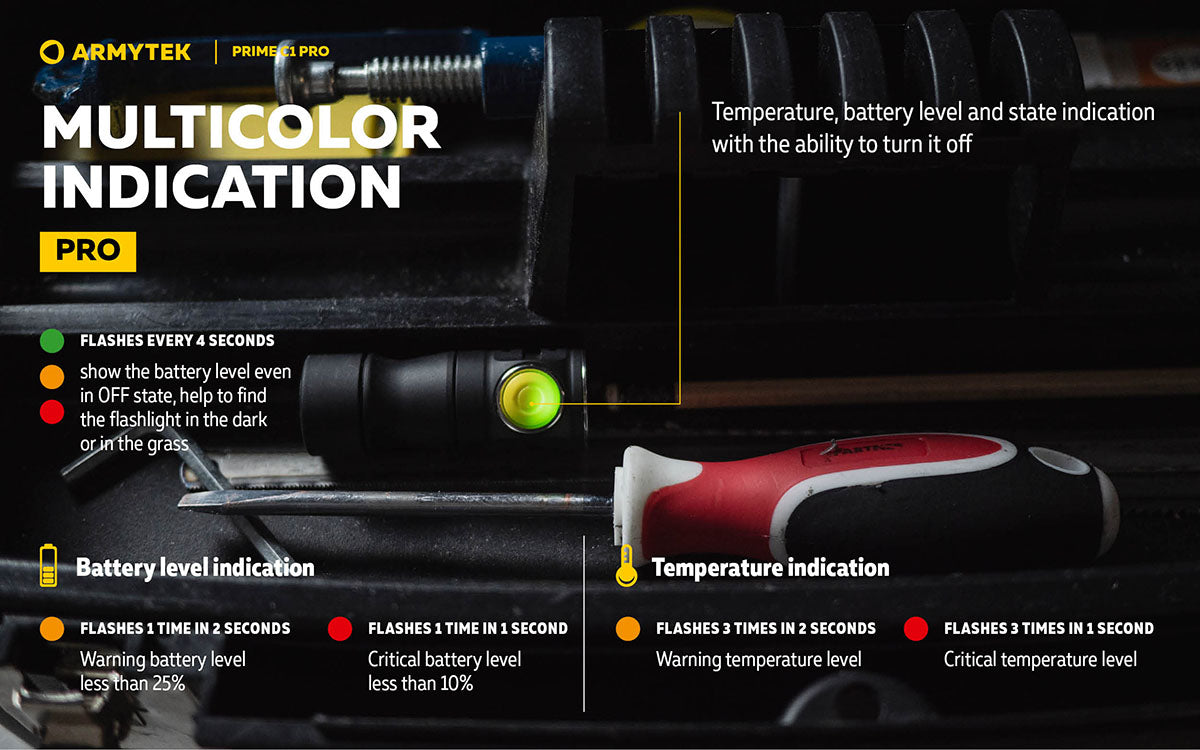

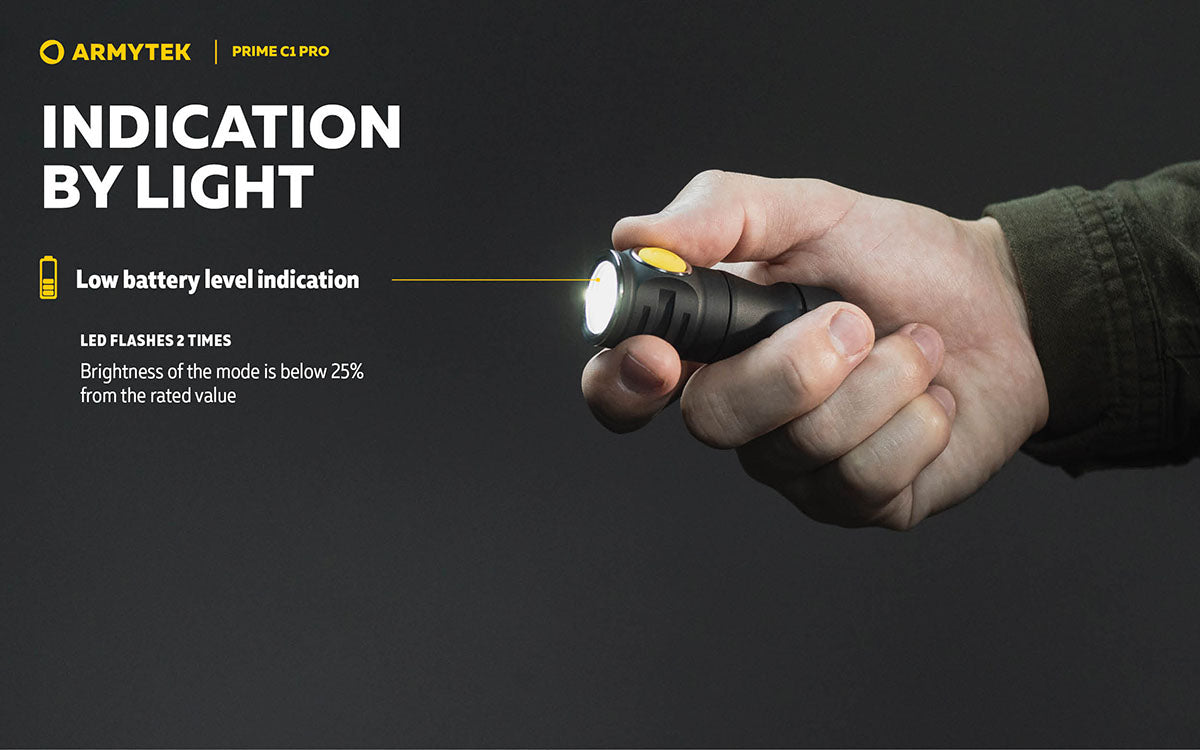

It also features a battery level and temperature indicator. The battery indicator will flash green every four seconds to show the torch is above 25% battery level, orange once within two seconds, warning that the battery is less than 25%. One red flash within one second means the battery level is critical and below 10%. The temperature indicator will flash orange three times within two seconds as a warning. Three red flashes within one second indicates the temperature level is critical.

The indicator is turned off in firefly modes by default but you are able to turn on or off the indicator by unscrewing the tail cap by 1/4 while the torch is off, then holding the side button while retightening and unscrewing the tail cap again.

Operational Modes

Cool White:
Turbo 2:
1000 lumens; 2 minutes 20, seconds run-time
350 lumens; 1 hour, 25 minutes run-time*

Turbo 1: 350 lumens; 1 hour, 35 minutes run-time
Main 3: 210 lumens; 2 hours, 35 minutes run-time
Main 2: 100 lumens; 6 hours, 30 minutes run-time
Main 1: 40 lumens; 15 hours run-time
Firefly 3: 8 lumens; 2.2 days run-time
Firefly 2: 2.5 lumens; 5 days run-time
Firefly 1: 0.15 lumens; 40 days run-time
Strobe 3: 1000 lumens; 2 hours, 20 minutes run-time; 10 Hz
Strobe 2: 1000 lumens; 3 hours, 35 minutes run-time; 1 Hz
Strobe 1: 100 lumens; 29 hours run-time; 1 Hz

Warm White:
Turbo 2:
930 lumens; 2 minutes 20, seconds run-time
325 lumens; 1 hour, 25 minutes run-time*

Turbo 1: 325 lumens; 1 hour, 35 minutes run-time
Main 3: 195 lumens; 2 hours, 35 minutes run-time
Main 2: 93 lumens; 6 hours, 30 minutes run-time
Main 1: 37 lumens; 15 hours run-time
Firefly 3: 7.4 lumens; 2.2 days run-time
Firefly 2: 2.3 lumens; 5 days run-time
Firefly 1: 0.14 lumens; 40 days run-time
Strobe 3: 930 lumens; 2 hours, 20 minutes run-time; 10 Hz
Strobe 2: 930 lumens; 3 hours, 35 minutes run-time; 1 Hz
Strobe 1: 93 lumens; 2 hours run-time; 1 Hz

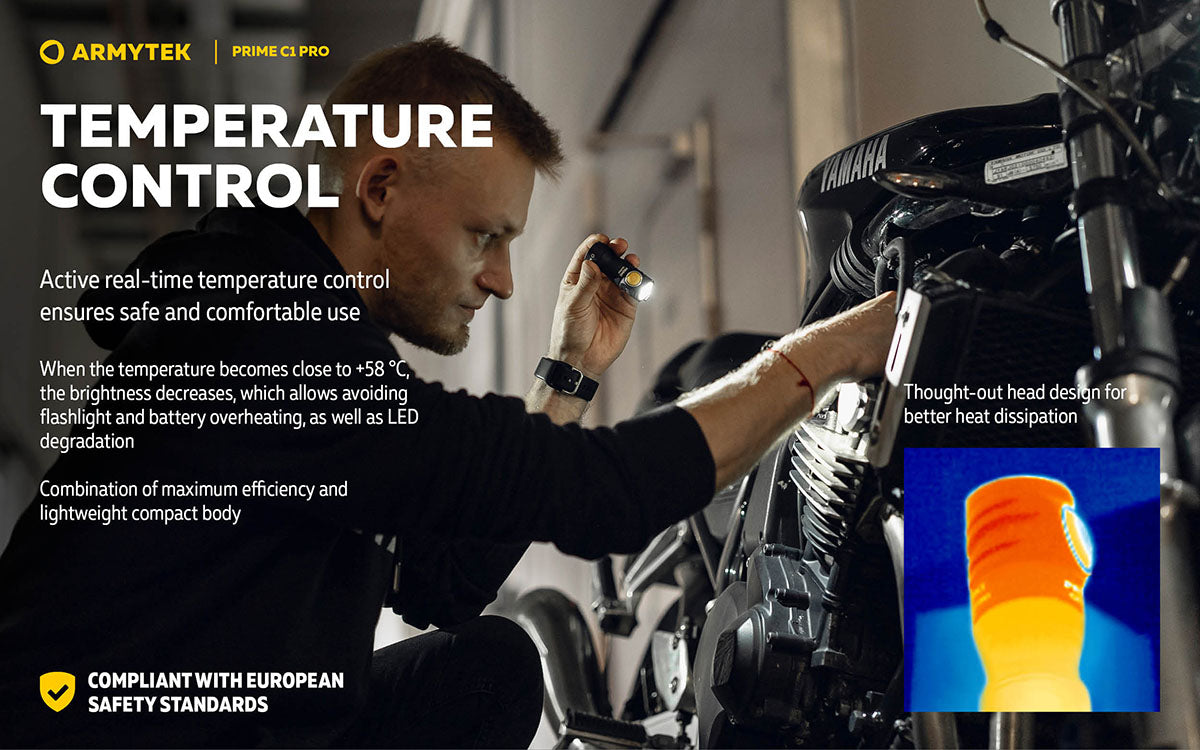

*The turbo 2 setting will decrease the lumen output after 2 minutes and 20 seconds to prevent the LED from overheating.

The above results are based on ANSI/NEMA FL1-2009 standard and are tested using the included battery.

Technical Details

Type: Hand-held LED torch
Operating Modes: Turbo 2 / Turbo 3 / Main 3 / Main 2 / Main 1 / Firefly 3 / Firefly 2 / Firefly 1 / Strobe 3 / Strobe 2 / Strobe 1
Luminous Flux: Up to 1000 lumens
Lamp Type: White LED
Beam Range: Up to 114 m
Batteries Required: 1 x 900 mAh 13650 lithium-ion (included)
Overall Length: 67 mm
Bezel Diameter: 24.5 mm
Body Diameter: 24.5 mm
Weight: 47 grams (including battery)
Body Colour: Black
Body Material: Aluminium alloy
Body Finish: Type III hard-anodised
Switch Type: Side mounted and tactical tail switch
Impact Resistance: 10 m

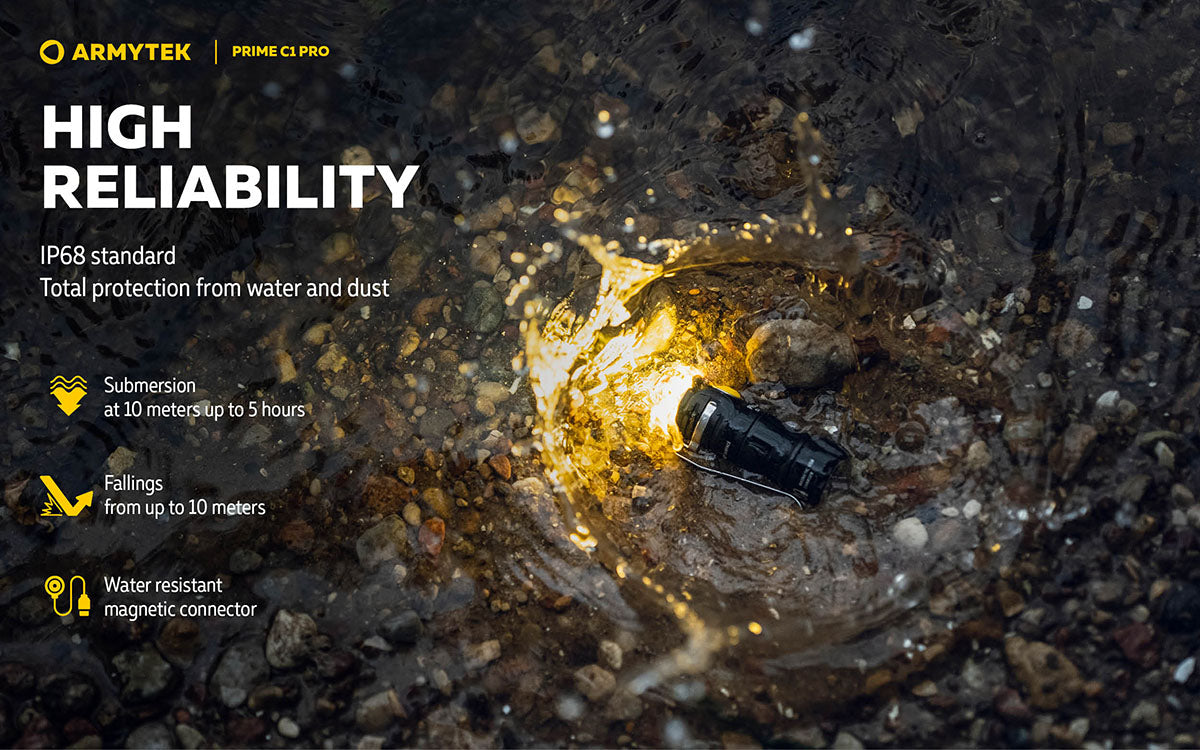

Environmental: IPX8
Warranty: 10 years manufacturer warranty

Packaging and Contents

Supplied in retail packaging and contains:
Armytek Prime C1 Pro torch x 1
Armytek 18350 900 mAh lithium-ion battery x 1
Magnetic USB charging cable x 1
Clip x 1
Wrist lanyard x 1
Spare O-rings x 2
Manual x 1
