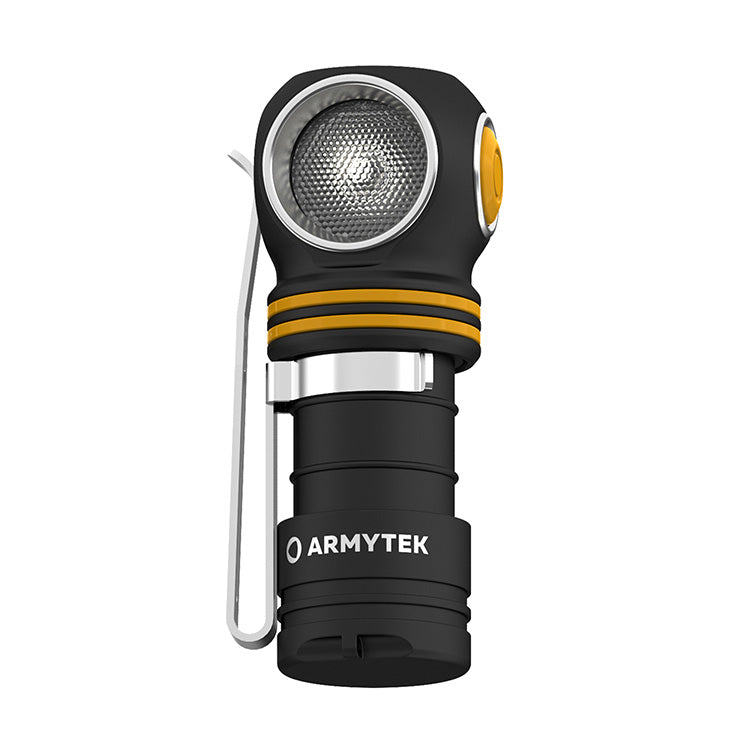

Armytek Elf C1 EDC Rechargeable LED Torch

The Armytek Elf C1 is a compact torch perfect for everyday carry with an output of up to 1000 lumens from a small compact body.

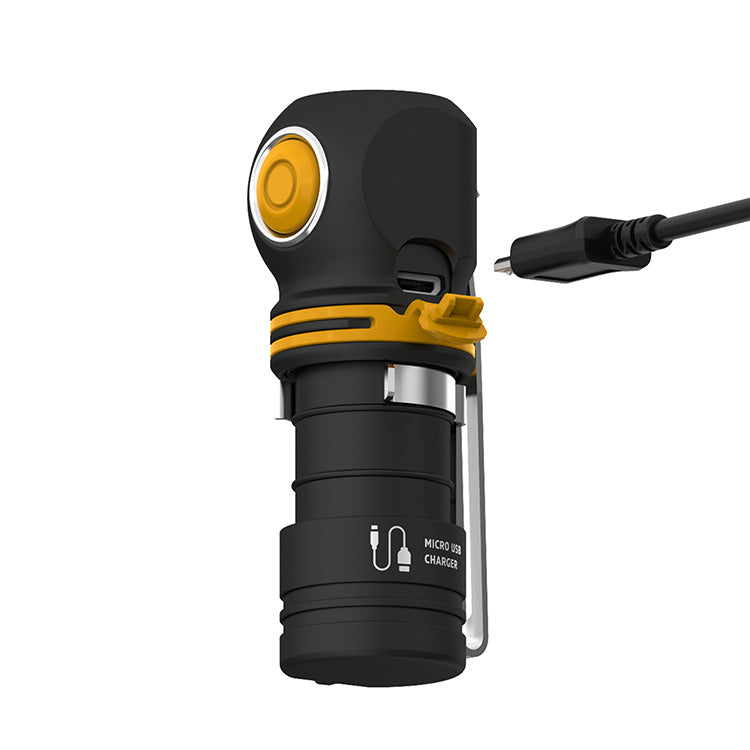

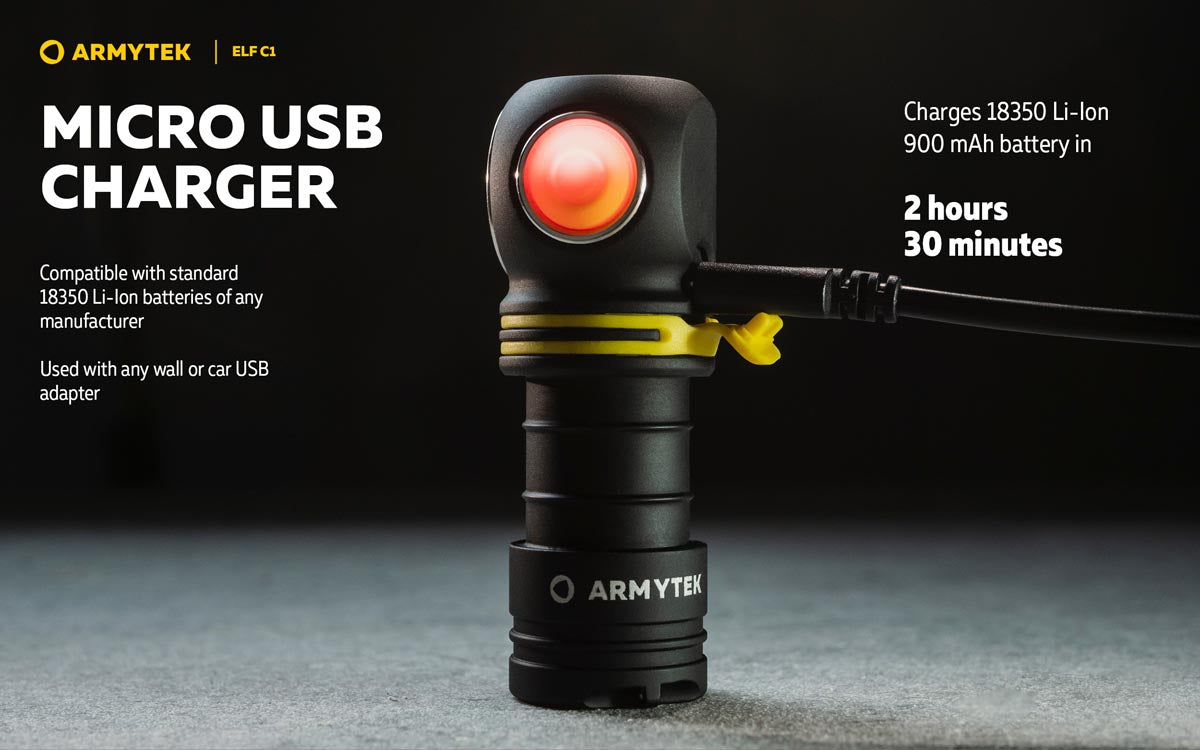

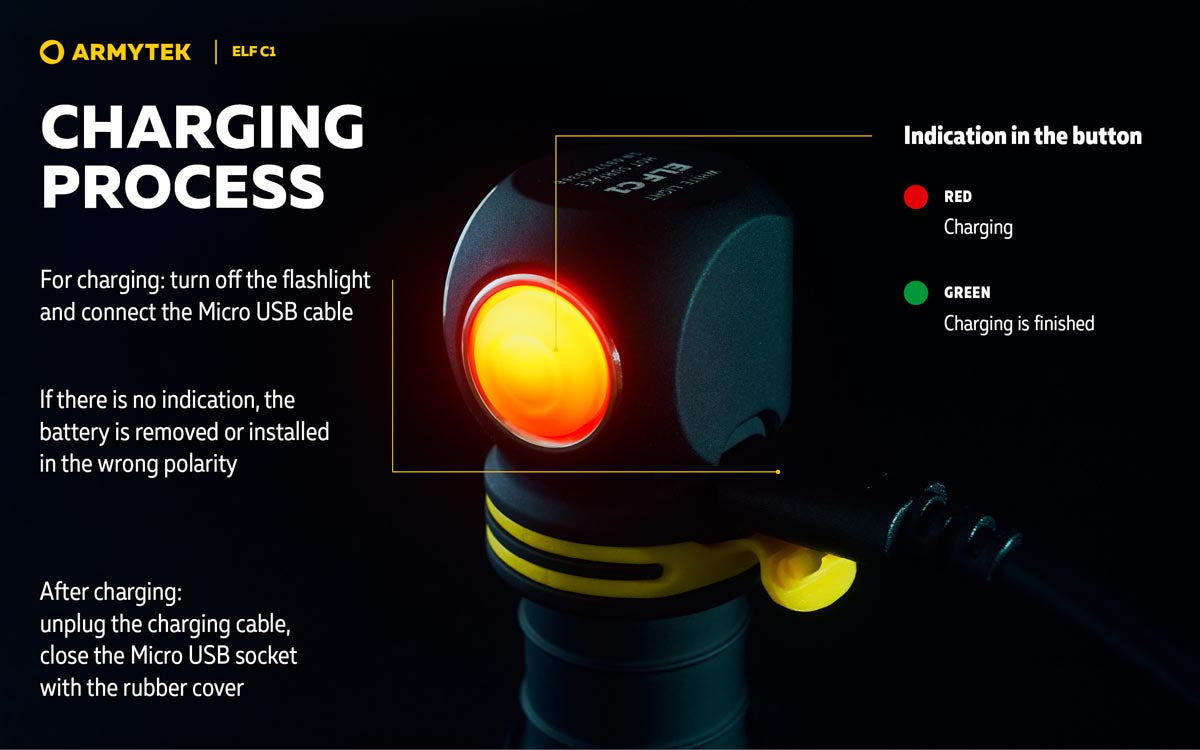

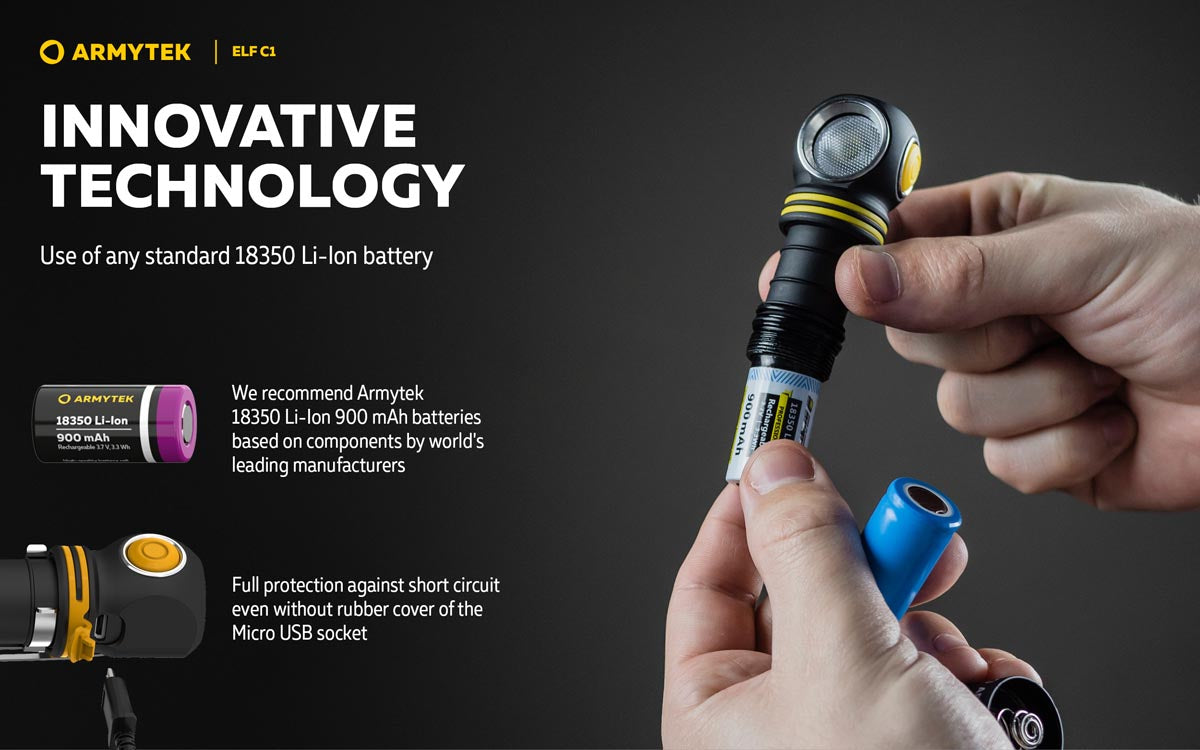

The Elf C1 is powered by the included Armytek 18350, 900 mAh lithium-ion battery. To charge the torch remove the dust cover on the neck of the torch before connecting the micro USB included charger. Plug the charger into a suitable USB power outlet and the indicator will flash red while charging is in progress and turn green once charging is complete.

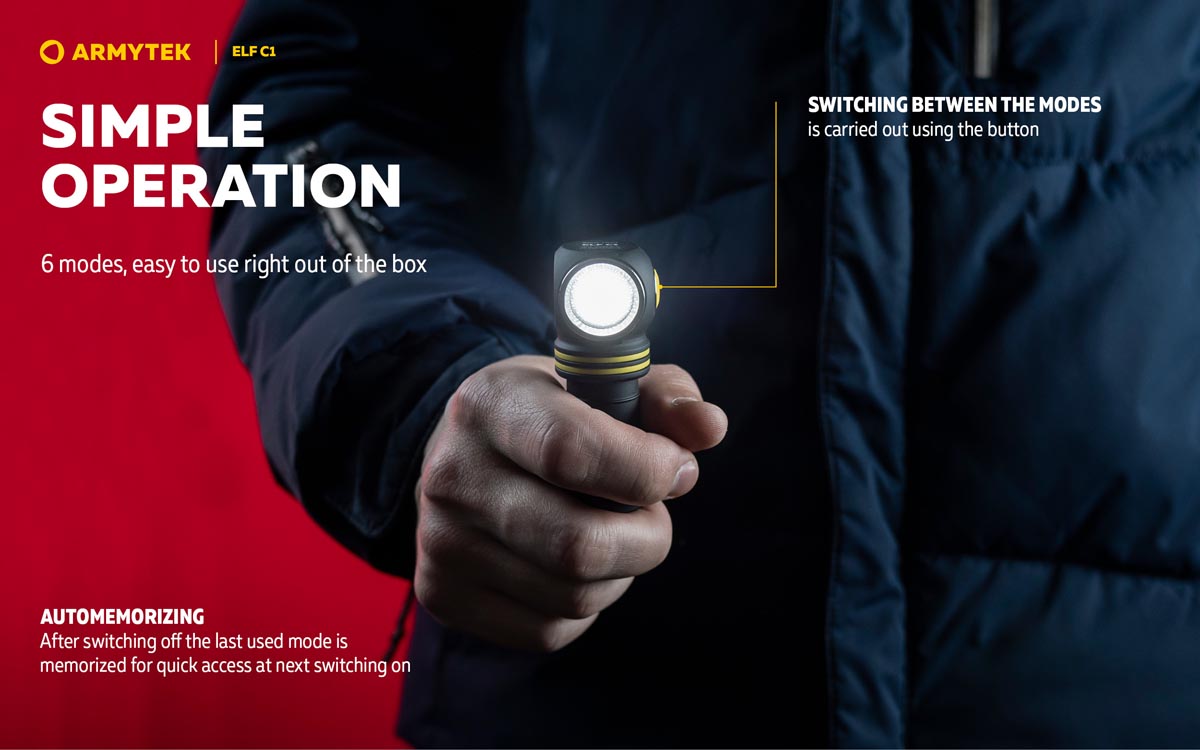

To turn the torch on or off press the side button, thanks to the memory function the torch will turn on in the last used output. Press and hold the button while the torch is off to cycle through the outputs of firefly 1 and firefly 2. Release the button in the desired output or continuing to hold will cycle through the main 1, main 2 and main 3 outputs. Press and hold the button while the torch is on and the torch will cycle through the main modes, release in the desired output.

To access the turbo output simply double press the button while the torch is on in any output. The next double press of the button returns the torch to the previous output.

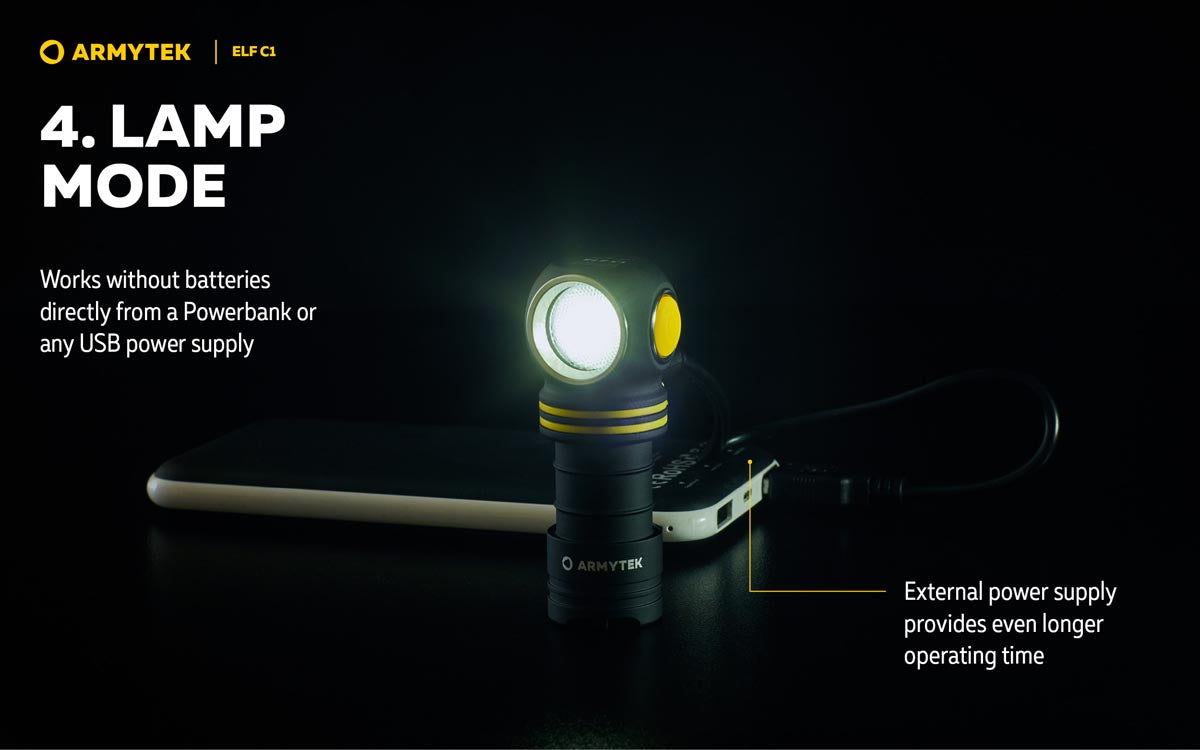

The Elf C1 features lamp mode which works without a battery, perfect for when the batteries is running low. Simply remove the battery and connect the charger. Press once to turn the torch on or off and press and hold to cycle through the firefly 1, firefly 2 and main 1 outputs.

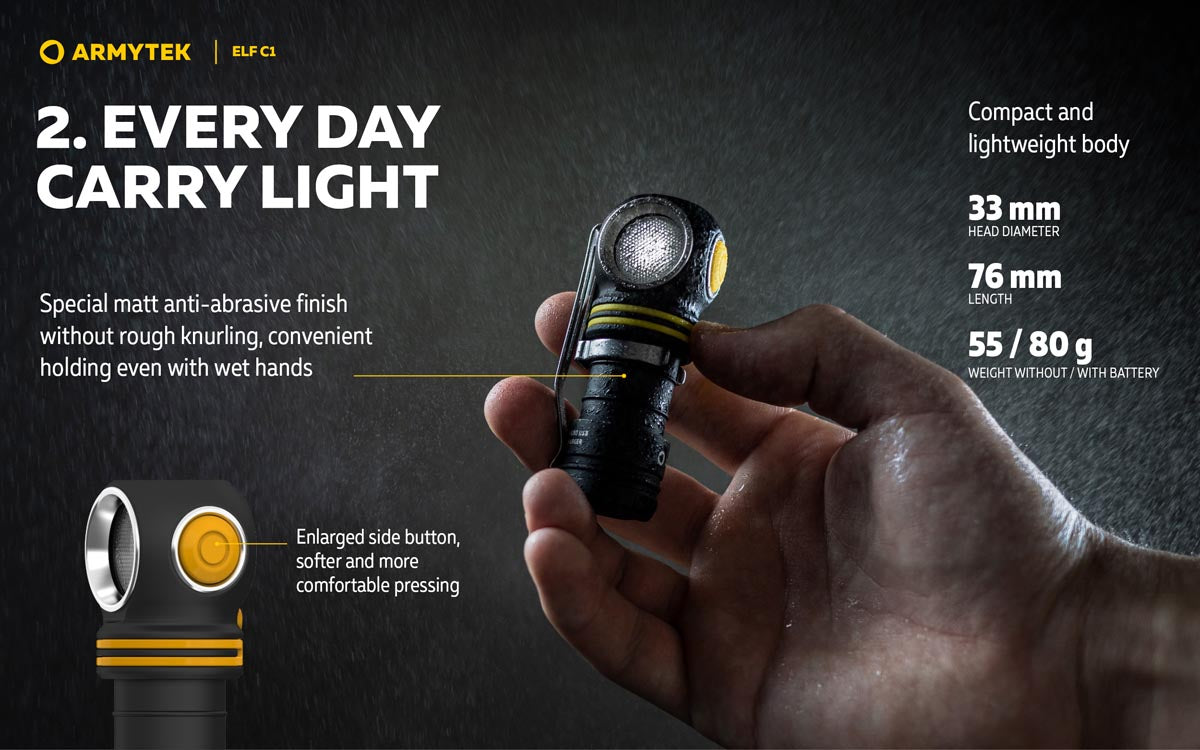

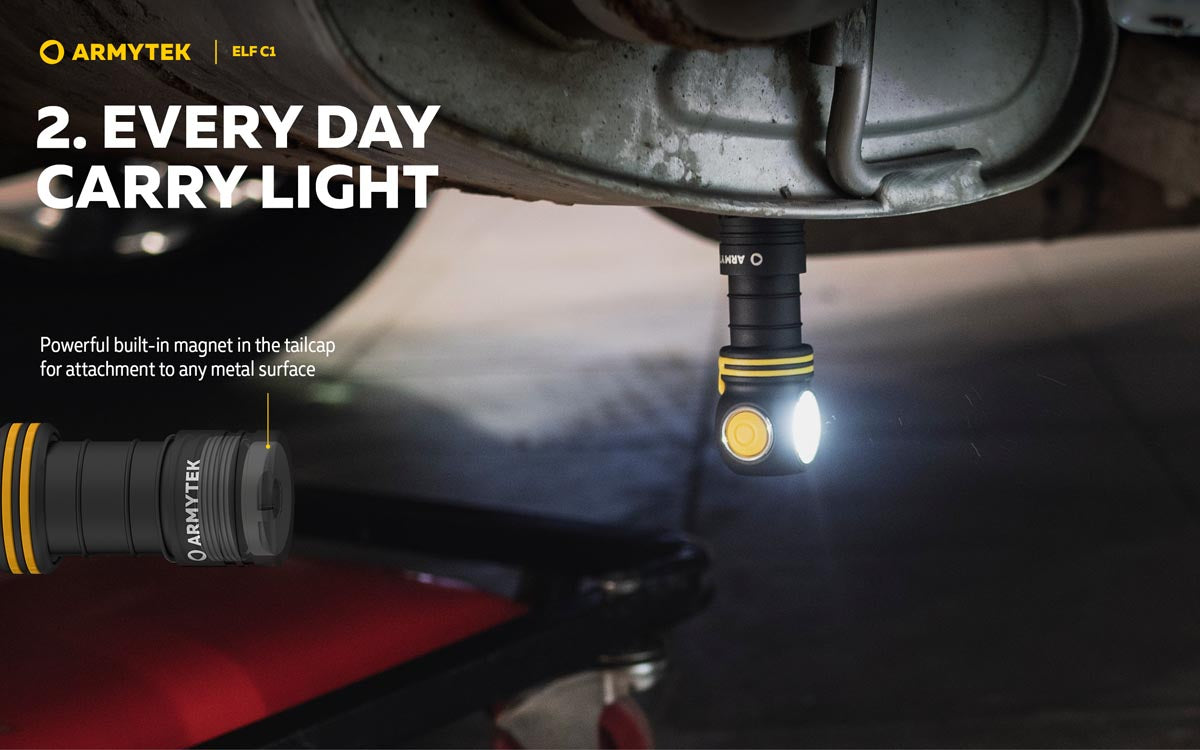

The Elf C1 can be used in various ways to suit many activities. The torch can be used as an every day carry with a steel clip included and magnetic base allowing for hands free illumination. The special matt anti-abrasive finish and rough knurling allows for strong grip even in in wet conditions. Or it is also perfect for sporting activities as it works seamlessly with a range of accessories and is easily mounted. The body is made from durable materials and is shock resistant. Alternatively you are able to use the Elf C1 as a keyring light as it features a hole for a a keyring or lanyard and is compact and lightweight.

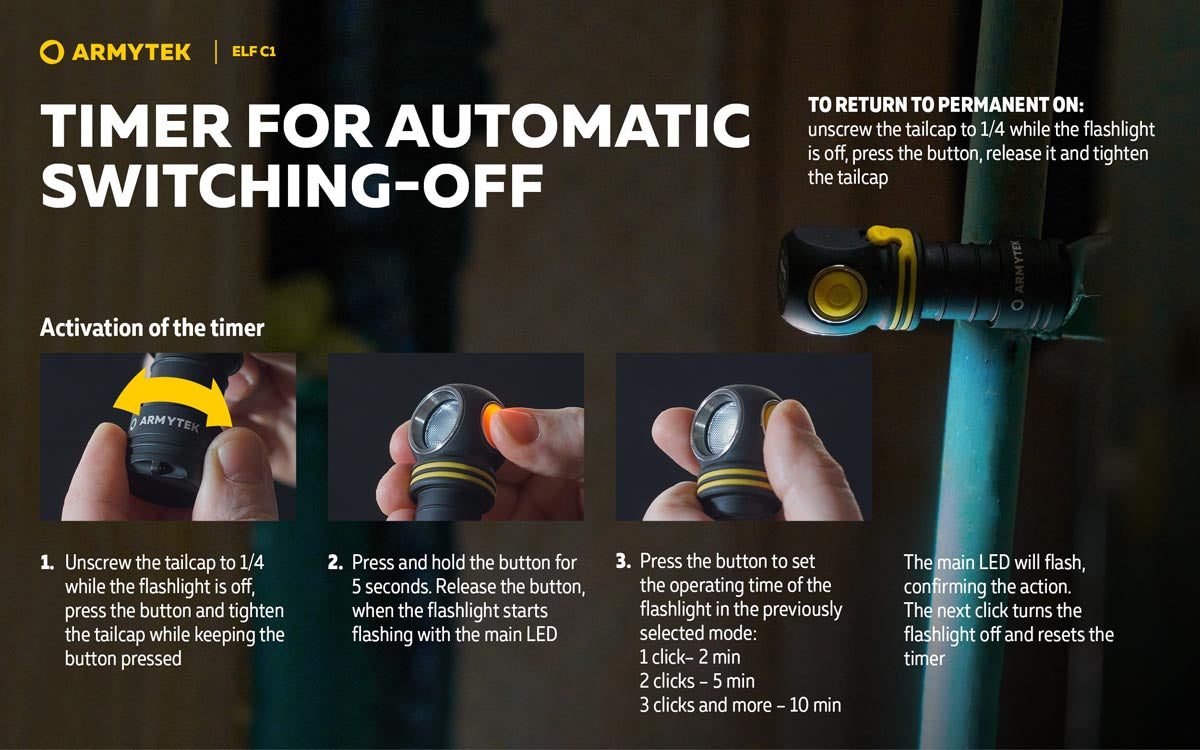

The Elf C1 features a timer to automatically switch off the torch, perfect for hand free use. To activate, unscrew the tail cap to 1/4 while the torch is off. Then press and hold the button while retightening the tail cap. Press and hold the button for another 5 seconds and release when the torch begins flashing to indicate it is ready to set the timer. Press once for 2 minutes, twice for 5 minutes and 3 or more for 10 minutes.

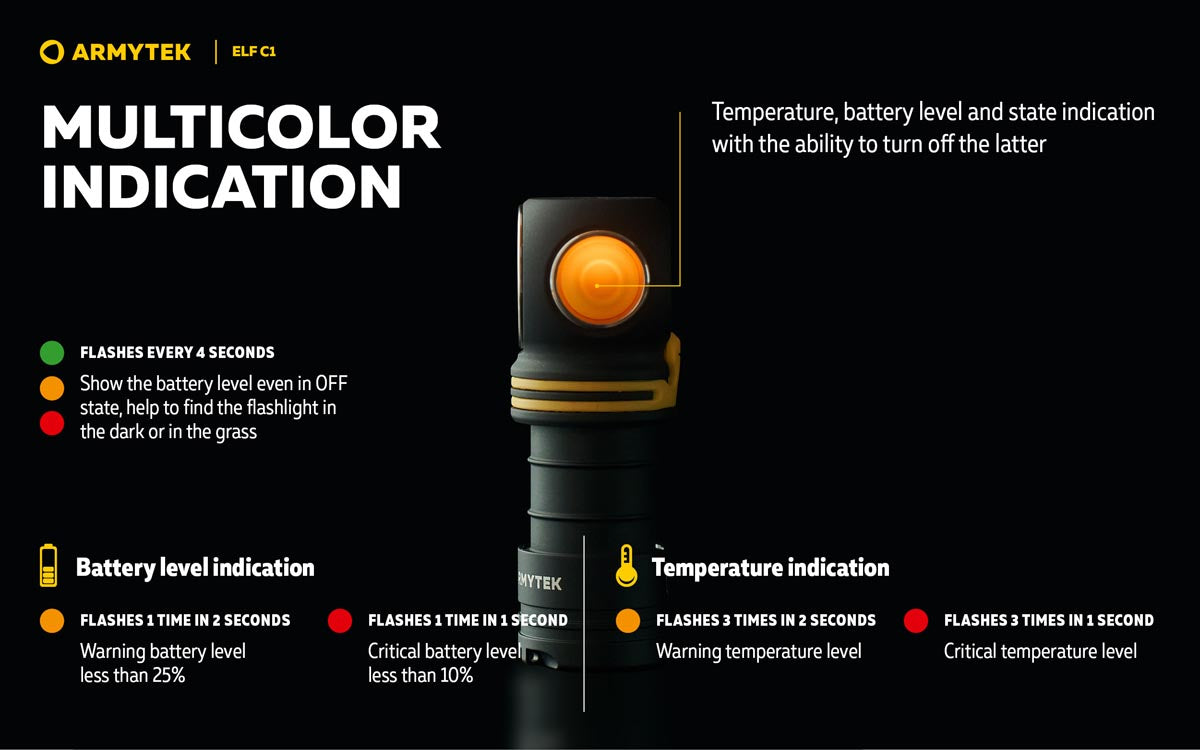

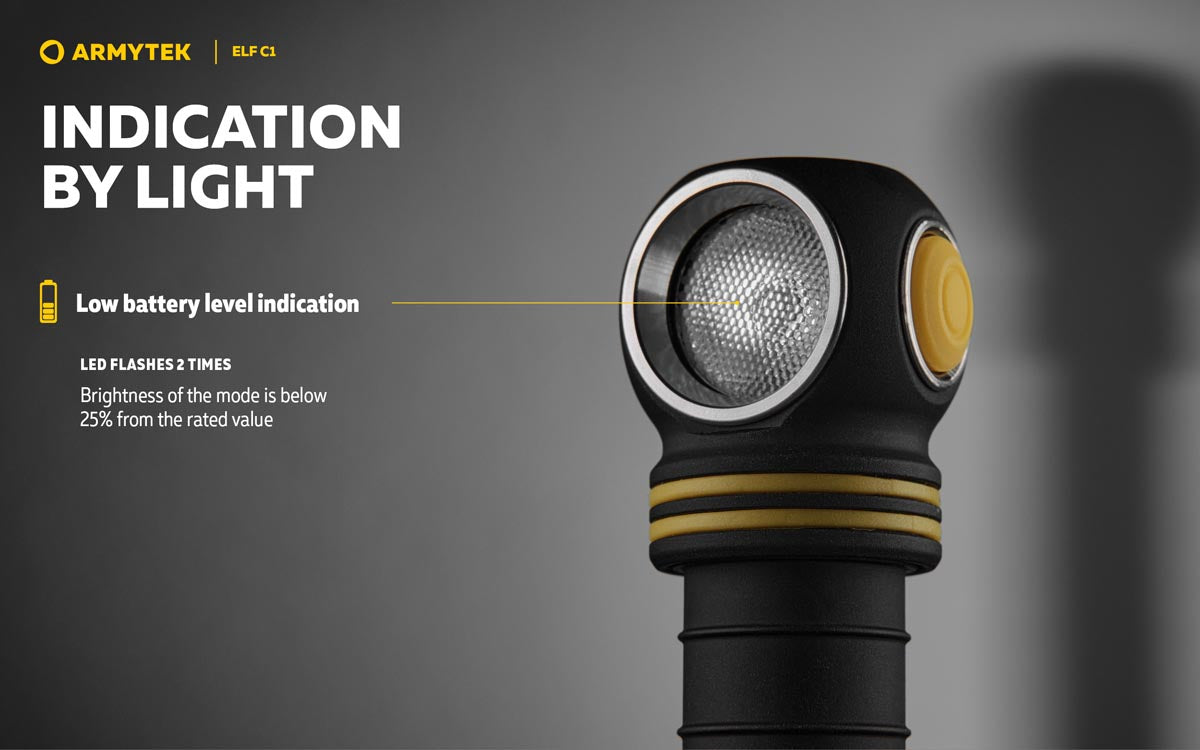

It also features a battery level and temperature indicator. The battery indicator will flash green every four seconds to show the torch is above 25% battery level, orange once within two seconds, warning that the battery is less than 25%. One red flash within one second means the battery level is critical and below 10%. The temperature indicator will flash orange three times within two seconds as a warning. Three red flashes within one second indicates the temperature level is critical.

Operational Modes

Turbo: 1000 lumens; 52 minutes run-time; 103 m beam range*
Main 3: 500 lumens; 1 hours, 11 minutes run-time
Main 2: 220 lumens; 3 hours run-time
Main 1: 40 lumens; 15 hours run-time
Firefly 2: 2 lumens; 8 days run-time
Firefly 1: 0.11 lumens; 60 days run-time

*The turbo setting will decrease the output to 530 lumens after 4 minutes to prevent the LED from overheating.

The above results are based on ANSI/NEMA FL1-2009 standard and are tested using the included battery.

Technical Details

Type: Hand-held LED torch
Operating Modes: Turbo / Main 3 / Main 2 / Main 1 / Firefly 2 / Firefly 1
Luminous Flux: Up to 1000 lumens
Lamp Type: White LED
Beam Range: Up to 103 m
Batteries Required: 1 x 900 mAh 18350 lithium-ion (included)
Overall Length: 79.5 mm
Bezel Diameter: 33 mm
Body Diameter: 20.4 mm
Weight: 56 grams (including battery)
Body Colour: Black
Body Material: Aluminium alloy
Body Finish: Type III hard-anodised
Switch Type: Tail switch
Impact Resistance: 10 m
Environmental: IPX8
Warranty: 10 years manufacturer warranty

Packaging and Contents

Supplied in retail packaging and contains:
Armytek Elf C1 torch x 1
Armytek 18350 lithium-ion battery x 1
Micro USB cable x 1
Clip x 1

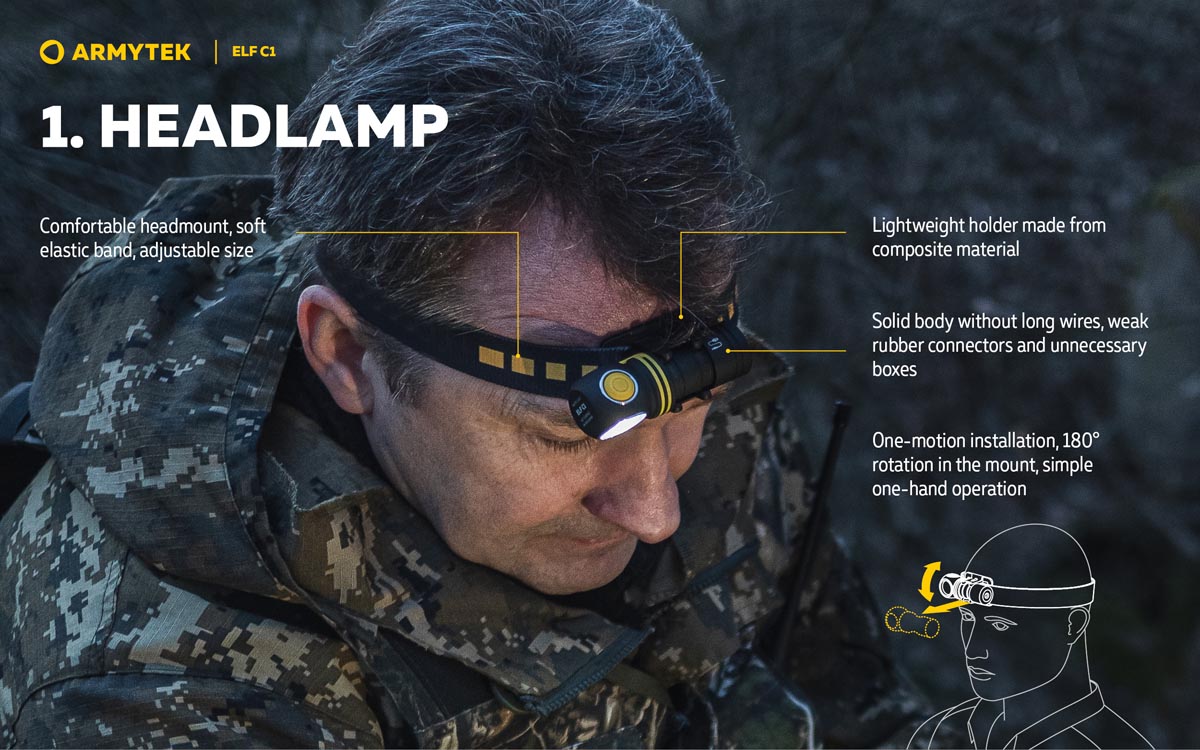

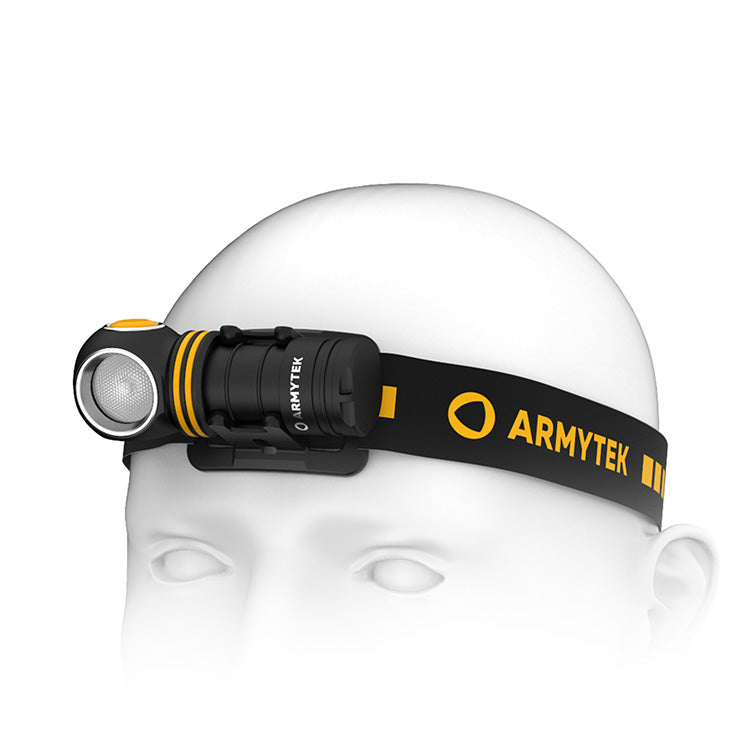

Head mount x 1
Spare O-ring x 1
User manual x 1
