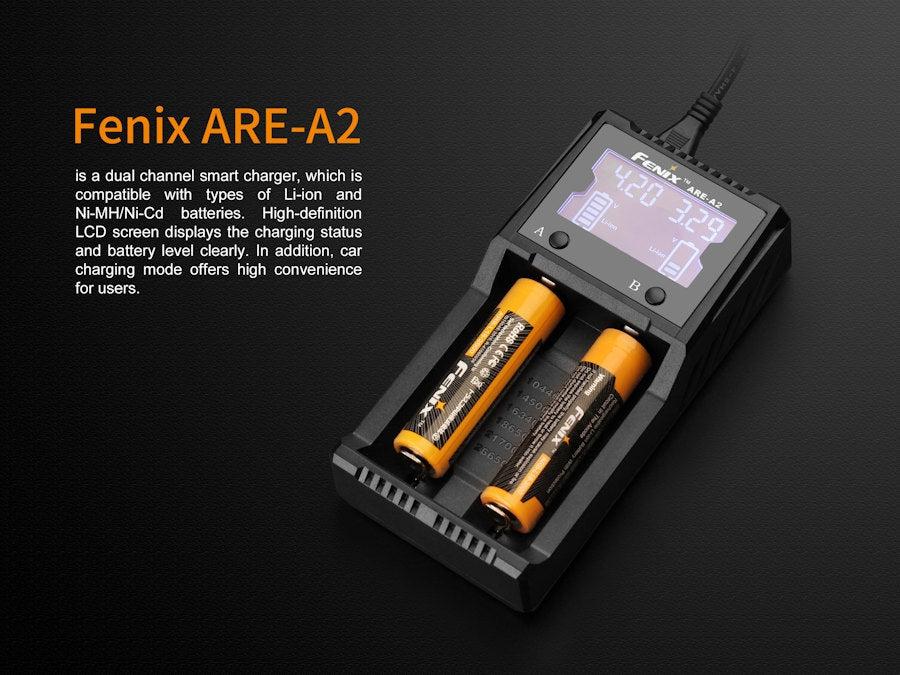

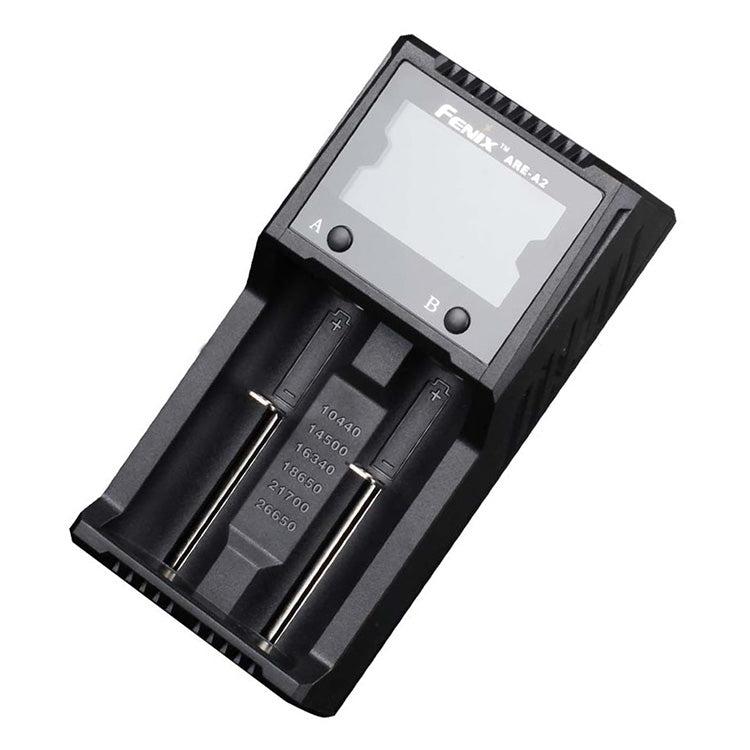

Fenix ARE-A2 Dual Bay Li-ion/NiMH Battery Charger

The Fenix ARE-A2 is the replacement for the best selling ARE-C1+ and has now been upgraded to be able to charge 21700 lithium-ion batteries as well as the same batteries as before. It features two independent charging channels capable of charging a range of lithium-ion and NiMH/NiCd batteries.

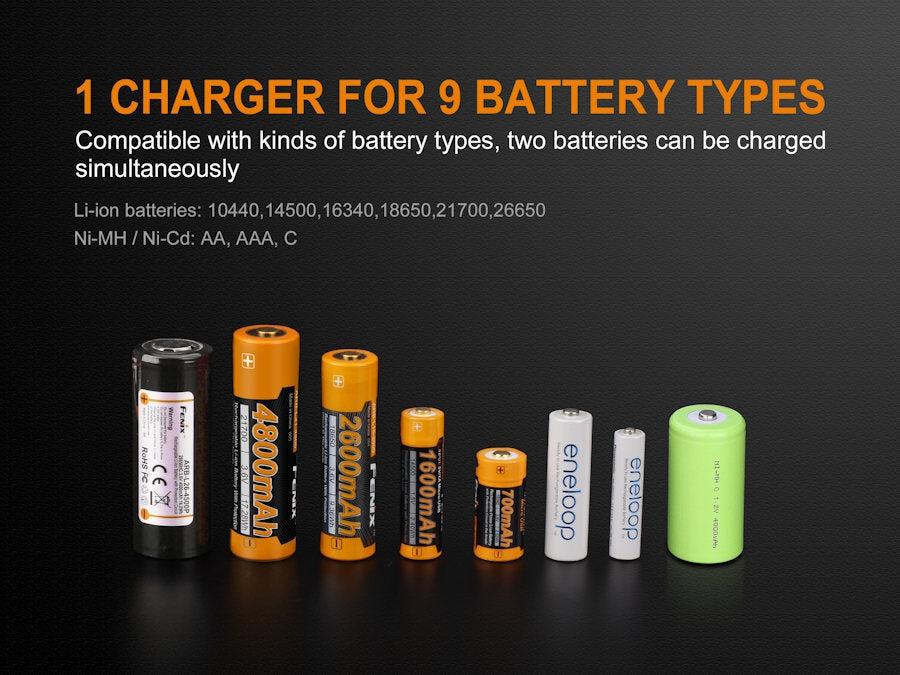

The ARE-A2 is suitable for charging the following batteries;

NiMH/NiCd 1.2 V batteries:
AAA, AA and C cell

Lithium-ion 3.6/3.7 V batteries:
10440, 14500, 16340/RCR123A, 18650, 26650 and 21700

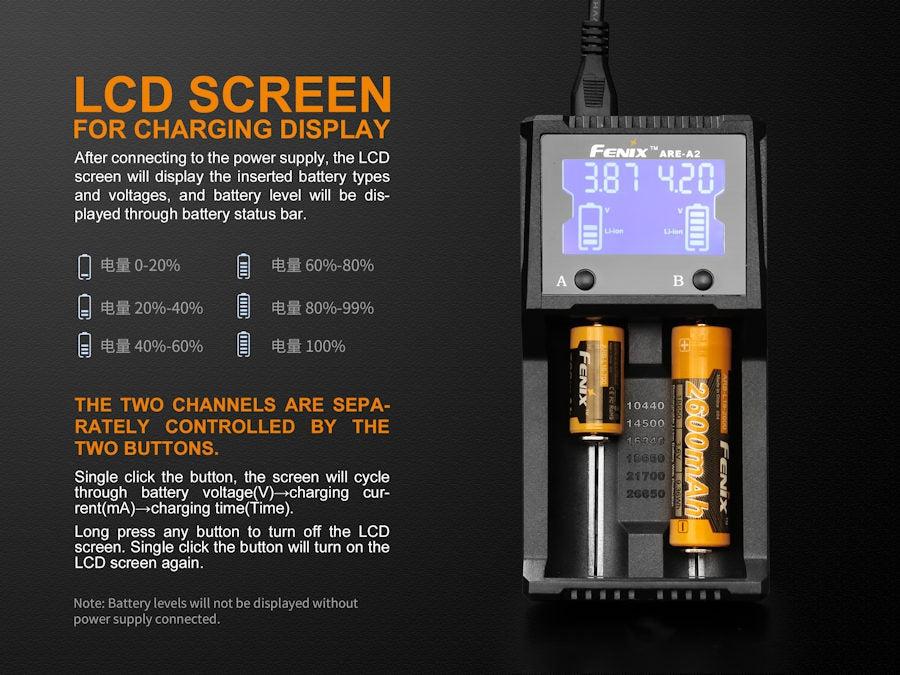

Because each charging bay is independent you can charge two different battery types at once. While connected to the power supply the LCD screen will display the battery level of the inserted battery via the battery status bar and also display the battery chemistry (Li-ion / Ni-MH).

The button above each charging bay changes the charging stats for that bay, cycling through battery voltage, charging current and charging time with each press. A long press will turn off the LCD screen off.

Supplied with a UK mains cable. The Fenix ARW-10 car charger adaptor can be used with this battery charger, however it is sold separately.

Note: Always use in accordance with instruction manual and read before first use.

Product Features

2 independent charging channels
AC and DC charging options
LCD display of charge status and battery level
Short circuit protection
Over current protection
Reverse polarity protection
Over voltage protection

Charger Specifications

Input: 100 - 240 V AC, 50-60 Hz, 0.35 A (max) / 12 V - 24 V DC, 1 A (max)
Rated Output Power: 3 W NiMH/NiCd, 8.4 W Li-ion
Output: 4.2 V Li-ion / 1.5 V NiMH, 1 A
Operating Temperature: -20 ℃ to 50 ℃
Operating Humidity: 5% to 90%
Storage Conditions: Temperature: -20 ℃ to 80 ℃
Dimensions: 149 mm (L) x 75 mm (W) x 40.5 mm (H)
Weight: 178 grams

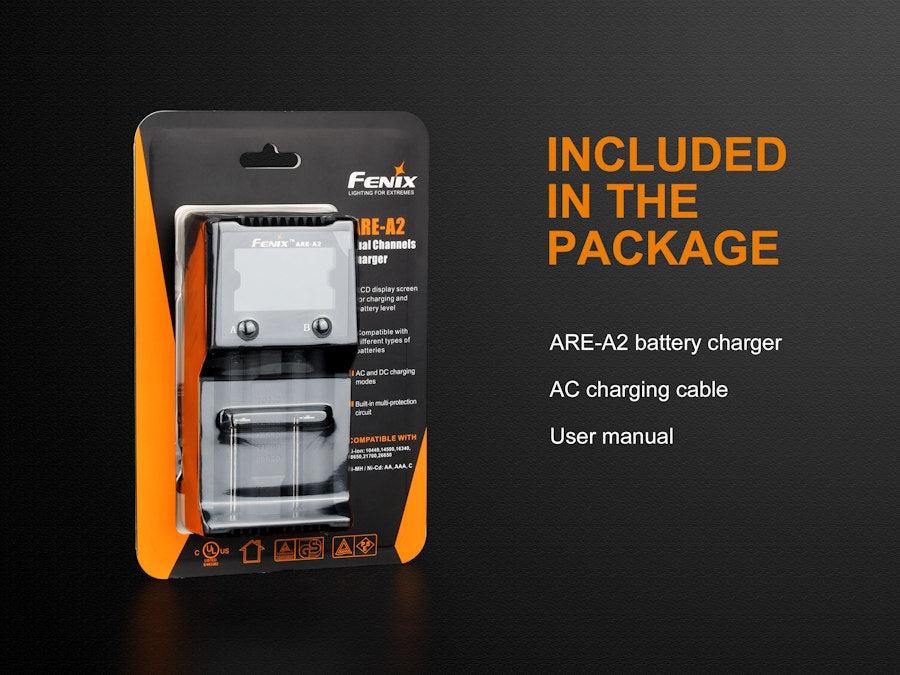

Packaging and Contents

Supplied in retail packaging and includes:
Fenix ARE-A2 two bay charger x 1
UK mains adaptor x 1
Manual x 1

Safety Notes

1. Charge only rechargeable 1.2 V NiMH/NiCd or 3.6 / 3.7 V Lithium-ion batteries.
2. Charging any other types of batteries may cause them to leak rupture or explode.
3. Do not disassemble, modify any part of the charger or attempt to use as a power source.
4. Always unplug the charger from outlet before attempting maintenance or cleaning.
5. This charger should not be used by children or persons without adequate training or knowledge.
